Description
Description:

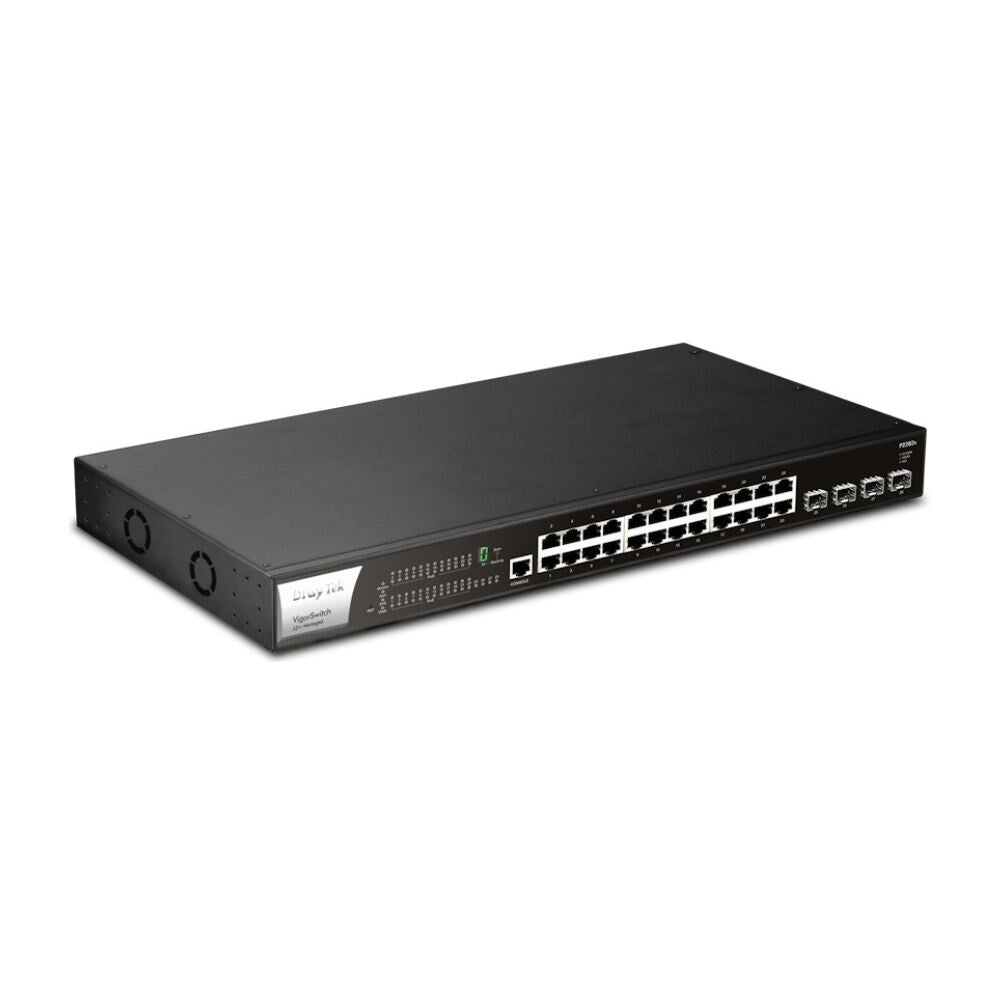

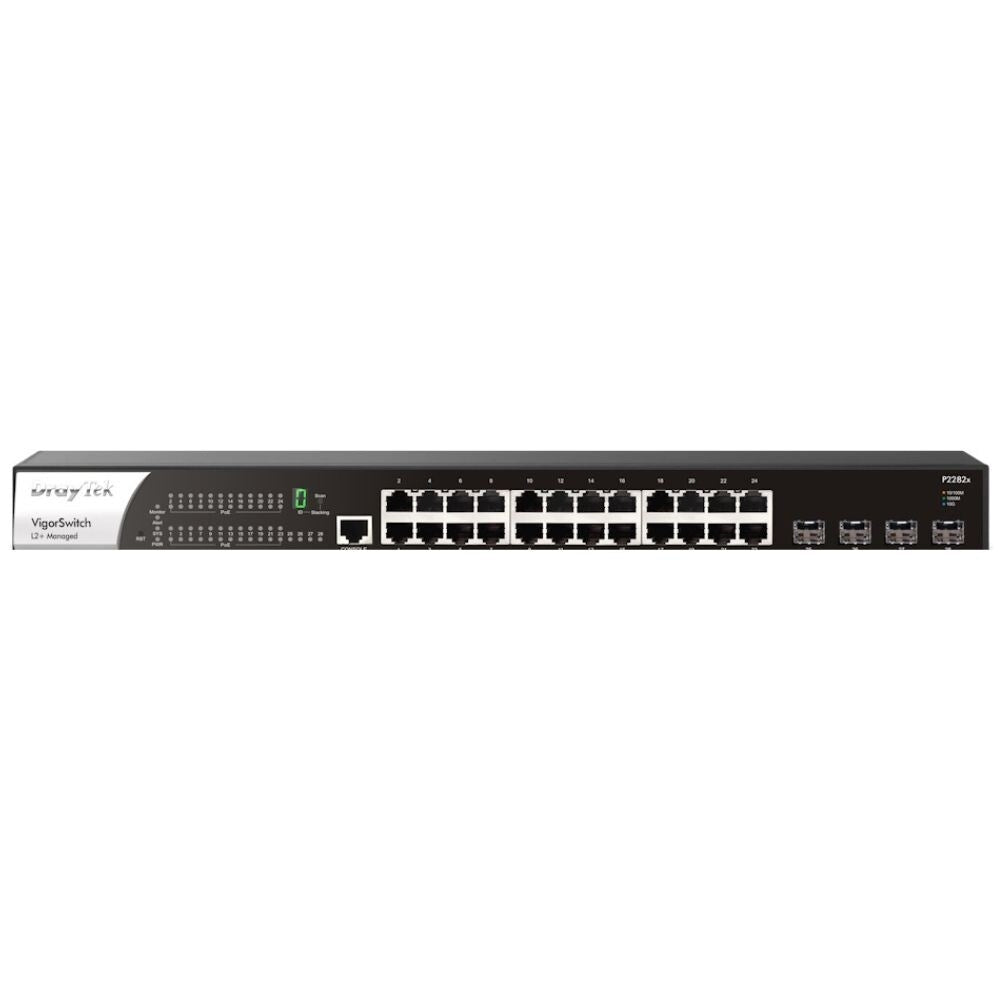

The DrayTek VigorSwitch P2282x from DrayTek is a high performance L2+ managed Gigabit ethernet switch. With 24 PoE, RJ-45 LAN ports and four 10 Gigabit ethernet SFP+ ports for high bandwidth uplinks to servers, network attached storage and switches.
This switch allows easy powering and connection of multiple devices such as IP cameras, wireless access points and VoIP phones.
The VigorSwitch P2282x provides power through Ethernet to each of the 24 PoE or PoE+ enabled Gigabit LAN ports. PoE scheduling, priority and monitoring features ensure your PoE devices are powered and working.
With a total power output of 400W, ensuring stable and efficient power distribution, eliminating the need for additional power cables and adapters. The switch is also equipped with advanced management features, including VLAN support, QoS prioritization, and remote monitoring, making it ideal for use in small to medium sized businesses and enterprise environments.

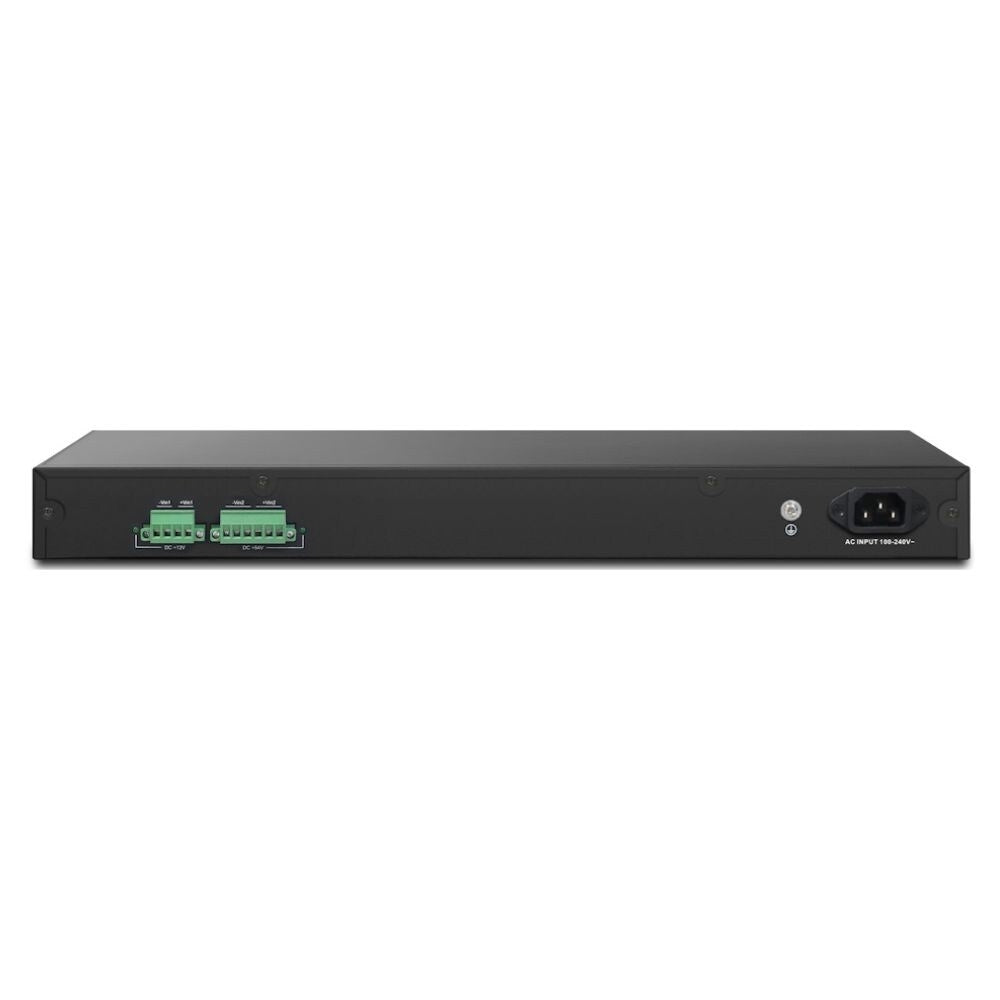

DrayTek's cutting edge networking switch with power redundancy options allows seamless operation and minimised downtime. This versatile switch comes equipped with both DC and AC power options, providing ultimate flexibility to cater to your unique power requirements.
Designed for centralised management, the VigorSwitch P2282x can be provisioned and monitored through both the VigorACS management platform and/or a DrayTek Vigor router's central switch management. Easily provision the VLAN configuration through the router and clone switch configurations. This unit drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.
Port mirroring and link aggregation, IGMP snooping/querier, up to 256 Multicast Groups and IPv4 and IPv6 support integral to this P2282X.
The VigorSwitch P2282x also features hardware monitor with smart fan control and centrally managed or standalone operation.
Features:
- 24 x RJ-45 Gigabit ethernet ports with PoE+
- 4 x SFP+ 10GbE ports for uplink or fibre
- PoE for IP phones, wireless access points and IP cameras etc
- Generous power budget of a total of 400W
- 802.3af (PoE) and 802.3at, high power PoE
- 802.1q VLANs (Tag, Port and MAC based)
- VLAN routing and static route with DHCP server/relay
- Virtual router redundancy protocol
- QoS for application traffic prioritisation
- 802.1x RADIUS / TACACS+ port authentication with accounting
- Voice VLAN for QoS (OUI mode)
- Access Control List (ACL)
- Port mirroring and link aggregation
- IGMP snooping/querier (Up to 256 Multicast Groups)
- IPv4 and IPv6 support
- Hardware monitor with smart fan control
- Centrally managed or standalone operation
- Console port
- Stacking Scan Button Note: Available in future firmware release
Specifications:
| 10/100/1000 RJ45 Ports | 24 RJ-45 |
| Uplink Ports | 4 x SFP+ |
| PoE Power | 400W |
| PoE+ Enabled Ports 802.3af/at | 24 |
| PoE Max Per Port | 30W |
| Throughput | 128 Gbps |
| Forwarding Rate | 95.2 Mpps |
| Fan | Dual Smart Fan |
| Switch Management | VigorACS Cloud Management VigorConnect Central Switch Management for Vigor Routers |
| Switch Management Interface | Console Cable |
| Power Supply | 100-240VAC |
| Environment | Operating Temperature: 0°C / 32°F to 45°C / 113°F Storage Temperature: -20°C / -4°F to 70°C / 158°F |
| Rack Size | 1U |
| Dimensions | Height: 44mm / 1.73" Width: 440mm / 17.32" Depth: 281mm / 11.06" Rack mountable: 1U |
| Weight | Excluding SFP Modules or Cables: 4.32kg / 9.52lb |
| Included | Brackets included for rack or wall mounting and console cable |
