KRIX EXT-PHN.F PHONIX FLAT Surround On-Wall Speaker
PHONIX FLAT On-Wall
Product Key Features
• Immersive surround or ceiling effects
• Easy wall mounting
• Compact, slim design
Installed on the wall or ceiling, the Phonix Flat deliver surround effects with clarity and power, putting you in the middle of the action.
“… delivered the closest to ‘in the room’ sound we’ve yet heard from Dolby Atmos…”
– Australian Best Buys Audio & AV Magazine
Product Overview
Experience Immersion
For an all-encompassing cinema sound in a conveniently sized package, the Phonix Flat, with its slim flat baffle design, provides an immersive home theatre experience as a side surround, rear surround or ceiling effect speaker.
Best for use in 5.1, 7.1 or Dolby® Atmos™ configurations, this dedicated home cinema speaker offers high power handling with low frequency extension down to 45Hz in a neat 132mm deep package.

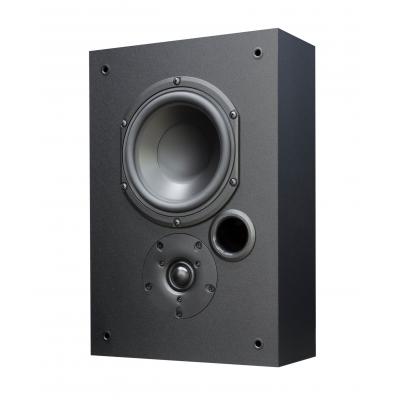

The hefty 165mm bass driver has a 33mm voice coil wound on high powered aluminium former, with ventilated spider and aluminium flux stabilisation ring for low distortion. The paper cone and surround of the bass driver have been developed to provide the smoothest possible response and a dynamic and non-fatiguing vocal mid-band.
The high frequency drive unit is a specially-damped, high power, 26mm doped fabric dome tweeter. Combined with the crossover network which has been designed and built using close-tolerance, professional-grade components, the resulting sound is exceptionally smooth and well controlled.
Complete with a braced, critically-damped enclosure, finished with a neat black cloth grille and an optional low profile mounting bracket for wall or ceiling mounting, the Phonix Flat is a versatile new benchmark for surround loudspeaker reproduction.
For the ultimate cinema experience at home, play it through Krix.
Product Specifications
• Frequency Range: 45Hz-20kHz in room response.
• Power Handling: 50-150 Watts RMS recommended amplifier power.
• Sensitivity: 88dB for 2.83 volts at 1 metre.
• Impedance: 8 Ohms.
• Configuration: 2-way.
• Enclosure Type: Bass reflex, front vented.
• Dimensions: 388mm high x 260mm wide x 132mm deep.
• Low Frequency Driver: Single 165mm (61/2”) paper cone driver. 33mm (11/4”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion.
• High Frequency Driver: 26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled.
• Crossover Point: 1.8kHz.
• Input Terminals: Gold plated binding posts.
• Weight: 6kg each.
User guides
Download User Guides:
Specification Sheet
