KRIX EXT.PHN.I

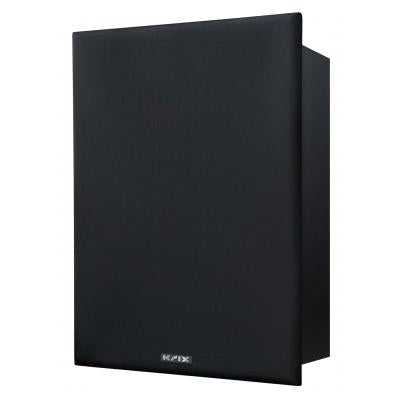

PHONIX In-Wall Surround Speaker
Product Key Features
• Immersive surround or overhead effects
• Easy in-wall mounting
• Concealed performance
With easy installation, the Phonix In-Wall delivers surround effects with clarity and power, putting you in the middle of the action.
“… real home cinema…”
– Australian Best Buys Audio & AV Magazine
Product Overview
Experience Immersion
For all-encompassing cinema surround sound in a concealed form, the Phonix In-Wall provides an immersive home theatre experience as a side surround, rear surround or ceiling effect speaker.
Best for use in 5.1, 7.1 or the new immersive sound formats, this dedicated home cinema speaker offers high power handling with low frequency extension down to 45Hz in a neat in wall package.
The hefty 165mm bass driver has a 33mm voice coil wound on high powered aluminium former, with ventilated spider and aluminium flux stabilisation ring for low distortion. The paper cone and surround of the bass driver have been developed to provide the smoothest possible response and a dynamic and non-fatiguing vocal mid-band.
The high frequency drive unit is a specially-damped, high power, 26mm doped fabric dome tweeter. Combined with the crossover network which has been designed and built using close-tolerance, professional-grade components, the resulting sound is exceptionally smooth and well controlled.
The Phonix In-Wall can be fixed to plastered studwork or cabinetry via the 1.6mm thick faceplate. The optional extra to finish with a neat black cloth grille is also available, making the Phonix In-Wall a versatile yet powerful surround sound speaker.
For the ultimate cinema experience at home, play it through Krix.
Product Specifications
• Frequency Range: 45Hz-20kHz (-10dB).
• Power Handling: 50-150 Watts RMS recommended amplifier power.
• Sensitivity: 88dB for 2.83 volts at 1 metre.
• Impedance: 8 Ohms.
• Configuration: 2-way.
• Enclosure Type: Bass reflex, front vented.
• Dimensions: 388mm high x 260mm wide x 120mm deep cabinet, 453mm high x 325mm wide x 1.6mm thick faceplate.
• Low Frequency Driver: Single 165mm (6 ½”) paper cone driver. 33mm (1 ¼”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion.
• High Frequency Driver: 26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled.
• Crossover Point: 1.8kHz.
• Input Terminals: Gold plated binding posts.
• Cut-out Dimensions: 393mm high x 265mm wide recommended.
• Weight: 7kg each.
User guides
Download User Guides:
KRIX Phonix In-Wall Surround Speaker User Guide
