Description
Description:

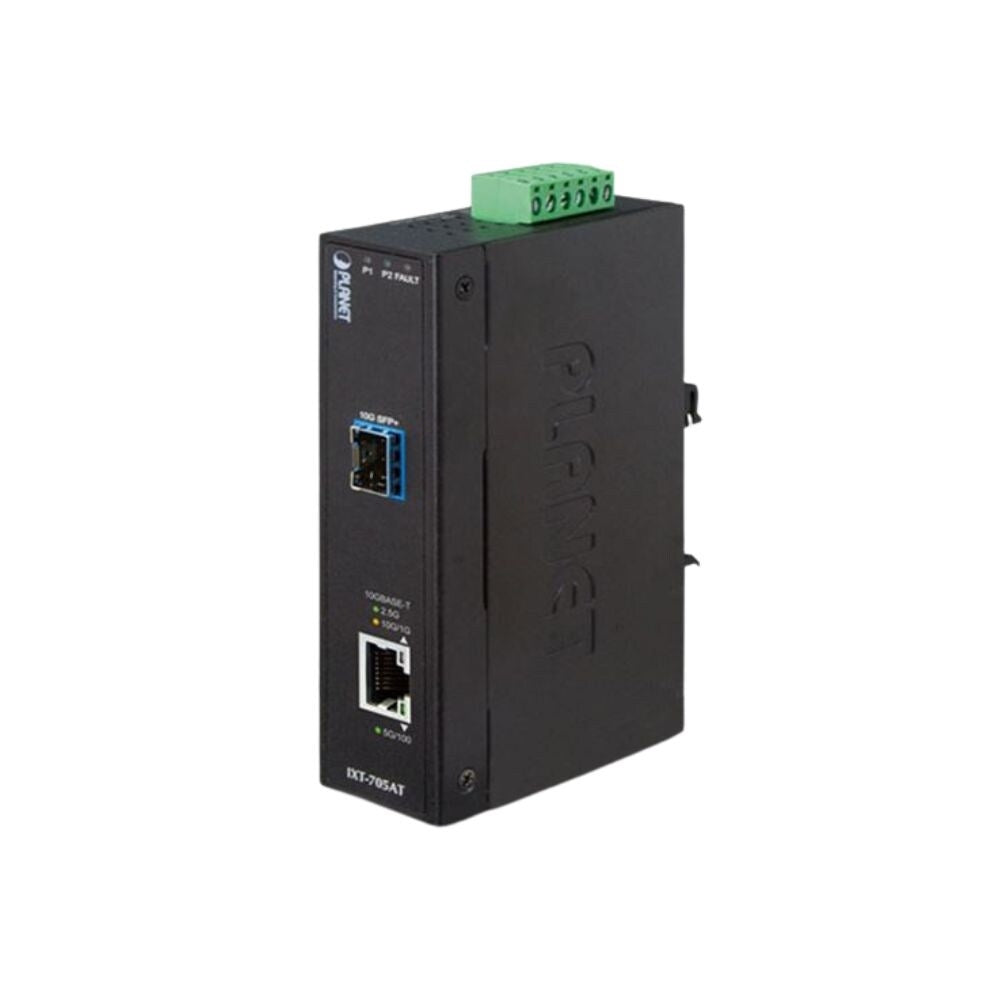

Planet's XT-705A Media Converter is equipped with one 10G/5G/2.5G/1G/100BASE-T auto negotiation port and one 10GBASE-X SFP+ slot. It supports 10 Gigabit Ethernet media conversion from copper 10GBASE-T to fibre Multimode or Single Mode, utilising the 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels.
It provides 100m over CAT6A or CAT7 at 10Gbps.
This media converter offers wire speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 20Gbps internal fabric,16K jumbo frame feature and auto negotiation support in its 10 Gigabit port, the XT-705A can handle extremely large amounts of data transmission in a secure topology linking to data centre cloud computing, enterprise backbones, campus networks and carrier infrastructure.
With robust protection the XT-705A provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users' networks from devastating ESD attacks making sure the flow of operation does not fluctuate.
Planet Technology's XT-705A Media Converter is equipped with one 10G, 5G, 2.5G, 1G and 100BASE-T auto negotiation port and one 10GBASE-X SFP+ slot.
It supports 10 Gigabit Ethernet media conversion from copper 10GBASE-T to fibre Multimode or Single Mode, utilising the 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels.
The unit also has the advanced chip technology with power saving feature like a low power consumption of only 3.75W when in full operation.
The media converter can be used as a standalone unit or as a slide in module to the Planet Technology's Media Converter Chassis, MC-700 and MC-1500 chassis series.
The media chassis can assist in providing DC power to the XT-705A media converter to maintain the fibre optic network at one centralised location.
It can be Din rail or wall mounted for efficient use of cabinet space.
Features:
Compatible With
- Planet Technology's 10" or 19" media converter chassis, MC-700, MC-1500, MC-1500R or MC-1500R48
Physical Port

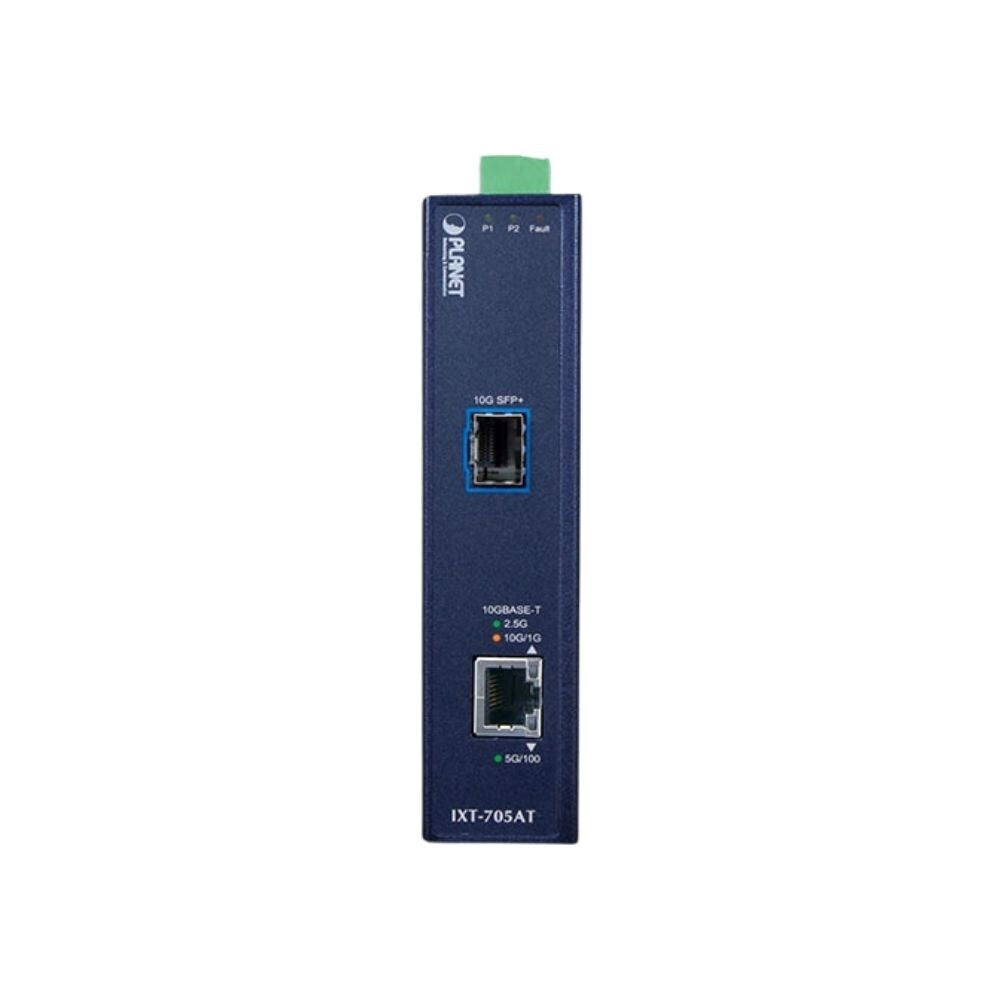

- One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
- One 10GBASE-X SFP+ slot interface
Layer 2 Features
- IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
- Supports auto negotiation and 100Mbps half or full duplex and 1/2.5/5/10Gbps full duplex mode
- Prevents packet loss with back pressure, half duplex and IEEE 802.3x pause frame flow control with full duplex
- 16K jumbo frame size support
- Automatic address learning and address tagging
Case and Installation
- External 5V DC, 2A power supply
- DIN rail and wall mount design
- Supports 6000 VDC Ethernet ESD protection
- 100m over CAT6A or CAT7 at 10Gbps
- Plug and play installation
Specifications:
| Compatible With | Planet Technology's 10" or 19" media converter chassis, MC-700, MC-1500, MC-1500R or MC-1500R48 |
| Interface | Copper: 1 x 10G, 5G, 2.5G, 1G and 100BASE-T RJ45 Auto MDI/MDI-X, auto negotiation Fibre Optic: 1 x 10GBASE-X R SFP+ interface |
| LED | PWR (green) 10G, 5G, 2.5G, 1G or 100 BASE-T RJ45 Interfaces: 1G or 10G LNK (orange) 5G, 2.5G or 100M LNK (green) |
| Switch Processing Scheme | Store and Forward |
| ESD Protection | 6KV DC |
| Construction | Compact sized metal case enclosure |
| Power | Requirement: 5V DC, 2A max Consumption: 3.75W / 12.8 BTU per hour max |
| Standards Compliance | IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x full duplex flow control |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Fabric | 20Gbps |
| Address Table | 9K entries, automatic source address learning and aging |
| Jumbo Frame | 16K |
| Network Cables |
10G, 5G, 2.5G, 1G or 100M BASE-T: 10G CAT6A or CAT7 5G CAT6, CAT6A or Cat 7 1G or 2.5G CAT5e, CAT6, CAT6A or CAT7 100M CAT5, CAT5e, CAT6, CAT 6A or CAT7 Cat 5/5e/6/6A/7 UTP cable 100 metres, max EIA/TIA-568 100 ohm STP 100 metres, max 10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm Multimode fiber optic cable, up to 300m 9/125μm Single Mode fiber optic cable, up to 60km |
| Temperature | Operating: 0°C / 32°F to 50°C / 122°F Storage: -10°C / 14°F to 70°C / 158°F Relative Humidity: 5% to 95% non condensing |
| Dimensions | Height: 26mm / 1.02" Width: 94mm / 3.70" Depth: 70mm / 2.8" |
| Weight | Devuice Only: 180g / 0.40lb |
| Installation | Desktop or wall mountable Media convert chassis installation Optional DIN rail kit, sold separately |
| Certifications | FCC Part 15 Class A, CE |
