Description
Description:

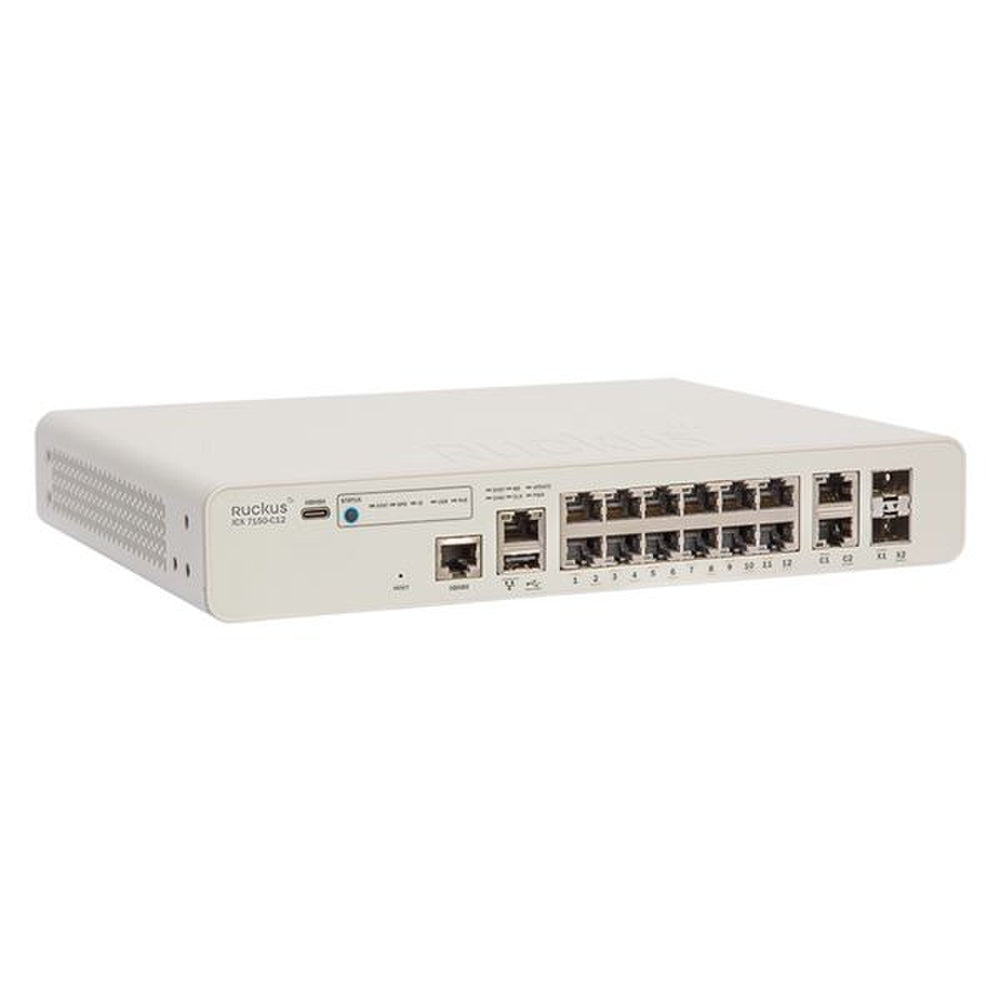

The Ruckus -ICX7150-C12P-2X1G combines enterprise class switching features with high performance at an entry level price. The switch can operate in fanless mode outside of the wiring closet to provide silent operation for classrooms, hospitality suites, retail sites, hospitals or other noise sensitive environments.
Raising the bar for entry level stackable switches, this switch combines enterprise class switching features with high performance at an entry level price.
The switch supports stack level high availability and stack level ISSU (In Service Software Upgrade) to ensure service resiliency and business continuity.
Features:
Enterprise Level Capabilities
- PoE, PoE+ and PoH to power 802.11ac Wi Fi products
- Stack level high availability and stack level ISSU to improve network service resiliency
- sFlow based network monitoring
- SDN enabled with OpenFlow support
- Easy transition to Ruckus Campus Fabric for network automation and management simplicity
Designed for Lean I.T. Staff
- Plug and play operations for powered devices via LLDP and LLDP-MED protocols
- Auto configuration ensures error free configuration and accelerates deployment
- Hot insertion and removal of stack members simplifies operations
Class Leading Performance and Scalability
- Up to 12 switches per stack, up to 10km between stacked switches
- Up to 8 x 10GbE ports for stacking or uplinks
- Software licensing upgrade - 1GbE to 10GbE of uplink/stacking ports
- Flexible stacking adds capacity throughout the network without increasing the management load
Unified Wired and Wireless Access
- Works seamlessly with Ruckus Wi Fi access points
- Ruckus SmartZone support delivers unified wired and wireless management and network automation
Please Note: Successful completion of Habitech's Ruckus ICX Switching training course is required in order to purchase Ruckus ICX Switches from us. For course information, please contact your local BDM.
Specifications:
| Switching Capacity | Max 304 Gbps |
| Available Ports | 12, 24 or 48 ports Up 48 x 10/100/1000 Mbps ports Up to 16 x 100/1000 Mbps/2.5 Gbps ports |
| Uplink or Stacking Ports | 2 Ports: 1 GbE RJ-45, Plus Up to 8 Ports: 1/10 GbE SFP/SFP+ |
| Switches Per Stack | Max 12 Units |
| Aggregated Stacking Bandwidth | 480 Gbps |
| PoE Technology | PoE, PoE+ and PoH |
| sFlow | Yes |
| L3 Capabilities | Base L3, RIP, OSPF, PIM and PBR |
| OpenFlow (SDN) | Yes |
| Campus Fabric Technology | Yes |
| ISSU | Yes |
User guides
Download User Guides:
Data Sheet ICX7150
Ruckus Product Guide Brochure
Ruckus Accessory Guide
IXC7150 Switch Installation Guide
ICX Switches Product Line
Ethernet Optics Product Guide
