Description
Description:

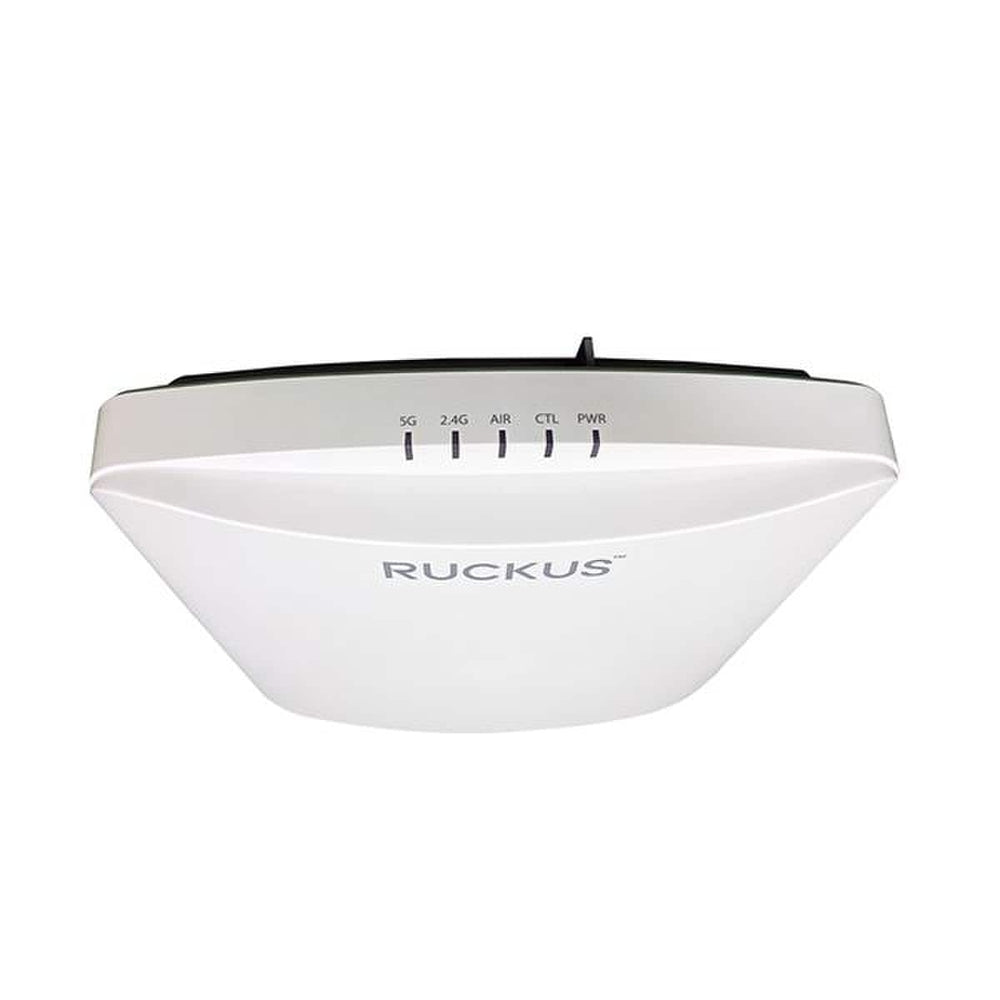

The R650 Zoneflex Dual Band Access Point from Ruckus has the latest Wi-Fi 6 802.11 ax technology, which delivers increased capacity, improved coverage and performance in dense environments.
It is a middle range dual band and dual concurrent access point that supports 6 spatial streams of 4x4:4 in 5GHz and 2x2:2 in 2.4GHz. This unit supports peak data rates of up to 2974 Mbps and efficiently manages up to 512 clients connections.
Wi-Fi capacity requirements in office buildings, classrooms and retail venues are rapidly increasing due to rises in Wi-Fi connected devices, non Wi-Fi IoT devices and bandwidth hungry applications. The Ruckus R650 access point with the latest Wi-Fi 6 802.11 ax technology delivers increased capacity, improved coverage and performance in dense environments.
The 2.5GbE Ethernet ensures the backhaul will not be a bottleneck for full use of available Wi-Fi capacity.
The R650 has built in IoT radios with onboard BLE and Zigbee capabilities, as well as being a converged access point that allows customers to seamlessly integrate any new wireless technologies with the pluggable IoT module.
Features:
- Mitigates interference and extend coverage with patented BeamFlex+™ adaptive antenna technology utilising several directional antenna patterns
- Connect more devices simultaneously with six MU-MIMO spatial streams and concurrent dual band 2.4GHz or 5GHz radios while enhancing device performance
- Converged Access Point allows customers to eliminate silo networks and unify Wi-Fi and non Wi-Fi wireless technologies into one single network by using built in BLE and Zigbee
- Also expanding to any future wireless technologies
- ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels
- Manage the R650 from the cloud, with on premises physical or virtual appliances or without a controller
- Better Mesh Networking reduces expensive cabling and complex mesh configurations with SmartMesh wireless meshing technology to dynamically create self forming and self healing mesh networks
- Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine and SCI network analytics
Specifications:
| Antenna Gain | Up to 3 dBi |
| BeamFlex | Yes |
| Channel Fly | Yes |
| Concurrent Users | 512 |
| Controller Support | SmartZone Standalone ZoneDirector Unleashed |
| Ethernet Ports | 1 x 1 GbE 1x 2.5 GbE |
| IoT Ready | Yes |
| PD-MRC | Yes |
| PHY Rate | 2.4GHz: Maximum 574 Mb/s 5GHz: Maximum 2000 Mb/s |
| Radio Chains: Streams | 4x4:4 5GHz and 2x2:2 2.4GHz |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac Wave 2/ax |
| Dimensions | Height: 4.7cm / 1.9" Width: 19.4cm / 7.6" Length: 22.4cm / 8.8" |
| Weight | 0.85kg / 1.88lb |
| Certifications | EN 60950-1 Safety EN 60601-1-2 Medical EN 61000-4-2/3/5 Immunity EN 50121-1 Railway EMC EN 50121-4 Railway Immunity IEC 61373 Railway Shock and Vibration EN 62311 Human Safety/RF Exposure UL 2043 Plenum WEEE and RoHS ISTA 2A Transportation |
User guides
Download User Guides:
Data Sheet R650
Ruckus Product Guide Brochure
Ruckus Accessory Guide
Access Points Look Up Guide
Ruckus Cloud Demo Guide
Technology Guide
Virtual SmartZone Essentials
Virtual SmartZone High Scale
