Description

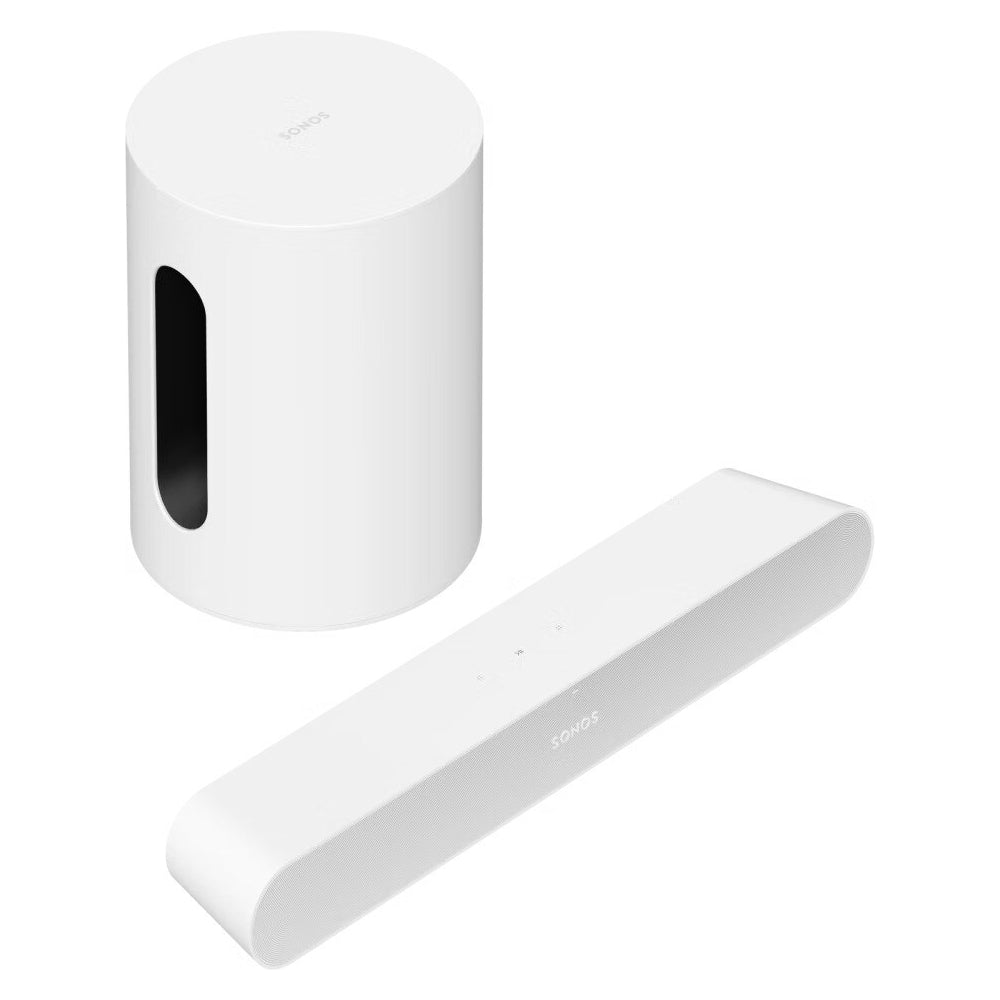

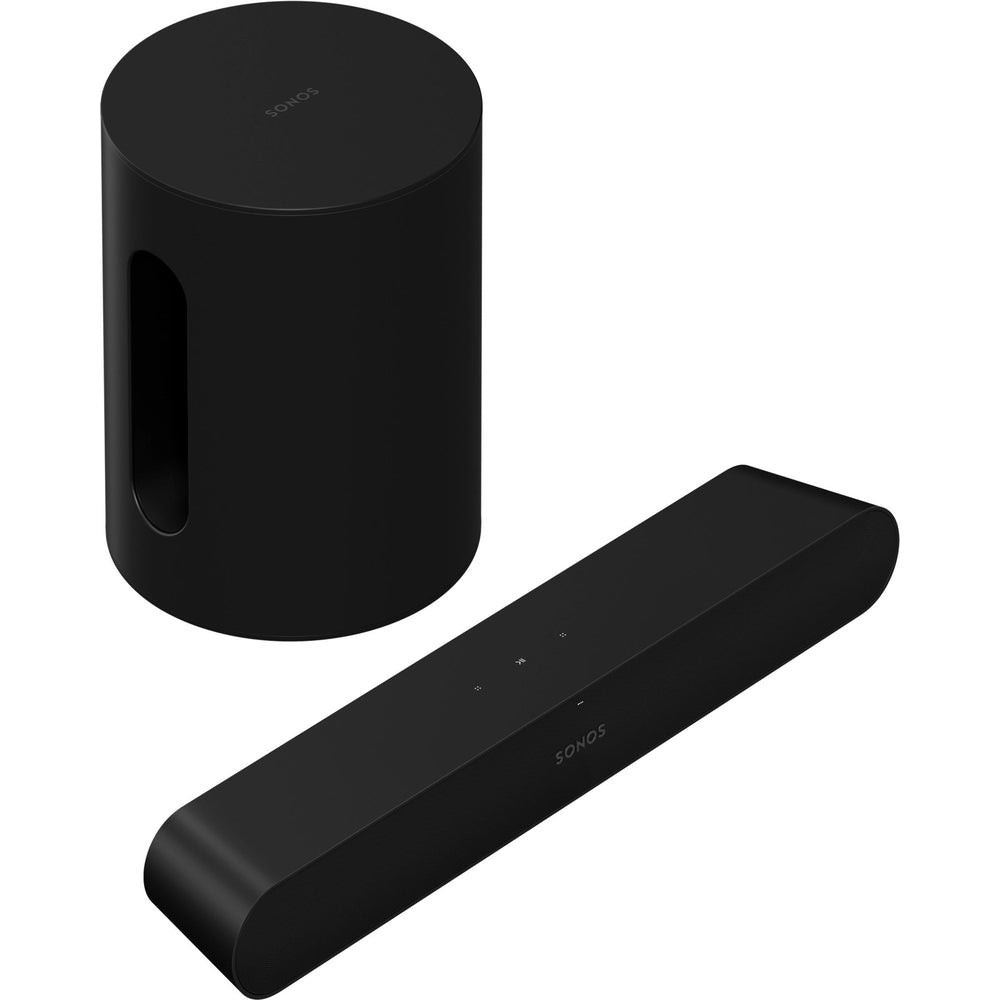

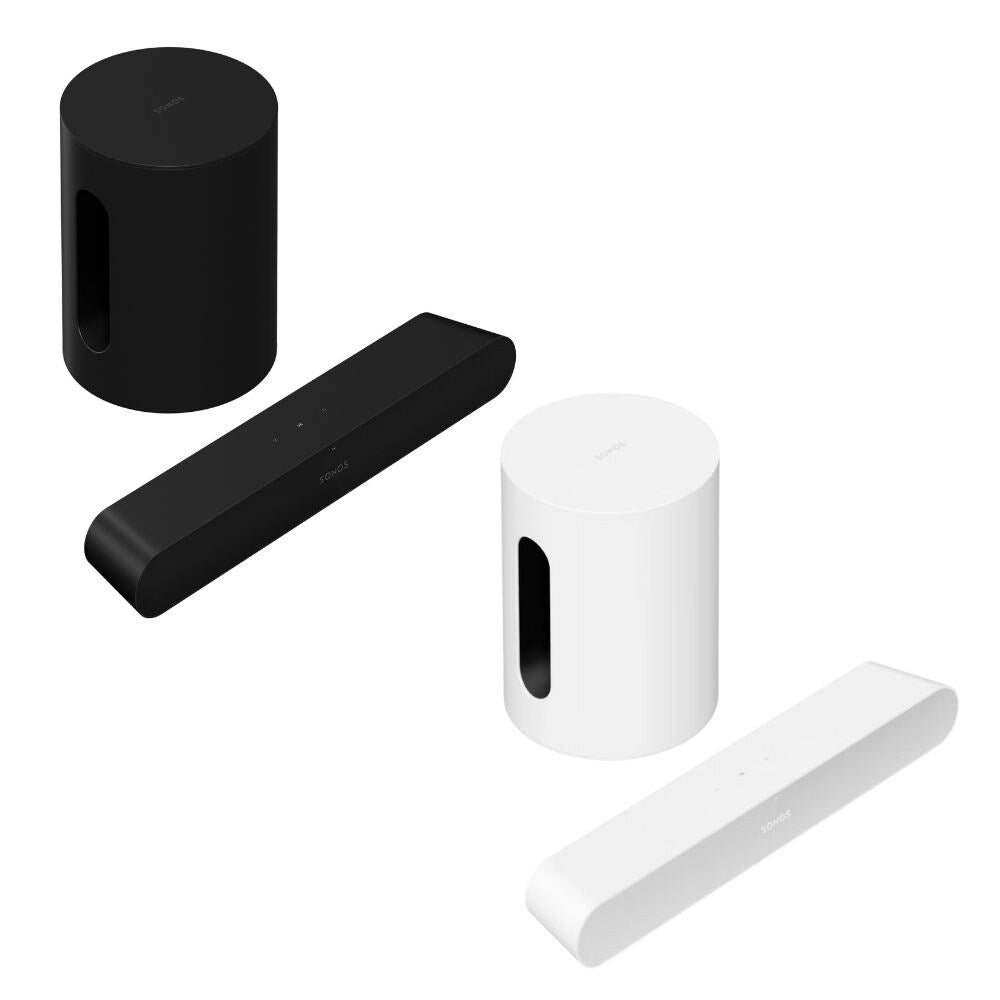

Enjoy crystal clear dialogue and impactful bass with this compact soundbar and subwoofer set from Sonos. It includes the Sonos Ray and Sub Mini. These sets come in black or white finishes.
Enjoy crystal clear dialogue and impactful bass with this compact soundbar and subwoofer set from Sonos. It includes the Sonos Ray and Sub Mini. These sets come in black or white finishes.
Feel more immersed in home cinema and music. The subwoofer delivers bold yet balanced bass and lets the soundbar concentrate its power on even crisper high and mid frequencies. Easily set up and connect both products over WiFi using the Sonos app, and sync your TV remote for streamlined control.
Specification
| Sonos Ray | |
| Amplifiers | Four Class D digital amplifiers |
| Tweeters | Two tweeters offer a crisp high frequency response |
| Mid Woofer | Two high efficiency mid woofers delivers mid range frequencies and solid bass |
| Microphone | None |
| Audio Control | Sonos app to adjust bass, treble and loudness Capacitive touch controls to play, pause, skip, replay and adjust the volume |
| Connectivity | Connect to WiFi with any 2.4 GHz 802.11/b/g/n broadcast capable router. For 5GHz routers, you can either enable 2.4GHz 802.11b/g/n in router settings or hardwire a Sonos product Bluetooth 5.0 supports audio streaming from any Bluetooth enabled device. Connect to your TV's optical port with the cable included |
| Home Cinema Audio Formats | Stereo PCM, Dolby Digital, Dolby Digital Plus, Dolby Atmos (Dolby Digital Plus), Dolby Atmos*, Dolby TrueHD*, Dolby Atmos (True HD)*, Multichannel PCM*, Dolby Multichannel PCM*, DTS Digital Surround** (*HDMI5 eARC connection required. **This is not an indication of a licensed decoder.) The Sonos app's Now Playing screen will display what type of audio is being decoded. |
| Power Supply | AC 100 to 120 220 to 240V 50 to 60Hz |
| Dimensions | Height: 70mm / 2.76" Width: 557mm / 21.93" Depth: 93mm / 3.66" |
| Weight | 1.9kg / 4.19lb |
| Included | Power cable 2m length Optical audio cable 1.5m length |
| Sonos Sub Mini | |
| Amplifiers | Two Class D Digital amplifiers |
| Woofers | Dual 6" woofers facing inwards for a force cancelling effect |
| Frequency Response | As low as 25Hz |
| Architecture | Sealed cabinet neutralises distortion and enhances bass response |
| Audio Control | Audio settings automatically equalise to balance Sub Mini and the paired Sonos product(s) Use the Sonos app to adjust bass, treble, and loudness. |
| Connectivity | Connect to WiFi with any 802.11a/b/g/n 2.4 or 5 GHz broadcast capable router. Ethernet 10/100 port for hardwiring to your router |
| Power Supply | AC 100 to 120 220 to 240V, 50 to 60Hz |
| Dimensions | Height: 305mm/ 12" Diameter: 230mm / 9.1" |
| Weight | 6.35kg /14lb |
| Included | Power cable length 2m Legal and Warranty information |
Features
- Entertainment Set with a Ray soundbar and a Sub Mini
- Ray and Sub Mini work together over Wi-Fi so no wire runs needed across the room
- Stream music, radio, podcasts and more from your favourite services with the Sonos app or Apple AirPlay 2
- Go from unboxing to listening in minutes
- Easily expand your home cinema or music space or your entire home by adding more Sonos devices

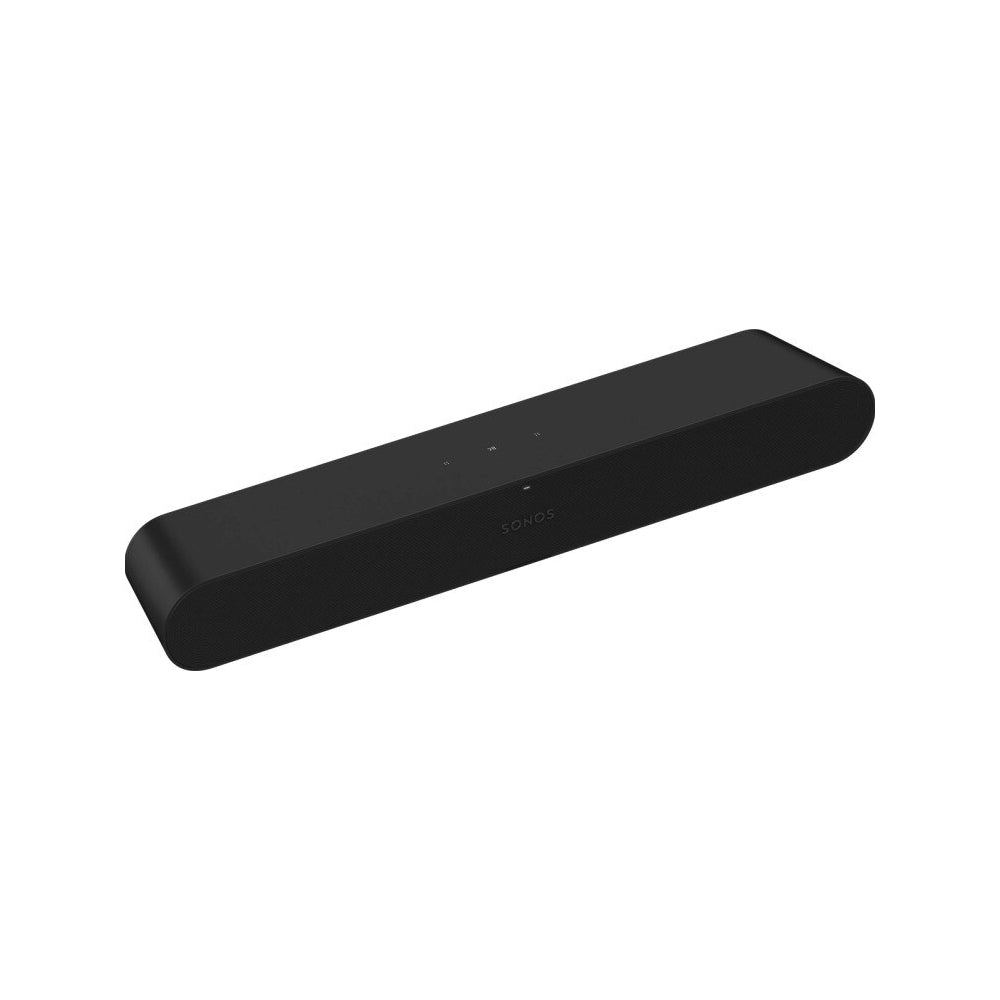

Sonos Ray
- Stereo forward facing acoustic elements, ideal for enclosed spaces
- Crystal clear dialogue
- Advanced processing
- Oscar winning sound engineers helped fine tune the Sonos Ray
- Set up in minutes
- Control with the Sonos app and TV remote
- Stream from all your favourite services
- Elegant design to blend seamlessly into your home
- Easily expand your system be adding a subwoofer and pair of rear speakers
- Sonos products connect quickly, easily and wirelessly
Please Note: The TV or PC must have an optical output.

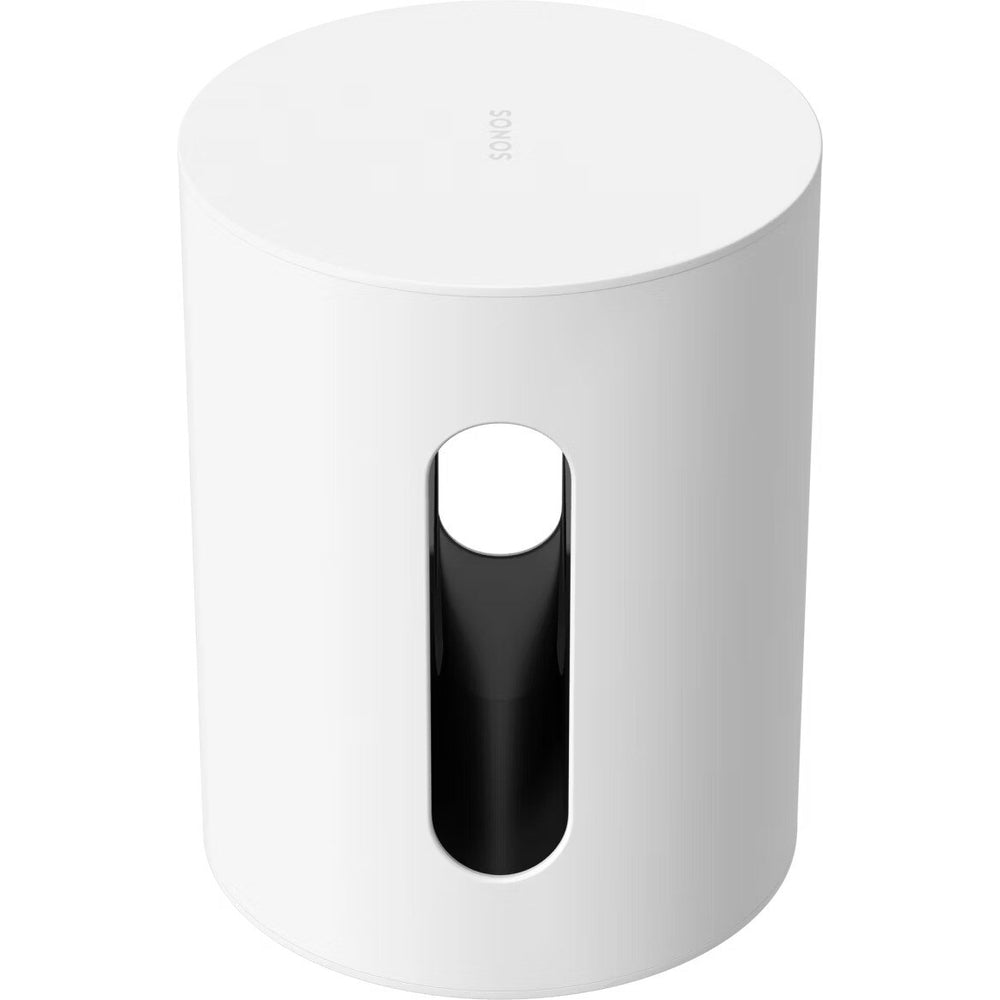

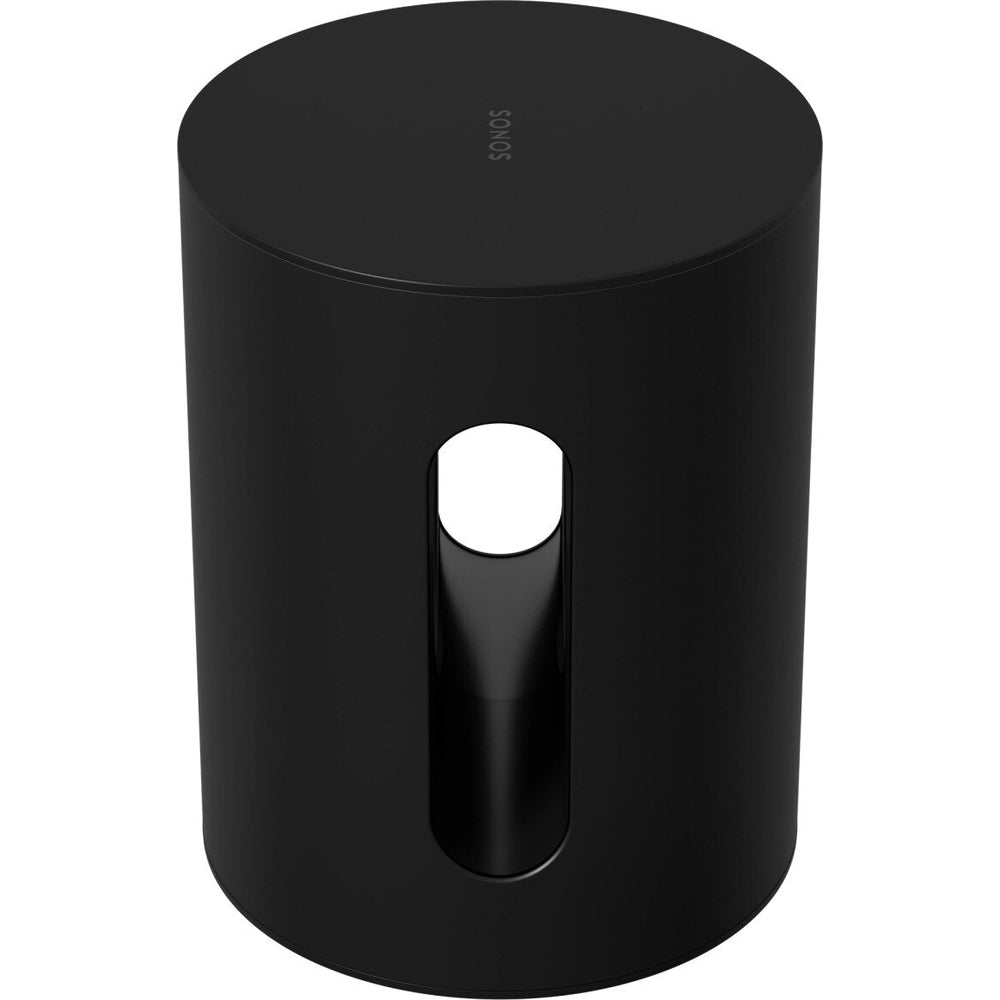

Sub Mini
- Sub Mini deepens your enjoyment of TV, music and more with bold bass
- Dual custom woofers that generate deep bass
- Acoustically sealed cabinet
- Trueplay™ tuning technology to adapt the bass for the unique acoustics of the room. Supported iOS device required
- Set up a exhilarating home cinema by pairing Sub Mini with a Sonos Beam soundbar. For a better experience add a pair of ERA100s or even the ERA300s
- Cylindrical and elegant compact design that blends into your home
User guides
Download User Guides:
Sonos Ray Manual
