Description:
The USW-24 is a managed Layer 2 switch with 24 Gigabit Ethernet ports and two SFP ports for uplink options to your enterprise network. Its compact 7.9" depth and fanless design allow it to be placed in any workspace.
With 24 Ethernet Ports as well as two SFP Ports, this switch provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fibre uplink options to your enterprise network.

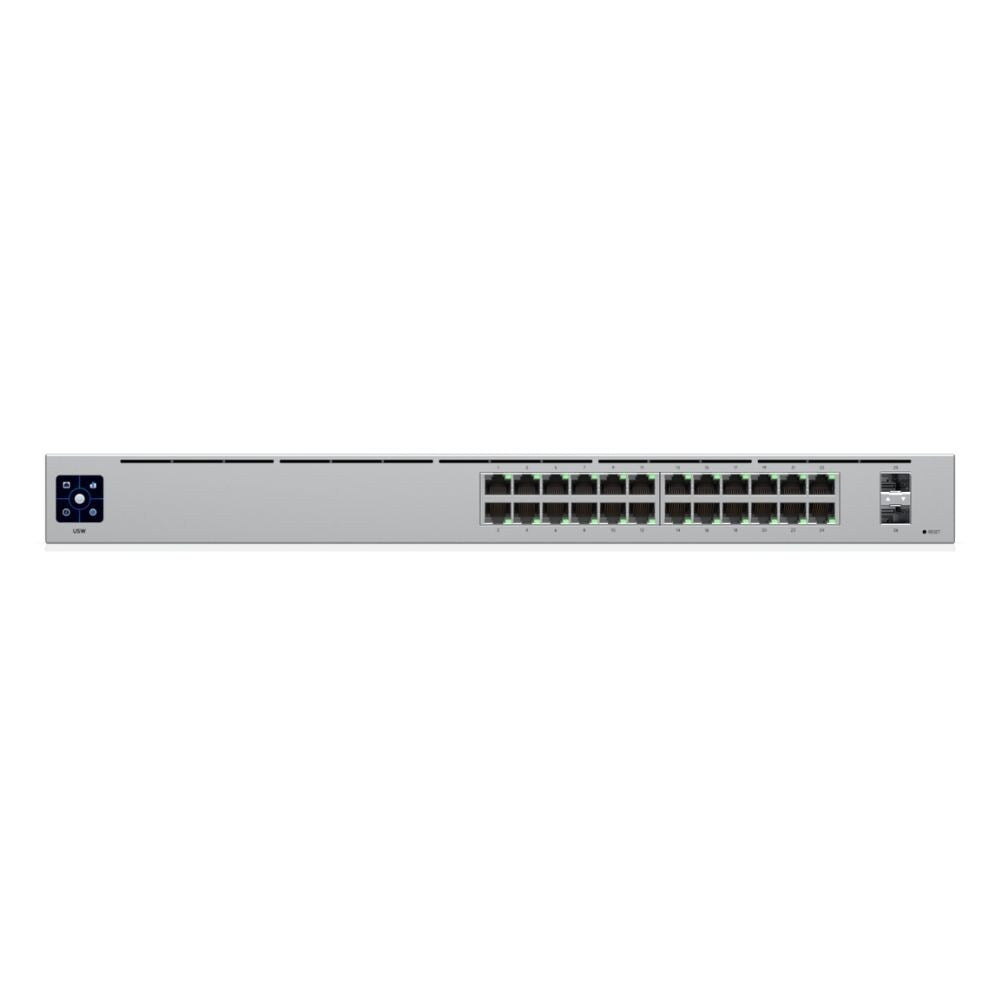

On the front of the USW-24 is a 1.3" Innovative Touchscreen Display, which displays status information for easy monitoring and quick trouble shooting.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 offers Layer 2 switching protocols and features.
The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Features:
Specifications:
10/100/1000 RJ45Ports | 24 x GbE RJ45 ports |
Uplink Ports | 2 x 1G SFP ports |
Throughput | 26 Gbps |
Forwarding Rate in Mpps. 64 Byte Packets | 38.69 Mpps |
Fan | Fanless silent cooling design |
Switch Management | UniFi Gateway Console |
Switch Management Interface | 10G SFP+ or 1G RJ45 |
Power Supply | AC/DC, Internal, 36W |
LCM Display | 1.3" touchscreen System: Status Ethernet: Speed/link/activity SFP: Link/activity |
Operating Temperature | -5°C / 23°F to 45°C / 113° F Relative Humidity: 10% to 90% non condensing |
Rack Size | 1U |
Dimensions | Height: 44mm / 1.7" Width: 442mm / 17.4" Length: 200mm / 7.9" |
Weight | Without mounting brackets: 2.7kg / 6lb With mounting brackets: 2.8kg / 6.2lb |

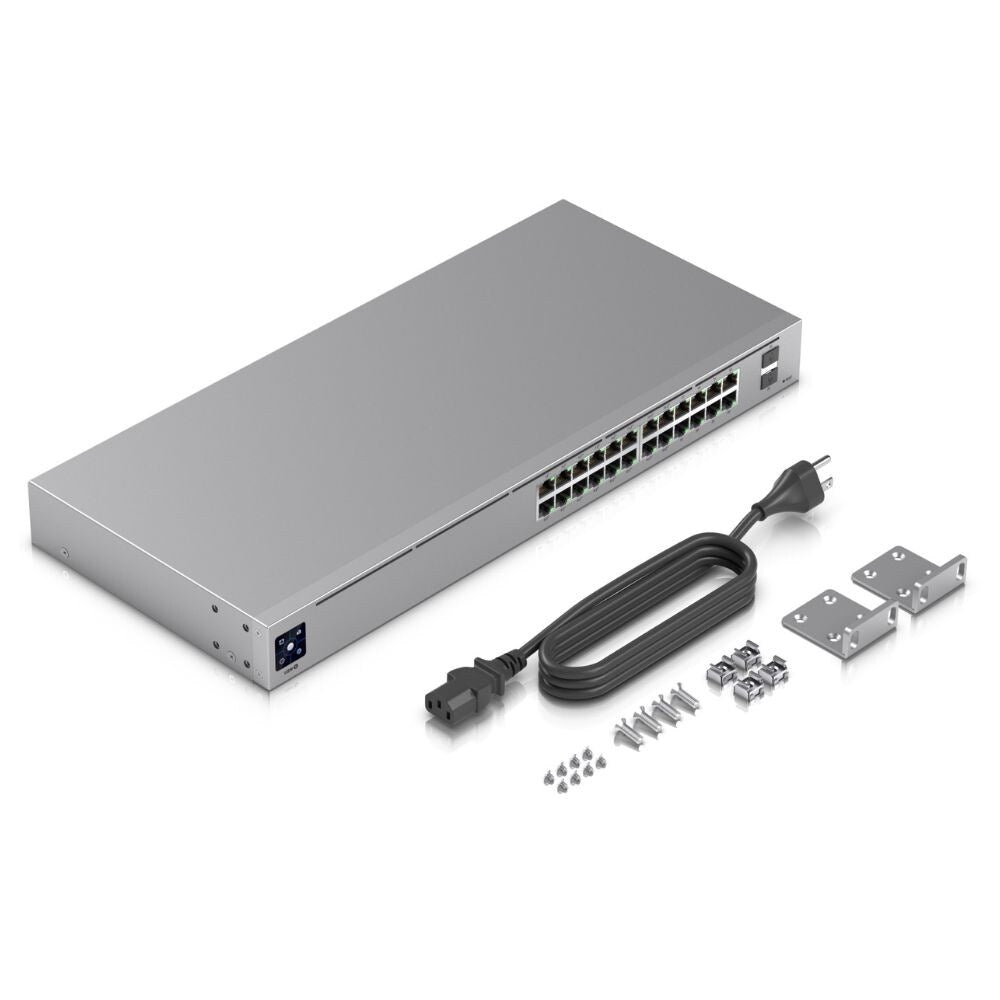

Included | 2 x Rackmount brackets 8 x Bracket screws 4 x Mounting screws 4 x Cage nuts 1 x Power cord |
