Description:

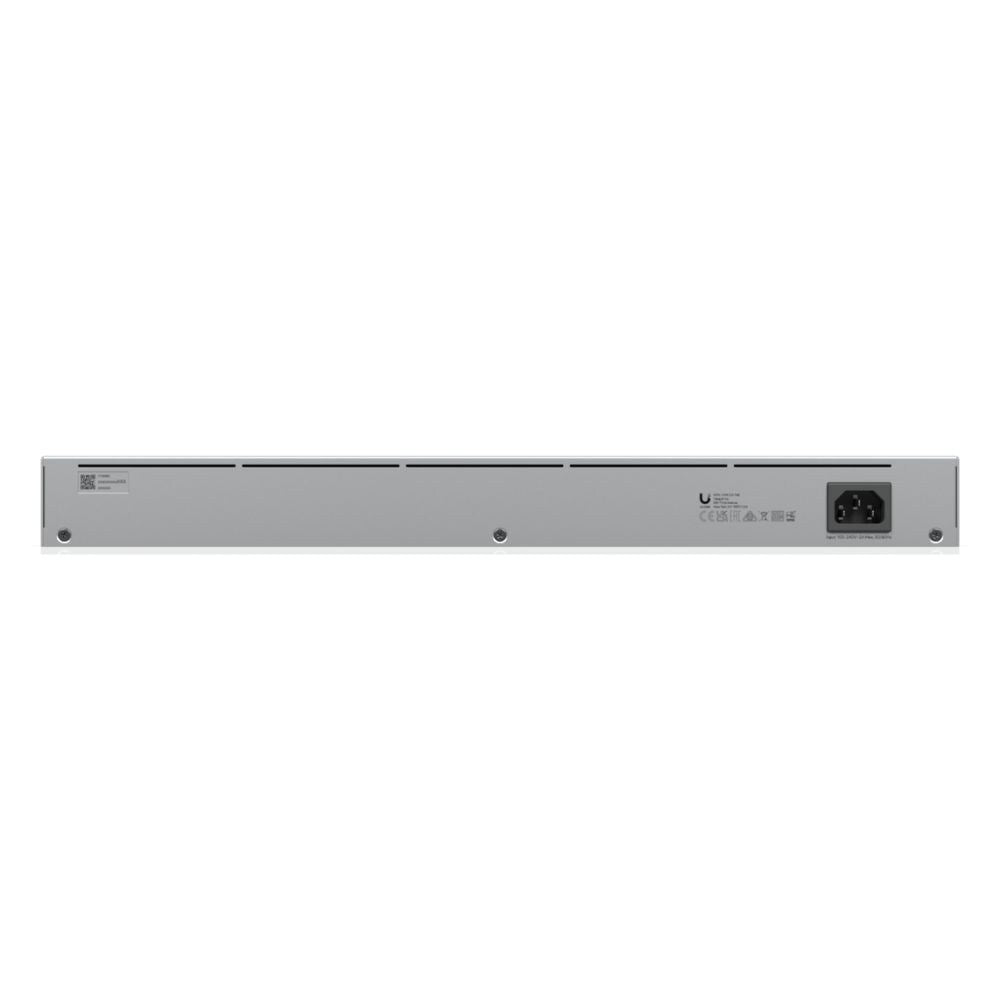

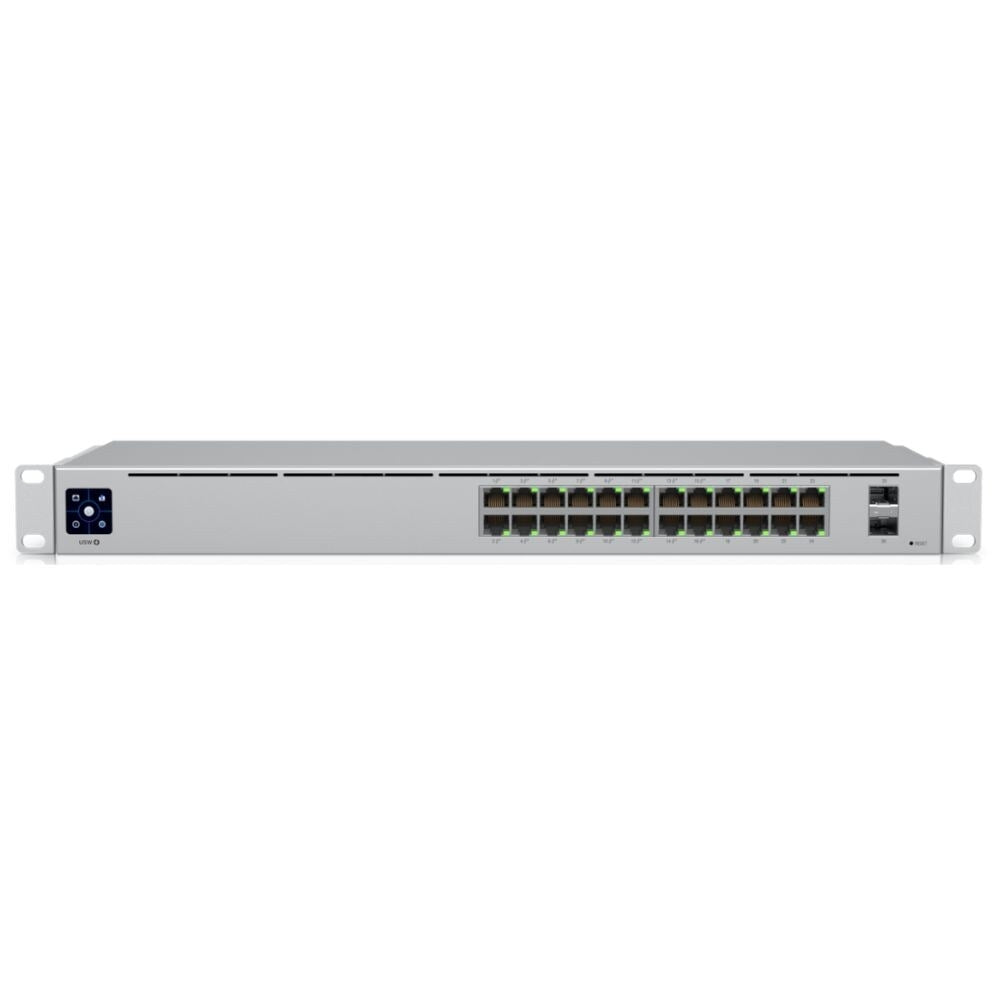

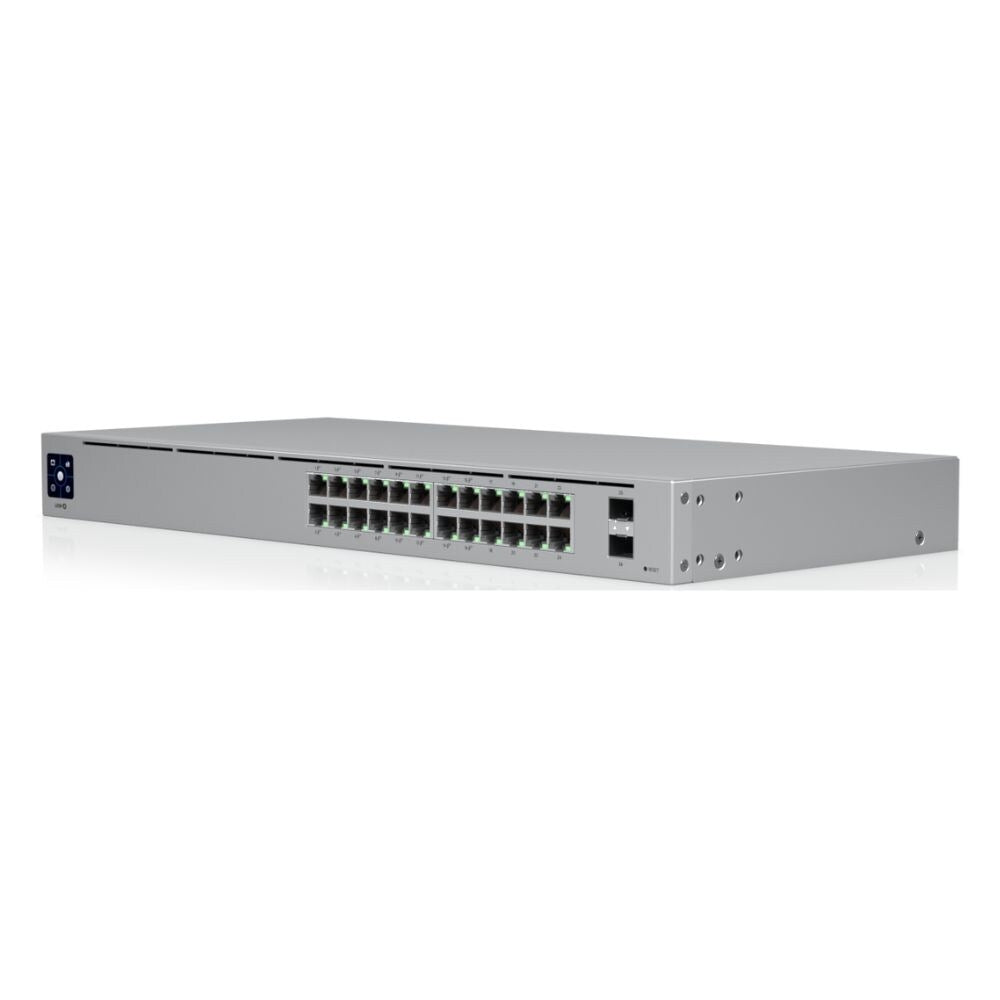

Expand and power your network with the UniFi USW-24-PoE Switch, part of the Ubiquiti UniFi Enterprise System. The Ubiquiti USW-24-POE Gen2 Managed Gigabit PoE+ Switch is a configurable Gigabit Layer 2 switch with 24 Gigabit Ethernet ports including 16 auto sensing 802.3at PoE+ ports and 2 x SFP ports.
Providing Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fibre uplink options to your enterprise network.
With a depth of just 200mm, the compact fanless design can be easily installed in a SOHO rack cabinet and be deployed where fan noise would otherwise be distracting.
On the front of the switch is a 1.3" Innovative Touchscreen Display, which displays status information for easy monitoring and quick trouble shooting.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode , switching, mirroring, or aggregate per port.
The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface, from anywhere.
Features:
- Layer 2 Managed switch
- 16 x 1GbE PoE+
- 8 x 1GbE ports
- 2 x 1G SFP Uplinks
- 95W PoE budget
- Fanless design
- 1.3" Innovative display
- Manage with UniFi Network Controller
- Mounting kit included
Specifications:
| 10/100/1000 RJ45 Ports | 24 x GbE RJ45 ports |
| Uplink Ports | 2 x 1G SFP ports |
| PoE Power | 95W |
| PoE+ Enabled Ports 802.3af/at | 16 x PoE or PoE+ |
| PoE+ Power and Voltage | PoE: 44 to 57V PoE+: 50 to 57V |
| Max Power Per Port | PoE+: 32W |
| Throughput | 26 Gbps |
| Forwarding Rate in Mpps. 64 Byte Packets | 38.69 Mpps |
| Fan | Fanless silent cooling design |
| Switch Management | UniFi Network Controller |
| Switch Management Interface | 1G SFP or 1G RJ45 |
| Power Supply | AC/DC, internal, 120W 100 to 240V AC |
| LCM Display | 1 x 1.3" touchscreen RJ45 Data Ports PoE: Speed/Link/Activity SFP Data Ports Link/Activity |
| Operating Temperature | -5°C / 23°F to 40°C /104°F Relative Humidity: 10 to 90% non condensing |
| Rack Size | 1U |
| Dimensions | Height: 44 mm / 1.7" Width: 442mm / 17.4 Depth: 200mm / 7.9" |
| Weight | Without Mounting Brackets: 3kg / 6.6lb With Mounting Brackets: 3.1kg / 6.8lb |
| Included | 2 x Rack mount brackets 8 x Bracket screws 4 x Mounting screws 4 x Cage nuts 1 x Power cord |
User guides
Download User Guides:
Data Sheet
Unifi Brochure
Installation Guide
