Description
Description:
The Ubiquiti UniFi LTE Backup Pro introduces seamless internet failover capability for UniFi Gateways, offering uninterrupted connectivity with LTE data backup. Compatible with UniFi Cloud Gateway or UniFi Gateway devices, this solution ensures reliable internet access even in the event of a primary connection failure.

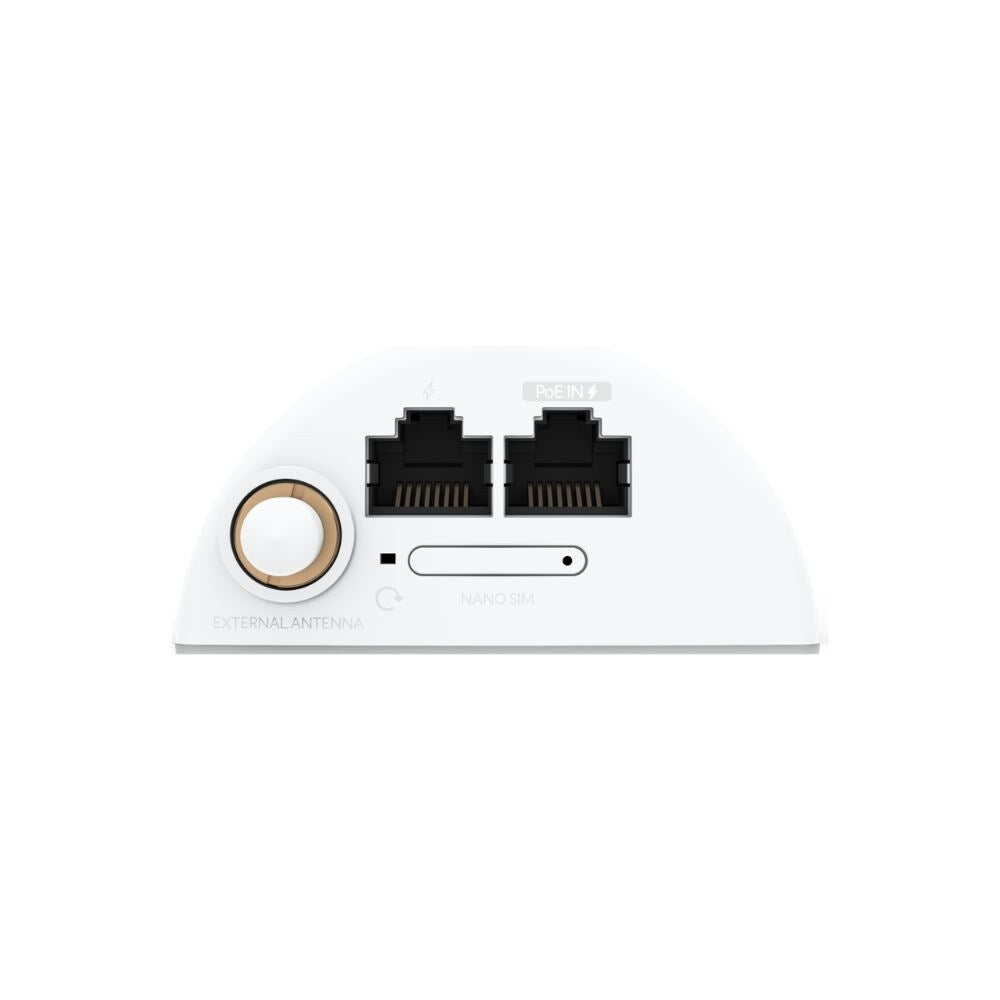

This U-LTE-PRO provides backup cellular internet connectivity to ensure your UniFi WAN network is always running. It has a Nano SIM card, not included,slot for your SIM Card. Insert the Nano SIM, connect to any switch port in your network and activate the device.
Ubiquiti's failcover router may be placed anywhere since it can be powered by 802.3at PoE+ from a UniFi PoE switch. There is no need to keep it in the server room or network closet. A secondary port offers bridging and passive PoE passthrough is useful for a camera, access point or other device.
It offers excellent coverage with its internal high performance antenna. Should you require greater LTE coverage and performance, you can attach an optional high gain antenna, which is sold separately, to the RP-SMA antenna connector for a stronger signal. The external antenna can be mounted outdoors to optimise positioning

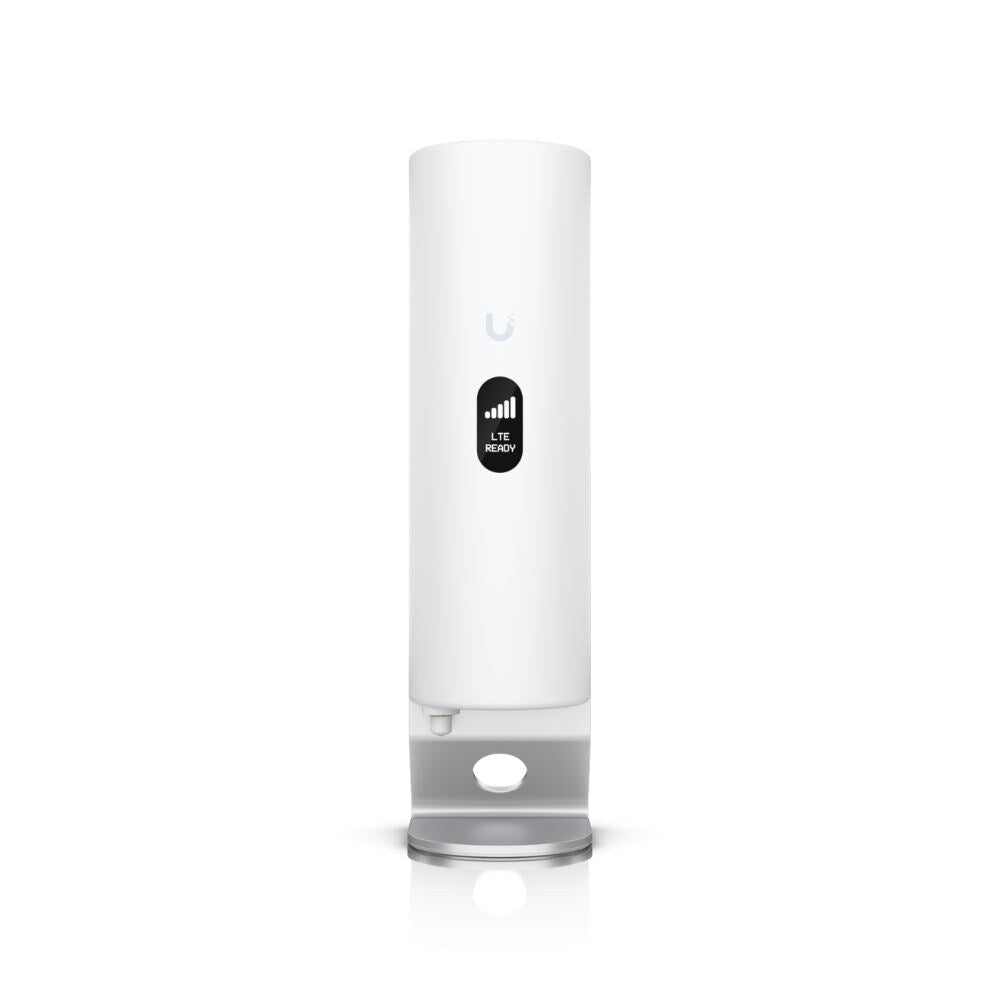

Additionally, a 1.54" status display provides 'at a glance' monitoring of device status and connectivity information, ensuring efficient management of network failover operations.
The UniFi Network Controller can provision UniFi devices, map out networks and quickly manage system traffic. Important network details are logically organised for a simplified, yet powerful, interface.
Features:
- Ensures reliable internet access even in the event of a primary connection failure.
- Automatic redundant WAN connection
- 1.54" status display
- Requires a UniFi Cloud Gateway or UniFi Gateway
- Bring your own nano SIM for LTE data
- Flexible mounting
- 1 x GbE PoE port
- Powered using PoE
- RP-SMA connector for optional external antenna
- Mounting hardware included
Specifications:
| Processor | 74 Kc MIPS processor at 775 MHz |
| System Memory | 1 GB DDR3L |
| Management Interface | Ethernet |
| LCM Display | 1.54" Display |
| Network | |
| LAN Ports | 2 x 1Gbps RJ45 |
| PoE Interface | 1 x PoE in. PoE output not used 1 x PoE passthrough output. Requires PoE+ switch |
| PoE Budget | Excluding PoE passthrough output : 8.5W |
| Max. PoE Wattage Per Port by PSE | 15.4W . Requires PoE+ switch |
| SIM | Nano SIM. Data only |
| LTE Bands | Band 2, 4, 5, 12, |
| MIMO | 2 x 2 LTE Category 4 |
| Throughput Speeds | Download 150 Mbps or upload 50 Mbps Speed and coverage depend on location and network performance |
| Antenna | 2 x Internal LTE antennas 1 x Female RP-SMA connector for an external antenna, optional. The maximum antenna gain must not exceed 6dBi to comply with regulation |
| External Antenna Port | Female RP-SMA connector Please use male RP-SMA antennas to match the U LTE Backup Pro |
| Power Method | UniFi PoE switch 48V, 0.5A PoE adaptor |
| Max Power Consumption | 3.83 W |
| Operating Temperature | -10°C / 14°F to 45°C / 113°F Relative Humidity: 5% to 95% noncondensing |
| Dimensions | Height: 202mm / 8" Width: 66mm / 2.6" Depth: 32mm / 1.3" |
| Weight | Without Stand: 22g / 7.9oz With Stand: 336g / 11.9oz |
| Mounting | Wall mount or foot stand |
| Included | 1 x Stand 1 x Mounting bracket 1 x Double sided adhesive 2 x Self tapping screws 2 x Screw anchors 1 x RP-SMA cap |
User guides
Download User Guides:
Data Sheet
Unifi Brochure
Installation Guide
DoC
