Description
Description:
The UniFi Security Gateway UXG-Lite is a compact and powerful UniFi gateway with a full suite of advanced routing and security features.
The UXG-Lite has an impressive tenfold increase in routing capabilities compared to its predecessor, the USG. It is rigorously tested with demanding features like IPS, IDS, QoS and Smart Queues. This gateway ensures optimal throughput and responsiveness with up to 10x routing performance increase over USG.
The UXG-Lite's connectivity features include a Gigabit Ethernet WAN port and a Gigabit Ethernet LAN port, providing a balanced and robust foundation for network operations. Powered through USB-C with an included adaptor, this router is not only powerful but also convenient and user friendly.
Beneath its sleek exterior, the UXG-Lite boasts a dual core ARM Cortex A53 processor running at 1GHz, coupled with 1GB of DDR3L memory, ensuring ample processing power for advanced networking functionalities.
Bluetooth 5.1 support enhances device management capabilities, contributing to the overall efficiency of the system.
This gateway features encompass next generation security measures, such as application aware firewall rules, signature based IPS/IDS threat detection and content filtering.
Features:
- Up to 10x routing performance increase over USG
- Tested with IPS/IDS, QoS, and Smart Queues
- Managed with a CloudKey, Official UniFi Hosting or UniFi
- Network server

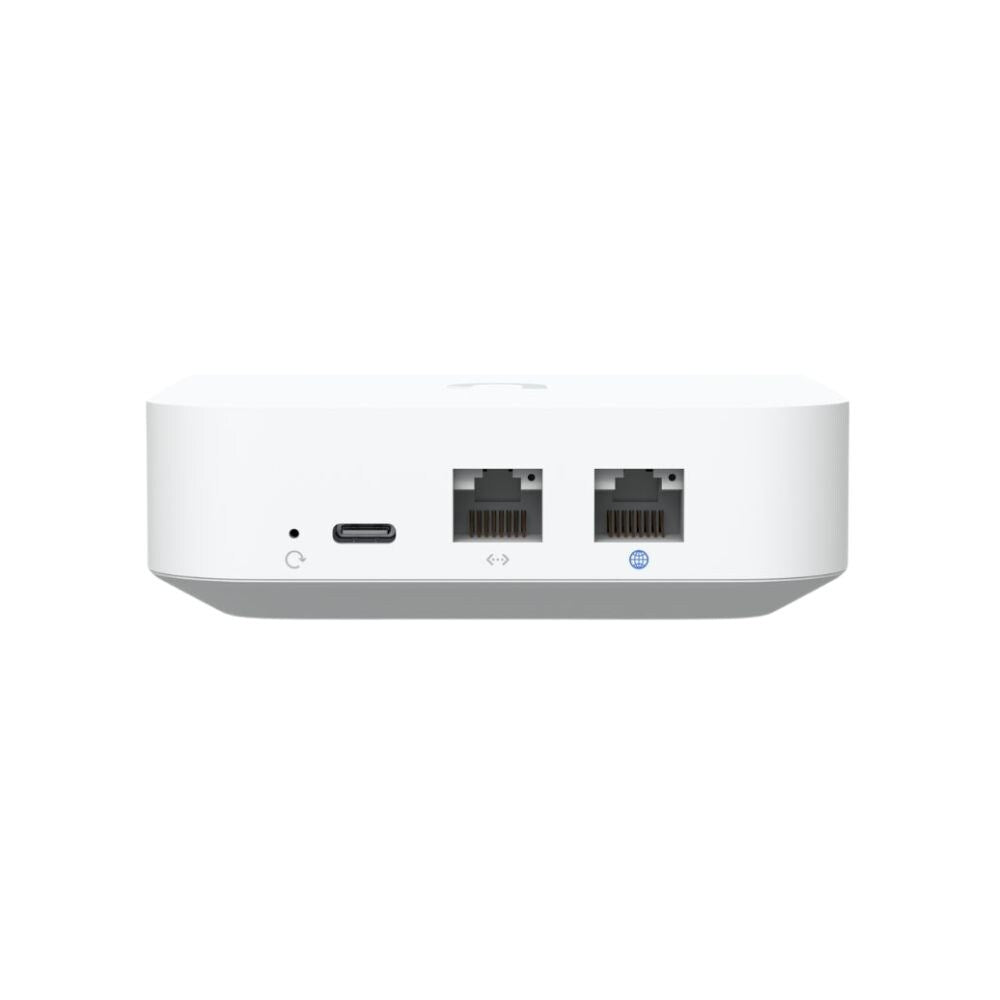

- 1 x GbE WAN port
- 1 x GbE LAN port
- Compact footprint
- USB-C powered. Adaptor included
- Managed with UniFi Network
Specifications:
| Processor | Dual core ARM® Cortex® A53 at 1 GHz |
| System Memory | 1 GB DDR3L |
| Management Interface | Ethernet Bluetooth |
| LCM Display | 0.96" Touchscreen |
| Network | |
| LAN Ports | 1 x 1Gbps RJ45 |
| WAN Ports | 1 x GbE RJ45 Port |
| Gateway Features | |
| IDS/IPS Throughput | 1 Gbps |
| Performance | WiFi QoS with UniFi APs Application, domain and country based QoS Application and device type identification Internet quality and outage reporting |
| Next Generation Security | Application aware firewall rules Signature based IPS/IDS threat detection Content, country, domain and ad filtering VLAN/subnet based traffic segmentation Full stateful firewall |
| Advanced Networking | License free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site to site VPN* One click Teleport and Identity Enterprise VPN** Policy based WAN and VPN routing DHCP relay Customisable DHCP server IPv6 ISP support *When paired with a CloudKey or official UniFi hosting **When paired with a CloudKey |
| Power Method | USB type C (5V DC/3A) |
| Max Power Consumption | 3.83 W |
| Operating Temperature | -10°C / 14°F to 45°C / 113°F Relative Humidity: 5% to 95% non condensing |
| Dimensions | Height: 30mm / 21.6" Width: 98mm / 13.5" Depth: 98mm / 2.4" |
| Weight | 0.32kg / 11.03oz |
| Included | 1 x USB C power adaptor 1 x EU to UK plug converter 1 x Ethernet cable |
User guides
Download User Guides:
Unifi Brochure
Installation Guide
DoC
