Description
Description:
The U7-Pro from Ubiquiti supports Wi-Fi 7 with an impressive 6 GHz band. This ceiling mounted access point delivers an exceptional 'over the air' speed of 9.3 Gbps, ensuring a seamless and high speed wireless experience for users. With a 2.5 GbE uplink and mounting hardware included.
With a 2.5 GbE uplink, it guarantees swift and efficient data transfer, making it an ideal choice for environments with demanding networking requirements.
Supporting 300 + connected devices simultaneously and a coverage area of 140 m2, this access point blankets spaces with reliable and consistent Wi-Fi signals. It is perfect for modern smart homes and busy office environments.
The U7-Pro is powered using PoE+, adding an element of simplicity and flexibility to its installation. The robust mechanical design, featuring polycarbonate and metal enclosures along with stainless steel and galvanised steel mounting materials, ensures durability and longevity in any mounting scenario, be it on the wall or ceiling.
Managed with Ubiquiti's central management system UniFi, allowing you to configure and monitor the device remotely, as well as full support for guest portals and hotspots with options to apply different bandwidth rates, limit duration of usage and total data usage.
Features:
- Wi-Fi 7 with 6 GHz support
- 6 Spatial Streams
- 140 m2 coverage
- Supports 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
- Mounting hardware included
Specifications:
| Wi-Fi | 802.11a/b/g/n/ac/ax/be Wi-Fi 6 or 6E and Wi-Fi 7 |
| Antenna Gain | 2.4 GHz: 4 dBi 5 GHz: 6 dBi 6 GHz: 5.8 dBi |
| PHY Rate | 2.4 GHz: 688 Mbps (BW40) 5 GHz 4.3 Gbps (BW240) 6 GHz 5.7 Gbps (BW320) |
| Radio Streams | 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz 2 x 2 (DL/UL MU-MIMO) 6 GHz 2 x 2 (DL/UL MU-MIMO) |
| SSID Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Concurrent Clients | 300+ |
| Interface | 1 x 1/2.5 GbE RJ45 port |
| Power | PoE+ |
| Power Consumption | 21W |
| Operating Temperature | -30°C / -22°F to 60° / 140°F Relative Humidity: 5 to 95% non condensing |
| Dimensions | Diameter: 206mm / 8.1" Depth: 46mm / 1.8" |
| Weight | 680g / 1.5lb |
| Mounting Options | Wall and ceiling |

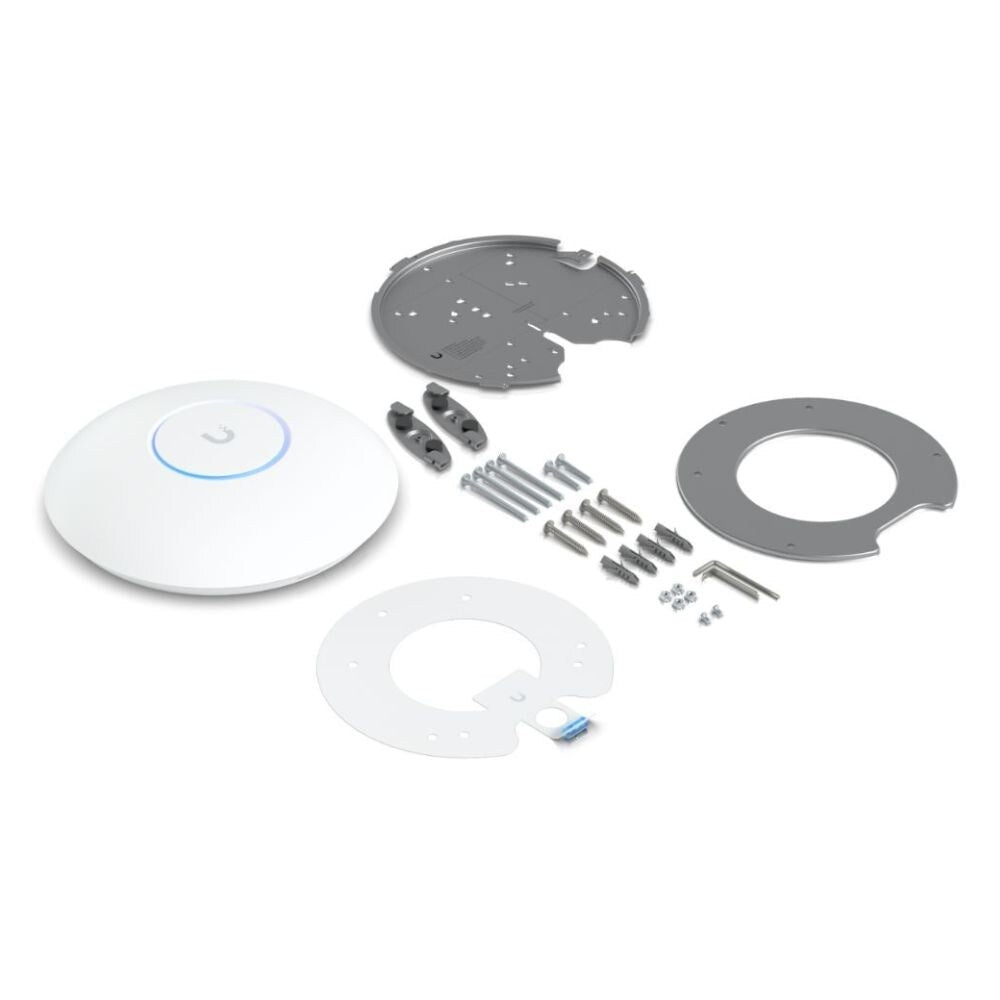

| Included | 1 x Levelling backplate 1 x Mounting bracket 1 x Ceiling backplate 2 x Ceiling tile mounts 4 x M3 bolts 4 x M3 nuts 4 x M3 screws 2 x 6#-32T screws 4 x Wall plugs 2 x M3 short bolts 2 x Allen keys |
User guides
Download User Guides:
Data Sheet
Unifi Brochure
Quick Start Guide
DoC
