Description
Description:

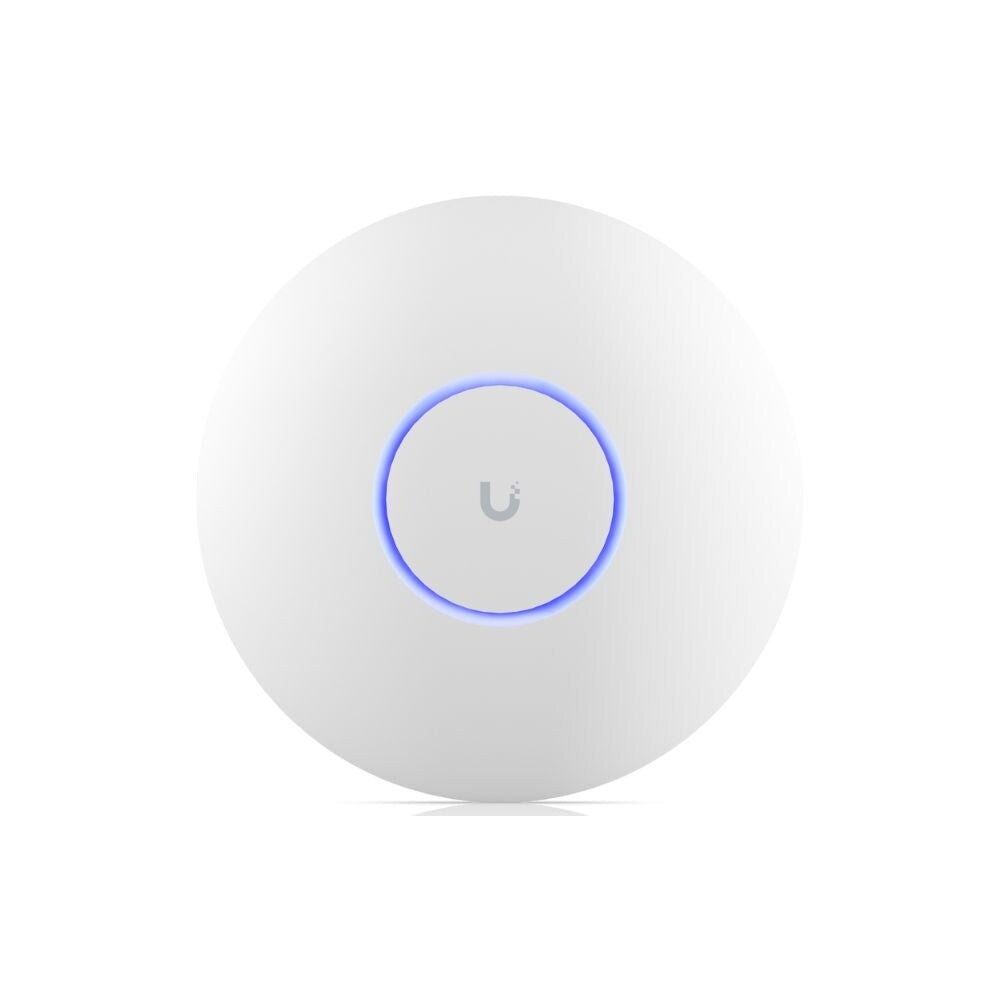

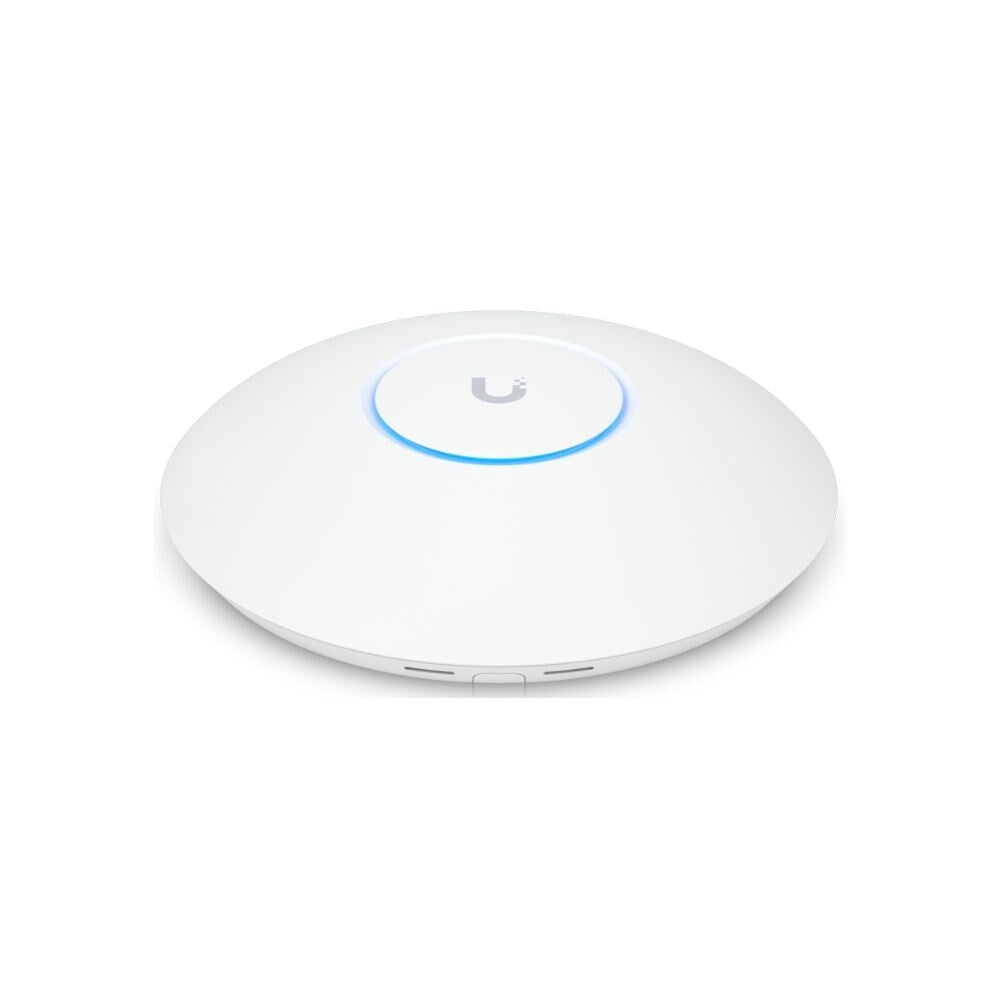

The Ubiquiti U7-Pro-Max UniFi Tri-Band Wi-Fi 7 Access Point is ceiling mounted with 8 x spatial streams, 6 GHz support and a dedicated spectral scanning engine for interference free Wi-Fi in demanding large scale environments.
The U7-Pro-Max leverages the latest Wi-Fi 7 technology, offering 6 GHz support. This ensures faster speeds, lower latency and improved overall performance, making it ideal for high density environments.
With 8 x spatial streams, this access point provides robust coverage, reaching up to 160 m² and supports over 500 connected devices simultaneously, ensuring reliable connectivity in large scale demanding settings.
This U7-Pro-Max features a dedicated spectral scanning engine for real time spectral analysis, allowing for enhanced channel selection and interference free Wi-Fi.
Managed with Ubiquiti's central management system UniFi, allowing you to configure and monitor the device remotely, as well as full support for guest portals and hotspots with options to apply different bandwidth rates, limit duration of usage and total data usage.
Features:
- Wi-Fi 7 with 6 GHz support
- 8 spatial streams
- Real time spectral analysis for enhanced channel selection. Requires UniFi Network 8.2.93 or later
- 160 m² coverage
- Supports 500+ connected devices
- Powered using PoE+
- 2.5 GbE uplink port
- Multi Link Operation (MLO) capability. Coming soon

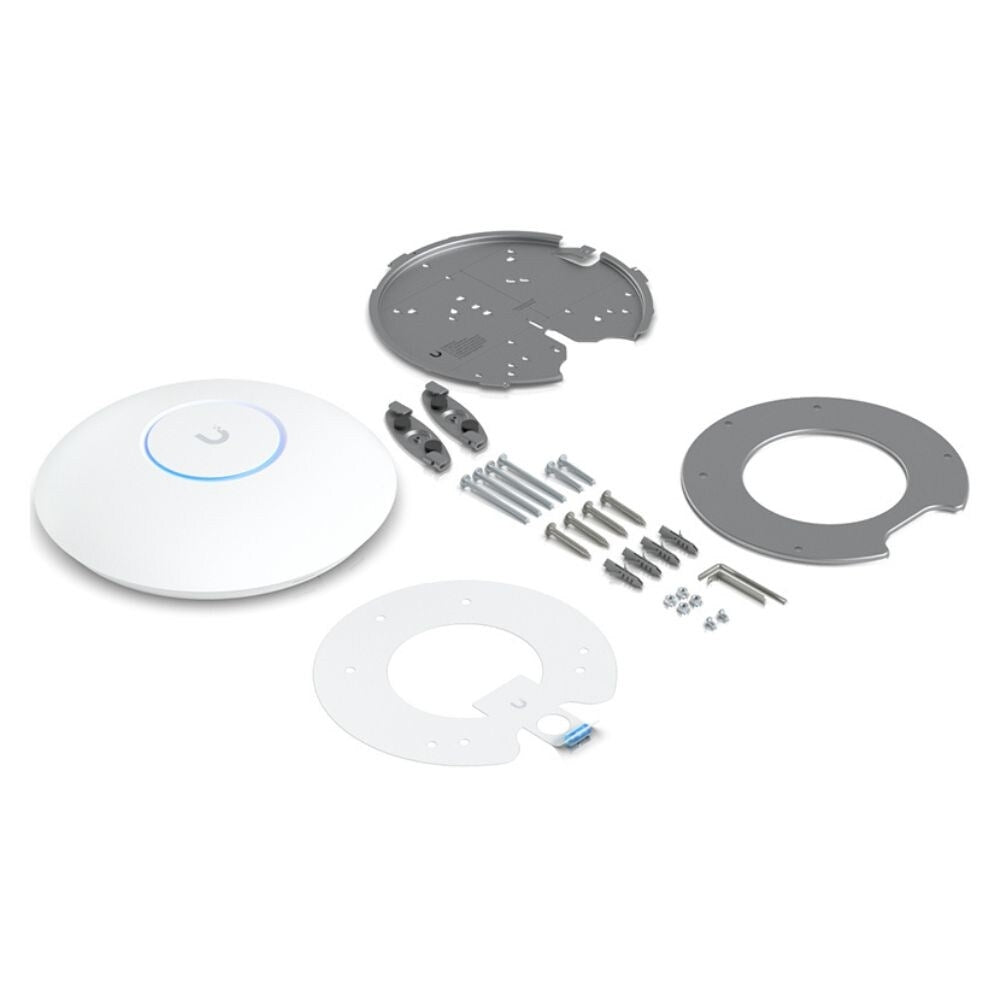

- All mounting hardware included
Specifications:
| Wi-Fi | 802.11a/b/g/n/ac/ax/be Wi-Fi 6 or 6E and Wi-Fi 7 |
| Antenna Gain | 2.4 GHz: 4 dBi 5 GHz: 6 dBi 6 GHz: 5.9 dBi |
| PHY Rate | 2.4 GHz: 688 Mbps (BW40) 5 GHz: 8.6 Gbps (BW240) 6 GHz: 5.7 Gbps (BW320) |
| Radio Streams | 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 4 x 4 (DL/UL MU-MIMO) 6 GHz 2 x 2 (DL/UL MU-MIMO) |
| SSID Security | WPA-PSK, WPA Enterprise (WPA/WPA2/WPA3/PPSK) |
| Concurrent Clients | 500+ |
| Interface | 1 x 1/2.5 GbE RJ45 port |
| Power | PoE+ |
| Power Consumption | 25W |
| Operating Temperature | -30°C / -22°F to 60°C / 140°F Relative Humidity: 5% to 95% non condensing |
| Dimensions | Diameter: 206mm / 8.1" Width: 46mm / 1.8" |
| Weight | 680g / 1.5lb |
| Mounting Options | Wall and ceiling |
| Included | 1 x Mounting template level 1 x Wall mount plate 1 x Multi purpose mounting plate All mounting hardware |
User guides
Download User Guides:
Unifi Brochure
Installation Manual
DoC
