Description

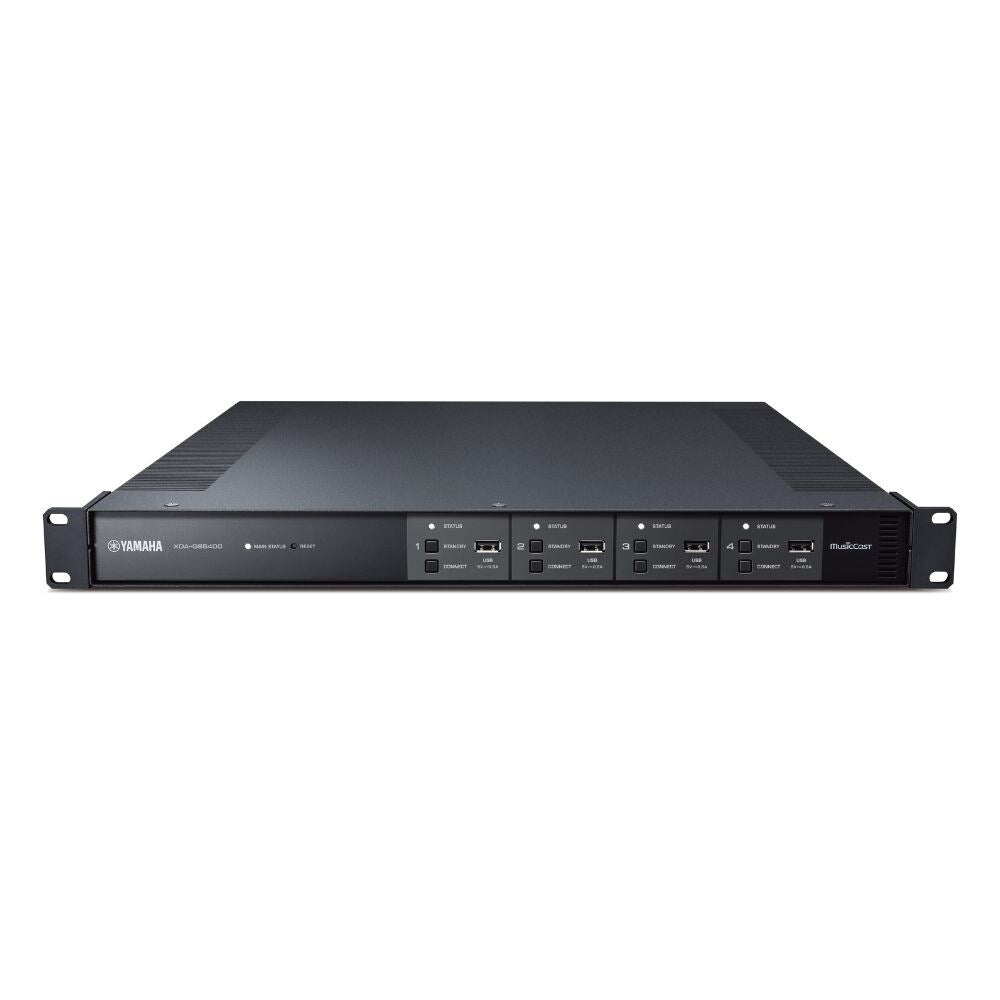

Yamaha's MusicCast multi room streaming amplifier XDA-QS5400RK is specially designed for custom integration of whole home audio systems. It is extremely expandable and can be linked with home cinema AV receivers, sound bars and Hi Fi equipment in a variety of configurations. This quad streamer provides 4 zones audio streaming and 8 channels in an ultra slim 1U mountable rack enclosure.
Yamaha's MusicCast multi room streaming amplifier XDA-QS5400RK is specially designed for custom integration of whole home audio systems. It is extremely expandable and can be linked with home cinema AV receivers, sound bars and Hi Fi equipment in a variety of configurations.
This quad streamer provides 4 zones audio streaming and 8 channels in an ultra slim 1U mountable rack enclosure.
Multiples of Yamaha's QS units can be used together to expand up to 32 zones with simultaneous playback of linked groups up to 20 zones each. In addition, the multi room streaming amplifier offers four zone pre-outs that enable it to be combined with the Yamaha XDA-AMP5400RK, a companion multi room amplifier, to provide more power or more speaker coverage for large areas in a home. The pre-outs may also be used to connect powered subwoofers or subwoofer amps.
It delivers eight channels of audiophile grade Class D amplification assignable to any zone, bridgeable and 4Ω capable, featuring a unique ground loop hum free circuit design. Having built in Pandora®, Spotify Connect, Sirius XM Internet Radio, TIDAL, Deezer, Napster, plus access to music libraries and linked external sources, this amplifier will prove to be easily controlled via a free MusicCast app and 3rd party control systems.
Removable rack ears and are also included.
This multi room streaming amplifier represents the ultimate integrated solution for filling every room in a home with extraordinary and exquisite sound.
Specification
| File Format | MP3 / WMA / MPEG-4 AAC, ALAC: up to 96kHz / 24 bit WAV / FLAC / AIFF: up to 192kHz / 24 bit |
| Minimum Speaker Load Capability | 4 Ohm |

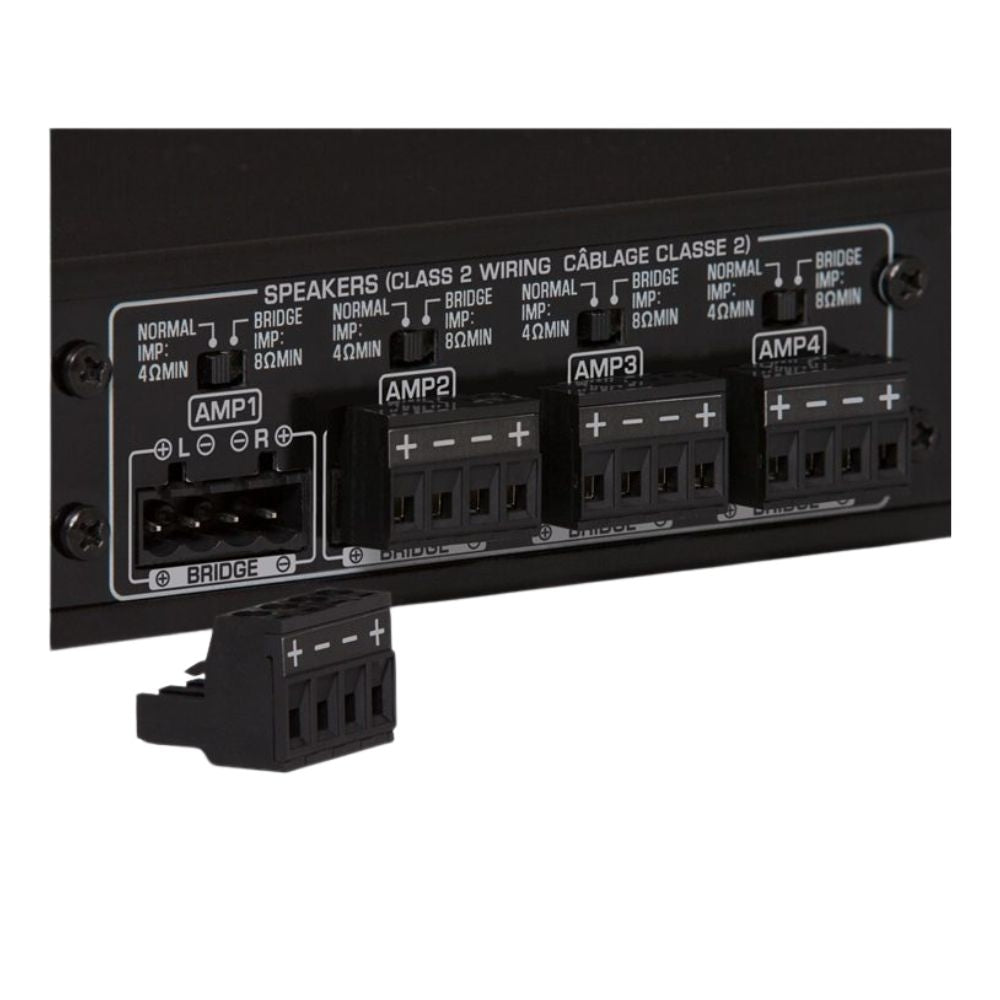

| Speaker Output | 4 (Euroblock) |
| Pre Out Terminal | 4 |
| Audio Input Terminal | RCA: 2 (CUT IN, AUX), USB: 4 |
| Audio Output Terminal | RCA (2 channel through out) 2 (CUT IN, AUX) |
| Rated Output Power | 1kHz, 0.9% THD, 2 channel driven: Normal (4 / 8 ohms): 90 / 50W, Bridge (8 ohms): 100W 1kHz, 0.9% THD, 1 channel driven): Normal (4 / 8 ohms): 100 / 50W, Bridge (8 ohms): 200W |
| Dynamic Power | 20Hz to 20kHz, 0.08% THD, 2 channels driven, 20ms burst:: Normal (4 / 8 ohms): 80 / 40W, Bridge (8 ohms): 150W 1kHz, 0.9% THD, 2 channels driven, 20ms burst: Normal (4 / 8 ohms): 100 / 50W, Bridge (8 ohms): 200W 1kHz, 0.9% THD, All channels driven, 20ms burst: Normal (4 / 8 ohms): 80 / 50W, Bridge (8 ohms): 170W |
| Maximum Effective Output Power | 1 channel driven, 1kHz, 10% THD Normal (4 / 8 ohm): 130 / 65W, Bridge 8 ohm: 260 W |
| Total Harmonic Distortion | SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm 0.04% PRE OUT, 20 Hz-20 kHz, 1V 0.005% |
| Frequency Response | 1kHz + 0 / -3dB] |
| Signal to Noise Ratio | PRE OUT NET / USB IN 114dB, PRE OUT AUX IN 108dB SP OUT NET / USB IN 106dB, SP OUT AUX IN 104 dB |
| Rated Output Level / Output Impedance | PRE OUT L / R, 1kHz 2.0 V / 470 ohm |
| Gain | SP OUT 1 V Input 25.8dB |
| Input Sensitivity | 1 W Power, 8 ohm 150 mV, MAX (50W) Power, 8 ohm 1.0 V |
| Power | Power Consumption: 130W 40W All Zone On with No Signal Condition 18.2W All Zone Off with Chime On |
| Rack Size | 1U mountable |
| Dimensions | Table Top Mount With Adhesive Feet: Height: 1.75" Width: 17.25" Depth: 17.38" Rack Mount With Faceplate: Height 1.75" Width: 18.78" Depth: 17.38" |
| Weight | 6.31kg / 13.9lb |
| Included | Removable rack ears and faceplate |
Features
- Designed for custom integration of a MusicCast multi room audio system connected via Ethernet LAN in a rack or cabinet
- Streams four zones of audio per unit, expandable to 32 zones with simultaneous playback in linked groups of up to 20 zones each
- Eight channels of audiophile grade Class D amplification assignable to any zone, bridgeable and 4Ω capable, featuring a unique ground loop hum free circuit design
- Built in Pandora®, Spotify Connect, Sirius XM Internet Radio, TIDAL, Deezer, Napster, plus access to music libraries and linked external sources
- Easy control via a free MusicCast app and 3rd party control systems
- 1U high rack wide enclosure.
- Removable rack ears and faceplate included
User guides
Download User Guides:
Yamaha CA Brochure
