Description
Powered by a new generation of advanced electronics, Christie's Jazz Series 1DLP laser projectors hit all the right notes with stunning 1920x1200 visuals, a compact form factor and exceptional value. These projectors deliver up to 23,750 lumens of colour that pop with deeper blacks and life like contrast, all from a remarkably lightweight chassis, weighing less than 30kg. With Jazz you get premium performance without the premium price tag.
These projectors deliver up to 23,750 lumens of colour that pop with deeper blacks and life like contrast, all from a remarkably lightweight chassis, weighing less than 30kg.
This projector delivers higher brightness for a bigger impact, at an incredible price. Boasting 15000ANSI on the DWU1800 and 20,000 ANSI on the DWU2400 thJazz projectors have the ultimate brightness in a lightweight chassis.
With its flexible, versatile design and extraordinarily compact form factor and quiet operation, this projector is easy to handle, install and to fit into your space. It also offers dynamic contrast for lifelike imagery, where you can dive into a world of depth and detail with a dynamic contrast ratio of 25,000:1.
These projector present a reliable Laser Light Source with 20,000 in standard mode and 50,000 hours in ECO1 mode and cutting edge, advanced electronics. Texas Instrument's 0.8" HEP DMD and optical design give you improved colour, contrast and a more efficient cooling system design.
This Christie projector is a complete solution that work for you, as warping and blending are made easier with Christie Twist™ onboard to expertly edge blend and stack multiple images and their optional Mystique™ camera based software that lets you automatically align, stack and blend multi projector systems.

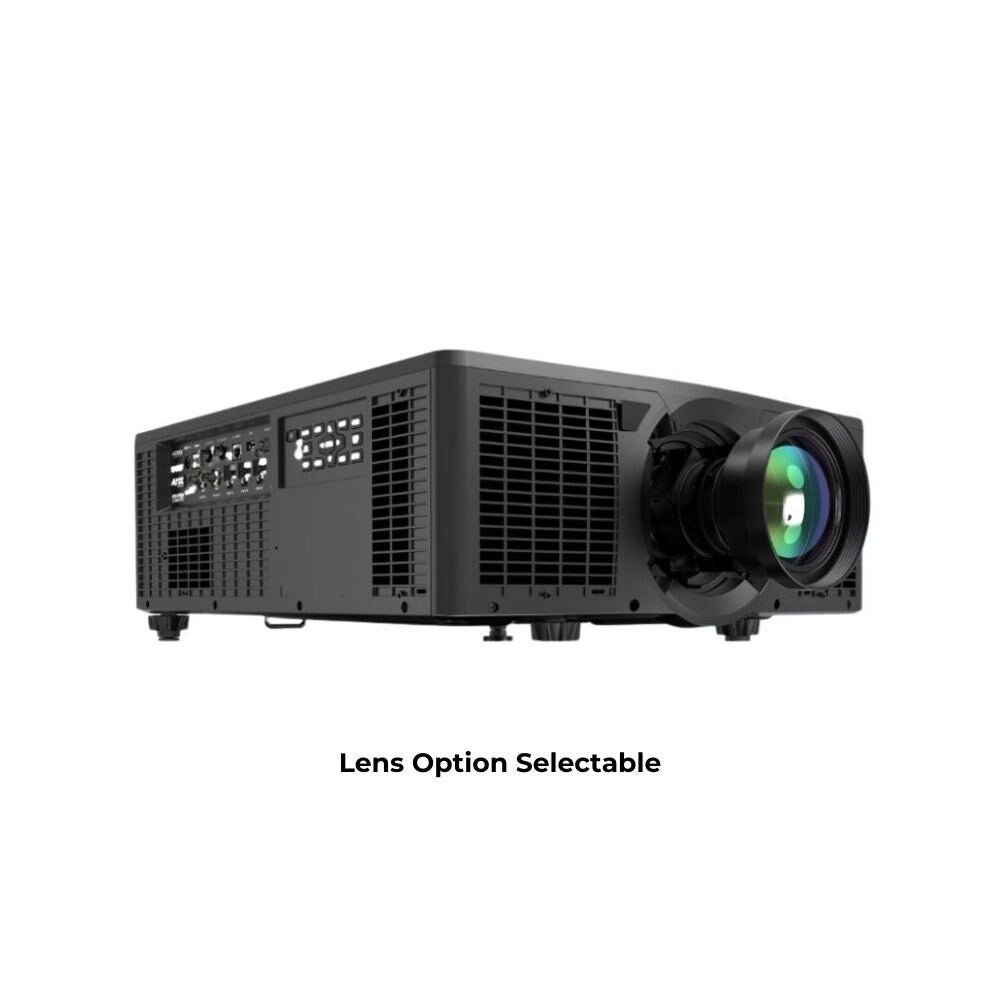

With nine interchangeable lenses, including ultra short throw, you can find the lens that works best for your project and space.
The Jazz projector offers reliability you can trust. Receive extra peace of mind with Christie's industry leading five year warranty and virtually maintenance free operation that works for you on a 24/7 basis.
With Jazz you get premium performance without the premium price tag.
Specifications:
DWU1800-JS | DWU2400-JS | |
Image Brightness | 17,800 ISO 15,000 ANSI |
23,750 ISO 20,000 ANSI |
Type | 1 x 0.80" HEP DMD | 1 x 0.80" HEP DMD |
Native Resolution | 1920-1200. 2,304,000 pixels 16:10 | 1920-1200. 2,304,000 pixels 16:10 |
Illumination Type | High Efficiency Blue Laser phosphor | High Efficiency Blue Laser phosphor |
Performance | 20,000 hrs to 50% brightness 50,000 hrs to 50% brightness in ECO1 mode |
20,000 hrs to 50% brightness 50,000 hrs to 50% brightness in ECO1 mode |

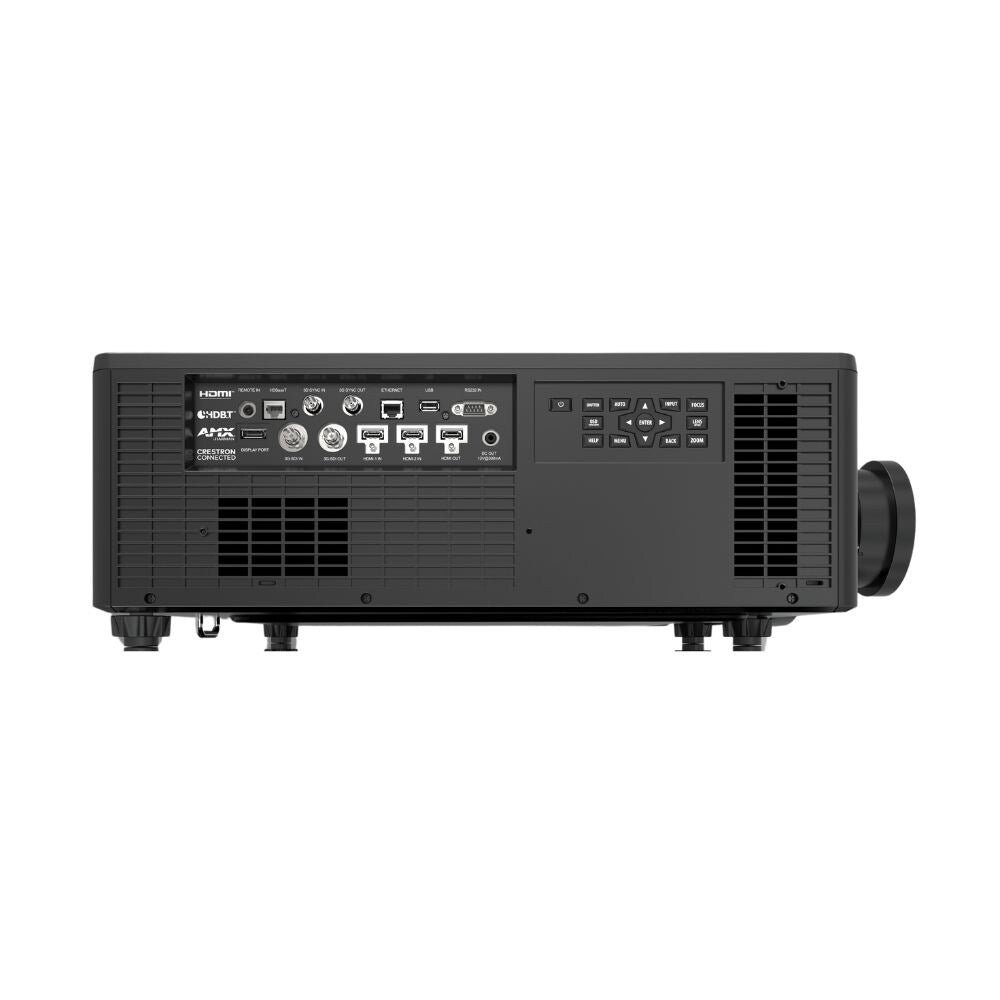

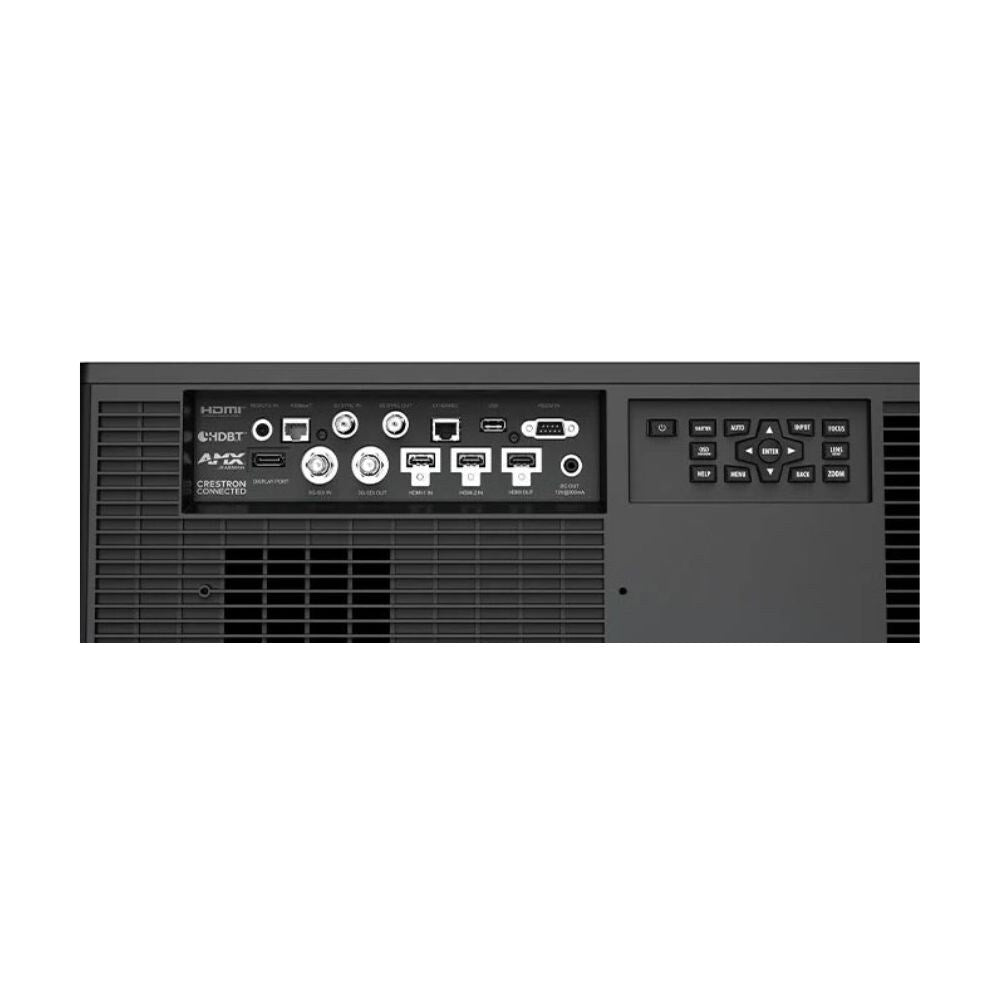

Inputs | HDMI x 2 HDCP 1.4/2.2 compliant DisplayPort x 1 version 1.2a 3G-SDI x 1 (BNC) USB x 1 Type A RS-232 in Control via HDBaseT Ethernet (10/100) RJ45 3.5mm Stereo Female for serial comms and power DC Jack 12V DC, 200mA |
HDMI x 2 HDCP 1.4/2.2 compliant DisplayPort x 1 version 1.2a 3G-SDI x 1 (BNC) USB x 1 Type A RS-232 in Control via HDBaseT Ethernet (10/100) RJ45 3.5mm Stereo Female for serial comms and power DC Jack 12V DC, 200mA |
Signals | Horizontal and vertical scaling while maintaining aspect ratio. All inputs | Horizontal and vertical scaling while maintaining aspect ratio. All inputs |
Power Consumption | Normal Power Consumption: 1204W Eco1 mode (80%): 968W Eco2 mode (50%) 652W |
Normal Power Consumption: 1500W Eco1 mode (80%): 1164W Eco2 mode (50%) 806W |
Dissipation | Normal mode: 2996 BTU/hr Eco1 mode: 2348 BTU/hr Eco2 mode: 1515 BTU/hr |
Normal mode: 4187 BTU/hr Eco1 mode: 3282 BTU/hr Eco2 mode: 2118 BTU/hr |
Dimensions | Without Feet: Height: 193mm / 7.6" Width: 520mm / 20.5" Length: 600mm / 23.65" |
Without Feet: Height: 193mm / 7.6" Width: 520mm / 20.5" Length: 600mm / 23.65" |
Weight | 29.4kg / 64.76lb | 29.4kg / 64.76lb |
Features:
- Higher brightness for a bigger impact with a choice of 15,000 or 20,000 ANSI Lumens
- Dynamic contrast for lifelike imagery
- Cutting edge and advanced electronics with Texas Instrument's 0.8" HEP DMD
- Flexible and versatile design with compact form factor and quiet operation
- Wide range of lens options available
- Reliable laser light source
- 5 year or 20,000 hour warranty
