Description
Description:

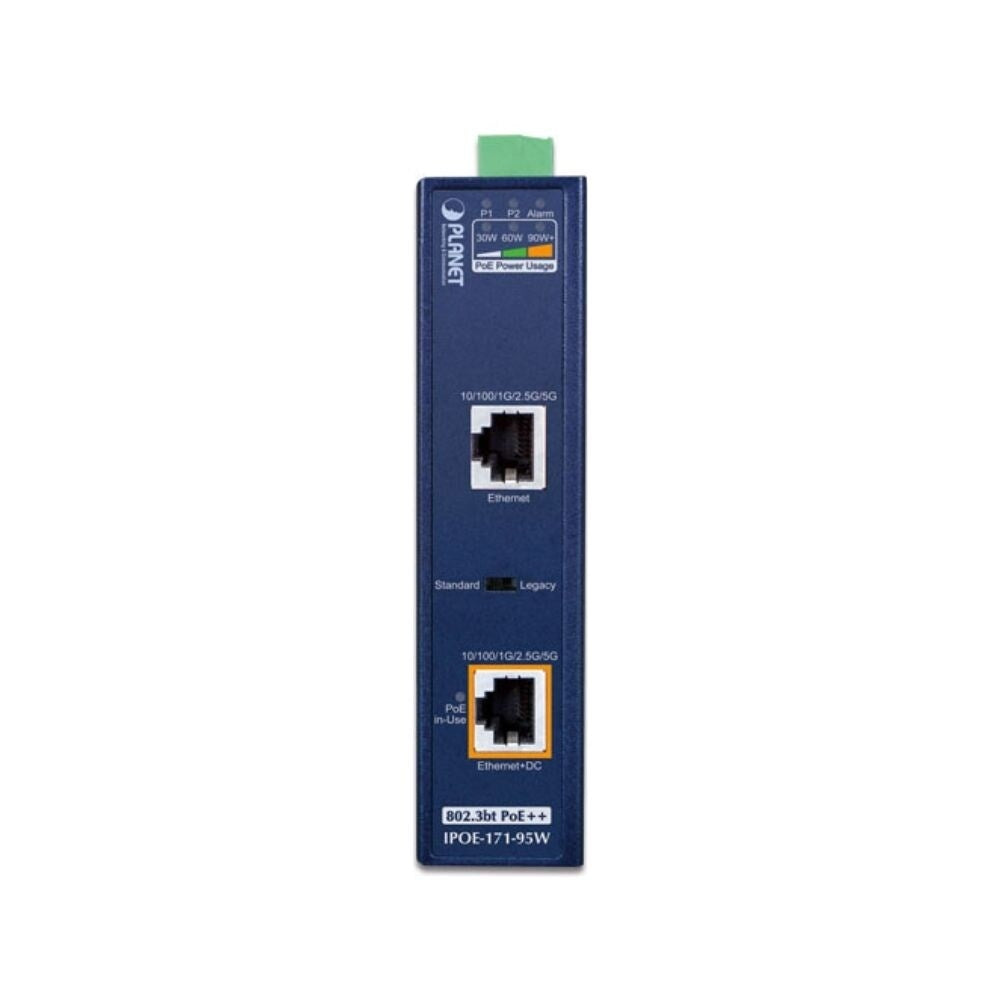

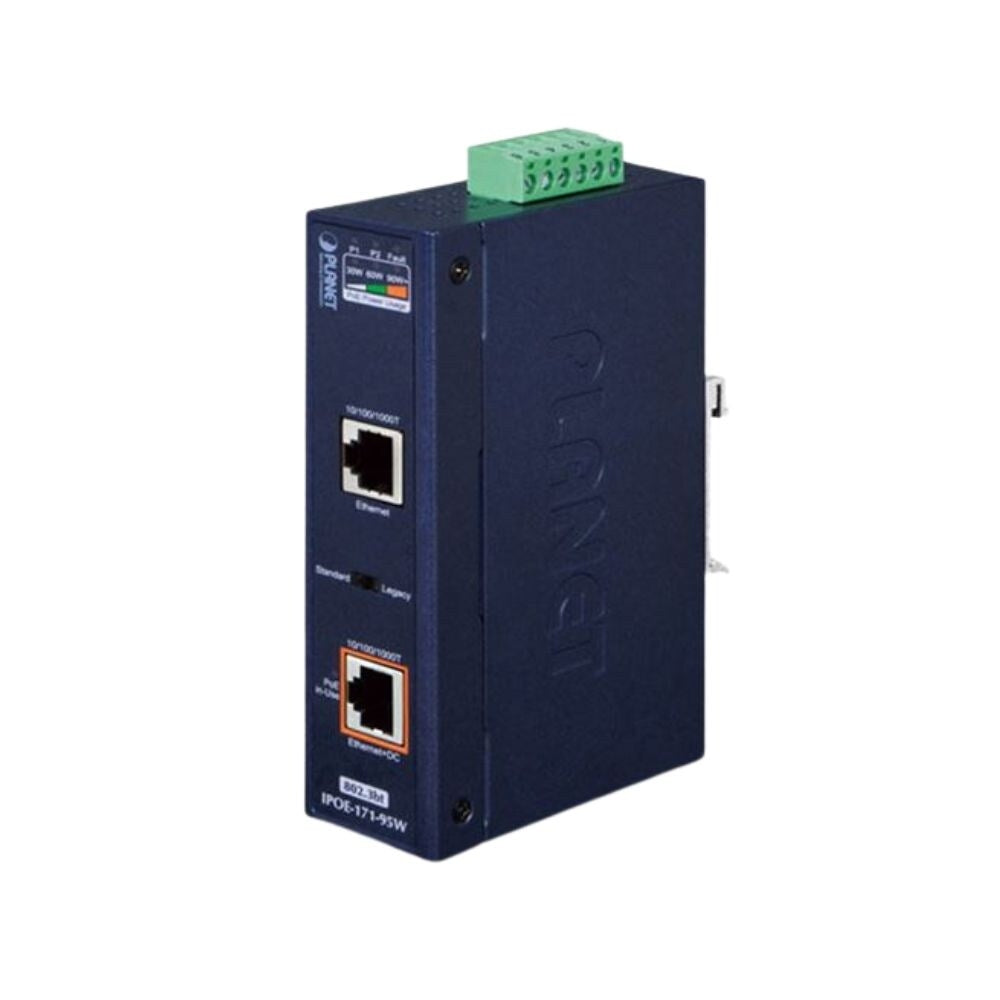

Planet Technology's IPOE-171-95W is a single port industrial 802.3bt power over Ethernet injector with a maximum of up to 95W of power output over Ethernet cable. It is also equipped with two 100M, 1G, 2.5G, 5GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission.
This single port POE ++ injector is specifically designed to meet the demand for growing higher power required network equipment such as lighting, all in one touch PC, remote digital signage display and other network devices, which need higher power to work.
The IPOE-171-95W delivers the Ethernet digital data with 54V DC power over the twisted pair cables as a 95W Power over Ethernet Injector and the connected ultra Power over Ethernet splitter. The unit will separate the digital data and the power into three optional outputs of 12V or 24V DC with distance up to 100m.
To facilitate the 802.3bt PoE++ usage with commonly used 12 to 48V DC power input for transportation and industrial level applications, the IPOE-171-95W adopts 12 to 48V DC to 54V power boost technology to solve power source issue but does not require special power supplies.
Features:
Interface
- 2 RJ45 interfaces
- 1 port Data + Power output
- 1 port Data input

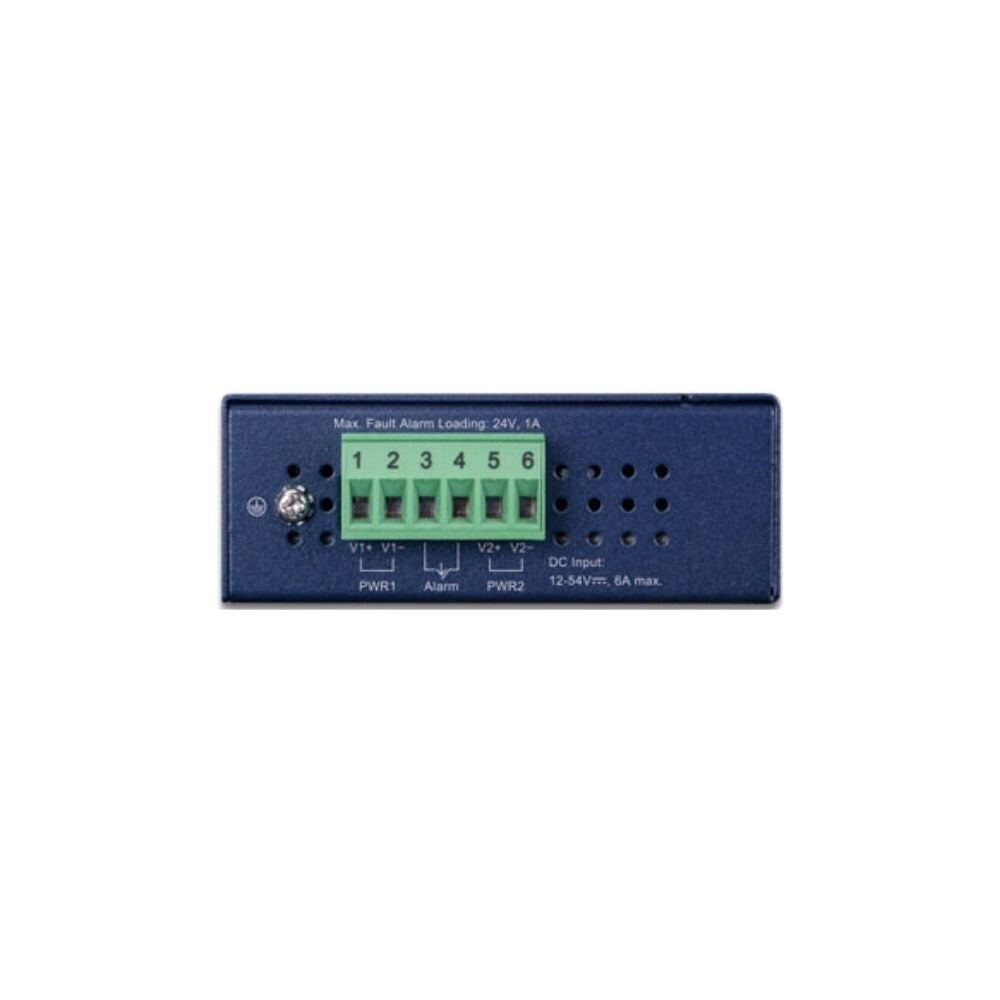

- 1 terminal block for master and slave power input. Power Range: 12 to 48V DC redundant power
- 1 PoE mode, standard or legacy DIP switch
Power over Ethernet
- Complies with IEEE 802.3at/bt PoE end span or mid span PSE
- Supports PoE power up to 95W for PoE port
- Auto detection of PoE IEEE 802.3at/bt equipment and devices from being damaged by incorrect installation
- Monitors the status of the total PoE usage in real time
- Remote power feeding up to 100m
Hardware
- IP30 slim type metal case
- LED indicators for Power LED, PoE in Use LED and PoE Usage LED
Industrial Case and Installation
- Solid wall mount or DIN rail mount installation
- Supports 6KV DC Ethernet ESD protection
- -40°C to 75°C operating temperature
Specifications:
| Interface | Input Port 1 x RJ45 STP Data In 1 x RJ45 STP PoE data plus power Out Input power terminal block 1 |
| Network Cable | Twisted pair cable up to 100m / 328ft 10BASE-T: 4 pair UTP CAT 3, 4, 5, 5e, 6 100BASE-TX: 4 pair UTP CAT 5, 5e, 6 1000BASE-T: 4 pair UTP CAT 5e, 6 |
| Data Rate | 10/100/1000Mbps |
| Power | Requirement: DC 12 to 48V, 5A max Consumption: 120W max |
| Unit Output Voltage | DC 54V |
| Construction | IP30 rated slim type metal case enclosure |
| PoE Standard | IEEE 802.3at/bt PSE |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bt 4-pair Power over Ethernet Type 4 IEEE 802.3at Power over Ethernet Plus |
| PoE Mode | Standard: To provide power to the PD devices that follow the IEEE 802.3at/bt standard Legacy: To provide power to the PD devices that do not fully follow the IEEE 802.3af/at/bt standard Besides, the Legacy mode supports PoH and Ultra PoE |
| PoE Power | Output Budget: DC 54V / 95W PoE via 4 pair DC 54V / 36W PoE via 2 pair Output: DC 24V to 48V input: Max. 89.5W @1m cable Max. 75W @100m cable DC 12V input: Max 60W @ 1m cable Max 52W @ 100m cable Supply Type: End span plus Mid span |
| Power Pin Assignment | Pair 1 End span: 1/2 (-), 3/6 (+) Pair 2 Mid span: 4/5 (+), 7/8 (-) |
| No. of Devices That Can Be Powered | 1 |
| LED Indicators | Power 1 (green) Power 2 (green) Fault (red) PoE Port: PoE in Use x 1 (amber) PoE Usage: PoE Usage x 3 (amber) |
| Alarm | Provides one relay output for power failure Alarm Relay current carry ability1A @ DC 24V |
| Operating Temperature | Operating: -40°C / -40°F to 75°C / 167°F Relative Humidity: 5% to 90% relative humidity non condensing |
| Dimensions | Height: 32mm / 1.26" Width: 135mm / 5.32" Depth: 87.8mm / 3.46" |
| Weight | 470g / 1.04lb |
| Installation | DIN rail kit or wall mount ear |
| Certifications | FCC Part 15 Class A, CE |
User guides
Download User Guides:
Data Sheet
Quick Start Guide
