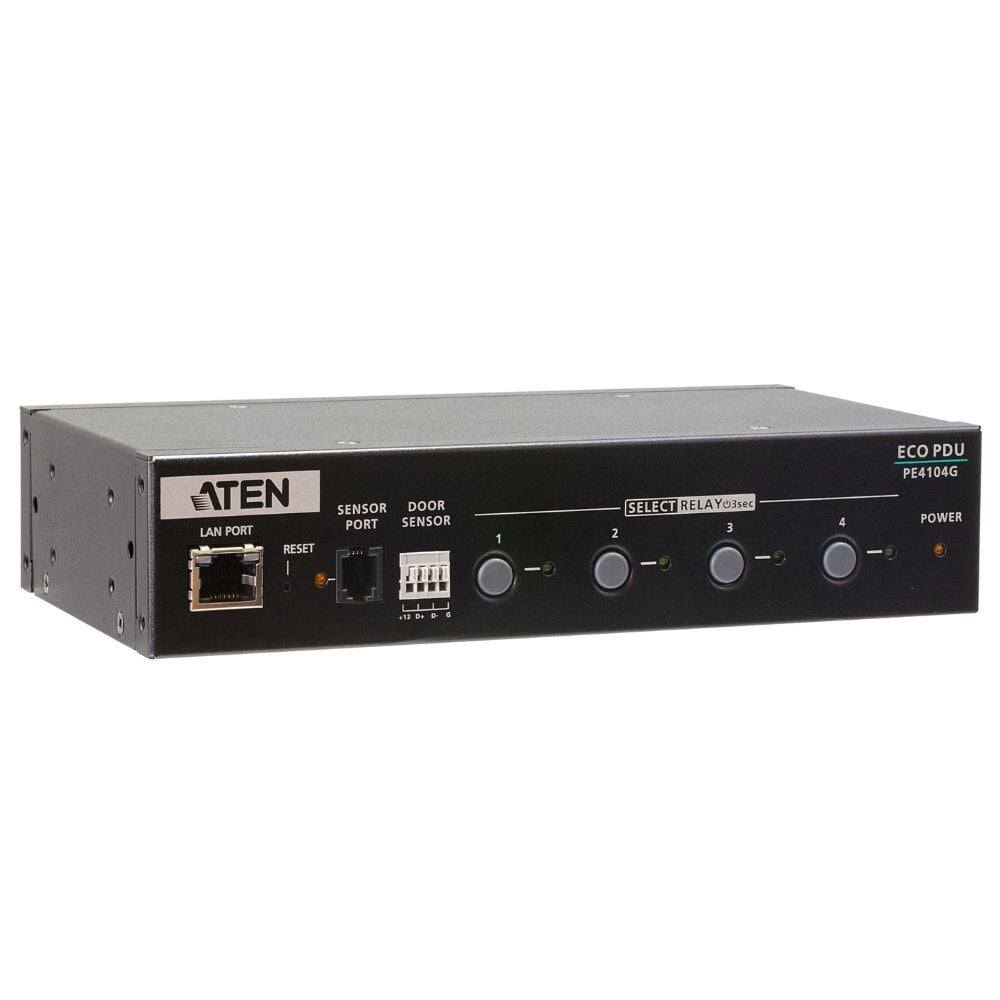

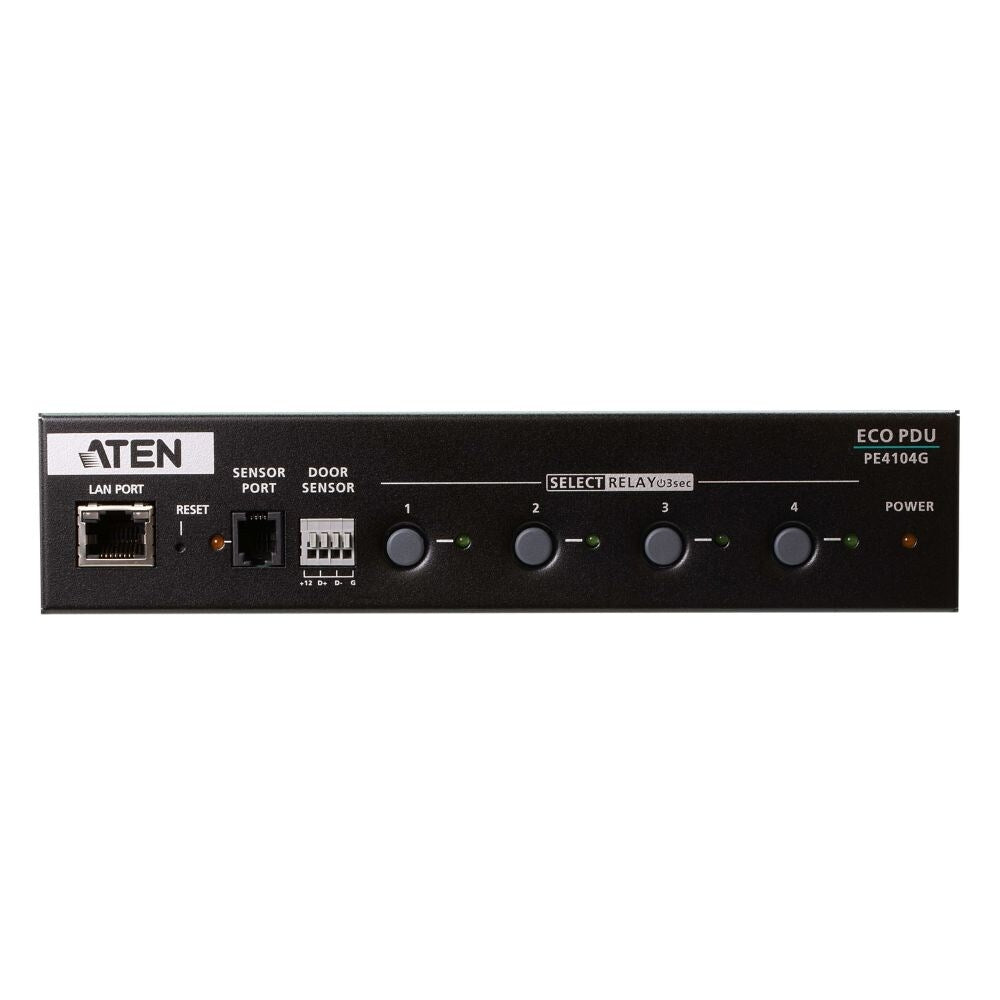

Aten 4 Way 10A Compact Intelligent Eco Power Distribution Unit

Description:

Engineered to be an intelligent power distribution solution, the PE4104G IP Control Box from Aten comes with 4 power outlets in an IEC socket configuration. It provides secure, centralised, intelligent and remote power management of data centre IT equipment to minimise the operating cost.

Boasting a a slim, compact form factor, it supports desk mounting as well as rack mounting, ensuring easy installation in confined spaces.

The PE4104G offers remote power control combined with real time power measurement. It allows control of the devices attached to the PDU at the PDU device level from practically any location via a TCP/IP connection.

The power sequence design eliminates the risks for a power inrush to guarantee reliable operation and protects the overall system health. With the support for eco DC software, it provides an easy method for managing multiple devices, offering an intuitive and user friendly Graphical User Interface that allows you to configure a PDU device, reboot the device in case of any equipment lock up occurs and power status of the equipment connected to it.

The administrators are allowed to switch on/off or set a delay period for each power outlet or individual power outlets group whenever, wherever. It features two level password security and strong security features include password protection and advanced encryption TLS1.2 technologies

The PE4104G is a smart power control box tailored for hospitality or retail applications, such as digital signages and video walls, for edge computing devices, including routers, servers and cameras, or for any data centre environments where there is no need to keep the servers powered on at all times.

Features:

Power Distribution

• Space saving slim and compact form factor

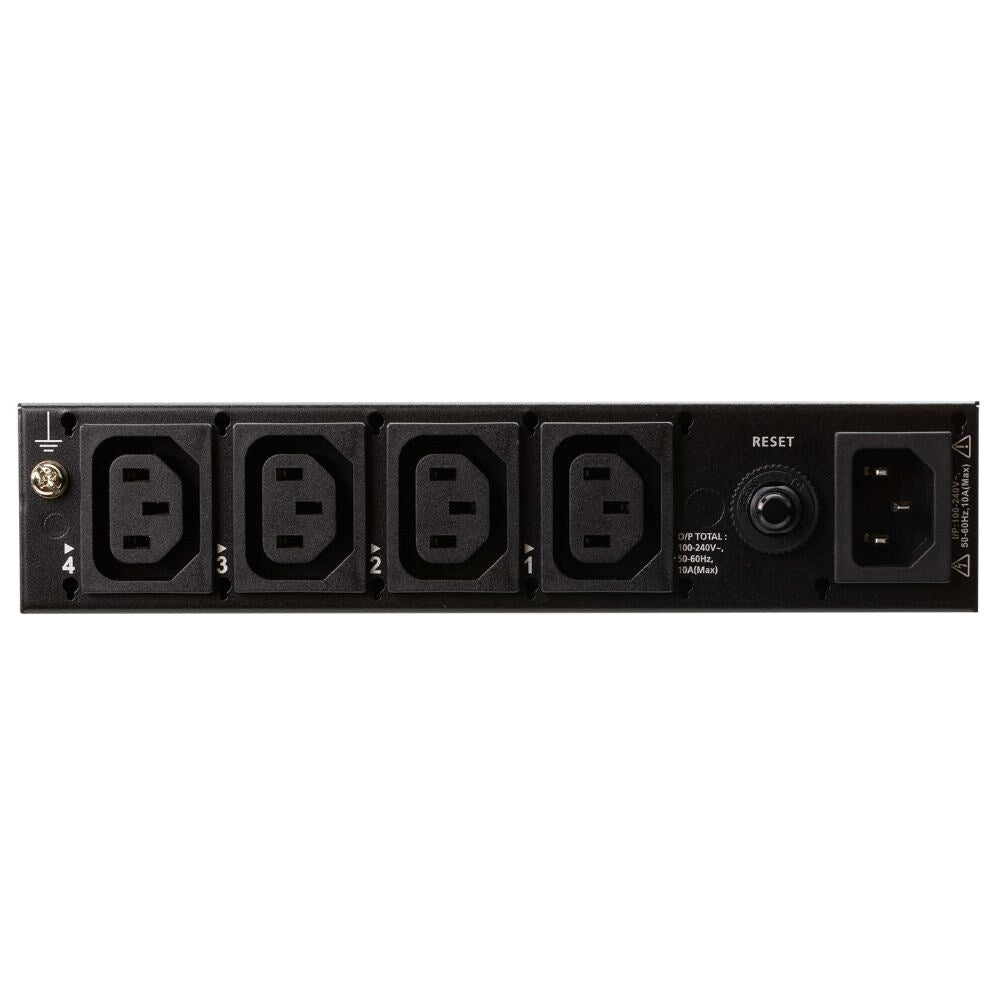

• IEC power outlet
• Separates power for the unit's own power and its power outlets
• User interface is still accessible even when an overload condition trips the device's circuit breaker

Remote Access

• Remote power control via TCP/IP and a built in 10/100 Ethernet port
• Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, ARP, NTP, DNS, SNMP V1, V2, V3, auto sense, Ping, Telnet, Modbus (Over TCP IP)
• Works with web based eco DC software

Operation

• Local and remote power outlet control (On, Off, Power Cycle) by individual outlets
• The power on sequence and delay time can be set for each port to allow equipment to be turned on in a proper order
• Easy setup and operation via a browser based user interface

Security

• Two level password security
• Strong security features include password protection and advanced encryption TLS1.2 technologies
• RADIUS remote authentication support

Specifications:
