Description
Description:
Aten has developed a new generation of green energy power distribution units to effectively increase the efficiency of data centre power usage.

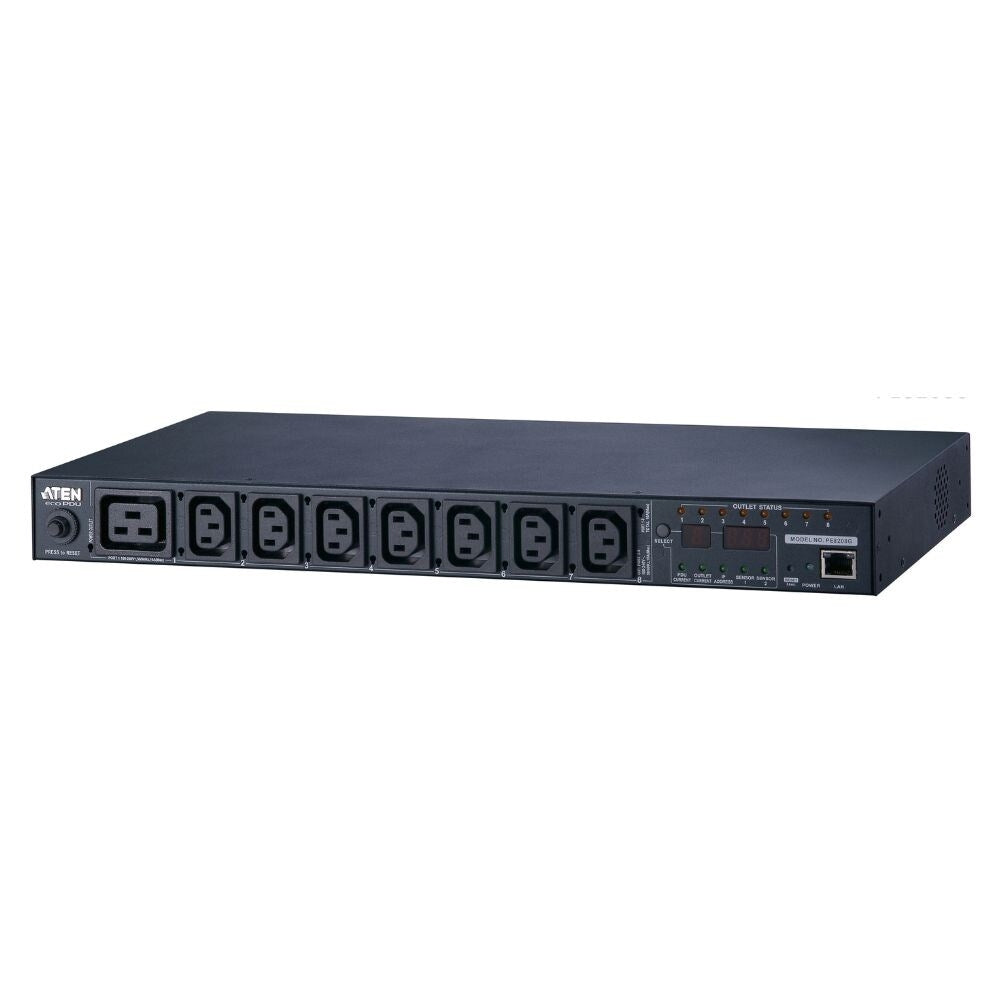

The PE8208 is an intelligent eco PDU that contains 8 AC outlets and is available in C13/C19 socket configurations. It provides secure, centralised and intelligent power management of a data centre IT's equipment in the most efficient and cost effective way possible.
Switched and metered, allowing the user to remotely monitor load level with a built in meter and avoid any potential overloads. With its advanced security features and ease of operation, this PDU is the most convenient, most reliable and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.
This PDU's configurations allows accessibility to the sockets, hard buttons, at the front of the unit for ease of power management. It also features holiday power mode settings.
It provides secure, centralised, intelligent and power management (power on, off, cycle) of data centre IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.) as well as the ability to monitor the centre's health environment via sensors*.

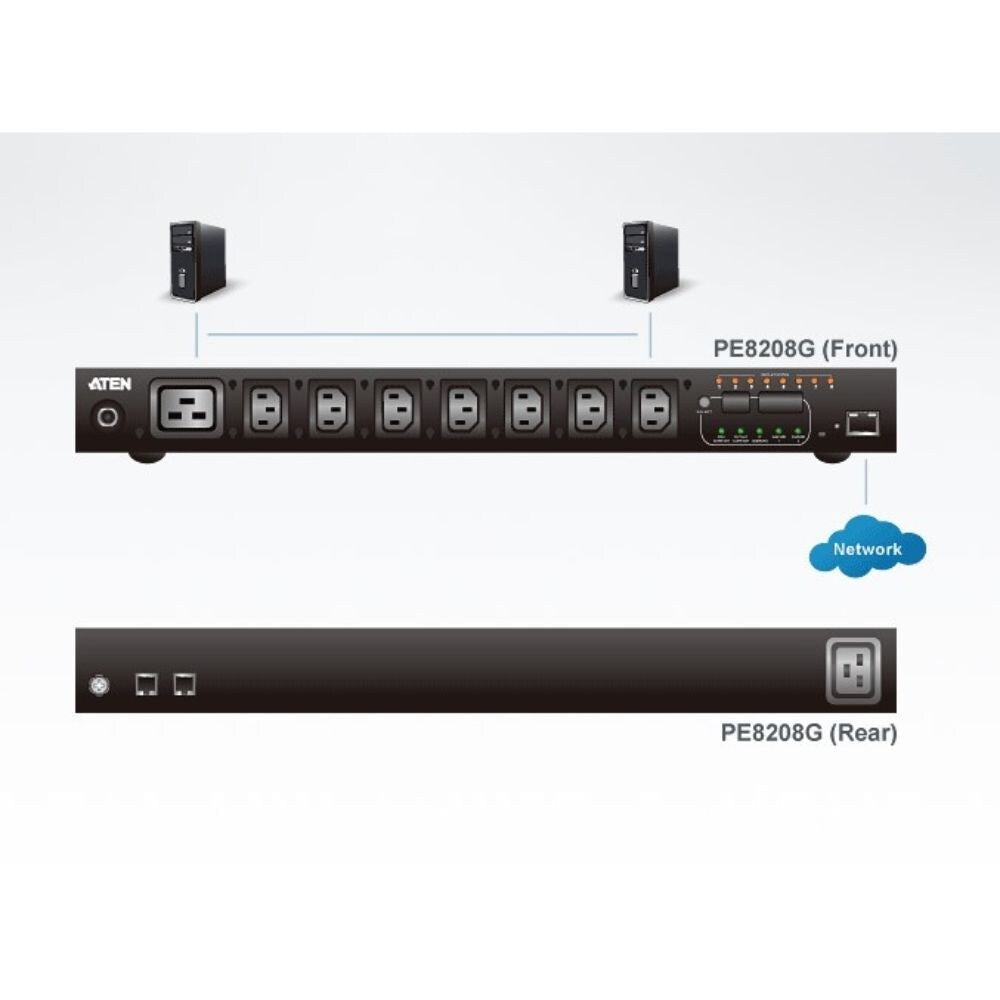

The eco PDUs offer remote power control combined with real time power measurement. This allows the user to control and monitor the power status of devices attached to the PDUs from practically any location via a TCP/IP connection, either at the PDU device or outlet level.
The eco PDU supports any 3rd party v3 SNMP Manager Software and the eco Sensors (Energy Management Software). The eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With the eco Sensors, the Sensor enabled eco PDU also offers comprehensive power analysis reports, which can separate by departments and locations, providing precise measurements of current, voltage, power and Watt hour in a real time display.
With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.
Features:
Power Distribution

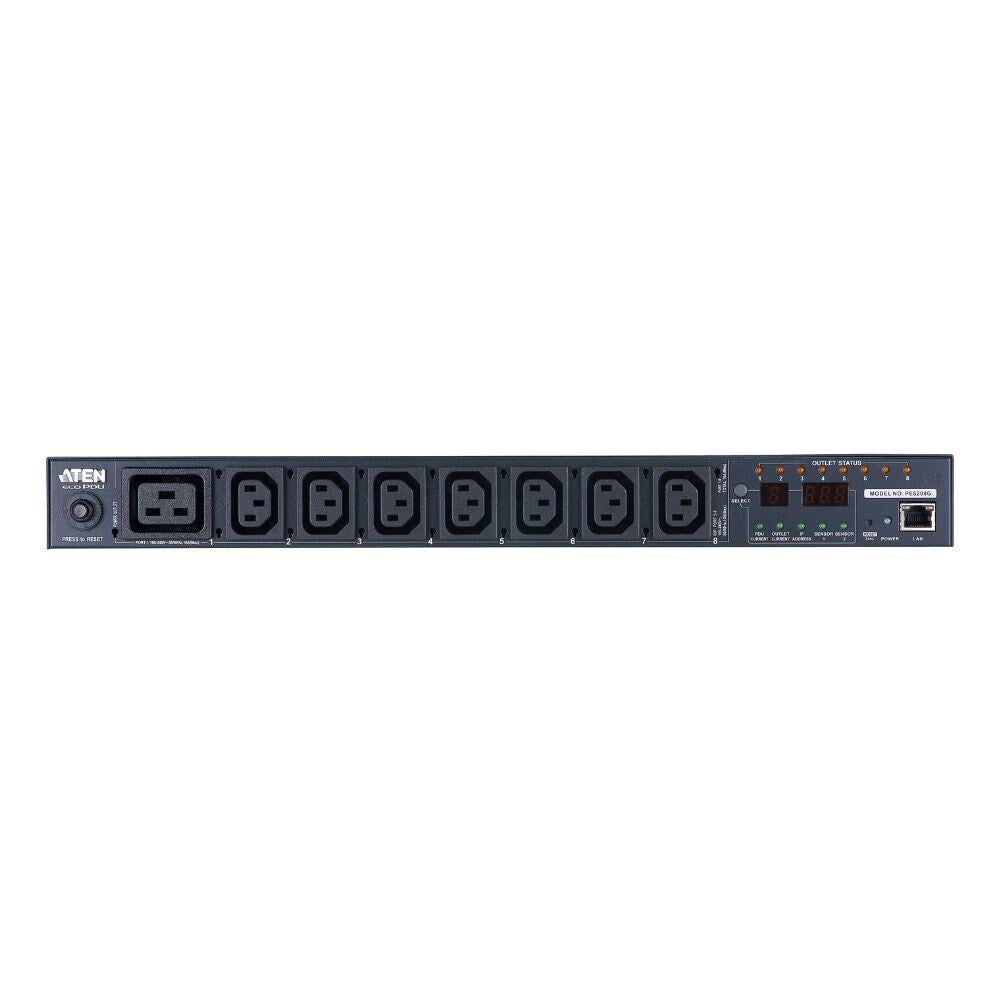

- Space saving 1U rack mount design with rear mounting
- IEC or NEMA outlet models
- 3 digit 7 segment front panel LED shows Current / IP Address
- Remote users can monitor outlet status via web pages on their browsers
- Safe shutdown support
- The user interface is still accessible even when an overload condition trips the devices' circuit breaker
Remote Access
- Remote power control via TCP/IP and a built in 10/100 Ethernet port
- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping, Telnet
- eco PDU Power Management software
- Supports SNMP Manager V3
Operation
- Remote power outlet control (On, Off, Power Cycle) by individual outlets
- The power on sequence and delay period can be set for each port to allow equipment to be turned on in the proper order
- Easy setup and operation via a browser based user interface
- Multi browser support (IE, Firefox, Chrome, Safari)
- RTC support to keep the timer running during times of no power
- Supports up to 8 user and 1 administrator accounts
Management
- Power status measurement at the PDU or Outlet level
- LED indicators for current and IP address at Outlet level
- Real time current, voltage, and kWH displayed in a browsed based UI for monitoring at the outlet level
- Current and voltage threshold setting
- Naming support for outlets
- User outlet access assignment on an outlet by outlet basis.
- Event logging and syslog support
- Upgradeable firmware
- Multilanguage support: English, German, Traditional Chinese, simplified Chinese, Japanese, French, Spanish and Italian
Security
- Two level password security
- Strong security features include password protection and advanced encryption technologies: 128 bit SSL
- Remote authentication support: RADIUS
eco Sensors Energy Management Software
- Automatic discovery of all PE devices within the same intranet
- Remote real time power measurement and monitoring
- Remote real time power outlet management*
- Remote real time environment sensor monitoring
- Plotting/monitoring of all PE devices
- Exceed threshold alert through SMTP and Syslog
- Power analysis report
Specifications:
| Number of Sockets | 8 |
| Output Socket Type | C13 x 7 / C19 x 1 |
| Max Current | 16A |
| Power Cycle Individual Sockets | Yes |
| Proactive Overload Protection | No |
| Eco Sensor Ports (RJ-11) | 2 |
| Power Rating | 100 to 240V~ 50/60Hz 16A |
| Load Capacity | 3680W |
| O / P Capacity | Per port: C13 - 100 to 240V 50/60Hz 10A C19 - 100 to 240V~ 50/60Hz 16A |
| Housing | Metal |
| Environmental | Operating temperature: 0°C / 32°F to 50°C / 122°F Storage temperature: -20°C / -4°F to 60°C / 140°F Relative Humidity: 0% to 80% non condensing |
| Dimensions | Height: 4.40cm / 1.73" Width: 22.04cm / 8.68" Length: 43.24cm / 17.02" |
| Weight | 2.84kg / 6.26lb |
