Description

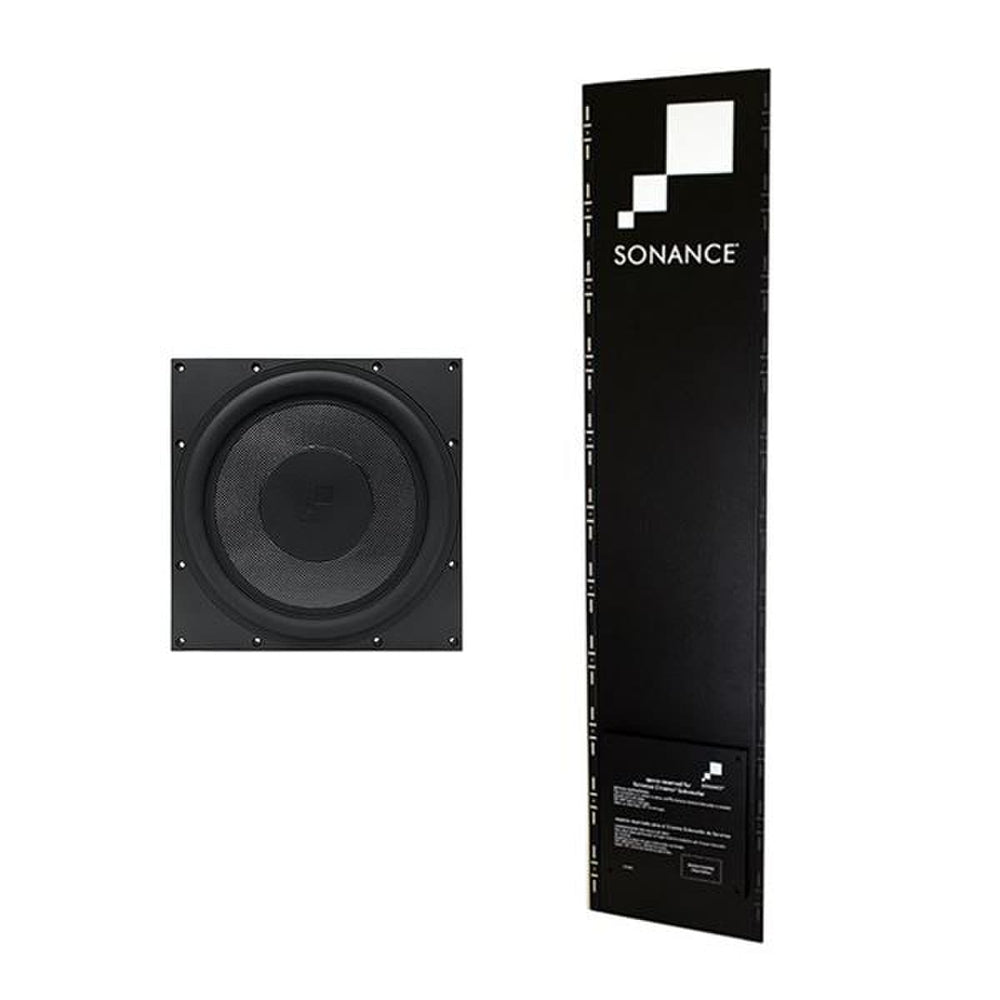

The Sonance In Wall R12 Sub Kit consists of the R12 in Wall 12" subwoofer, SON-93355 together with the sub rear enclosure, SON-92875.
Specifically designed for installation during the construction or renovation process, the enclosure, within this kit, is positioned behind the wall to deliver unprecedented performance with minimal visual intrusion.
Mass damping of front and back walls of each enclosure and long strand fibre glass internal damping for standing wave dissipation is also incorporated. In addition, a floating enclosure design minimises vibration transfer to adjoining rooms.
Sonance Reference Series In Wall Subwoofer enclosures are constructed from a combination of 12.7mm / 1/2" and 25.4mm / 1" MDF for superior isolation of bass and extruded aluminium bracing for minimal obstruction of airflow inside the enclosure.
Sonance Reference Series In Wall Subs include state of the art design and cutting edge materials to deliver the bass of a large cabinet subwoofer without sacrificing floor space.
This In Wall Sub Kit is available in a 12" / 304.8mm model to suit any sized room or available wall space and provides an aesthetic consistent with Sonance Visual Performance Series speakers too.
Pair with Sonance DSP Amplifiers for custom tuned performance.
Specifications
| Sonance Reference Series R12SUB 12" Square In Wall Subwoofer | |
| Woofer | 305mm / 12" laminated carbon fibre cone with a rubber surround |
| Frequency Response | 25Hz to 250Hz ±3dB |
| Impedance | 8Ω nominal |
| Sensitivity | 90dB (2.83V/1 metre) |
| Required Enclosure | R12SUB ENC acoustic enclosure (sold separately) |
| Required Amplification | Sonance DSP2-750. Set for 8Ω operation |
| Dimensions | Woofer: Height: 314mm / 12 3/8" Width: 314mm / 12 3/8" Depth: 80.2mm / 3 5/32" Grille: Height: 381mm / 15" Width: 381mm / 15" Depth: 4mm / 5/32" |
| Sonance In Wall Enclosure for R12 Subwoofer | |
| Compatibility | Fits the Sonance Cinema SUB12-500 only |
| Construction | MDF wood box with long strand fibre glass acoustic dampening material |
| Internal Volume | 34.3 litres / 1.20 cubic feet |
| Dimensions | Enclosure: Height: 1800mm / 70 7/8" Width: 362mm / 14 1/4" Depth: 87mm / 3 7/16" |
| Mounting Depth | 85.7mm / 3 3/8" |
| Mounting Bracket Width | 409.5mm / 16.25" |
| Included | Integrated L shaped bracket mounting system |
Features
Aesthetics
- Mix and match with Reference in wall or in ceiling speakers
- One piece paintable grille to blend into your walls
- Available in 254mm / 10" or 304.8" / 12" models to suit any sized room or available wall space
Subwoofer Performance
- 0.64kg / 1.4lb N38SH Neodymium Magnet
- Dual Spider Technology (DST) allows for increased movement
- 115mm / 4.5" precision aligned voice coil with 30mm / 1.5" winding height
Enclosure Installation
- Designed for installation during the construction or renovation process
- Enclosure is positioned behind the to deliver unprecedented performance with minimal visual intrusion
- Custom tuned amplifiers ensure optimum sonic performance
- Constructed from a combination of 12.7mm / 1/2" and 25.4mm / 1" MDF
- Superior isolation of bass
- Extruded aluminium bracing
- Minimal obstruction of airflow inside the enclosure
User guides
Download User Guides:
Data Sheet
Technical Drawing
Surround Sound Brochures
Sonance Brochure
Quick Start Guide
Instruction Manual
Sub Enclosure Instruction Manual
