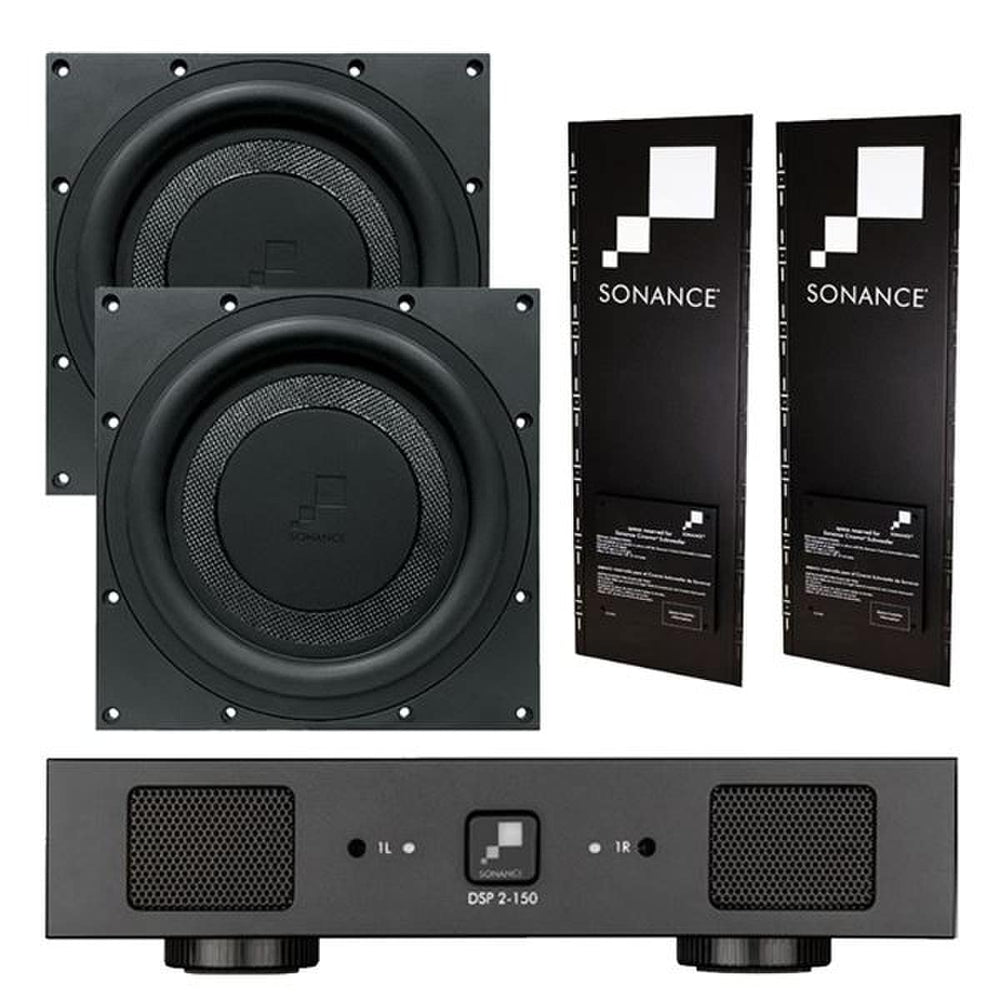

The R10 Sub Bundle from Sonance contains two R10 Subs, two R10 Sub enclosures and a DSP 2-150 amplifier. This bundle features state of the art design and cutting edge materials to deliver the bass of a large cabinet subwoofer without sacrificing floor space.
Designed specifically for installation during the construction or renovation process, its enclosure is positioned behind the wall to deliver unprecedented performance with minimal visual intrusion.
Created for AV specialists designing systems projects, which require the best in surround sound performance with a look that blends into any space, Sonance Reference series provide a truly incredible solution.
Engineered to give you an amazing cinema experience in any room, Sonance designed the new Reference Series using Klippel II technology to ensure that every movement was carefully measured and accurately tuned. The high excursion woofers, 4th generation coaxial driver, individual crossover networks, optimised diffraction baffle and new matte finish combine to create the standard in fidelity.
Sonance Reference Series in wall subs share the same award winning low profile grille design as the rest of the Visual Performance family, creating a consistent aesthetic throughout the home. Designed specifically for installation during the construction or renovation process, this sub's enclosure is positioned behind the wall to deliver unprecedented performance with minimal visual intrusion.
At the core of every DSP amplifier is a powerful 24 bit / 96K DAC capable of handling a full 4608 Kbps of audio data. Sonance DSP amplifiers enable listeners to enjoy the full clarity and output of whatever audio passes through from MP3 to full High Resolution Audio.
Woofer | 254mm / 10" laminated carbon fibre cone with a rubber surround |
Frequency Response | 30Hz to 250Hz +/-3dB |
Sensitivity | 88dB (2.83V/1metre) |
Dimensions | R10 Subwoofer: Height: 265mm / 10 7/16" Width: 265mm / 10 7/16" Depth: 80mm / 3 5/32" Grille: Height: 332mm / 13 1/16" Width: 332mm / 13 1/16" Depth: 4mm / 5/32" |
Enclosure | R10SUB ENC acoustic enclosure |
Amplifier | DSP 2-150 Mark II |
Aesthetic
Performance
Installation
