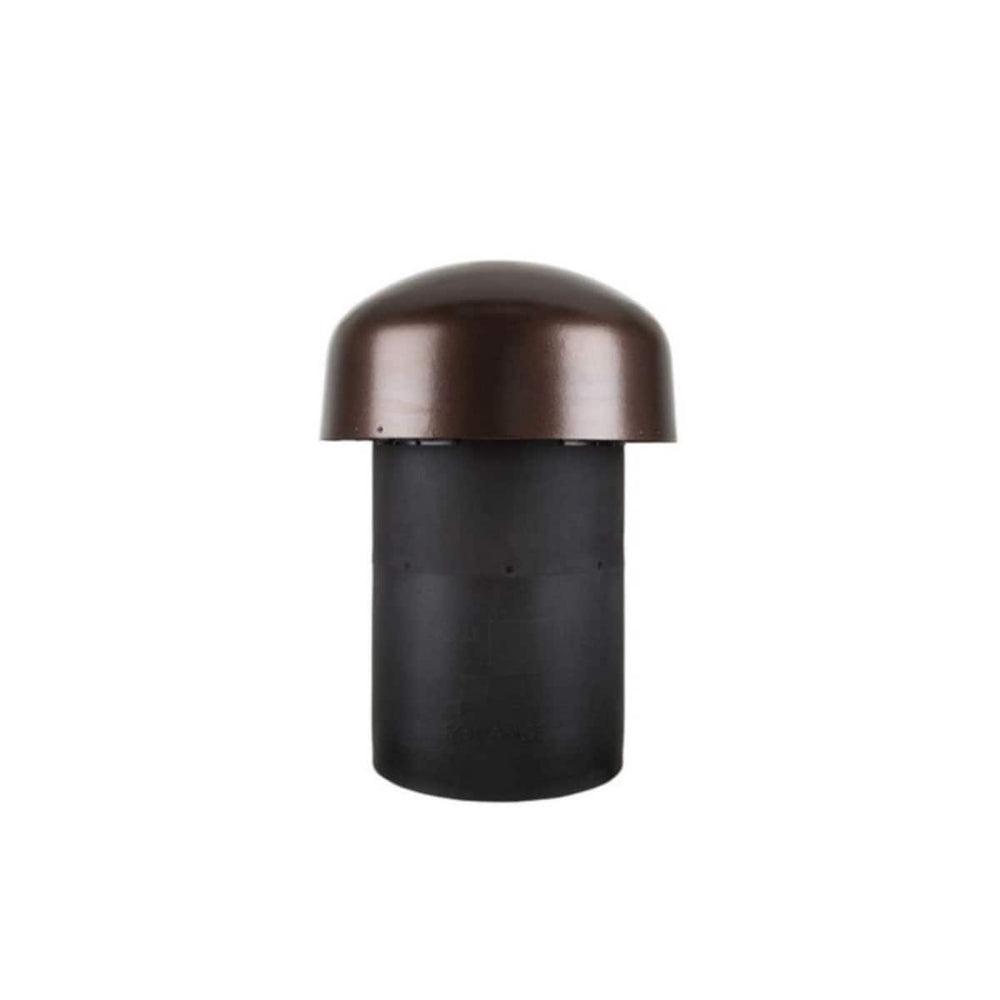

The SonArray SR1 subwoofer provides the same incredibly smooth and powerful low end as Sonance's award winning SonArray SR1 speaker system. This sub significantly increases any outdoor system's low frequency response while maintaining the same unobtrusive aesthetic expected from the range.
This SonArray Subwoofer, as a stand alone subwoofer, can be added onto an existing SR1 system, bringing the total system to 8 satellite speakers and 2 subwoofers when powered with the SR 2-125 SonArray amplifier. The new subwoofer is also the perfect complement to our brand new 8Ω (LS48sat8) SLS satellite speakers and can be paired with Mariners, Rocks, Extremes or added to any other outdoor speaker system.
Award winning Sonance DSP Amplifiers provide perfectly matched DSP curves to unlock the full sonic capabilities of the SonArray SR1 Subwoofer.
Woofer | 203mm / 8" dual voice coil, polypropylene and Santoprene® surround |
Frequency Response | 40Hz to 20kHz ±3dB |
Crossover Frequency | 100Hz |
Power Handling | 150W |
Sensitivity | 89dB SPL (2.83V/1m) |
Wire Recommendations | 18 gauge up to 30m / 100ft 16 gauge up to 45m / 150ft 14 gauge up to 80m / 200ft 12 gauge up to 122m / 400ft 10 gauge up to 198m / 650ft |
Enclosure Construction | High Density Polyethylene (HDPE) non corrosive sealed enclosure |
Dimensions | Length: 559mm / 22" Diameter: 381mm / 15" |
Please note: The 4 coloured wires are used for the following:
Right channel is red (+) and black (-) Left channel is white (+) and green (-)
