Description:

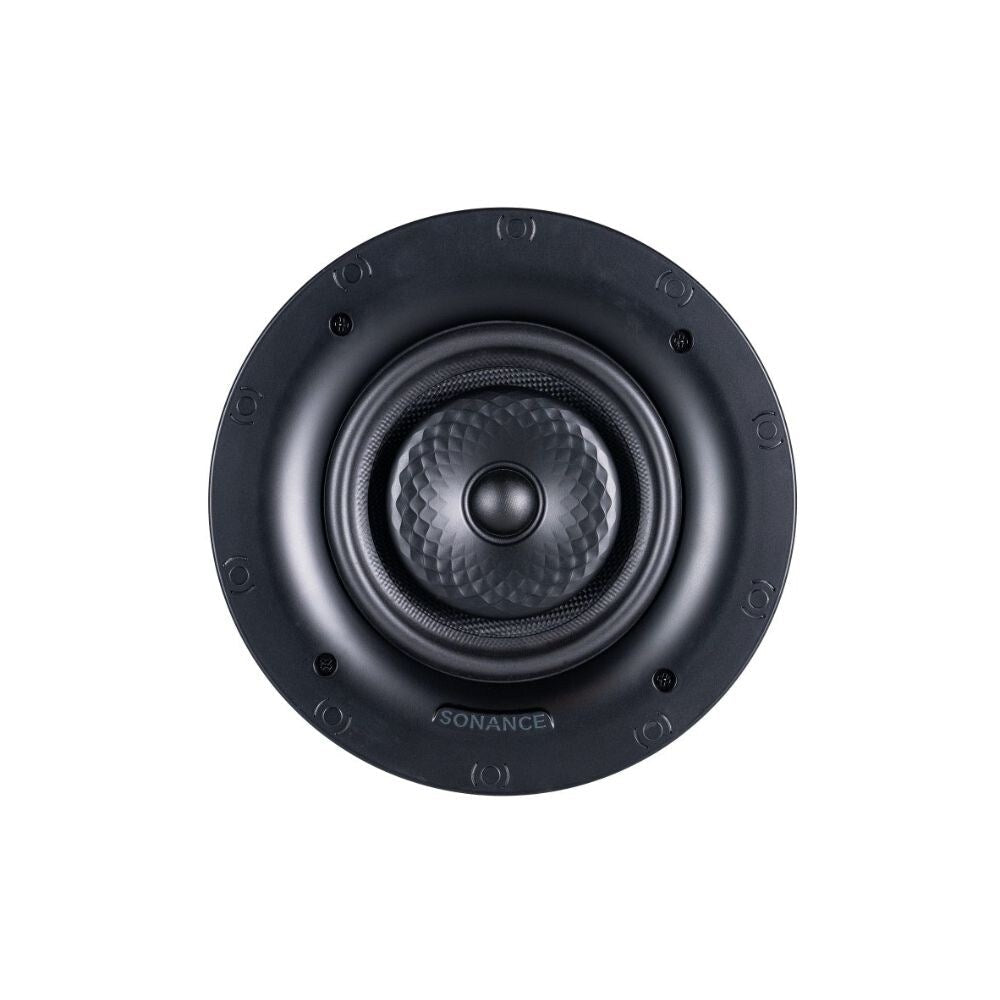

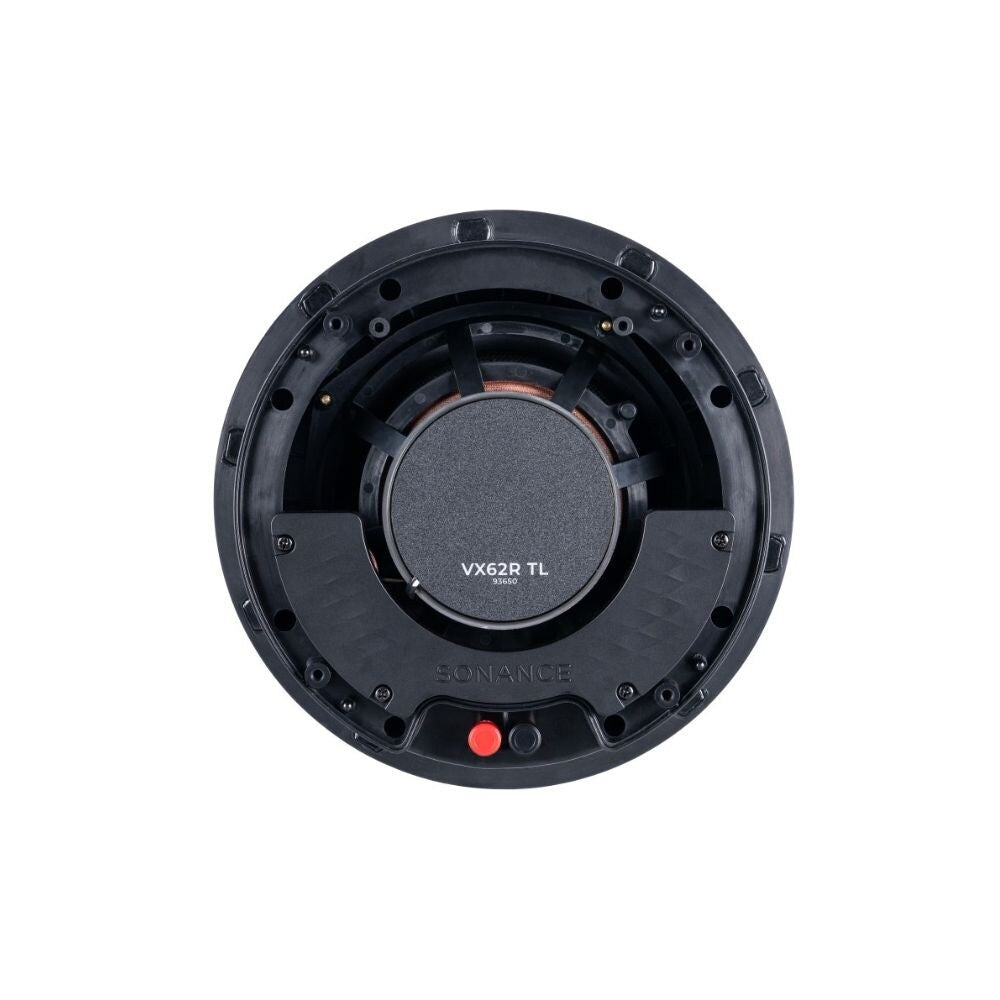

Sonance's VX62R Thin Line 6" two way round in ceiling loudspeakers with brilliant white micro trim grilles are 3mm thinner than the legacy VP Thin Line series loudspeakers. They feature 1" tweeters with cloth domes, Ferrofluid cooled and acoustic back chambers along with a 6.5" woofers with textured polypropylene cones and rubber surrounds.
Sonance Visual Experience Thin Line Series represents expert innovation of performance and design, delivering room filling sound from an elegantly slim profile. These architectural speakers combine advanced acoustic engineering that accommodates for challenging room architecture and space limitations, delivering Sonance VX into more applications, even in 2.5" metal framing for concrete construction.
These VX62R-TL speakers accommodate shallow construction and limited space. Available for in ceiling or in wall and selections for performance level and Single Stereo Technology, VX Thin Line models will complement the advanced performance of the standard Sonance VX Series models.
These speakers are engineered for maximum coverage and fidelity to create the most crisp and consistent experience possible.
Sonance's Sinusoidal Textured Waveguide provides the greatest dispersion possible so that everyone in the surrounding space receives the same experience, making it easier to design even and balanced audio systems.
The VX series range represent four decades of speaker design and innovation success to inspire and reimagine speaker technology for the future. These are Sonance's first loudspeakers to be engineered by an iterative combination of simulation, machine learning and expertly engineered for superior performance, finish, installation and most importantly, a great experience.
Features:
Specifications:
Frequency Response | 45Hz to 20kHz ±3dB |
Tweeter | 25mm / 1" cloth dome, Ferrofluid cooled and acoustic back chamber |
Woofer | 165mm / 6.5" textured polypropylene cone, rubber surround. |
Dispersion Technology | Sinusoidal textured waveguide |
Speaker Pivot | No Pivot |
Impedance | 8Ω nominal 6Ω minimum |
Recommended Power | 5W minimum 125W maximum |
Sensitivity | 89dB SPL (2.83V/1M) |
Mounting Technology | Flex Frame 1 stage, RotoLock® clamp installation |
Standard Grille | Round Micro Trim Grille: 244.4mm / 9.62" |
Grille Options. Sold Separately | Round Trimless Grille: 235.6mm / 9.28" Square Micro Trim Grill: Height: 244.4mm / 9.62" Width: 244.4mm / 9.62" Square Trimless Grille: Height: 235.6mm / 9.28" Width: 235.6mm / 9.28" |
Speaker Mounting Depth | 74mm / 2.91" |
Mounting Depth + Retrofit Enclosure. Sold Separately | 132.4mm / 5.21" |
Cut Out Dimensions | 210mm / 8.25" |
Weight | 5.30kg / 11.68lb |
Quantity | Pair |
