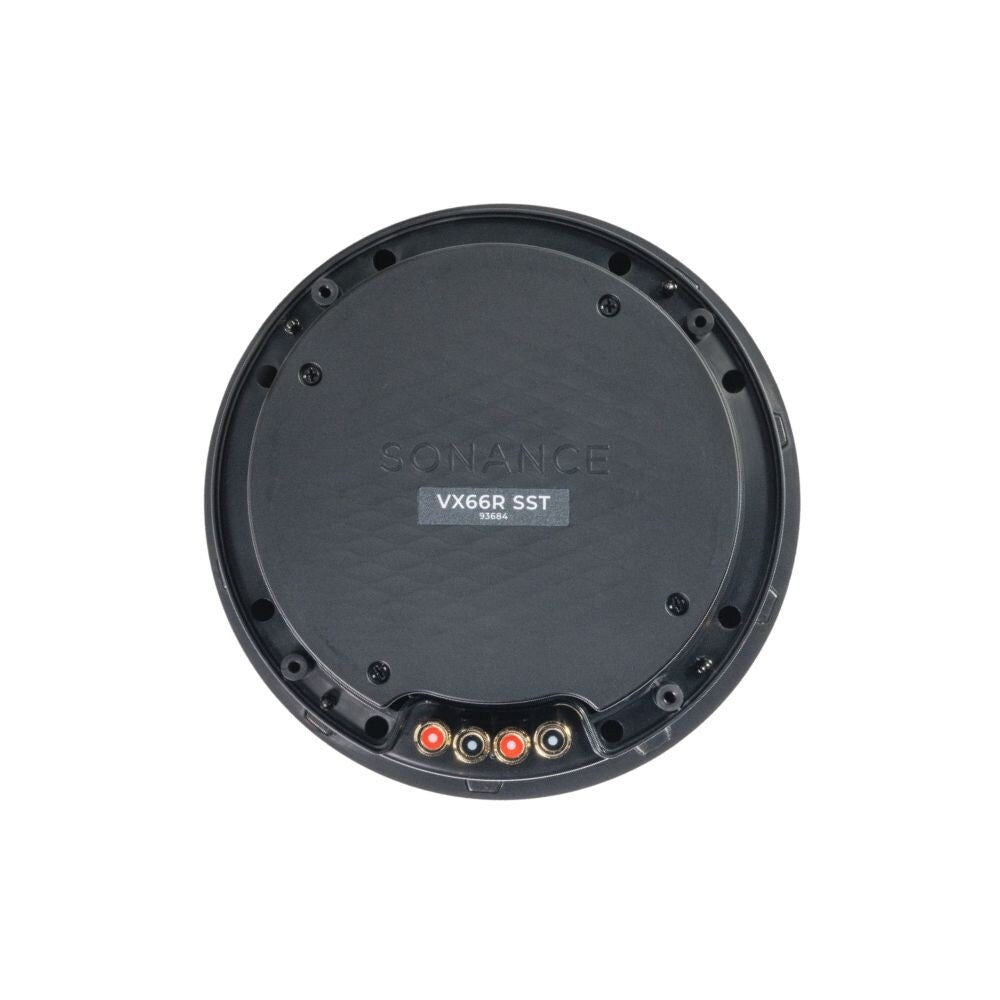

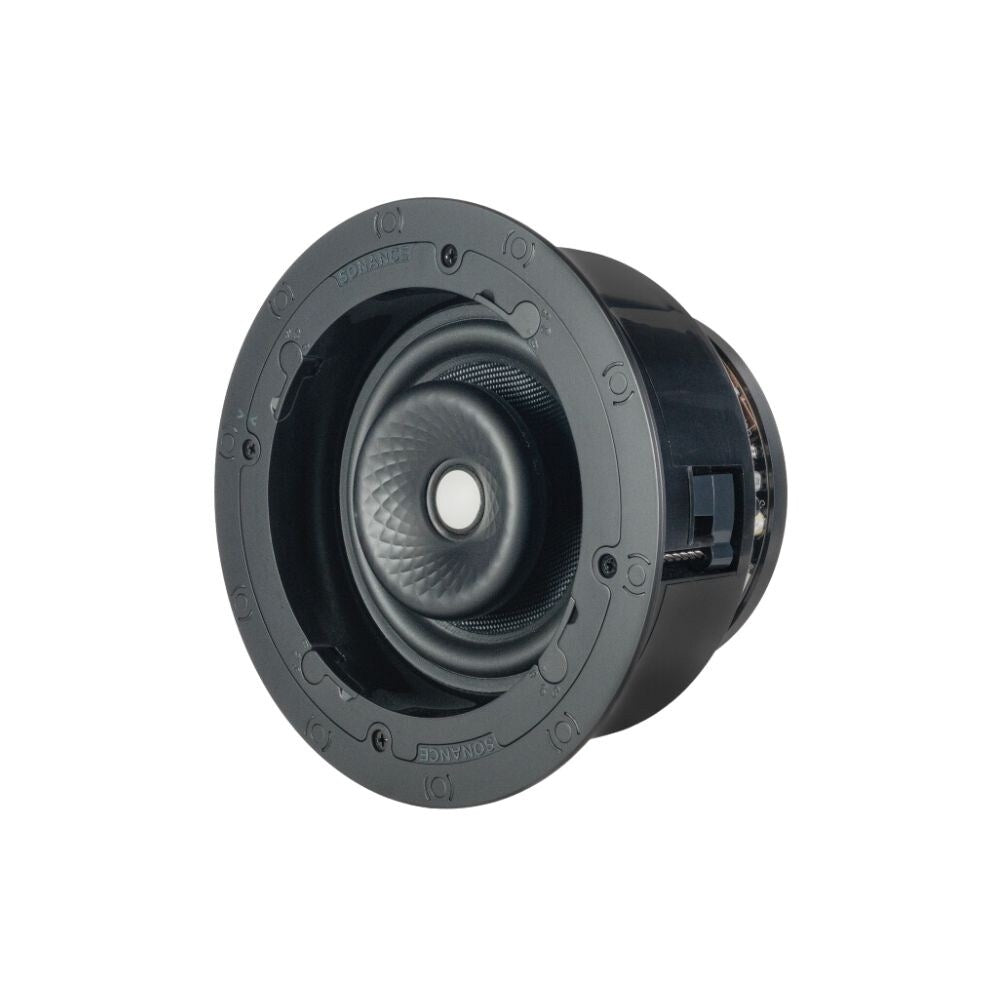

Sonance's Visual Experience VX66R-SST 6.5" Single Stereo speaker features 1" dual coil tweeters with ceramic domes, Ferrofluid cooled and acoustic back chambers along with 6.5" woofers with Kevlar / Nomex cones and rubber surrounds. They come with round updated brilliant white micro trim grilles with 50% smaller bezels than the Visual Performance grilles.
The Visual Experience speaker has an array of grille options to ensure the best finish for your space, from the standard micro trim grille, included with the speakers, to a trimless option which can be flush mounted. To purchase these please see SON-VX-GRILLE in the related items section.
This VX66R-SST includes the all new Sonance architectural speakers, combining the latest technological advances to reimagine driver, tweeter and crossover design. They are engineered for maximum coverage and fidelity to create the most crisp and consistent experience possible.
Sonance's Sinusoidal Textured Waveguide provides the greatest dispersion possible so that everyone in the surrounding space receives the same experience, making it easier to design even and balanced audio systems.
The VX66R-SST offers Sonance Visual Experience Flex Frame Mounting System, which is a two piece design that allows the flexibility to install in one or two stages. The Flex Frame two stage process allows the installer to mount and connect the back can first and install the speaker module at a later date to maximise installation efficiency on large scale projects.
When it comes to delivering fidelity and frequency range, these speaker are designed to astound. The Sonance CDX crossover, as seen in the award winning Sonance Invisible Series, maximises performance, achieving a warmth that makes listening easy and enjoyable at any volume, whilst ensuring that no details are lost.
These VX66R-SST speakers represent four decades of speaker design and innovation success to inspire and reimagine speaker technology for the future. These are Sonance's first speakers to be engineered by an iterative combination of simulation, machine learning and expertly engineered for superior performance, finish, installation and a great experience.
Frequency Response | 43Hz to 20kHz ±3dB |
Tweeter | 25mm / 1" ceramic dome, Ferrofluid cooled and acoustic back chamber with dual voice coil |
Woofer | 165mm / 6.5" Kevlar/Nomex cone with rubber surround |
Impedance | 8Ω nominal: 6Ω minimum |
Recommended Power | 5W minimum: 140W maximum |
Sensitivity | 90dB SPL (2.83V/1M) |
Standard Grille | Round Micro Trim Grille: 244.4mm / 9.62" |
Grille Options Sold Separately | Round Trimless Grille: 235.6mm / 9.28" Square Micro Trim Grill: Height: 244.4mm / 9.62" Width: 244.4mm / 9.62" Square Trimless Grille: Height: 235.6mm / 9.28" Width: 235.6mm / 9.28" |
Speaker Mounting Depth | 125mm / 4.92" |
Mounting Depth + Retrofit Enclosure Sold Separately | 146.1mm / 5.75" |
Cut Out Dimensions | 210mm / 8.25" |
Weight | 2.1kg / 4.5lb |
