Description
Description:

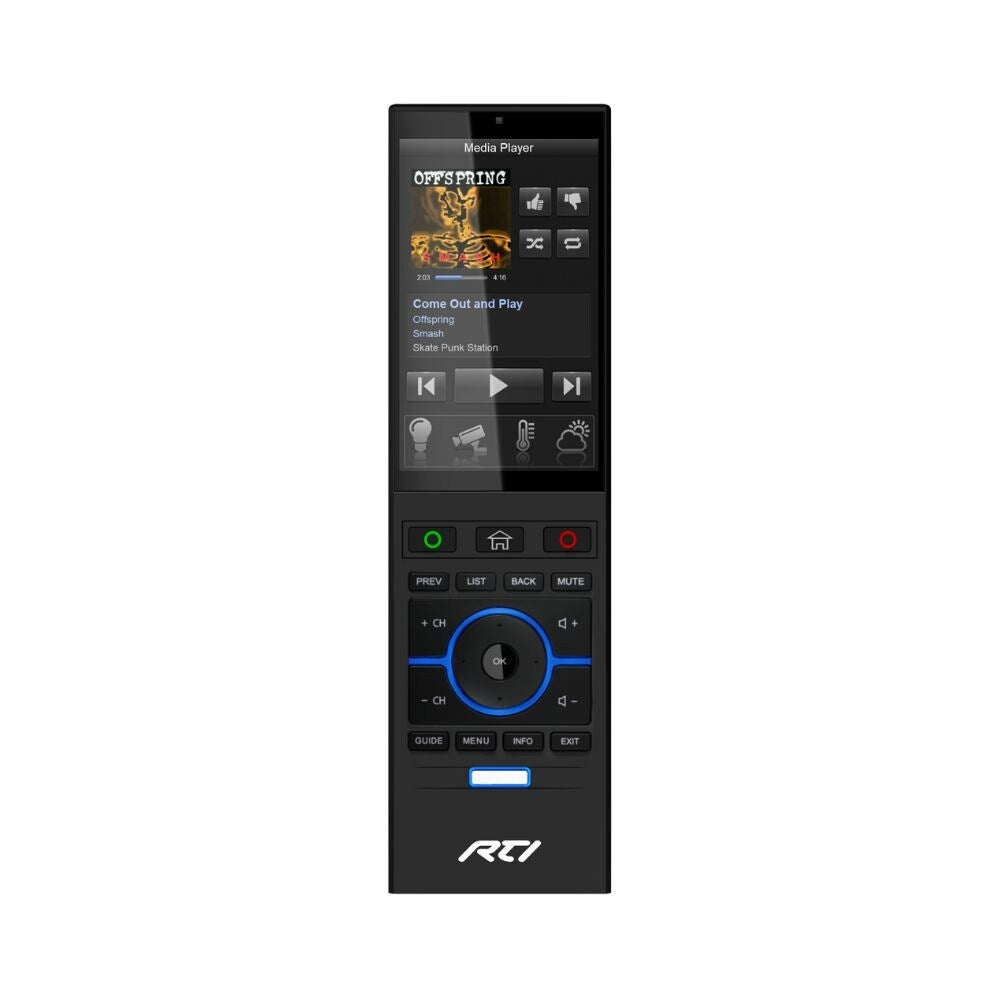

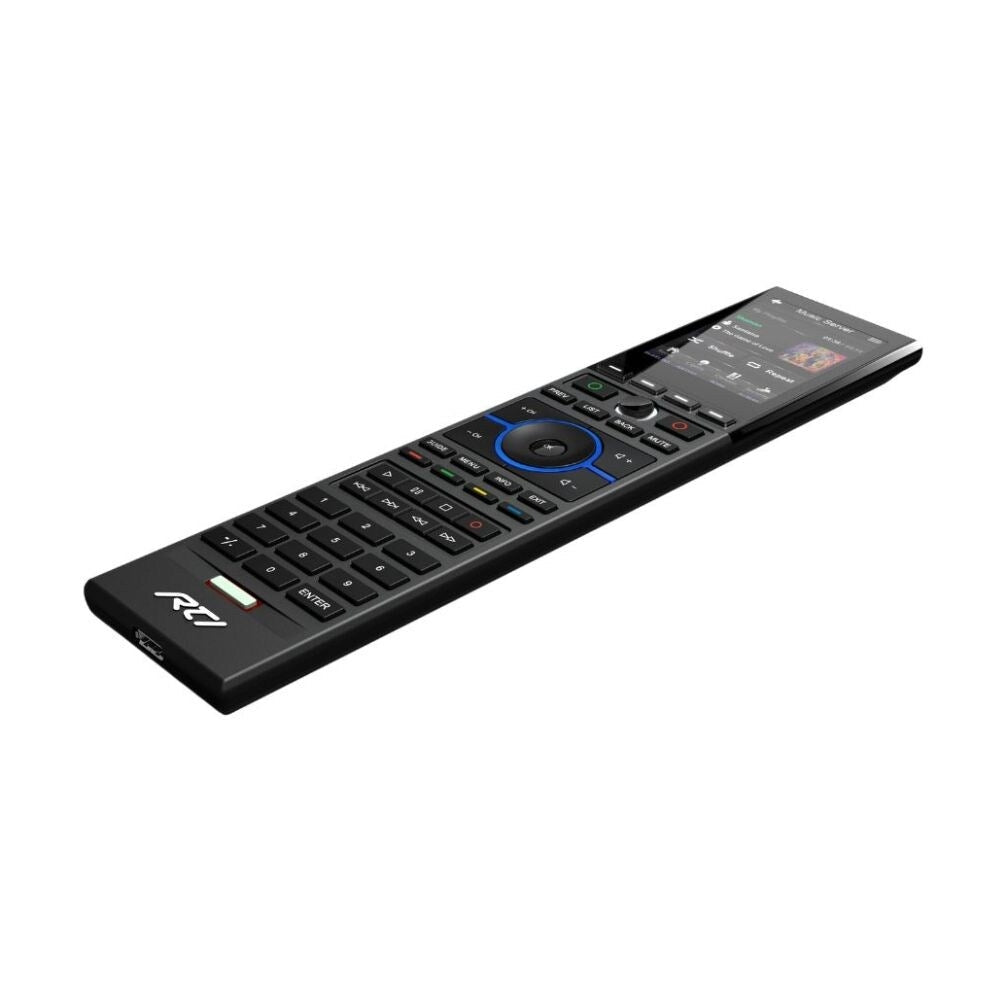

RTI's T4x 4" Wi-Fi Colour Touch Screen Remote Control With Docking Station, features a large high resolution capacitive colour touchscreen combined with essential hard buttons to provide an intuitive custom control interface with superb ergonomics.
Provides advanced features including grip sensors, Wi-Fi, dual RF and more.
This 4" touch screen remote control provides edge to edge flush mount and a customisable graphical user interface allowing for intuitive touch screen control. Check the weather forecast, view video streams from network security cameras or perform remote programming updates through a standard 2.4GHz Wi-Fi connection.
Its 2 way Control provides status feedback from controlled devices on your remote such as on/off or arm/disarm status, dimming value of lights, music playlists and available radio stations, whilst its ergonomic design permits effortless, one handed operation.
The T4X delivers dual RF transmission capability uses 433MHz and 2.4GHz, utilising Zigbee® technology, for bidirectional control communication with RTI processors and IR control devices directly without a control processor.
20 Hard Buttons provide quick access to often used control functions such as lights, music, audio/video source selection without the need to navigate through the graphical interface on your touch panel.
Pick up your remote and the accelerometer automatically wakes the touchscreen and integrated grip sensors keep your remote awake while in use. Ambient Light Sensor allows the perfect display brightness that's automatically set depending on the ambient light.
The USB programming port has Integration Designer software and with the Lithium Ion battery or charging cradle, the remote can operate 5 to 7 days on average use. Charge it conveniently with the included charging cradle
Features:
- 4" touch screen remote control provides edge to edge flush mount and a customisable graphical user interface allowing for intuitive touch screen control
- 2.4 GHz Wi-Fi 802.11b/g/n compliant
- Check the weather forecast, view video streams from network security cameras or perform remote programming updates through a standard 2.4 GHz Wi-Fi connection
- 2 way Control provides status feedback from controlled devices on your remote such as on/off or arm/disarm status, dimming value of lights, music playlists and available radio stations
- Ergonomic design permits effortless, one handed operation
- Dual RF transmission capability uses 433MHz and 2.4GHz, utilising Zigbee® technology, for bidirectional control communication with RTI processors
- IR control devices directly without a control processor
- 20 Hard Buttons provide quick access to often used control functions such as lights, music, audio/video source selection without the need to navigate through the graphical interface on your touch panel
- Pick up your remote and the accelerometer automatically wakes the touchscreen
- Integrated grip sensors keep your remote awake while in use
- Ambient Light Sensor allows the perfect display brightness that's automatically set depending on the ambient light
- USB programming port with Integration Designer software
- With the Lithium Ion battery or charging cradle, the remote can operate 5 to 7 days on average use

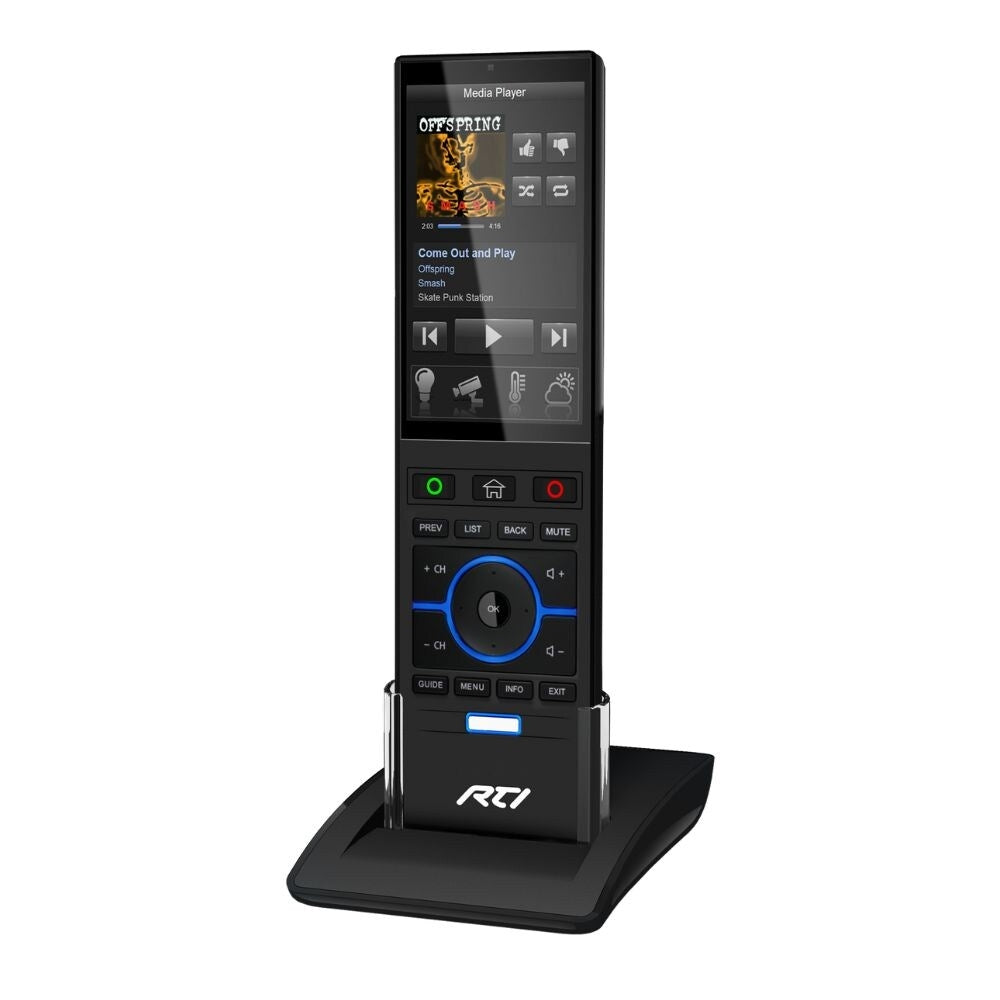

- Charge it conveniently with the included charging cradle
Specifications:
Power | 3.6V DC, 1800mAh Lithium Ion rechargeable battery |
Power Management | Automatic On/Off with integrated accelerometer and grip sensors |
Battery Run Time |
4 to 6 hours continuous 5 to 7 days average use |
Charge Time | 3 to 4 hours |
System Memory | 128M Bytes Flash |
Touch Screen Display | 480 x 800 pixels WXGA resolution with 16.7m colours |
Display Size | 101mm / 4" diagonal |
Back Lights | Blue/ white LED keypad |
IR Control Range | 9.1m @ 60° |
IR Frequency Range | 15kHz to 460kHz |
RF Control Range | Up to 30.5m with optional system interfaces or processors |
Radio Frequency Carrier | 433 MHz and 802.15.4 @ 2.4Ghz (Zigbee® technology) |
Communication | USB 2 programming port with Integration Designer software |
Operating Temperature | 0°C / 32°F to 50°C / 122°F |
Operating Humidity | 5% to 95% non condensing |
Dimensions |
Length: 211mm / 8.31" Width: 58mm / 2.28" Depth: 20mm / 0.79" |
Weight Including Battery | 213g / 0.47lb |
Warranty | 3 years parts and labour RTB |
