Description:
The Sonance Visual Experience Speaker Modules VX-MOD, part of Sonance's three part installation solution offer flexibility in both construction planning and the final aesthetic of the installed speakers within the space.
The Sonance Visual Experience speaker module, partnered with Flex Frame mounting system, allow for a two stage installation process helping maximise efficiency for best business practices in the field. Whether for large scale installations or multi phase project schedules, leveraging the Sonance VX two stage process, makes installation simple to scale, no matter the project.
In conjunction with VX-MOD, Sonance's speaker module, their Flex Frame system used in tandem, will improve the convenience for the installer in many ways. By simply wiring the frame, not the speaker, it allows running wires to a lightweight frame rather than trying to balance a heavy speaker in one hand. See SON-VX-FlexFrame for further details.

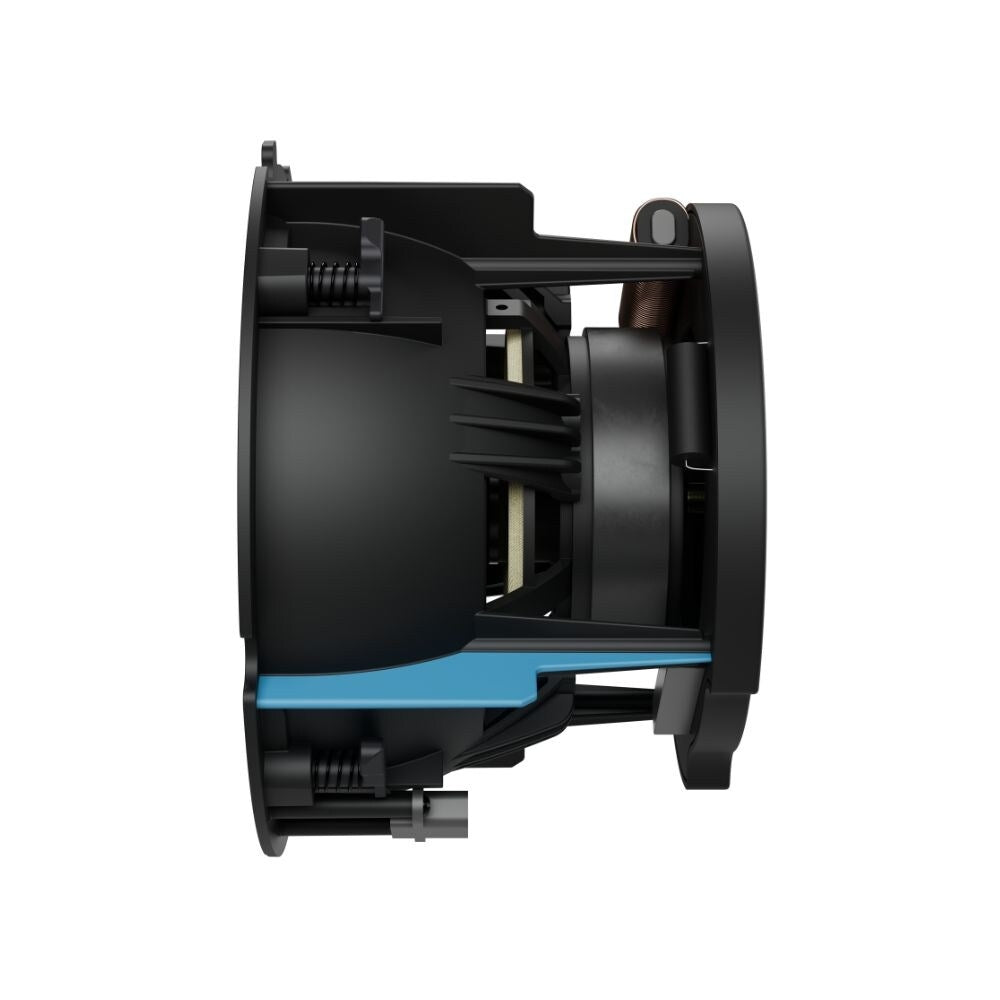

The VX speaker module can be bought at a later stage allowing the end user to chose what performance level best suits the space and budget. The VX-MOD speaker module simply slides into the Flex Frame and is latched into place, automatically connecting the speaker to the wiring previously connected to the Flex Frame.
By splitting up the VX-MOD speaker module installation and also the frame installation over a period of time, the frame may be installed first and then some time later this speaker module and the grille can be added.
This division of labour helps to optimise cost. Once the Flex Frame is in place, the VX-MOD simply slides and locks into the frame and then snap the magnetic SON-VX-GRILLE into place finishing the aesthetics perfectly. The speaker is now ready to be tuned and equalised in the required rooms.
Please Note: Grille and frame are not included
Features:
Specifications:
SON-VX-MOD-VX42 / SON-VX-MOD-VX42R | SON-VX-MOD-VX46 / SON-VX-MOD-VX46R | SON-VX-MOD-VX62 / SON-VX-MOD-VX62R | SON-VX-MOD-VX66 / SON-VX-MOD-VX66R | SON-VX-MOD-VX82 / SON-VX-MOD-VX82R | SON-VX-MOD-VX86 / SON-VX-MOD-VX86R | |
Compatible With | Partner with SON-VX-FLEXFRAME-VX4 and SON-VX-GRILLE Partner with SON-VX-FLEXFRAME-VX4R and SON-VX-GRILLE |
Partner with SON-VX-FLEXFRAME-VX4 and SON-VX-GRILLE Partner with SON-VX-FLEXFRAME-VX4R and SON-VX-GRILLE |
Partner with SON-VX-FLEXFRAME-VX6 And SON-VX-GRILLE Partner with SON-VX-FLEXFRAME-VX6R And SON-VX-GRILLE |
Partner with SON-VX-FLEXFRAME-VX6, SON-VX-GRILLE and SON-VX-GRILLE Partner with SON-VX-FLEXFRAME-VX6R, SON-VX-GRILLE and SON-VX-GRILLE |
Partner with SON-VX-FLEXFRAME-VX8 and SON-VX-GRILLE Partner with SON-VX-FLEXFRAME-VX8R and SON-VX-GRILLE |
Partner with SON-VX-FLEXFRAME-VX8 and SON-VX-GRILLE Partner with SON-VX-FLEXFRAME-VX8R and SON-VX-GRILLE |
Frequency Response | 60Hz to 20kHz ±3dB | 58Hz to 20kHz ±3dB | 45Hz to 20kHz ±3dB | 43Hz to 20kHz ±3dB | 38Hz to 20kHz ±3dB | 34Hz to 20kHz ±3dB |
Tweeter | 19mm / 0.75" cloth dome, Ferrofluid cooled and acoustic back chamber | 19mm / 0.75" ceramic dome, Ferrofluid cooled and acoustic back chamber | 25mm / 1" cloth dome, Ferrofluid cooled and acoustic back chamber | 25mm / 1" ceramic dome, Ferrofluid cooled and acoustic back chamber | 30mm / 1.2" cloth dome, Ferrofluid cooled and acoustic back chamber | 30mm / 1.2" ceramic dome, Ferrofluid cooled and acoustic back chamber |
Woofer | 114mm / 4.5" textured polypropylene cone with rubber surround | 114mm / 4.5" Kevlar/Nomex cone with rubber surround | 165mm / 6.5" textured polypropylene cone, rubber surround | 165mm / 6.5" Kevlar/Nomex cone, rubber surround | 203mm / 8" textured polypropylene cone, rubber surround | 203mm / 8" Kevlar/Nomex cone, rubber surround |
Dispersion Technology | Sinusoidal textured waveguide | Sinusoidal textured waveguide | Sinusoidal textured waveguide | Sinusoidal textured waveguide | Sinusoidal textured waveguide | Sinusoidal textured waveguide |
Impedance | 8Ω nominal: 6Ω minimum | 8Ω nominal: 6Ω minimum | 8Ω nominal: 6Ω minimum | 8Ω nominal: 6Ω minimum | 8Ω nominal: 6Ω minimum | 8Ω nominal: 6Ω minimum |
Recommended Power | 5W minimum: 70W maximum | 5W minimum: 80W maximum | 5W minimum: 125W maximum | 5W minimum: 140W maximum | 5W minimum: 125W maximum | 5W minimum: 150W maximum |
Sensitivity | 89dB SPL (2.83V/1M) | 90dB SPL (2.83V/1M) | 89dB SPL (2.83V/1M) | 90dB SPL (2.83V/1M) | 90dB SPL (2.83V/1M) | 91dB SPL (2.83V/1M) |
Mounting Technology | Flex Frame 1 or 2 stage, 4 x RotoLock® clamps | Flex Frame 1 or 2 stage, 4 x RotoLock® clamps | Flex Frame 1 or 2 stage, 4 x RotoLock® clamps | Flex Frame 1 or 2 stage, 4 x RotoLock® clamps | Flex Frame 1 or 2 stage, 4 x RotoLock® clamps | Flex Frame 1 or 2 stage, 4 x RotoLock® clamps |

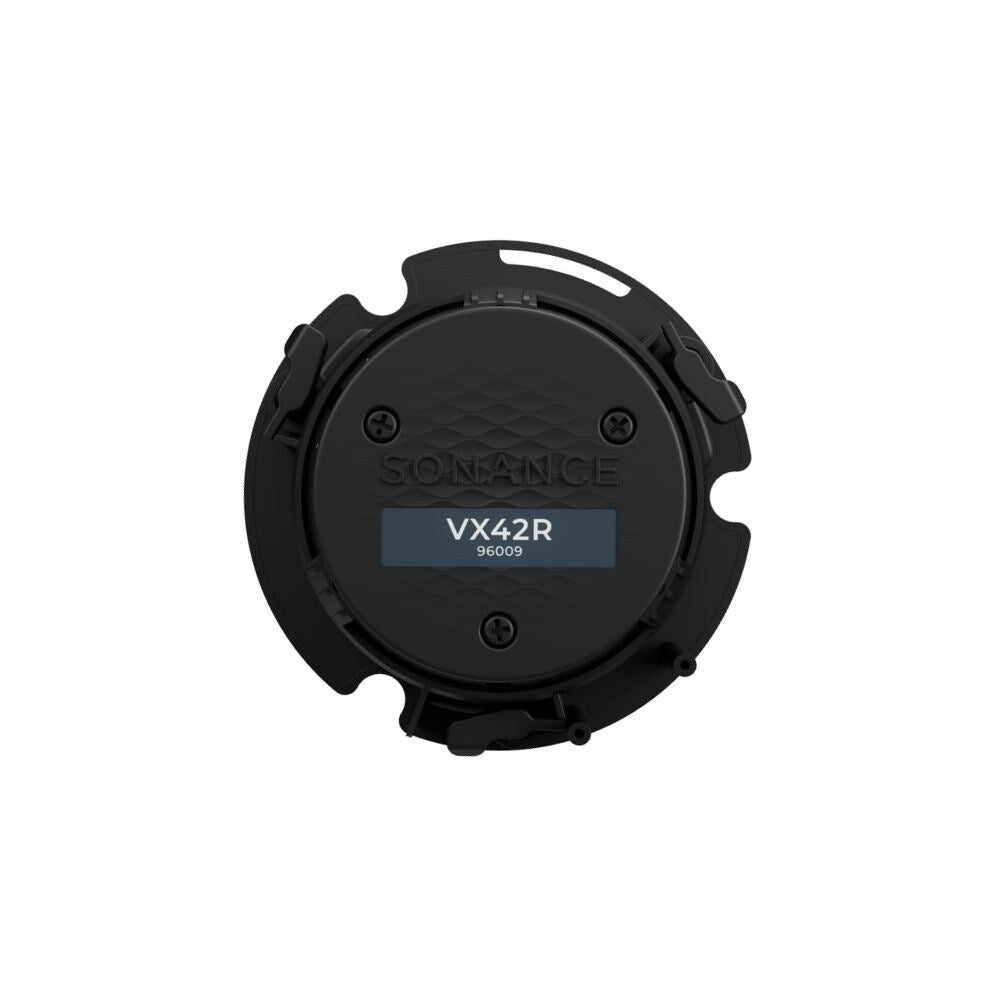

Speaker Mounting Depth | VX42: < 83.2mm / 3.28" VX42R: 115mm / 4.53" |
VX46: 83.2mm / 3.28" VX46R: 115mm / 4.53" |
VX62: 88.3mm / 3.48" VX62R: 125mm / 4.92" |

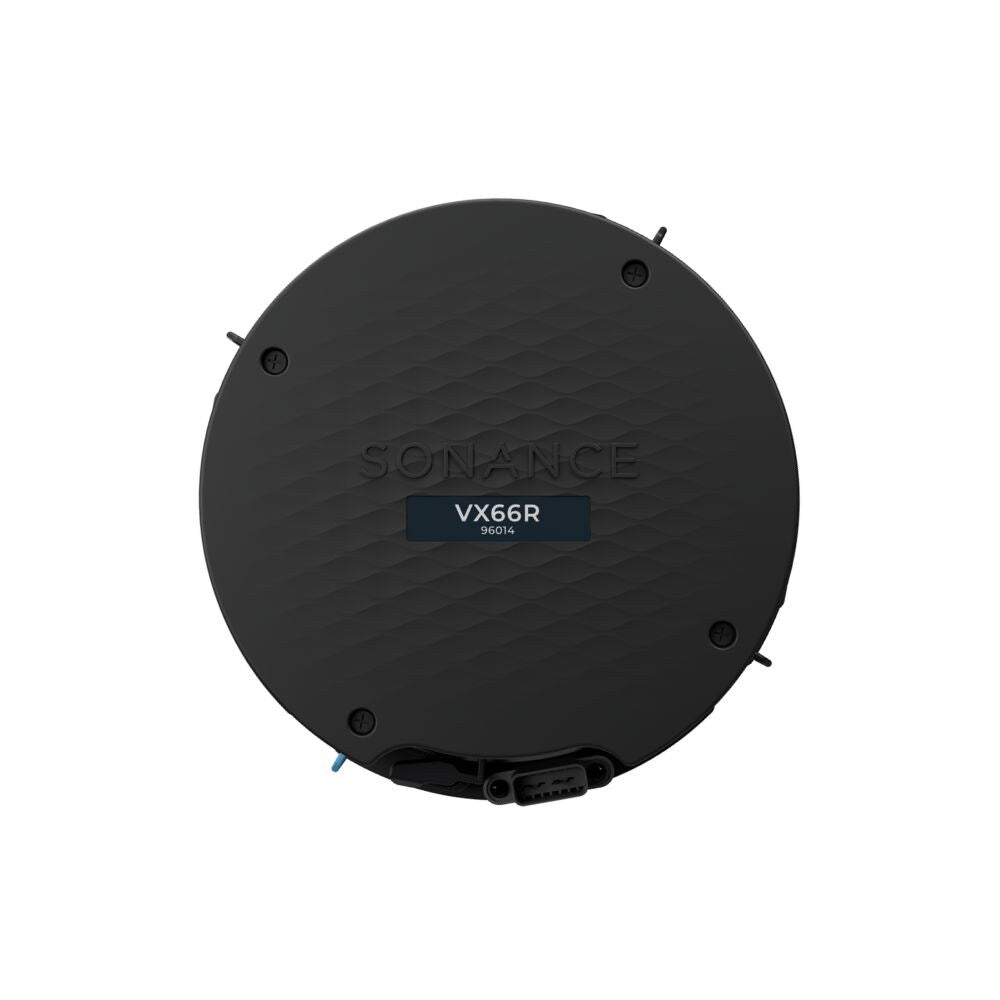

VX66: 88.3mm / 3.48" VX66R: 125mm / 4.92" |
VX82: 92.4mm / 3.64" VX82R: 140mm / 5.51" |
VX86: 92.4mm / 3.64" VX86R: 140mm / 5.51" |
Mounting Depth + Retrofit Enclosure Sold Separately | VX42: 96.6mm / 3.84" VX42R: 146.1mm / 5.75" |
VX46: 96.6mm / 3.84" VX46R: 146.1mm / 5.75" |
VX62: 97.6mm / 3.84" VX62R: 146.1mm / 5.75" |
VX66: 97.6mm / 3.84" VX66R: 146.1mm / 5.75" |
VX82: 98.1mm / 3.86" VX82R: 165.6mm / 6.52" |
VX86: 98.1mm / 3.86" VX86R: 165.6mm / 6.52" |
Cut Out Dimensions | VX42: Height: 203mm / 8" Width: 117mm / 4.625" VX42R: Diameter: 149mm / 5.875" |
VX46: Height: 203mm / 8" Width: 117mm / 4.625" VX46R: Diameter: 149mm / 5.875" |
VX62: Height: 273mm / 10.75" Width: 176mm / 6.9375" VX62R: Diameter: 210mm / 8.25" |
VX66: Height: 273mm / 10.75" Width: 176mm / 6.9375" VX66R: Diameter: 210mm / 8.25" |
VX82: Height: 368mm / 14.5" Width 216mm / 8.5" VX82R: Diameter: 257mm / 10.125" |
VX86: Height: 368mm / 14.5" Width: 216mm / 8.5" VX86R: Diameter: 257mm / 10.125" |
