Description
User guides

Description

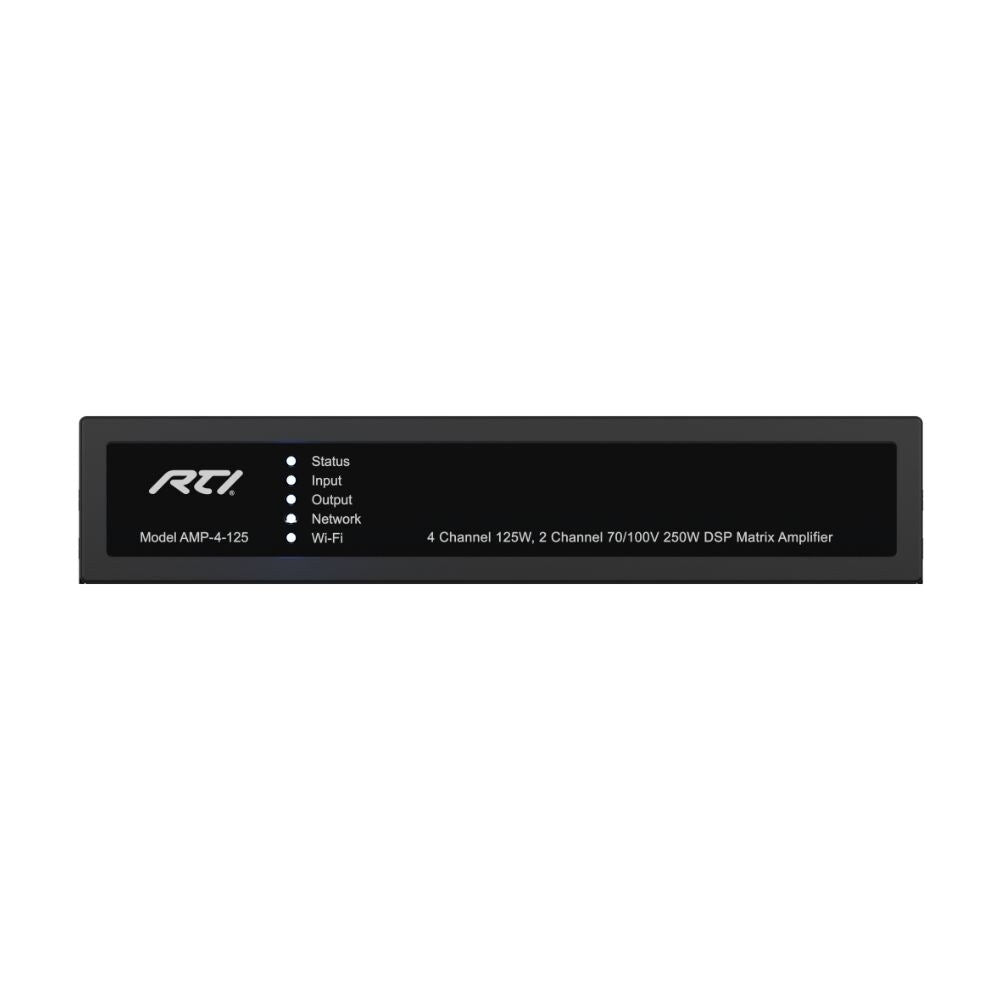

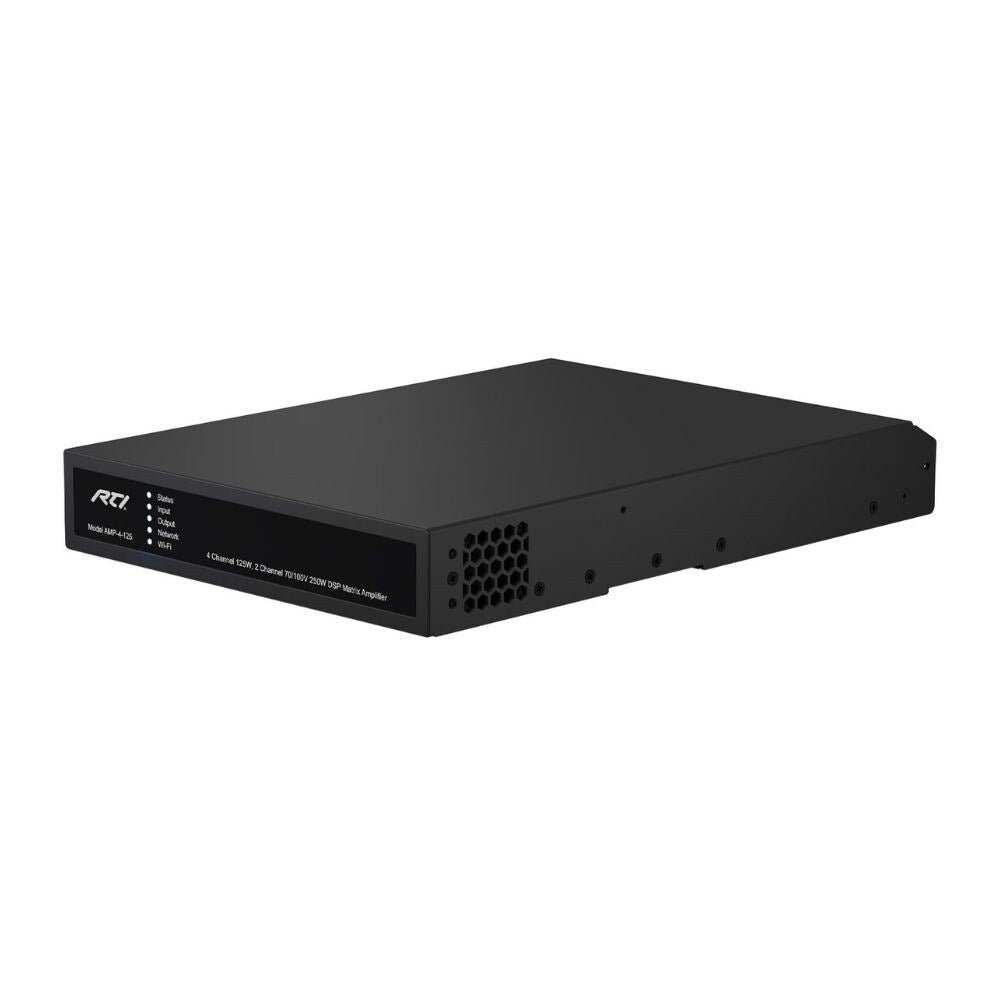

RTI's AMP-4-125, 4 channel, 125W, 2 channel 100V line, 250W DSP Matrix Audio Amplifier delivers configurable and reliable high performance audio power amplification for commercial and hospitality applications that demand a mix of low impedance and high impedance outputs.

With a compact 1U half rack design, this DSP enabled Class D amplifier can drive low impedance 4Ω to 16Ω loudspeakers as well as high impedance 100V transformer coupled loudspeakers.

This AMP-4-125 can accept four analogue inputs and one stereo S/PDIF digital input and delivers either two low impedance stereo outputs or two 100V mono outputs.

For set up, the RTI web GUI enables effortless browser based configuration of the installed system. Its DSP configuration options include multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high pass filter, speaker presets, delay, Wall-S1 controller configuration, sine wave generator and much more.

Features:

Class D amplifier provides a robust and clear audio experience with 125W @ 4Ω / 8Ω per channel or 250W @ 100V per channel
Four analogue audio source input channels, balanced or unbalanced and one digital input (S/PDIF)
Two Lo-Z stereo or four Lo-Z mono output zones, two Hi-Z mono output zones or a mix of them
Daisy chain multiple amplifiers and expand the number of zones by distributing up to two audio inputs or zones
Built in DSP allows for fine tuning acoustic characteristics for each zone
Easy configuration via LAN or Wi-Fi
IP and GPIO control options
Flexible mounting options with free standing or 1U rack mount, half width

Specifications:

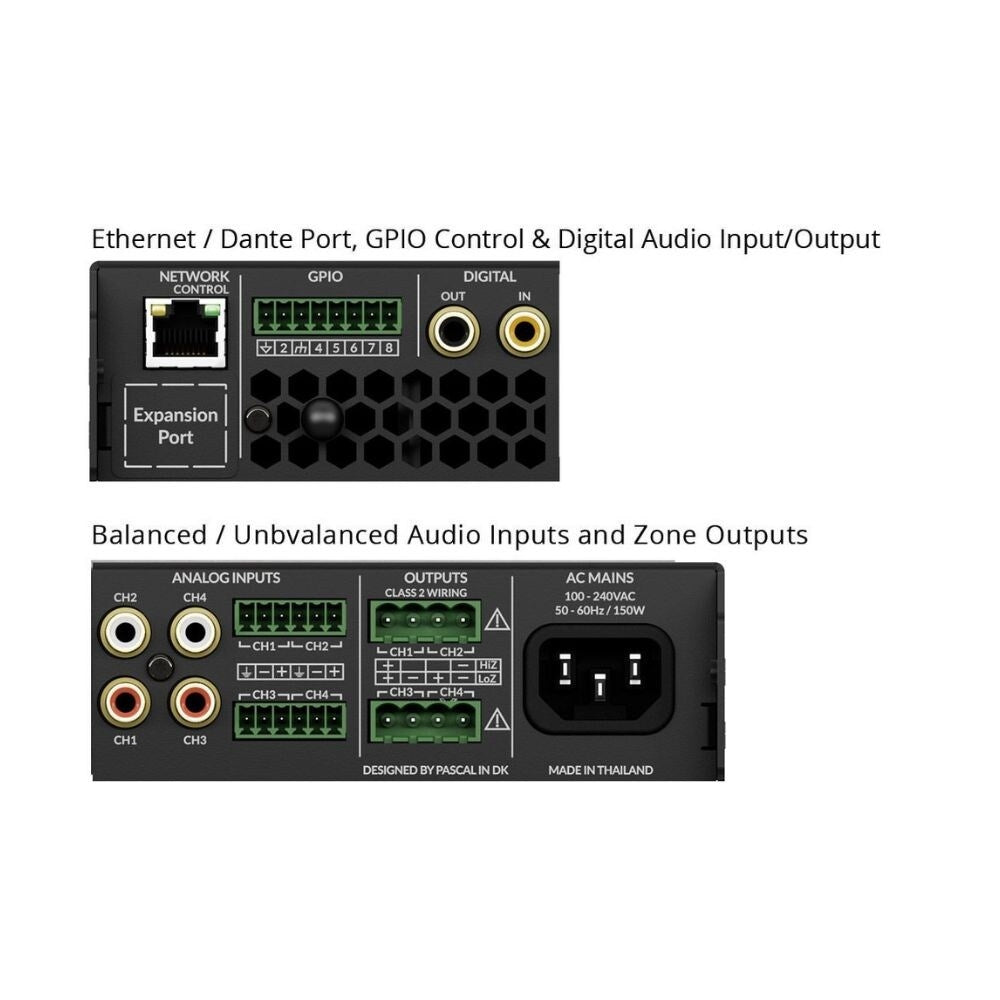

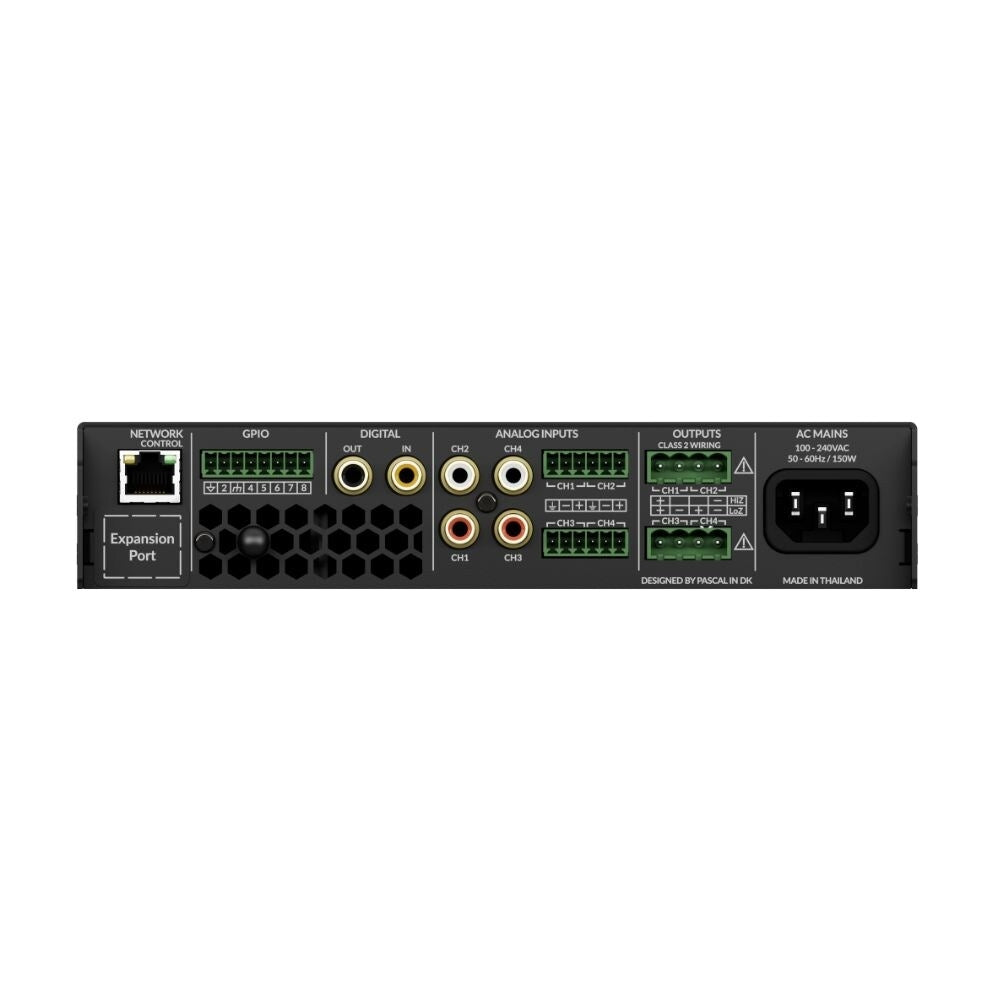

Analogue Sources	4 RCA unbalanced stereo) 4 Phoenix connector balanced stereo
Digital Sources	1 x coax
Amplified Zones	2 x 4 channels
Audio Zone Expansion	Daisy chain multiple AD-4-125 units via digital In or Out
Amplifier	Class D
Output Power	@ 4Ω/ 8Ω: 4 x 125W @ 100V: 2 x 250W
Output Voltage	45 Vrms (S.E) 100V (Hi-Z)
Power Share	Up to 2x 250W. Across each channel pair
Signal to Noise Ratio	> 106 dB A-weighted, 20Hz to 20 kHz, 8Ω load
THD-N Typical	< 0.05% 20Hz to 20kHz, 8Ω load, 3dB below rated power
Frequency Response	20Hz to 20kHz +/- 0.5 dB, 8Ω load, 3dB below rated power
Protection Circuits	Short circuit, DC, undervoltage, temperature and overload protection
RTI or 3rd Party Control	IP (RJ45), GPIO (Phoenix Connector)
Power Supply	UREC universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
AC Input Voltage	100 to 240V~, 50/60Hz, 150W
Power Rating	1% THD 120VAC and 230VAC
Standby Consumption	< 0.5W
Operating Temperature	0°C / 32°F to 40°C / 104°F
Mounting	Free standing or 1RU rack mount, half width
Dimensions	Height: 44.5mm / 1.75" Width: 320mm / 12.60" Depth: 220mm / 8.66"
Weight	2.8kg / 6.17lb
Warranty	3 years parts and labour RTB
