Description:

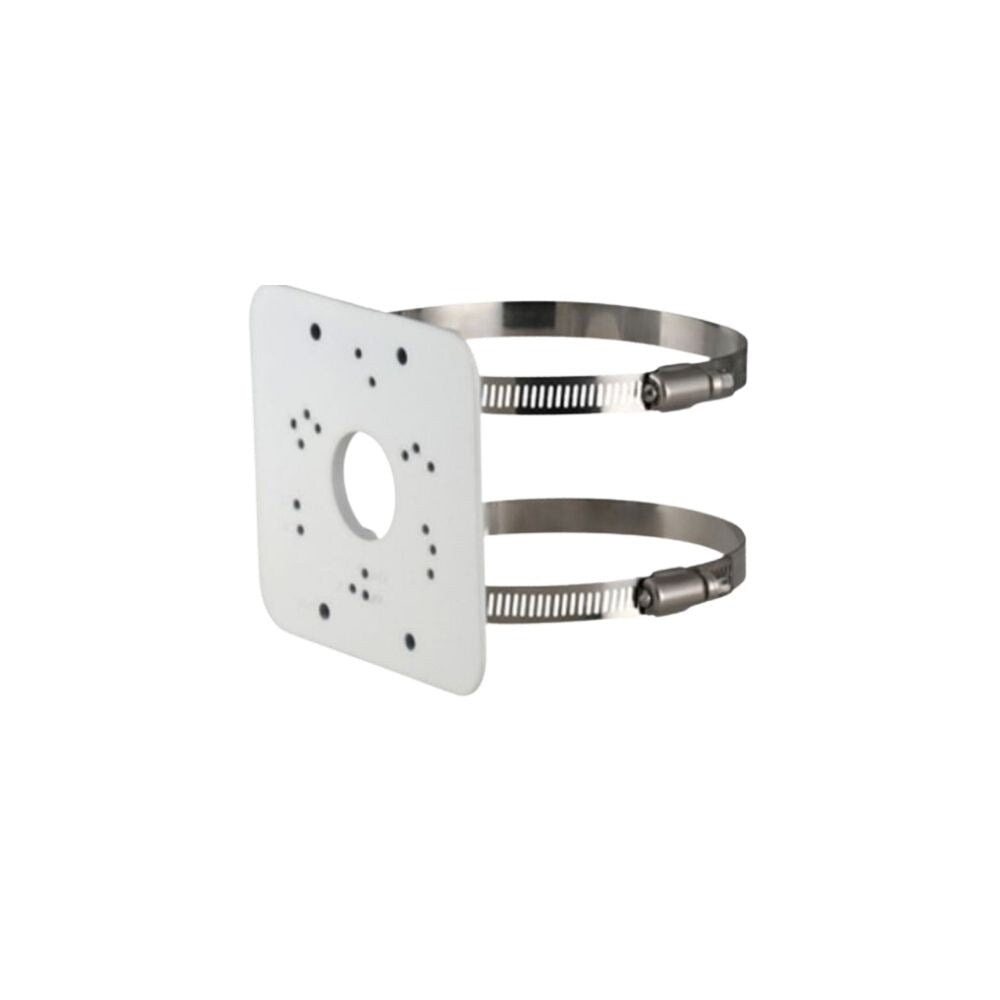

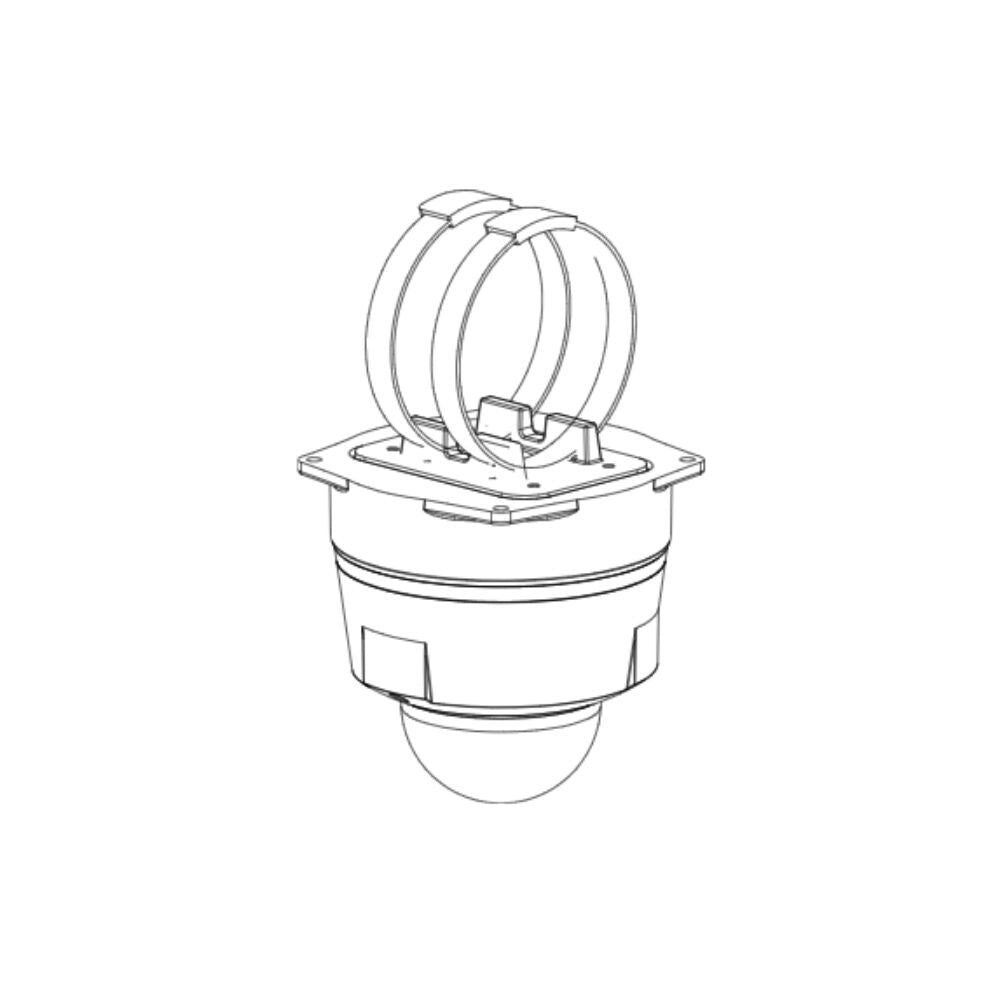

This pole mount bracket PFA152-E from Dahua is a solid adaptor, constructed of aluminium and SUS304. The bracket will be mounted with 2 metal span tapes and is ideal for Dahua's IP bullet and dome cameras.
Please see technical specification for suitable cameras.
This PFA152-E has a load bearing of 3kg or 6.6lb and is suitable for a mast diameter of 80mm to 150mm or 3.15" to 5.91".
It is recommend to use additional accessories i.e. junction box or wall mount bracket such as DAH-PFA130-E or DAH-PFA121
Features:
Specifications:
Compatible With | DAH-IPC-HDBW3541FP-AS-S2 DAH-IPC-HDBW5541EP-ZE DAH-IPC-HDW3541EMP-S-S2-BK DAH-IPC-HDW3541EMP-S-S2-WH DAH-IPC-HDW3549HP-AS-PV-S3-BK DAH-IPC-HDW3549HP-AS-PV-S3-WH DAH-IPC-HDW3849HP-AS-PV-S3-BK DAH-IPC-HDW3849HP-AS-PV-S3-WH DAH-IPC-HDW5541TP-ZE DAH-IPC-HFW3541EP-AS-B-S2-BK DAH-IPC-HFW3541EP-AS-B-S2-WH DAH-IPC-HFW3549T1P-AS-PV-S4 DAH-IPC-HFW3841TP-ZAS DAH-IPC-HFW3849T1P-AS-PV-S3 DAH-IPC-HFW5541EP-ZE-BK DAH-IPC-HFW5541EP-ZE-WH DAH-IPC-PDW5849-A180-E2-ASTE |
Material | Aluminium and SUS304 |
Colour | White |
Load Capacity | 3kg / 6.61lb |
Operating Temperature | -40ºC / -40°F to 60ºC / 140°F |
Operating Humidity | 0% to 90% |
Dimensions | Height: 114mm / 4.49" Width: 125.6mm / 4.94" Depth: 20mm / 0.79" Suitable for mast diameter: |
Weight | 0.27kg / 0.6lb |
