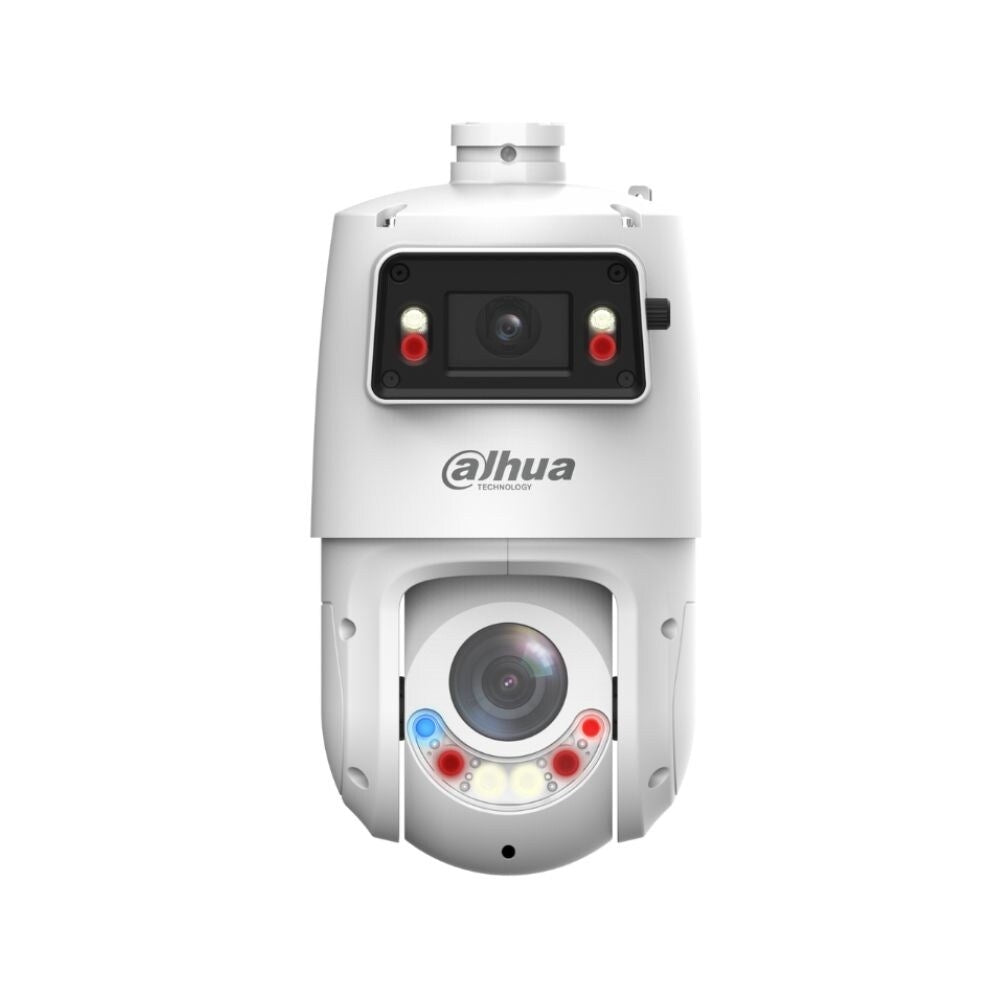

The DAH-SDT4E425-4F-GB-A-PV1 with 4MP Panorama and 4MP Detail camera, is designed with more lens than the conventional PTZ camera, the X-Spans series camera captures an expansive view, producing wide, vivid images.
With the combined power of the panoramic and detail camera in its structure and is highly cost effective. Greatly reducing the installation cost of security systems. It also leverages its two cameras to perform smart tracking, and has an independent mode that allows you to separately use each camera.

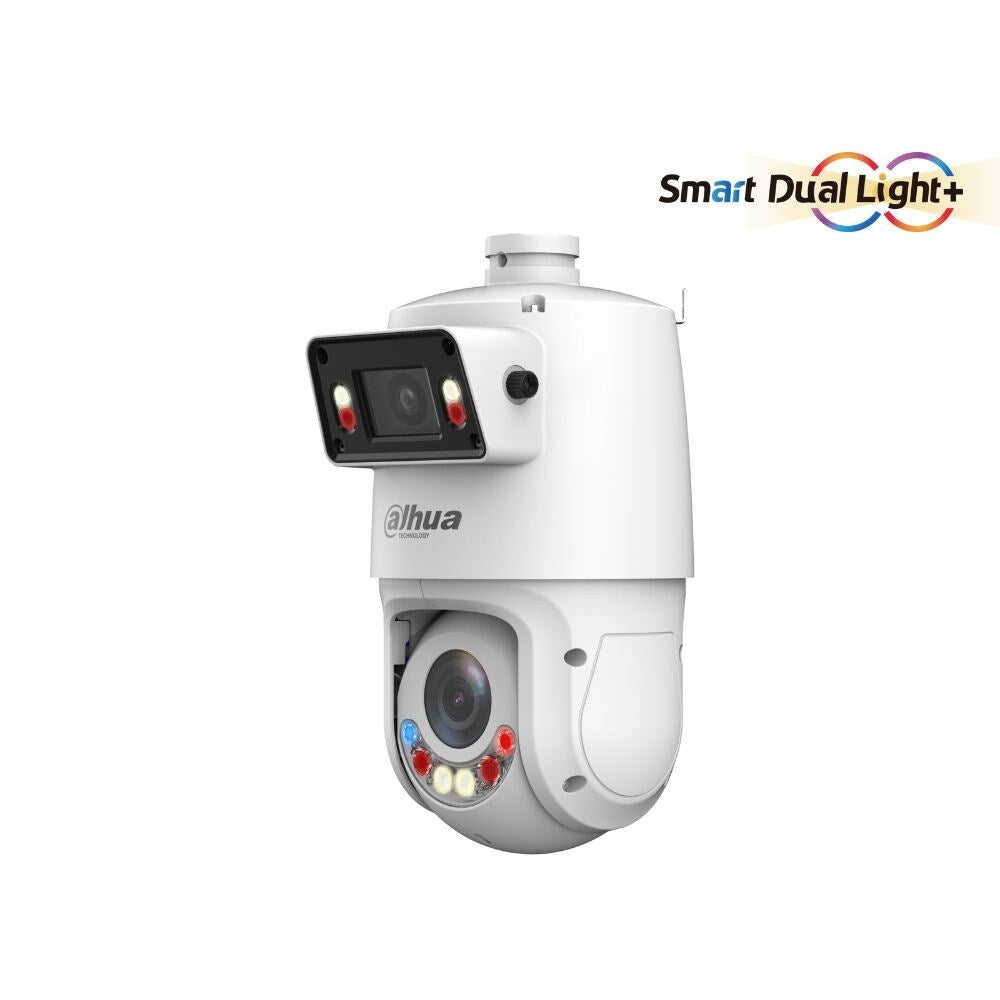

Dahua Smart Dual Light technology adopts smart algorithm to detect targets, both the panoramic camera and detail camera support smart dual light. In intelligent illumination mode, the channels of both cameras can switch together from one type of image to another. When a target enters the panoramic area, both channels switch from displaying black and white images to colour images at the same time. After the target leaves, they both simultaneously switch back to black and white.

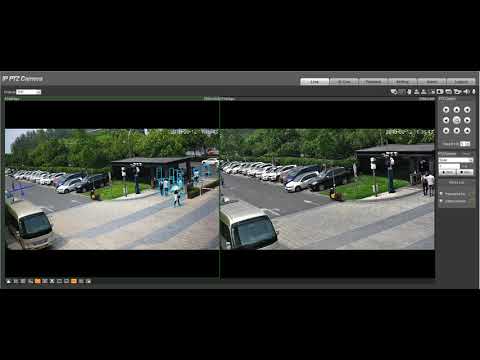

With Smart Tracking, the panoramic camera links with the detail camera to track targets. When the target enters the panoramic area, the detail camera starts to monitor them and tracks their movement by rotating, zooming and focusing the PTZ camera lens. This allows the camera to produce highly detailed images with the movement of targets for security personnel.
Featuring a deep learning algorithm, Dahua's Perimeter Protection technology can recognise human and vehicle accurately. In restricted area, such as pedestrian area and vehicle area the false alarms of intelligent detection based on target type, such as tripwire, intrusion are largely reduced.
Dahua's siren and light active deterrence network camera supports light alarm and voice alarm when perimeter event occurs, to deliver the deterrence and effective intervention. The camera is built in multiple voices for selection and supports customised voice importing.
Image Sensor | Panorama: 1/2.8" 4 Megapixel CMOS Detail: 1/2.8" 4 Megapixel CMOS |
Effective Pixels | Panorama: 2560(H) x 1440(V) Detail 2560(H) x 1440(V) |
Min. Illumination | Panorama: 0.001 lux@F1.0 (Colour, 30 IRE); 0.0005 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on); Detail: 0.005 lux@F1.6 (Colour, 30 IRE); 0.0005 lux@ F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
IR Distance | Panorama: 30m Detail: 100m (IR) 50 m (white light) |
Focal Length | Panorama: 2.8mm Detail: 5mm to 125mm |
Pan, Tilt and Rotation Range |
Panorama Tilt: -13° to +23° Detail Pan: 0° to 360° Tilt: -15° to +90° Auto Flip: 180° |
Close Focus Distance | Panorama: 0.2 m Detail: 0.1 m-0.5 m |
DORI Distance | Detect: 2500m Observe: 987.5m Recognise: 500m Identify: 250m |
Video Compression | H.264H, H.264B, Smart H.265+, H.264;H.265, MJPEG (Sub Stream 1), Smart H.265+ and Smart H.264+ |
Stream Capability | 3 |
PoE | 12V DC/PoE (802.3at) |
Power | Basic: 12 W Max.: (Basic power consumption + illuminator + sound and light warning +PTZ operation + Heater ): 25 W (12 VDC) |
Finish | White |
Operating Conditions | -40°C / -40°F to +65°C / 149°F |
Protection Rating | IP66 |
Dimensions | Height: 304.6mm / 11.99" Width: 184.4mm / 7.26" Length: 160mm / 6.3" |
Weight | 3.41kg/ 7.52lb |
Certification | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 |
