These unique subwoofers from James Loudspeaker are designed to offer smooth and deep bass to compliment any audio system while maintaining a discrete and space saving design which doesn't break the budget. The JAM-QX1020X is a compact QX style in wall or in ceiling subwoofer, using the same mounting system as other QX style speakers. These subwoofers are available as an 8 Ohm speaker with a single 10" active woofer and matching 10" passive radiator, and a 4 Ohm speaker with dual 10" active woofers. These unique subwoofers from James Loudspeaker are designed to offer smooth and deep bass to compliment any audio system while maintaining a discrete and space saving design which doesn't break the budget.

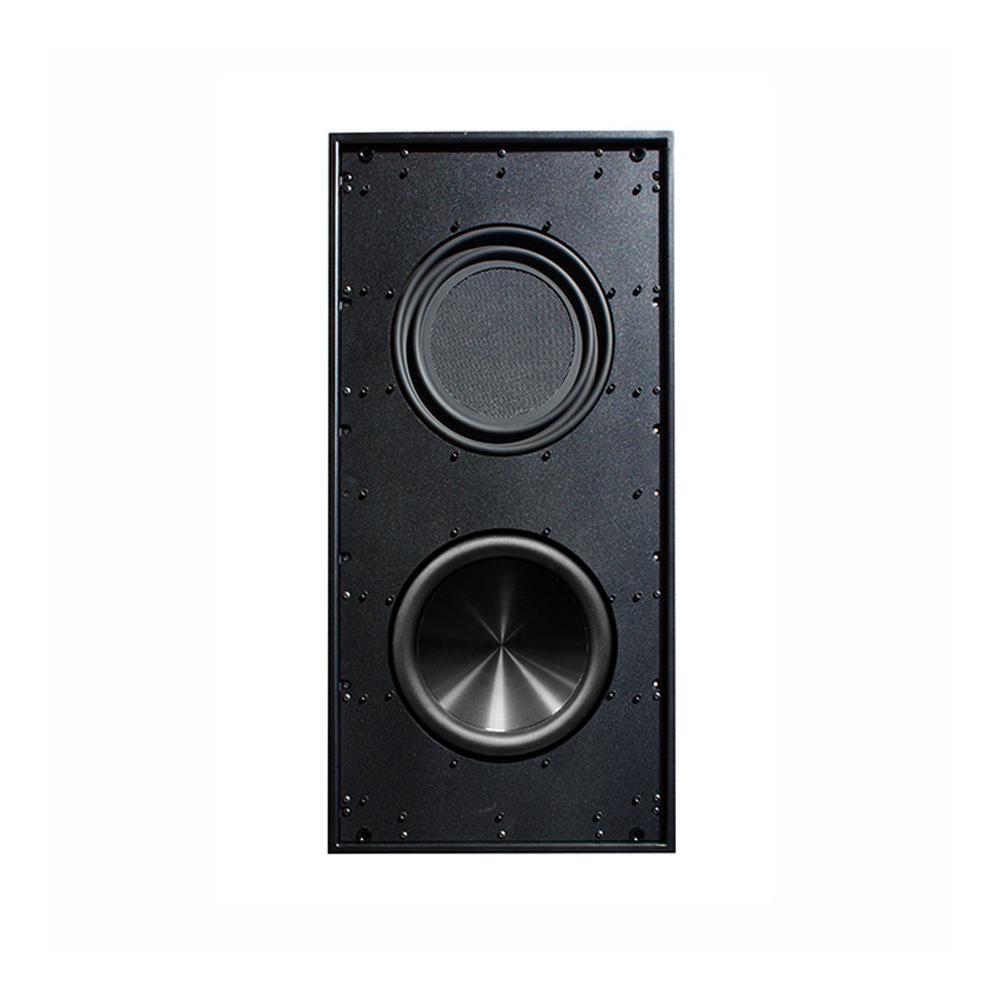

The JAM-QX1020X is a compact QX style in wall or in ceiling subwoofer, using the same mounting system as other QX style speakers. The JAM-QX1020 features a single 10" active woofer and a matching 10" passive radiator and the JAM-QX1020A offers dual 10" active woofers. These subwoofers offers a great solution for smaller footprint placement while still delivering booming bass. Designed for mounting behind displays, this sub is extremely versatile and easily hidden.
All versions of the QX 10" dual forward firing in wall and in ceiling subwoofer are constructed entirely from aircraft grade aluminium for strength, sonic performance, and durability. Available for marine and outdoor use with the addition of a severe powder coat. For outdoor or marine vessel applications please select JAM-QX1020-M or JAM-QX1020-A-M. Both are IP65 rated.

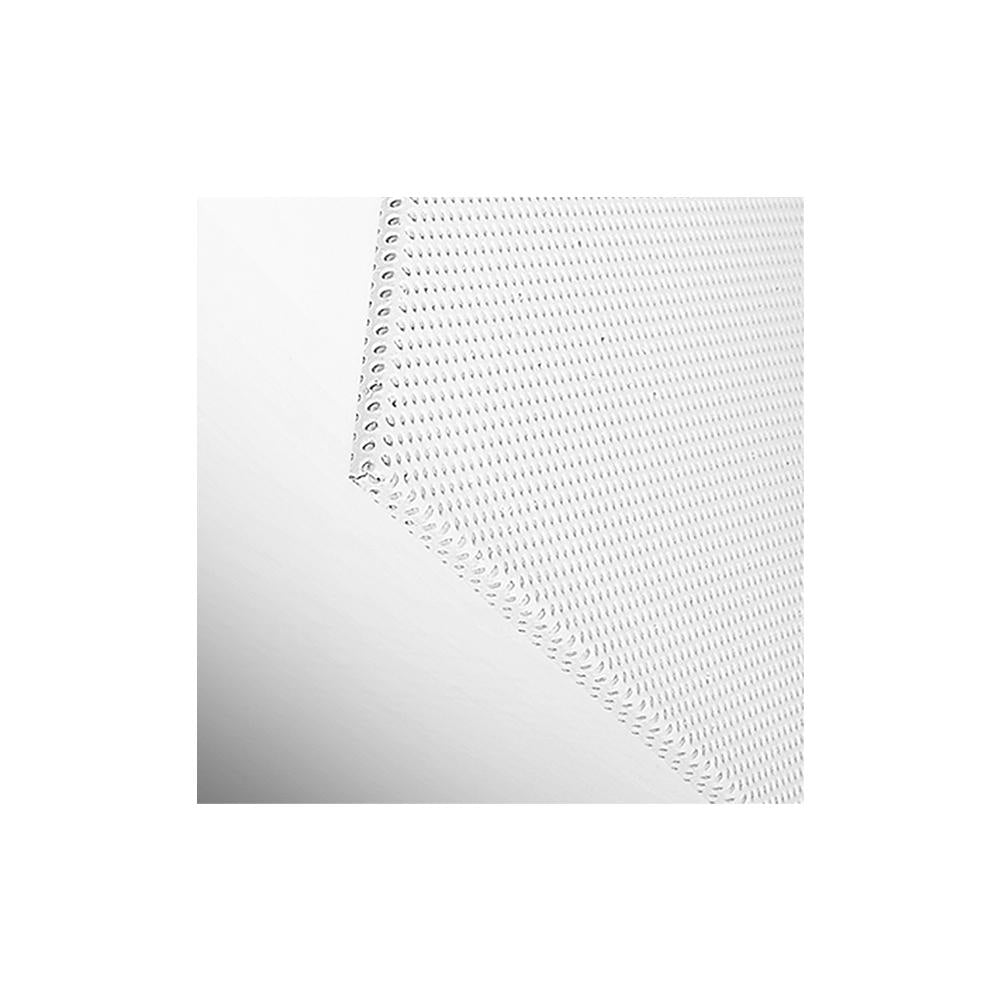

Featuring perforated aluminium grilles, which sit only 3/16" from the wall/ceiling or completely flush with the addition of a custom James' pre construction board, these subwoofers can easily be integrated into any environment, offering a subdued visual effect, designed to be as unobtrusive as possible.
James Loudspeaker features a wide variety of in wall and in ceiling subwoofers suited for many different applications. Whether you're looking for an integrated home cinema system, a simple stereo system, a distributed audio system, or something entirely different James have a solution that will work for your requirements.
James strive to offer uncompromising solutions to all your audio needs; great sound has never looked so good.
JAM-QX1020 QX 10" Dual Forward Firing In-Wall and In-Ceiling Subwoofer JAM-QX1020-M Marine Grade IP 65 rated |
JAM-QX1020-A QX 10" Dual Forward Firing In-Wall and In-Ceiling Subwoofer JAM-QX1020-A-M Marine Grade IP 65 rated |
|
Woofer | 2 x 254mm / 10" active/passive laminated aluminium honeycomb | 2 x 254mm / 10" active/passive laminated aluminium honeycomb |
Enclosure | Aircraft marine grade aluminium | Aircraft marine grade aluminium |
Finishes | White grille | White grille |
Frequency Response | 22Hz to 140Hz +/-3dB | 27Hz to 150Hz +/-3dB |
Nominal Impedance | 8Ω | 4Ω |
Sensitivity | 90dB 2.83V/1m | 92dB 2.83V/1m |
Recommended Power Range | 150W to 500W | 150W to 1000W |
Recommended Amplifier | JAM-M1000 | JAM-M1000 |
Required Mounting Depth | 98.42mm / 3.88" | 98.42mm / 3.88" |
Dimensions | Height: 722.88mm / 28.46" Width: 363.73mm / 14.32" Depth: 104.77mm / 4.13" |
Height: 722.88mm / 28.46" Width: 363.73mm / 14.32" Depth: 104.77mm / 4.13" |
Grille Dimensions | Height: 722.88mm / 28.46" Width: 363.73mm / 14.32" |
Height: 722.88mm / 28.46" Width: 363.73mm / 14.32" |
Cut Out | 344.50mm / 13.56" x 704.85mm / 27.75" | 344.50mm / 13.56" x 704.85mm / 27.75" |
