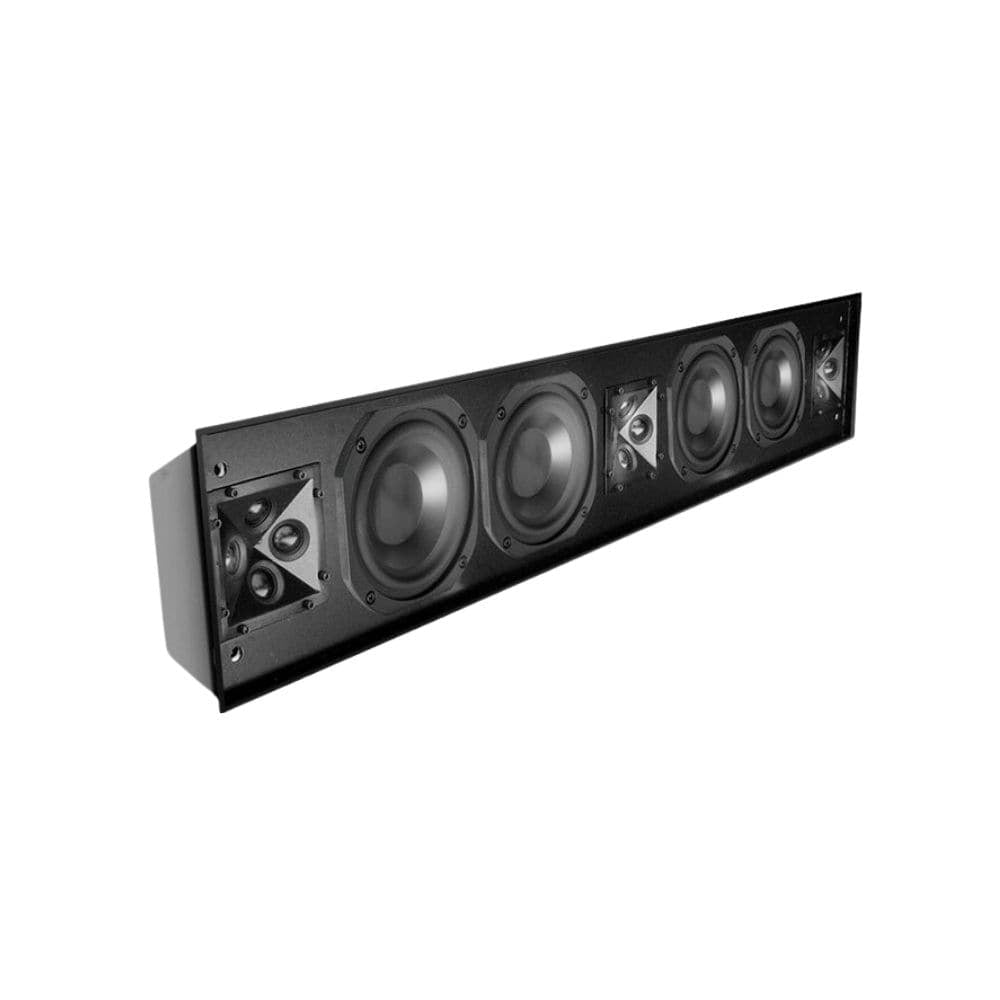

The JAM-QX-SPL5-LCR-M 5" LCR in wall soundbar with white grille from James Loudspeaker sets new levels in sound output and wide frequency response. The LCR format of this bar features two individual systems to provide left, right and centre channels in a single enclosure. Perfect for any outdoor or marine entertainment system, this versatile soundbar provides seamless integration, elegant design and high quality audio. It is IP65 rated. Custom width options are available.
The JAM-QX-SPL5-LCR-M 5" LCR in wall soundbar with white grille from James Loudspeaker sets new levels in sound output and wide frequency response. The LCR format of this bar features two individual systems to provide left, right and centre channels in a single enclosure. Perfect for any outdoor or marine entertainment system, this versatile soundbar provides seamless integration, elegant design and high quality audio. It is IP65 rated.
Custom width options are available.
Equipped with high output, low profile woofers and the signature ultra wide dispersion QX style quad aluminium tweeter array, this low visibility sound bar delivers powerful audio in a small package. Capable of reaching frequencies across a broad range down to below 65Hz, the JAM-QX-SPL5-LCR-M offers full range response with an impressive 89dB sensitivity.

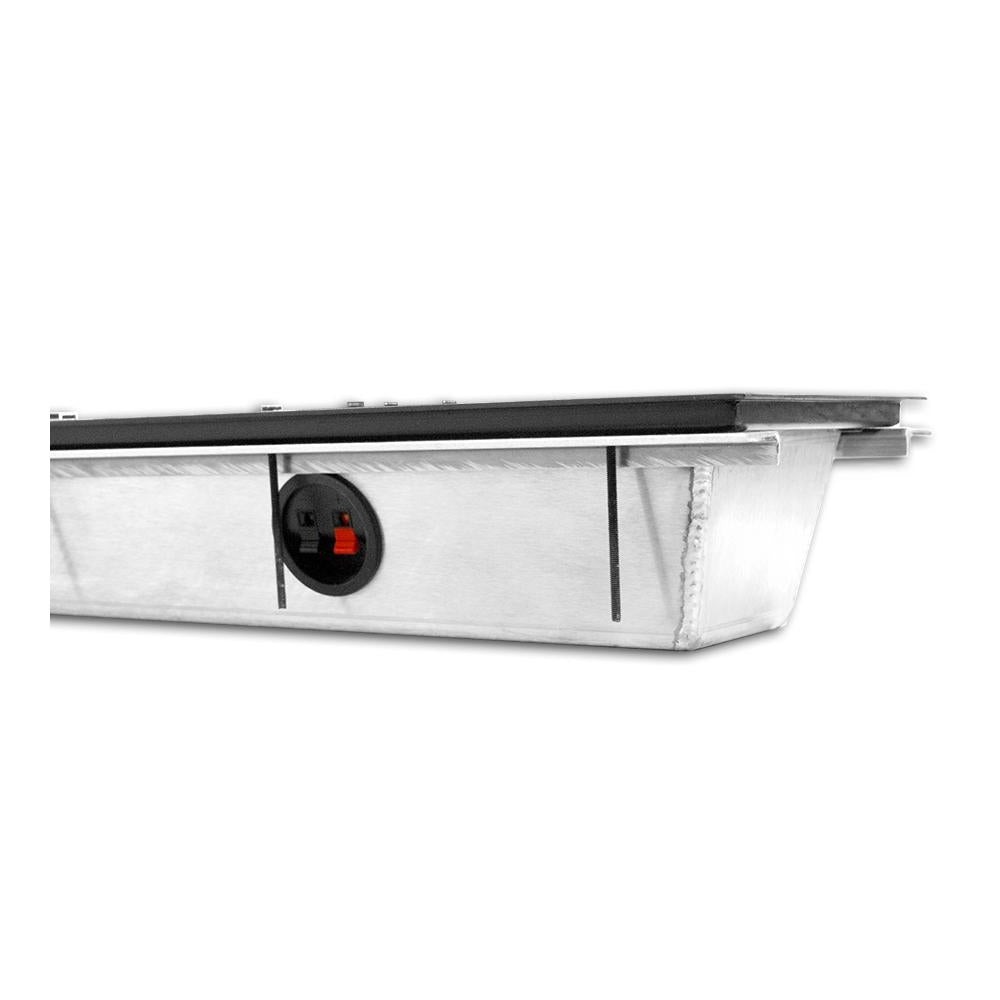

The in wall cabinet is constructed of aircraft grade aluminium for strength, sonic performance and suitability for outdoor and marine applications. Complete with a matching borderless aluminium perforated grille which sits only 5mm or 3/16" from the wall or completely flush with the addition of a pre construction board, this speaker is both study and reliable as well as elegant, offering a subdued visual effect.
QX Series soundbars combine elegant, modern styling with James Loudspeaker's legendary audio performance. These soundbars offer a unique solution to the new OLED displays which can be only fractions of an inch off the wall. An optional flush mount pre construction board allows the grille to be flush with the wall surface. The grilles attach via grille cups for quick and simple installation.

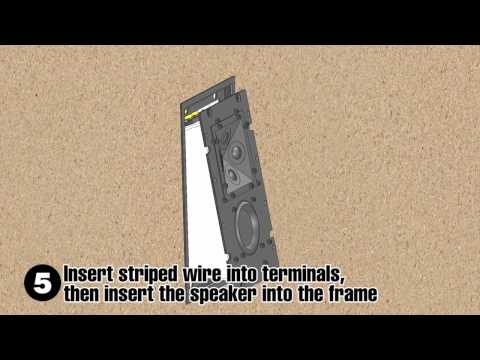

The JAM-QX-SPL5-LCR-M features aluminium cone woofers with Santoprene™ rubber surrounds and quad aluminium tweeter arrays that deliver wide dispersion and reference quality sound. The new quad tweeter array was designed to provide superb off axis stereo performance, even in rooms with speakers mounted in less than perfect locations. They also offer a unique three piece installation method employing a lightweight frame and independent speaker body.
Custom Width Options (please confirm with your order the width, make and model of your TV)
James offers two custom width options to fit your installation requirements and needs:
JAM-SPL-W97* - offers custom widths from 1880mm to 2463mm (74" to 97") for their soundbars
JAM-SPL-W98* - offers custom widths from 2489mm+ (98"+) for their soundbars
Tweeter | 12 x 19mm / 0.75" aluminium |
Woofer | 4 x 132mm / 5.25" aluminium cone woofers with Santoprene™ rubber surrounds |
Enclosure | Aircraft marine grade aluminium |
Finish | White grille |
Frequency Response | 65Hz to 24kHz +/-3dB |
Nominal Impedance | 8Ω |
Sensitivity | 89db 2.83V/1m |
Recommended Power Range | 25W to 100W |
Required Mounting Depth | 98.42mm / 3.88" |
Dimensions | Height: 203.2mm / 8" Width: Up to 1854mm / 73" Custom Width: please see overview for further details Depth: 106.22mm / 4.18" |
Grille Height | 206.38mm / 8.13" |
