Description:

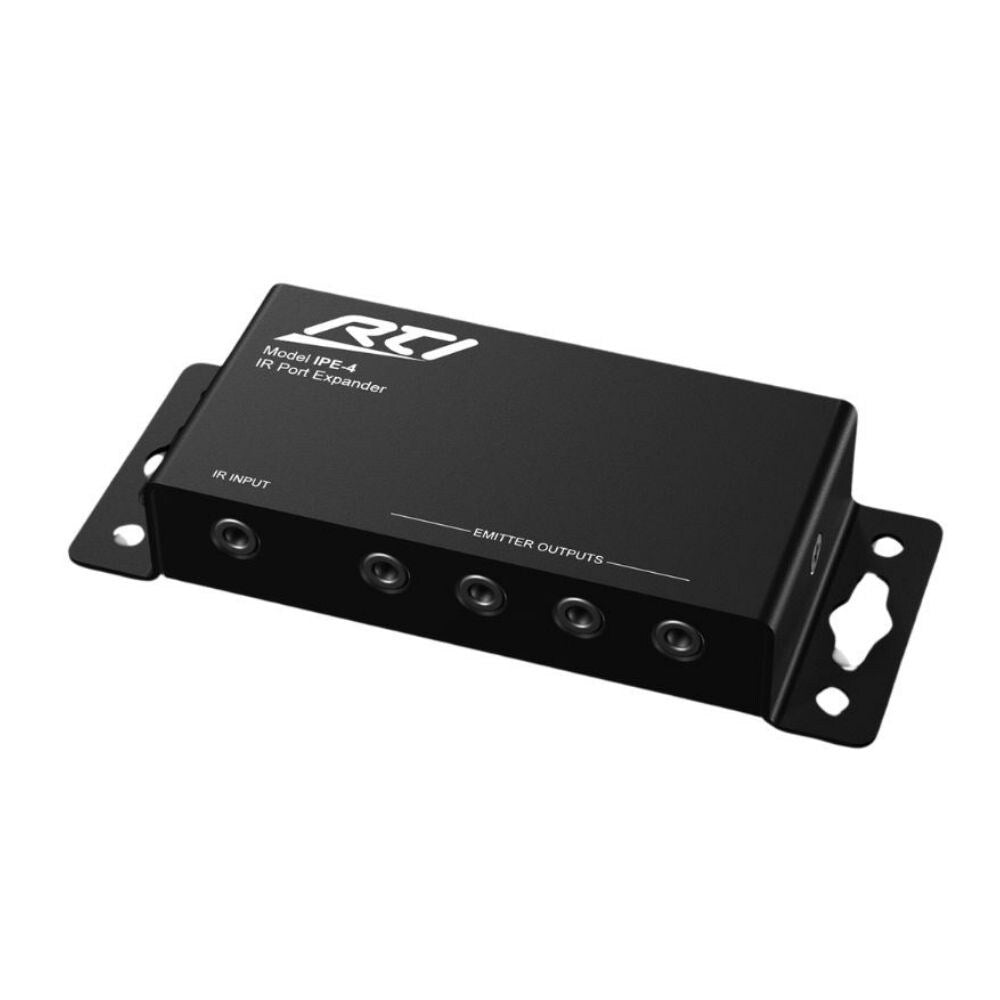

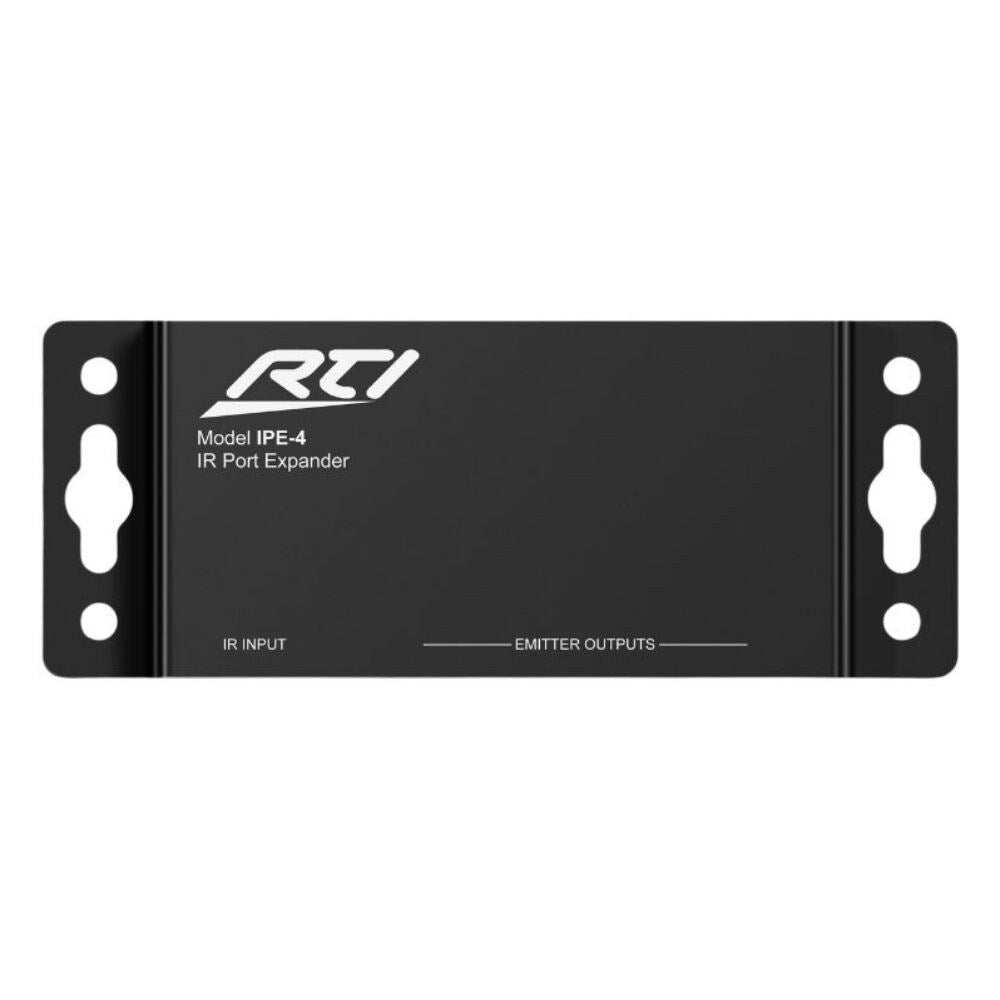

RTI's IPE-4 IR port expansion module with four IR emitter ports, provides convenient expansion of infrared signal distribution when used with RTI control processors.
It has one infrared signal input, 3.5mm jack and four emitter output ports that allow the connection of up to four single or dual infrared emitters.
This expansion module is compatible with most industry standard single or dual IR emitters.
A power supply is not required for the IPE-4 to function and a 1m mono cable with 3.5mm mini plugs is included for easy connection to RTI processors.
It has a sturdy steel construction.
Features:
Specifications:
IR Input Port | 3.5 mm jack, compatible with RTI control processors and industry standard repeaters or receivers |
IR Output Ports | Four, 3.5mm jacks, works with industry standard IR emitters |
IR Output | 100mA maximum, per port |
Mounting | Wall mount or free standing |
Operating Temperature | 0°C / 32°F to 50°C / 122°F |
Operating Humidity | 5% to 95% non condensing |
Dimensions |
Height: 48mm / 1.89" Width: 130mm / 5.12" Depth: 23mm / 0.91" |
Weight | 192g / 0.42lb |
Warranty | 3 years parts and labour RTB |
