Description:

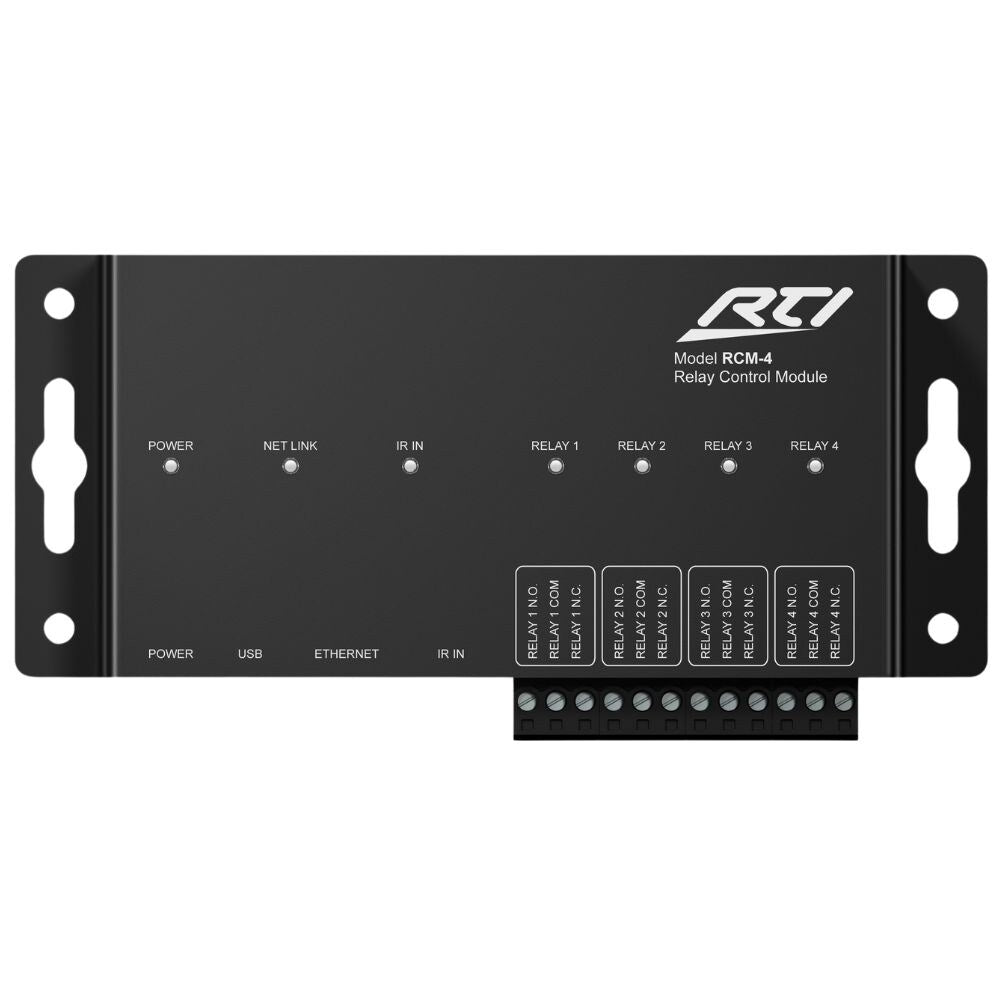

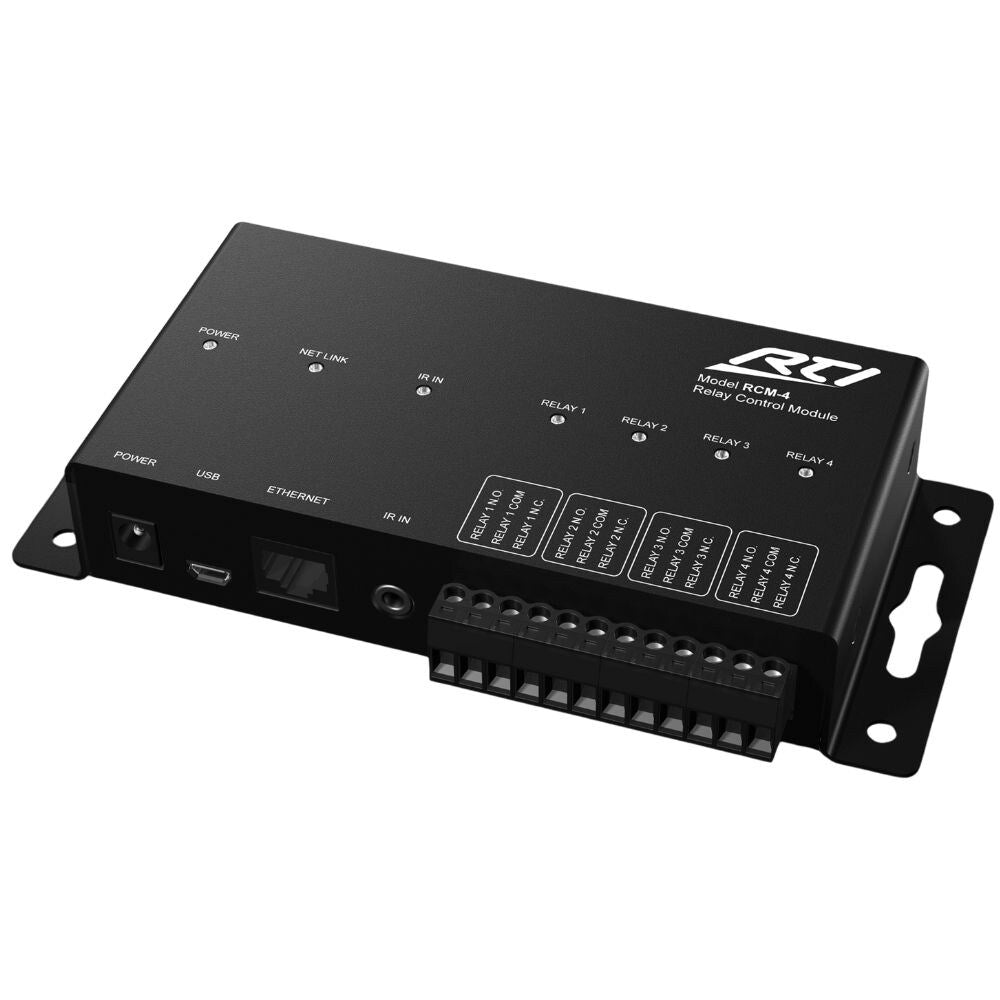

RTI's RCM-4 Ethernet enabled relay control module is equipped with four individually addressable relays. Built in Ethernet enables the convenience of control from an RTI XP series control processor via the LAN.
An IR input allows the RCM-4 to be triggered from many different sources, including RTI in wall controllers, control processors or 3rd party infrared repeater systems.
The relays are capable of switching up to 28V DC @ 5A and can be used in a normally open or normally closed configuration.
Discrete set of IR codes and an IR input allows relays to be triggered from virtually any IR programmable system.
Commands trigger open and close functions as well as adjustable hold times for momentary relay operation.
The RCM-4 can be powered from the included 12V DC power supply or PoE.
This module is constructed of steel for durability and sturdiness.
Features:
Specifications:
Power | 12V DC, 1.25A |
Relays | Four, 28V DC @ 5A |
Ethernet Port | One, RJ-45, 10/100 Base-T with PoE |
IR Input | Compatible with industry standard repeaters and receivers |
USB Port | One, programming |
Mounting | Wall mount of free standing |
Operating Temperature | 0°C / 32°F to 50°C / 122°F to |
Operating Humidity | 5% to 95% non condensing |
Dimensions |
Height: 74mm / 2.91" Width: 173mm / 6.81" Depth: 31mm / 1.22" |
Weight | 466g / 10.3lb |
Warranty | 3 years parts and labour RTB |
