Description
Description:

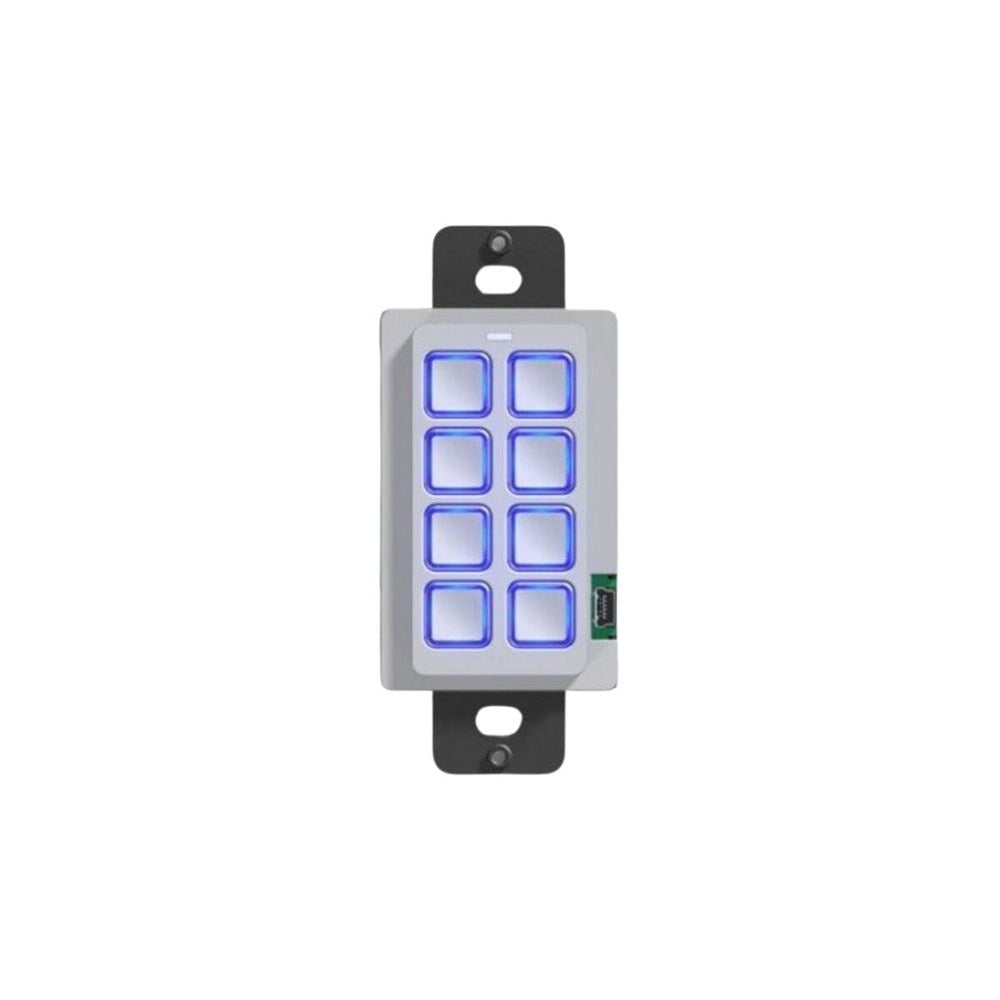

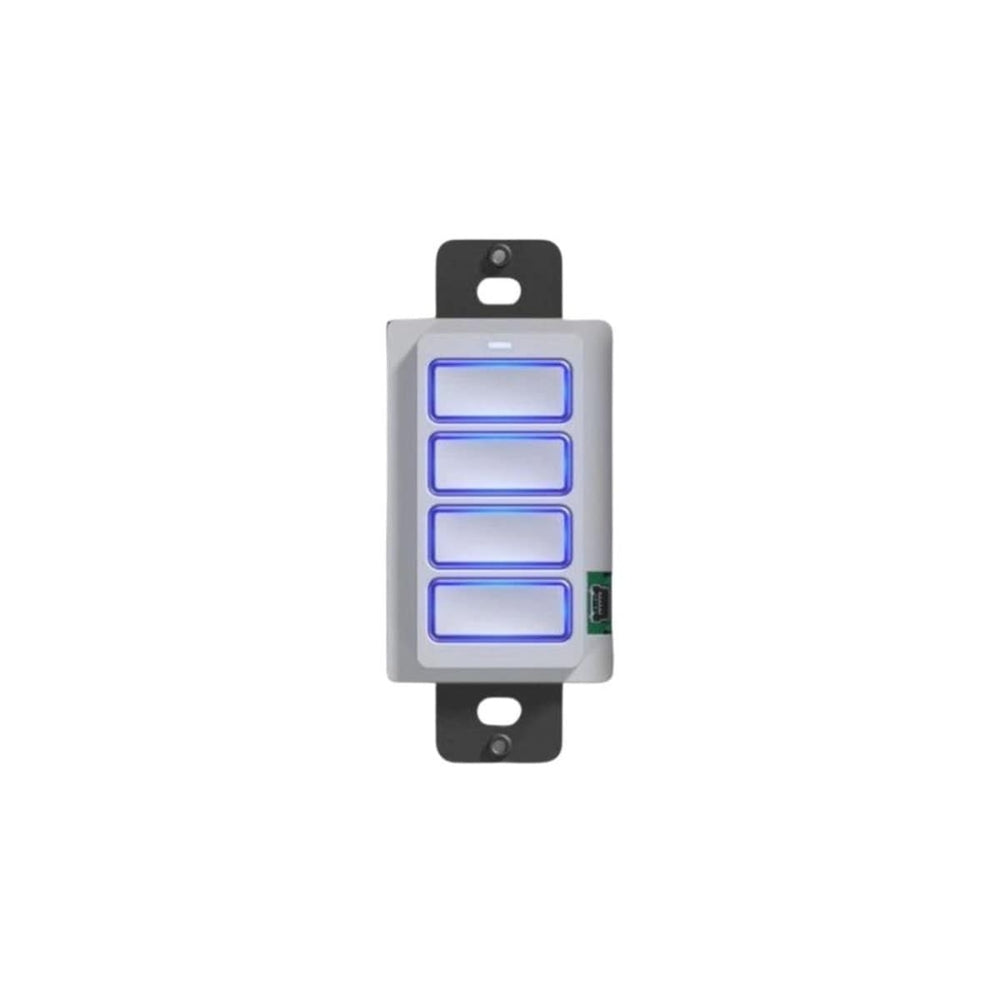

RTI's RK1+ in wall universal system controller offers a backlit LED keypad, which is available in 4 button or 8 button configurations depending on application.
These keypads directly control almost any audio, video component or lighting system up to 300m away using its IR output port. When used with RTI accessory devices, this keypad is capable of expanded control, including two way feedback, via the programmable button LED backlight colour.
Supplied with white, black and light almond faceplates and keycap labels.
Blend your flush mount keypad into the wall and use it for simple control of your home or business. Whilst the labelled buttons provide quick access to control functions such as lights, music, audio/video source selection.
They keypad offers 2 way control and get status feedback via the programmable button backlight colour with 16 colours available and you can control devices directly without a control processor by connecting a CPB-1 Control Block by RS-232. Whilst, you can control IR devices directly without a control processor by connecting IR emitters blasters or repeaters.
Power your keypad by connecting the control port to a CB-8 connecting block and establish two way control communication with RTI processors and accessories
Customise the button labels with text or graphics with Laser Shark. Available in white and satin black
Mount your keypad conveniently in a standard US decora single gang back box.
Features:
- Blend your flush mount keypad into the wall and use it for simple control of your home or business
- Labelled buttons provide quick access to control functions such as lights, music, audio/video source selection
- 4 button or 8 button configurations available depending on application
- 2 way control intuitively with the buttons of your keypad and get status feedback via the programmable button backlight colour with 16 colours available
- RS-232: Control devices directly without a control processor by connecting a CPB-1 Control Block
- Control IR devices directly without a control processor by connecting IR emitters blasters or repeaters
- RTI Control Port: Power your keypad by connecting the control port to a CB-8 connecting block and establish two way control communication with RTI processors and accessories
- Ambient Light Sensor allows enjoyment of the perfect button backlight and display brightness that's automatically set depending on the ambient light
- Customise the button labels with text or graphics with Laser Shark. Available in white and satin black
- Mount your keypad conveniently in a standard US decora single gang back box
Specifications:
| Model | RK1+-4B |
RK1+-8B |
| Power | 9V DC to 16V DC, 350mAh max |
|
| Programmable Buttons | Four |
Eight |
| Backlights | RGB LED programmable, 16 colours available |
|
| IR Output Port | 200 mA output, 300m range |
|
| System Memory | 64K Bytes Flash memory (non volatile) |
|
| Communication | USB programming port |
|
| Mounting | US decora single gang back box |
|
| Operating Temperature |
0°C / 32°F to 50°C / 122°F Relative Humidity: 5% to 95% non condensing |
|
| In Wall Mounting Depth | 43mm plus cables |
|
| Dimensions | Height: 104mm / 4.09" Width: 46mm / 1.811" Depth: 43mm / 1.69" |
|
| Weight | 113g / 0.25lb |
|
| Warranty | 3 years parts and labour RTB |
User guides
Download User Guides:
Data Sheet RK1+
RTI Brochure
RK1+ Operations Guide
RK1+ Reference Guide Manual
In Wall Key Pad Comparison Chart
Doc RK1+
