Description:

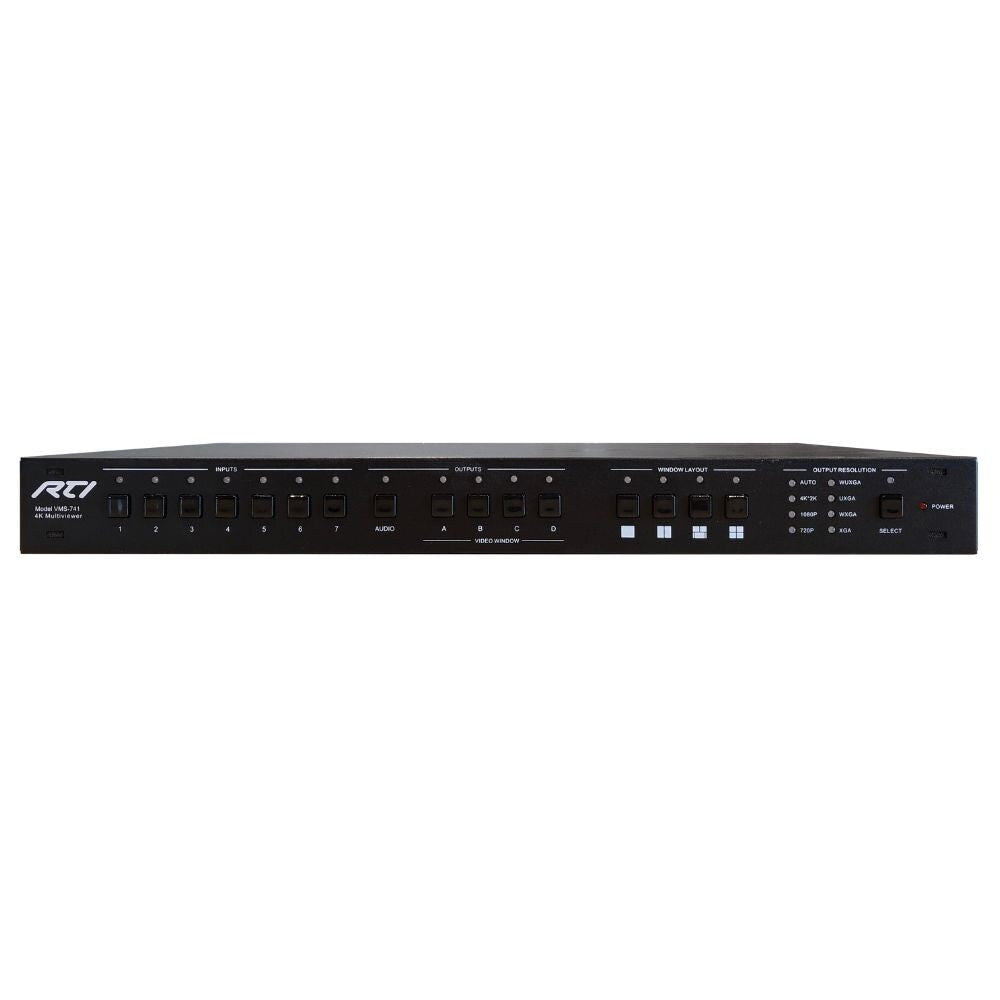

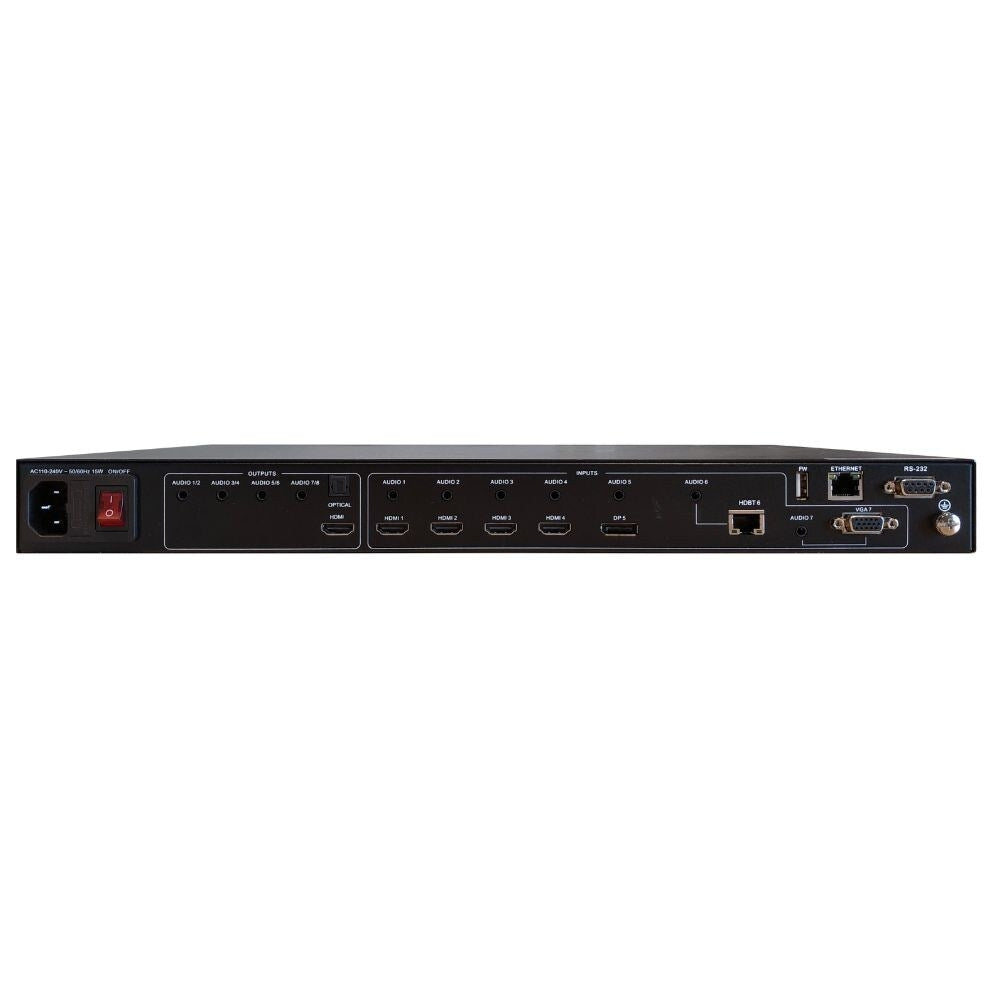

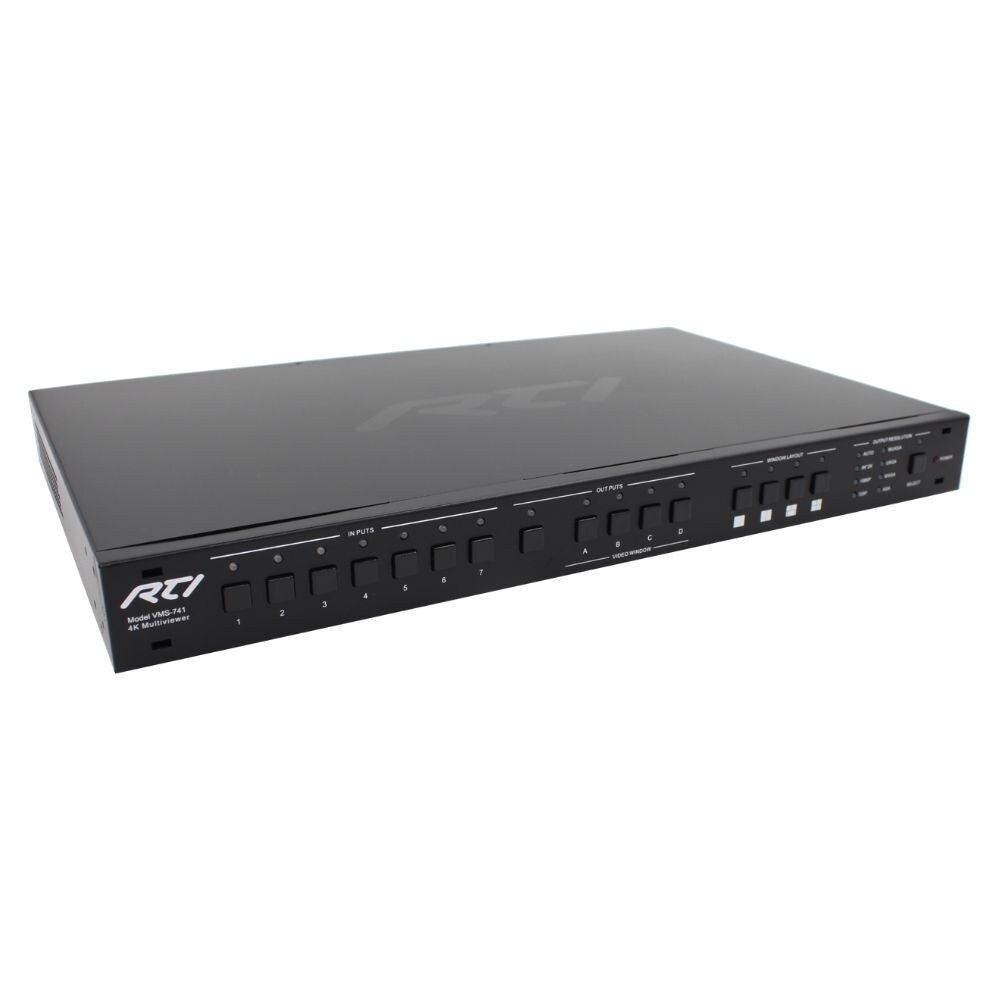

RTI's VMS-741 seven way 4K MultiViewer presentation switcher or scaler is designed for meeting spaces, auditoriums, sports bars and other installations requiring a wide range of video sources with differing resolutions and formats. To meet the unique challenges of these environments, the unit combines AV switching with advanced scaling to display content from up to seven sources including HDMI®, DisplayPort, VGA and an HDBaseT input.
The powerful Multiviewer function allows up to four video sources to be displayed simultaneously on one display, with user selectable window layout combinations.
The innovative VMS-741 also offers audio embedding and de-embedded audio outputs.
The VMS-741 is HDMI 1.4 and HDCP 1.4 compliant and supports multiple output resolutions up to 3840 x 2160 @ 30Hz.Audio embedding is via analogue stereo inputs.
It offers 8 channel (7.1) analogue audio and Toslink optical audio outputs and auto scaling, auto detect EDID.
Control of this unit is via front panel buttons, RS-232, Ethernet or Web GUI and the USB port is for firmware updates.
The VMS-741 can be free standing or 1U rack mountable.
Features:
Specifications:
AC input Voltage | 100VAC to 240VAC, 15W |
Digital Video Input | Four, HDMI/MHL, one display port |
HDBaseT Input | One RJ45 |
Analogue Video Input |
One VGA, female 15 pin Supports YPbPr and composite video using supplied adapter cable |
Video Output | One, HDMI |
Output Resolution Range | Up to 4K @ 30Hz |
Compliance | HDMI 1.4, HDCP 1.4 |
Audio Line Inputs | Seven, analogue stereo (3.5mm jack) |
Audio Input Impedance | 20K Ω |
Audio Output |
Embedded, HDMI Digital Optical audio, Toslink 7.1 Surround, analogue audio and 4x 3.5 mm stereo jack |
Frequency Response | 20Hz to 20KHz |
Front Panel Control | 17 buttons for input select and menu |
RS-232 Control | One, bidirectional (9 pin D-sub connector) |
Ethernet | One, 10/100Base-T (RJ45) |
Mounting | 1U rack ears included or free standing |
Operating Temperature | -10°C / 14°F to 40°C / 104°F |
Operating Humidity | 5% to 95% non condensing |
Dimensions |
Height: 44mm / 1.73" Width: 439mm / 17.28" Depth: 279mm / 10.98" |
Weight | 3.5kg / 7072lb |
Warranty | 3 years parts and labour RTB |
