Description:

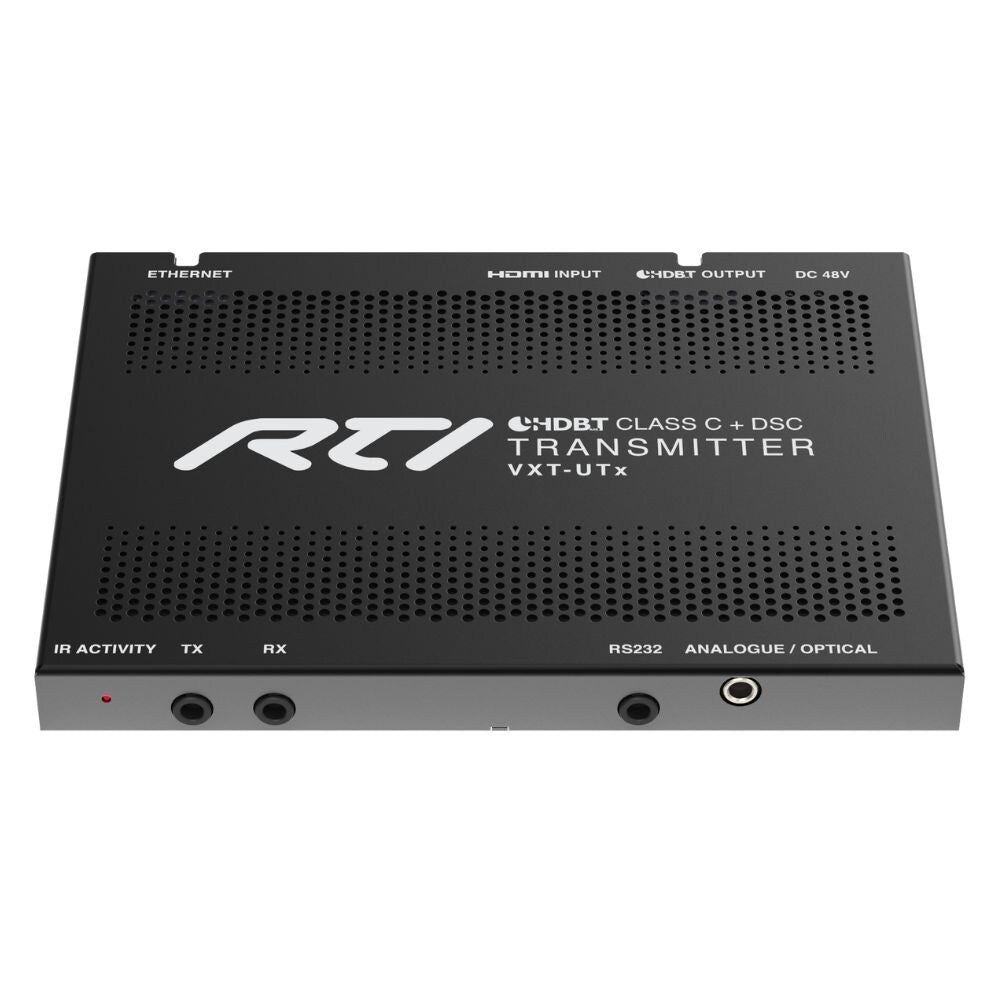

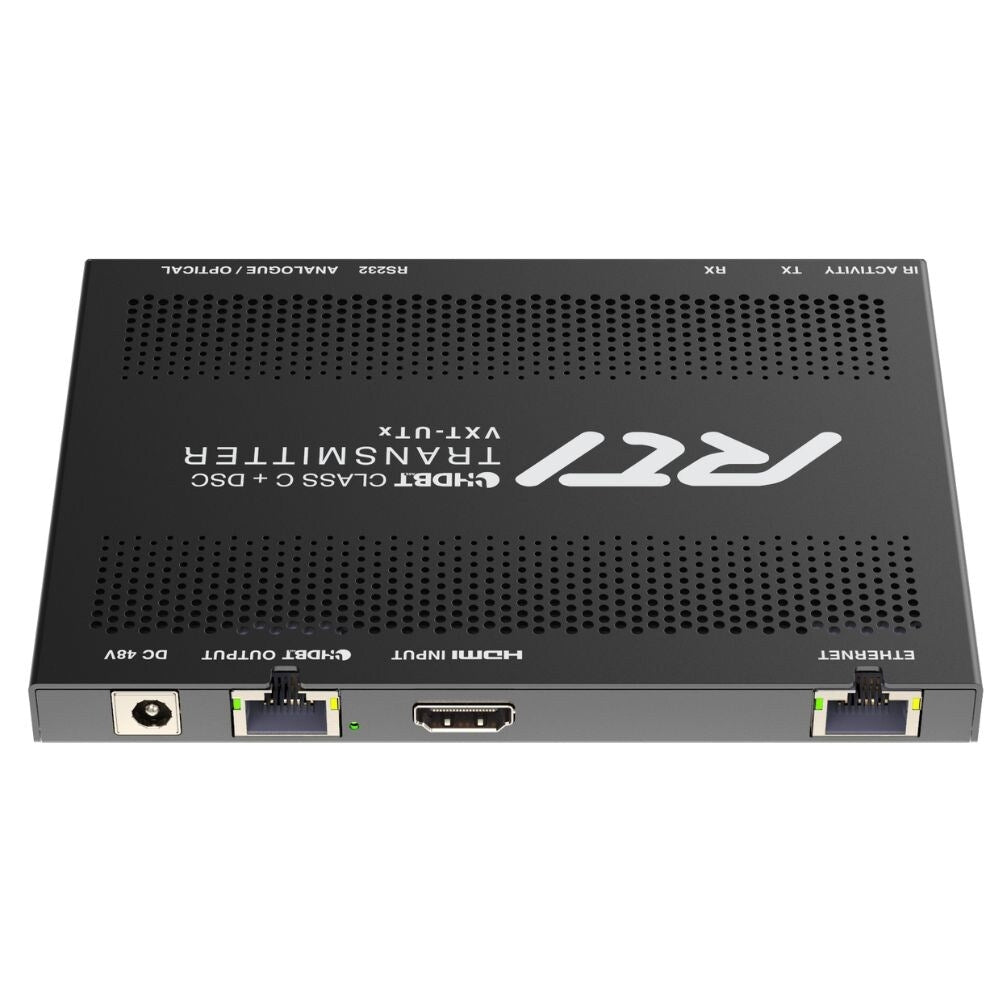

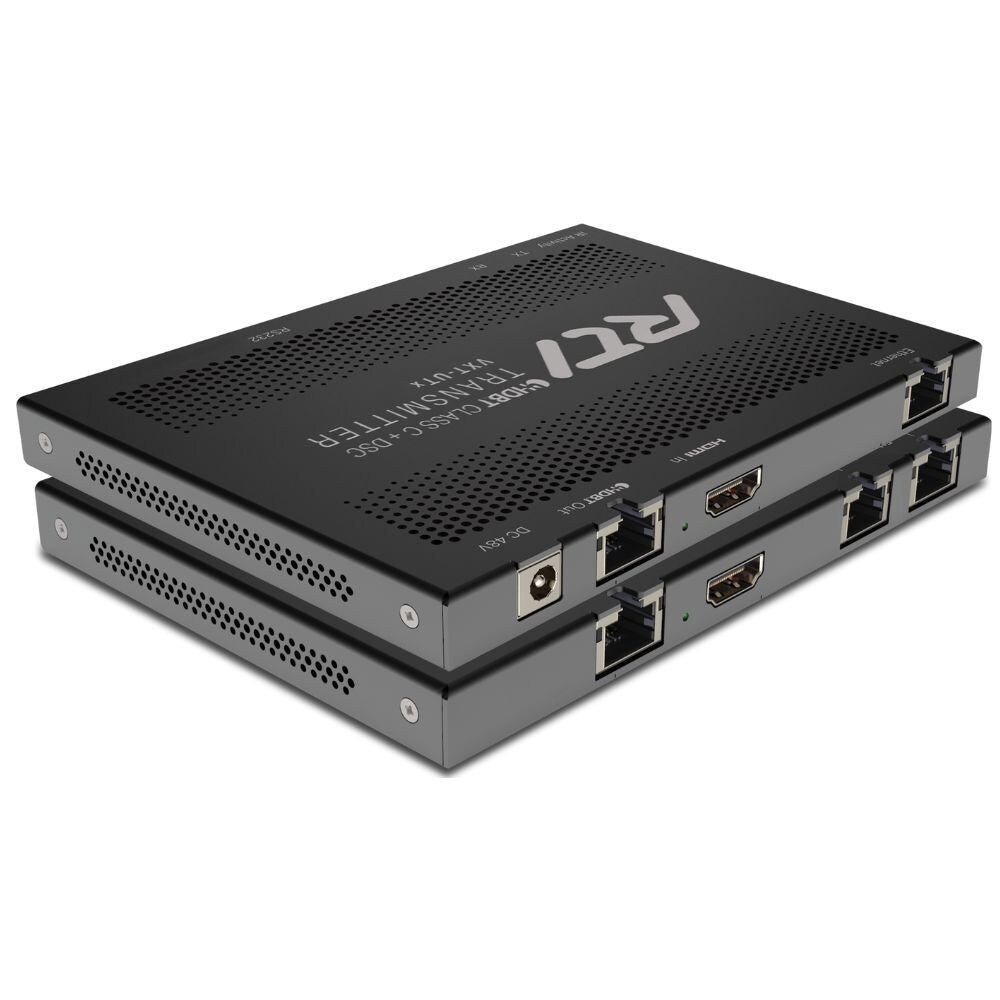

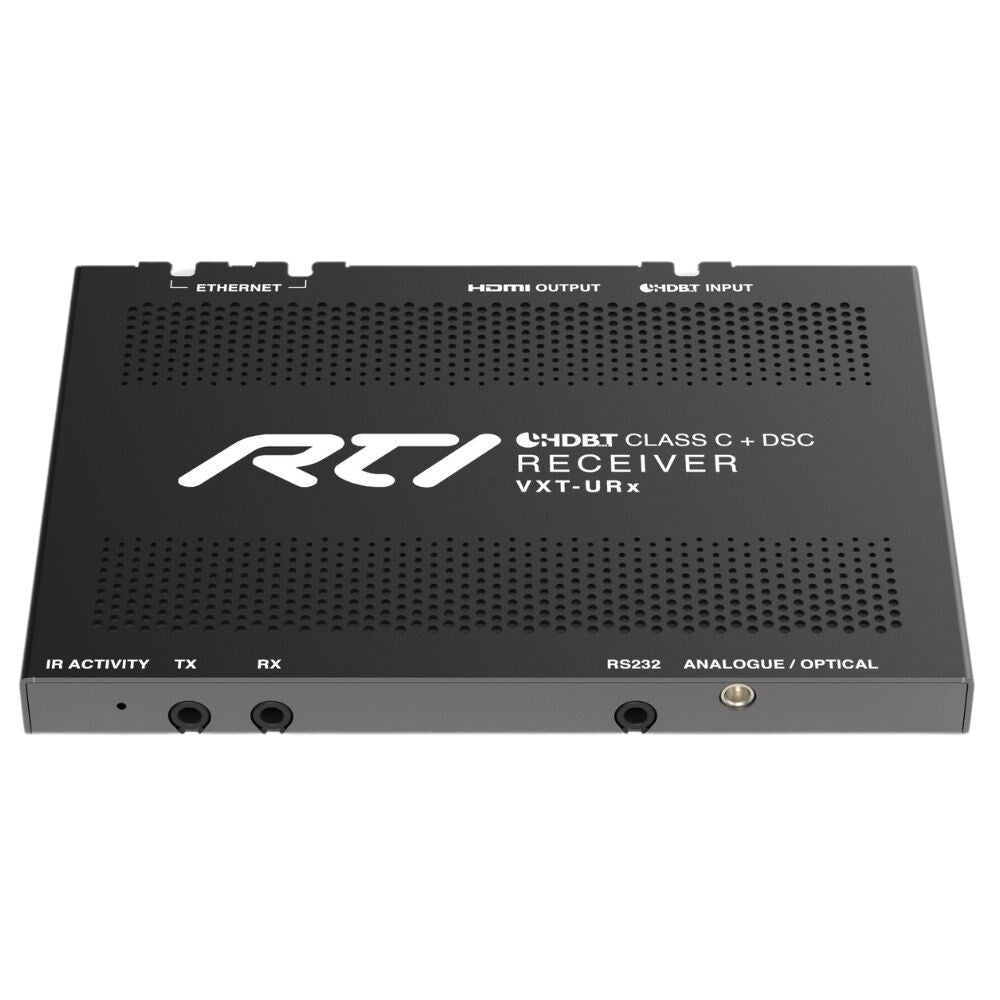

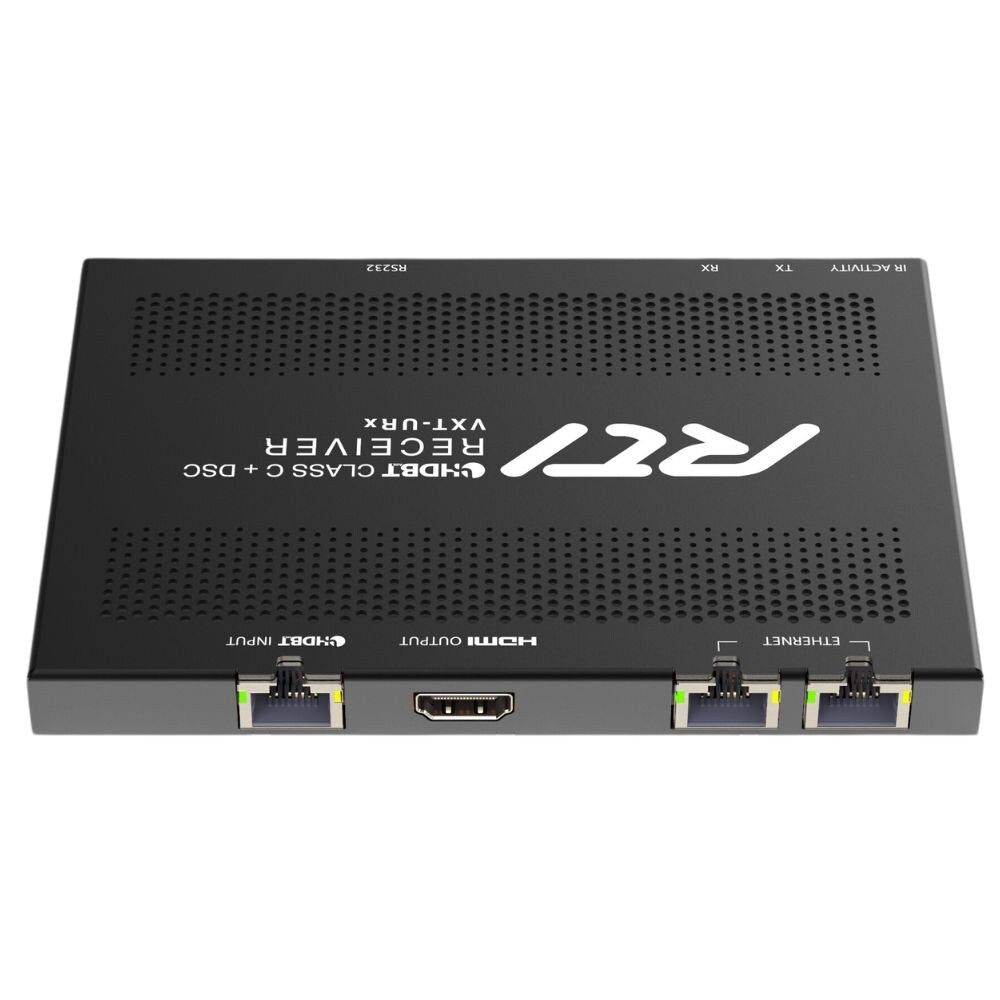

RTI's VXT-UTx HDMI® HDBaseT extender set delivers visually lossless 4K video signal over a single CAT6 cable up to 100m or 1080p video signals up to 150m.
It also transmits an IR or RS232 signal through the same cable to control the remote display or projector.
Please Note: Requires OPT-1x if used with RTI control processor, available separately.
Features:
Please Note: Requires OPT-1x if used with RTI control processor, available separately
Specifications:
Power Supply |
48V @ 0.5A Transmitter only Receiver is powered via PoH from transmitter |
Power Consumption |
Transmitter: 7.3W Receiver: 8W |
Transmitter Inputs |
One, HDMI One, HDBAseT Class C + DSC (PoH) - RJ45 |
Receiver Input | One, HDBAseT Class C + DSC (PoH) - RJ45 |
Receiver Output | One, HDMI |
Transmission Distance |
HDMI 4K @ 60Hz ≤ 100m HDMI 1080P @ 60Hz ≤ 150m |
ARC (Audio Return Channel) | Yes |
DSC (Display Stream Compression) | Yes |
Ethernet Pass through | Yes |
HDBaseT Recommended Cable | CAT5e or greater |
Colour Supported | 4K: 12bit, 1080p: 12bit |
TMDS Clock Speed | 600MHz |
Max. Bandwidth | 18Gbps |
Compliance | HDCP 1.4 and HDCP 2.2 |
PoH | PoH (Power over HDBaseT) Transmitter to Receiver |
IR Control | One IR In, One IR Out, 3.5mm jacks |
RS-232 Control | One bidirectional, 3.5mm jack |
CEC Control | Full |
Operating Temperature | 0°C / 32°F to 30°C / 95°F |
Operating Humidity | 5% to 95% non condensing |
Dimensions |
Height: 13mm / 0.51" Width: 148mm / 5.83" Depth: 105mm / 4.13" |
Weight | 320g / 0.71lb |
Warranty | 3 years parts and labour RTB |
