Description
Description:

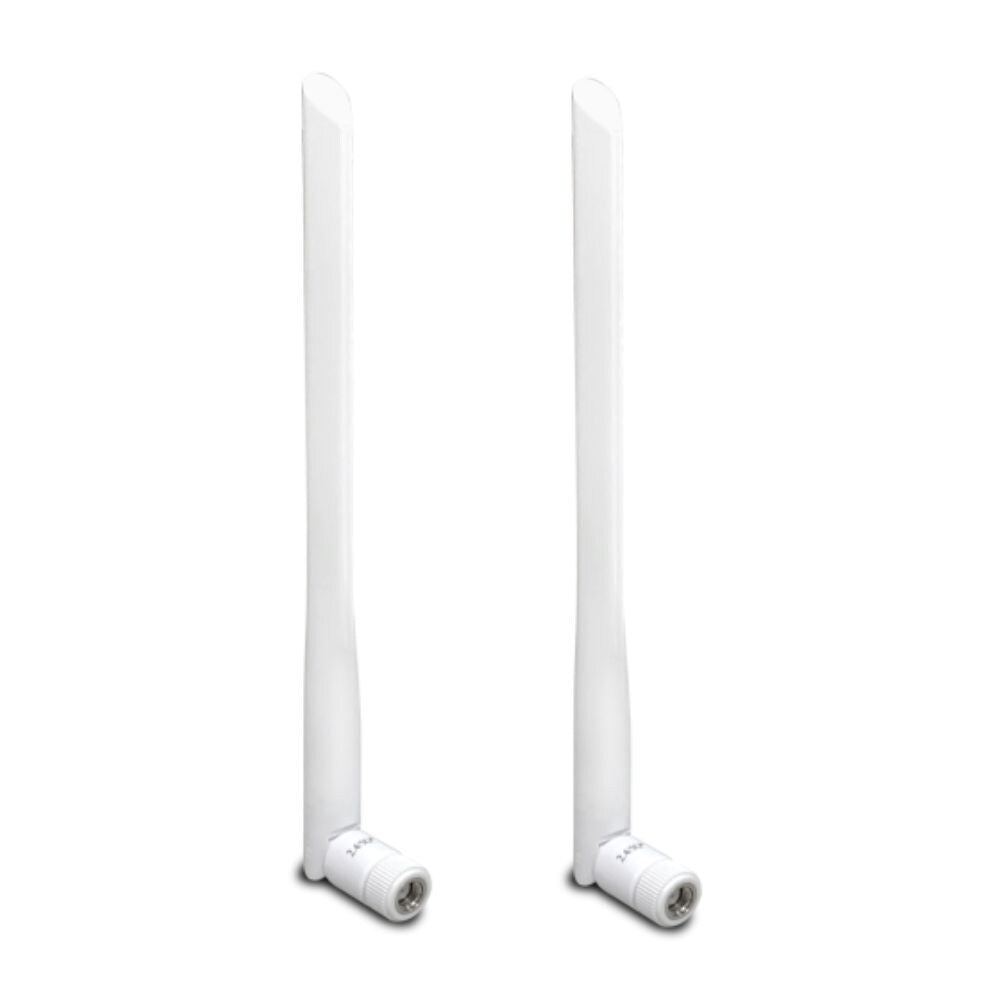

The ANT-1205 is compatible with 802.11a/b/g/n/ac standards, and 802.11 ax (Wi Fi 6) to provide faster wireless throughput and enhance Wi-Fi performance in both 2.4GHz and 5GHz.
The ANT-1205 can increase coverage in your environment, creating a stronger signal for your Wi Fi coverage. A high gain antenna achieves this by creating a narrower and therefore more concentrated radiation pattern. It is still an omnidirectional aerial, i.e. signal radiates in all directions (360°) perpendicular to the aerial's length.
This antennas can be used for either 2.4Ghz or 5.8Ghz operation, or both simultaneously. It is also suitable for 802.11ac operation (5.8GHz). The aerial can tilt at their base to allow for optimum coverage or spread, or to allow for router wall mounting.

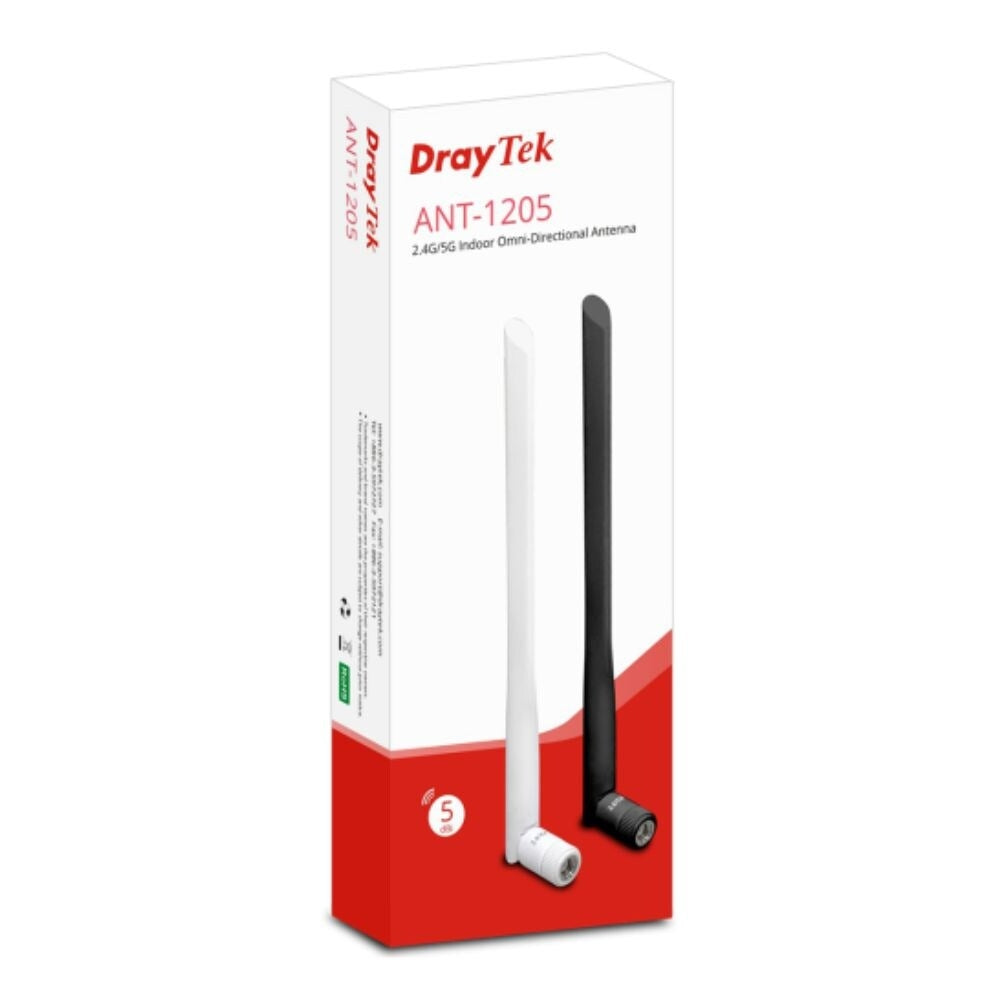

Please Note: The ANT-1205 is supplied as a pair of antennas, ideal for most DrayTek wireless access points and wireless routers.
Features:
- High gain dual band aerials set in white, pair
- Can improve range and coverage of wireless signal
- Suitable for all DrayTek routers and access points
- Suitable for 802.11ac & 802.11ax (Wi-Fi 6)
- Only for indoor use
- Tilt at their base to allow for optimum coverage or spread, or to allow for router wall mounting
Please Note: The ANT-1205 is supplied as a pair of antennas, ideal for most DrayTek wireless access points and wireless routers.
Specifications:
Operating Band | 2.4 and 5GHz |
Standard | IEEE 802.11a/b/g/n/ac/ax |
Frequency Range | 2.4GHz: 2400 to 2500 MHz 5GHZ: 5150 to 5850 MHz |
Gain | 2.4GHz: 5dBi 5GHz: 4.5dBi |
HPBW Horizontal | 360° |
HPBW Vertical | 2.4GHz: 30° 5GHz: 25° |
Voltage Standing Wave Ratio (VSWR) | <2.0 |
Polarisation | Linear |
Power Handling | 1W |
Impedance | 50Ω |

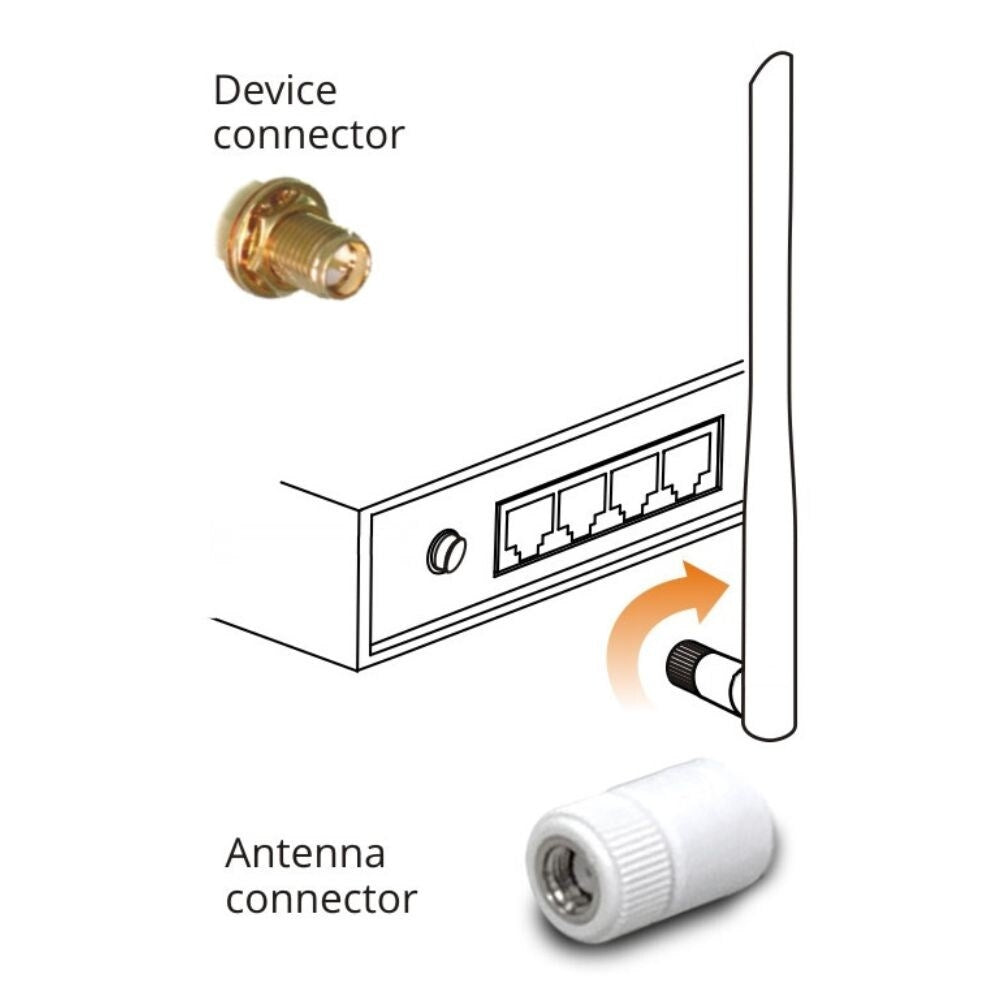

Connector Type | RP SMA plug |
Suitable Use | Indoors |
Colour | White |
Dimensions | Length: 198mm / 7.80" Diameter: 13mm / 0.51" |
Quantity | Pair |
