Description:

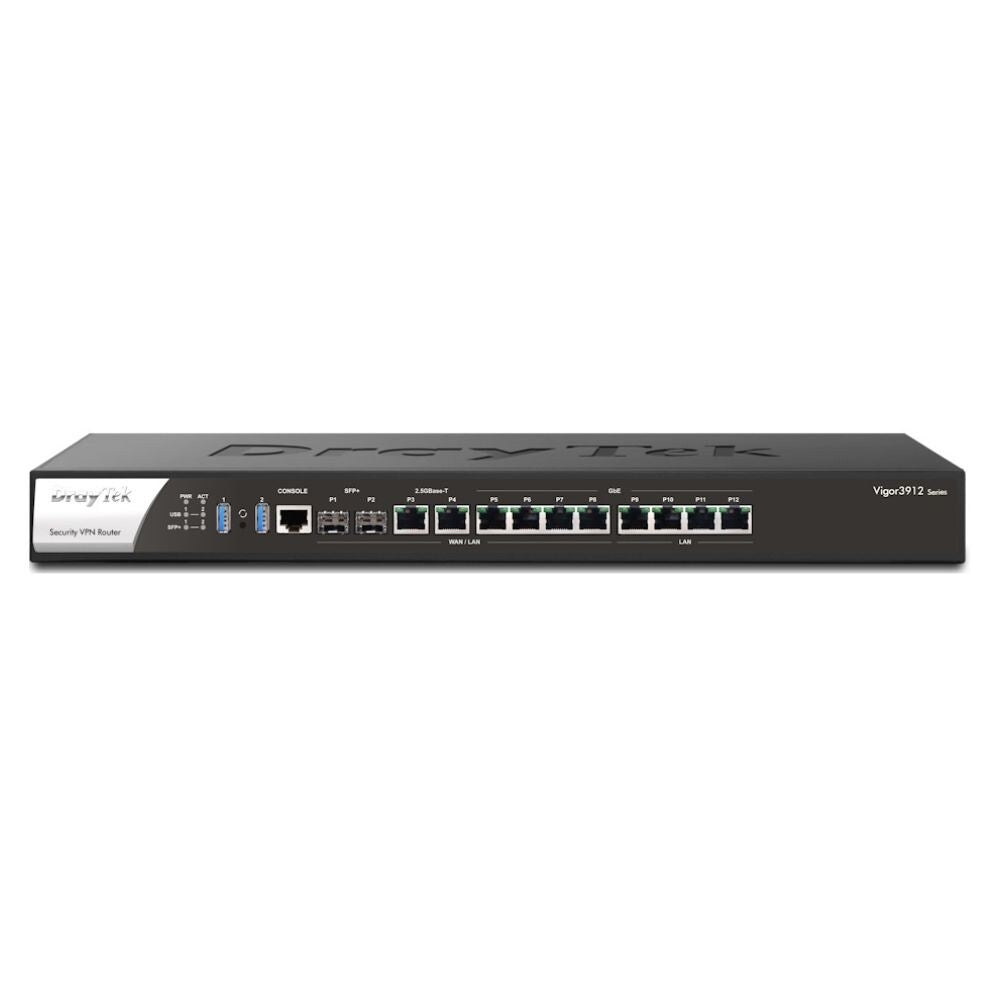

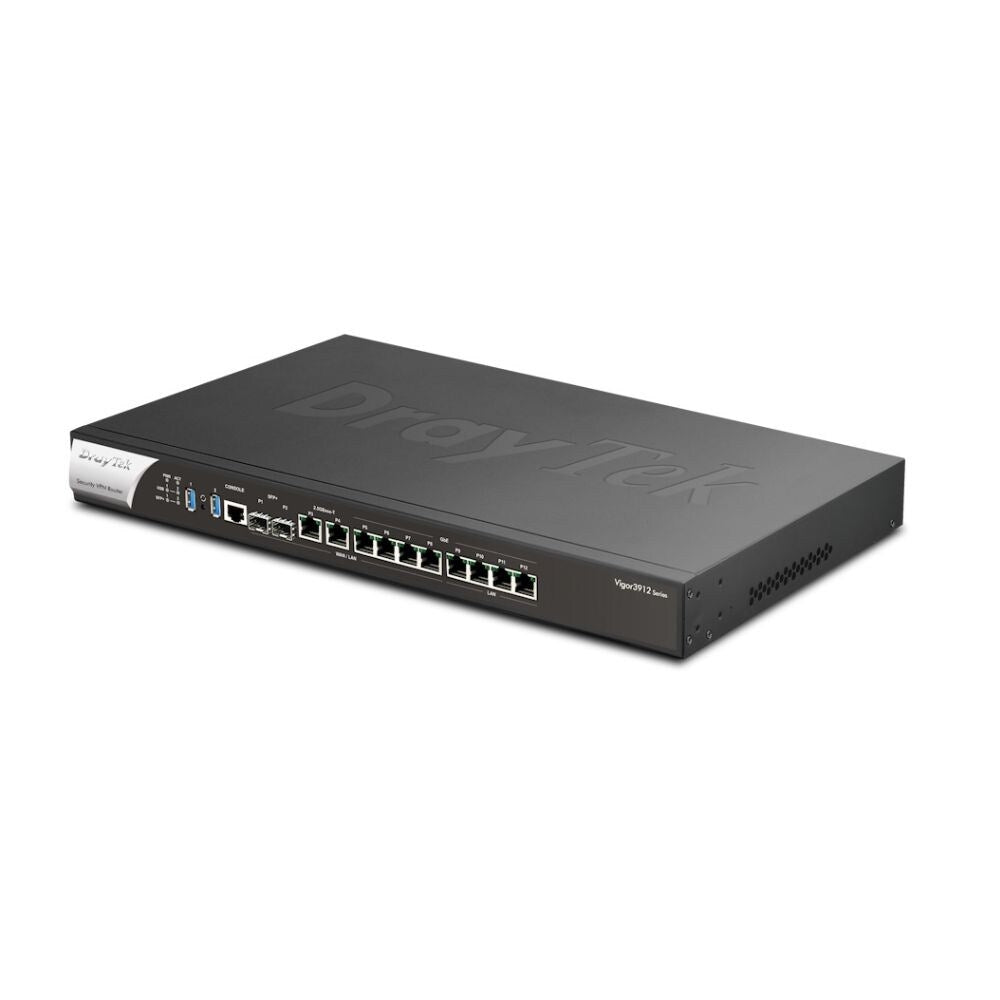

The DrayTek Vigor 3912S is a premium next generation multi WAN router making it ideal for the most demanding and complex networks. With 256GB SSD for hosting Docker Linux Applications. This VPN concentration is the evolution of DrayTek's powerful 3912 model with even faster hardware to solve large network challenges.
Featuring a Quad Core Processor, this router readily meets the needs of demanding networks, with improved NAT throughput of over 12Gb/s delivered through its 10GbE and 2.5GbE ports.
This high performance router offers 12 physical ports with 4 dedicated LAN ports and 8 switchable LAN or WAN ports, allowing for up to 11 LAN ports in total or Load Balancing up to 8 WAN connections.
Create up to 100 port or tag based VLANs, each fully configurable for NAT or Routing and share resources between networks or keep them isolated. Ideal for separating departments or managed offices. Secure and segment your networks with ease.
Protect interoffice communication with securely encrypted Virtual Private Network tunnels, maintaining up to 3Gb/s IPsec throughput and supporting 500 simultaneous VPN links.
Provide hardware redundancy to mission critical applications with the installation of a second Vigor 3912. The backup autonomously resumes connections in the event of hardware failover.
With the built in 256GB SSD and 8GB DDR4 RAM enable Linux applications to be installed via docker. Suricata, VigorConnect or any compatible docker based application can be installed.
Load Balancing meets your needs with stable business continuity, allowing full potential of the Internet, without limits whilst being available across many different environments.
With the Draytek V3912S, you decide your priorities.
Features:
Specifications:
Physical Interfaces | 2 x WAN/LAN Fibre Port SFP+ (P1-2) 2 x WAN/LAN 2.5G/1G/100M/10M Ethernet, RJ-45 (P3-4) 4 x WAN/LAN 1G/100M/10M Ethernet, RJ-45 (P5-8) 4 x Fixed LAN 1G/100M/10M Ethernet, RJ-45 (P9-12) |
USB Port | 2 x USB 3.0 |
Console Port | 1x RJ-45 (RS-232) |
Storage | 256GB SSD Drive built in |
NAT Throughput | 12.5 Gb/s |
VPN Performance | 3 Gb/s |
NAT Sessions | 1000K |
VPN Protocols Supported | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IPsec-XAuth, OpenVPN |
Max Concurrent VPN Tunnels | 500 |
Max Concurrent SSL VPN | 200 |
Load Balancing | IP based, session based |
Dynamic DNS | Supported |
Max Number of VLAN | 100 |
Local DNS Server | Supported |
High Availability | Active Standby, Hot Standby |
User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP, TOTP |
QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Service Type, App QoS |
DoS Attack Defence and Spoofing Defence | Supported |
IP Based Bandwidth and Session Limit | Supported |
Max Power Consumption | 35W |
Operating Temperature | 0°C / 32°F to 45°C / 113°F |
Dimensions | Height: 45mm / 1.77" Width: 443mm / 17.05" Depth: 285mm / 11.22" |
Weight | 3.76kg / 8.29lb |
