Description
Description:

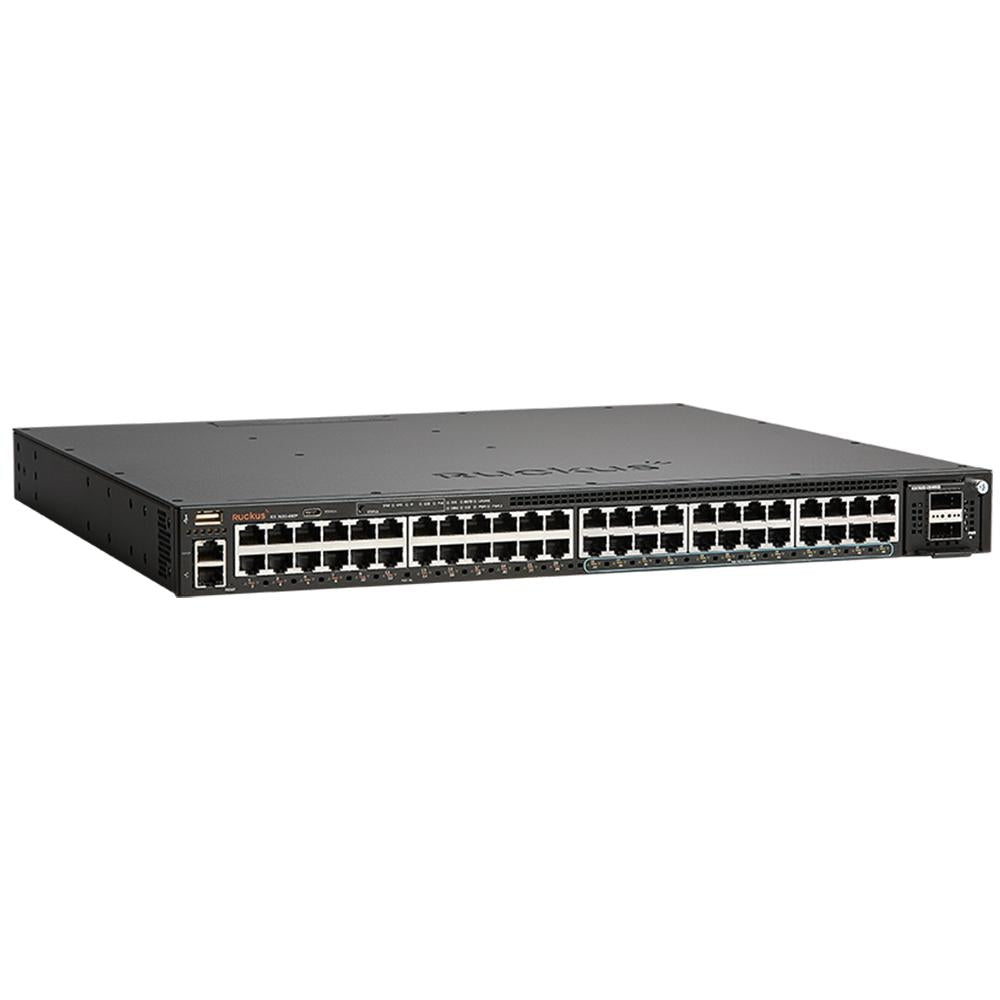

The Ruckus ICX® 7650 switch is designed to meet the new challenges of the multigigabit wireless era. It delivers non blocking line rate performance, high availability and scalability with Multigigabit Ethernet access, high PoE output as well as 10 Gigabit Ethernet aggregation and 40G/100G uplink options.
With the rapid adoption of 802.11ac Wave 2 Wi Fi access points, as well as emerging new Wi-Fi standards, this can generate multiple gigabits per second of wireless traffic. As mobile devices usage grows exponentially, pushing an ever increasing volume of traffic through the wired edge and new high performance access points draw more PoE power from edge switches.
The wired edge is gradually evolving into a wireless traffic aggregation layer requiring higher performance, availability and more advanced features. This were the Ruckus ICX 7650 PoE series switch comes into its own.
Features:
- Dual purpose for premium access or 1G/10G aggregation switching
- 40 GbE and 100 GbE for maximum performance and future proofing
- Up to 2x 40 GbE uplink or 4x 40GbE stacking ports
- Up to 2x 100 GbE uplink or stacking ports
- Campus fabric reduces cost of operations and simplifies management
- Multi gigabit for Wi Fi 6 deployments and beyond
- Up to 24x 1/2.5/5/10G multigigabit Ethernet ports

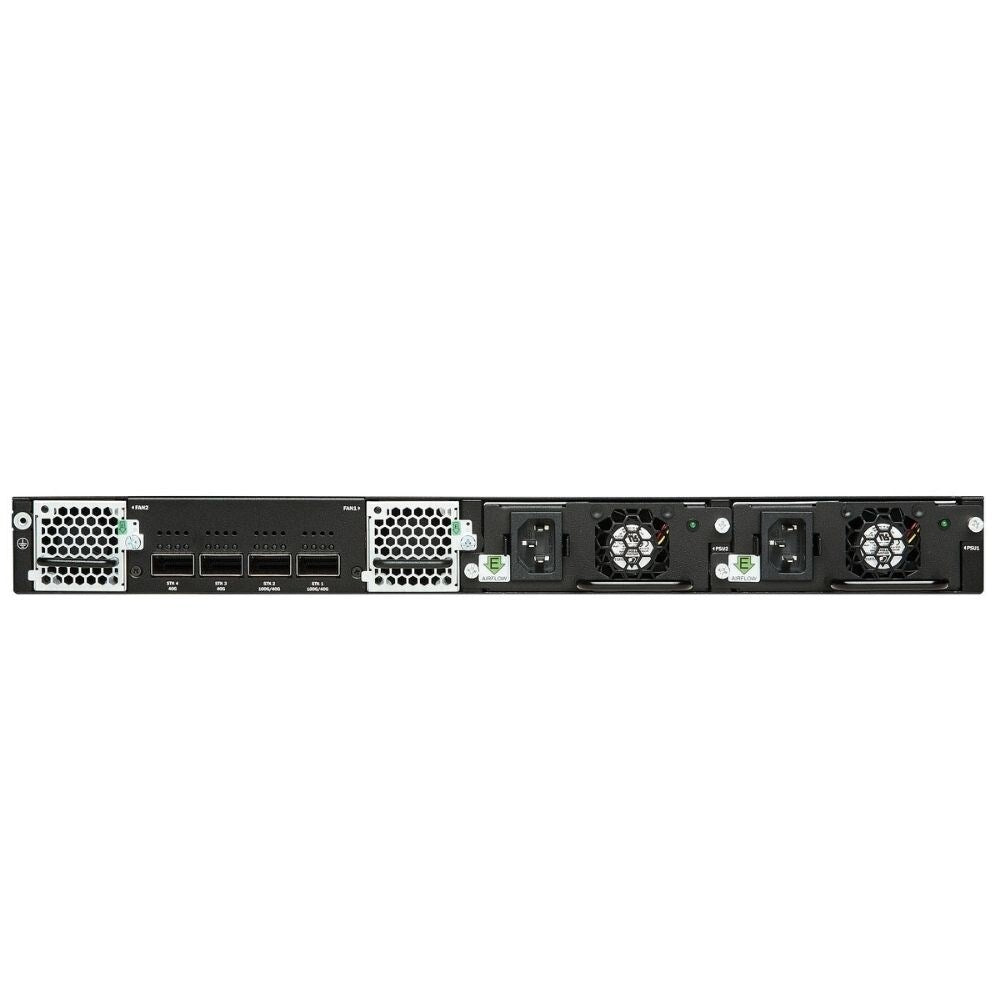

- Redundant, load sharing power supplies enhanced availability
- Power Next Generation PoE devices
- PoE+/802.3bt* up to 90W per port
- Up to 1500W PoE budget with two power supplies
- Advanced L3 routing delivers design flexibility
- IPv4 and IPv6
- BGP, OSPF, VRRP, PIM, PBR, VRF
- Delivers the benefits of a chassis with the flexibility of distributed stacking
- Scales to 1800 ports
- Security and data privacy. MACsec 128 bit and 256 bit data encryption ensures compliance and data confidentiality
Specifications:
Switching Capacity | Maximum 1128 Gb/s |
1 GbE RJ45 Ports | 48 |
1 GbE SFP Ports | 4 |
10 GbE SFP+ Ports | 4 |
1/2.5/5/10 GbE RJ45 Ports | 24 |
40 GbE QSFP Ports | 2 |
100 GbE QSFP28 Ports | 2 |
PoE Power Budget | Maximum 1500W |
Switches per Stack | Maximum 12 |
Aggregate Stack Bandwidth | 2400 Gb/s |
PoE/PoE+ | Yes |
Layer 3 (STATIC, RIP, OSPF) | Yes |
Redundant Power Option | Yes |
802.3bt2 (90 W PoE Power Per Port) | Yes |
