Description
Description:
The UniFi Express UBI-UX is a impressively compact Cloud Gateway and Wi-Fi 6 access point that runs UniFi Network. It powers an entire network or simply meshes as an access point.
The UBI-UX boasts remarkable versatility in its deployment. It can function as an all in one solution, serving as a gateway, firewall and Wi-Fi 6 access point for an entire network.
For users needing extended Wi-Fi coverage, additional UniFi Express units can be seamlessly meshed with the gateway unit, allowing for easy expansion of network coverage. Additionally, the UniFi Express can be deployed as a Wi-Fi access point within existing UniFi Networks, either through a wired or wireless uplink
This router can manage up to four 4 connected UniFi Network devices. This includes the UniFi Express itself, other UniFi Express units, switches and Wi-Fi access points, providing a comprehensive network management solution. Capable of supporting over 60 connected client devices. This high capacity makes it suitable for environments with a large number of users and devices requiring stable and efficient WiFi connectivity.
The routing capabilities of the UniFi Express are robust, with the ability to handle traffic at speeds up to 1Gbps. It maintains this performance even when security features like Device Identification, Traffic Identification, Country Restrictions and Ad Blocking are activated, ensuring both speed and security.
Features:
- Powers an entire network or simply meshes as an access point
- Built in Wi-Fi 6, 2x2 MIMO
- 140 m² single unit coverage
- 60+ connected Wi-Fi devices

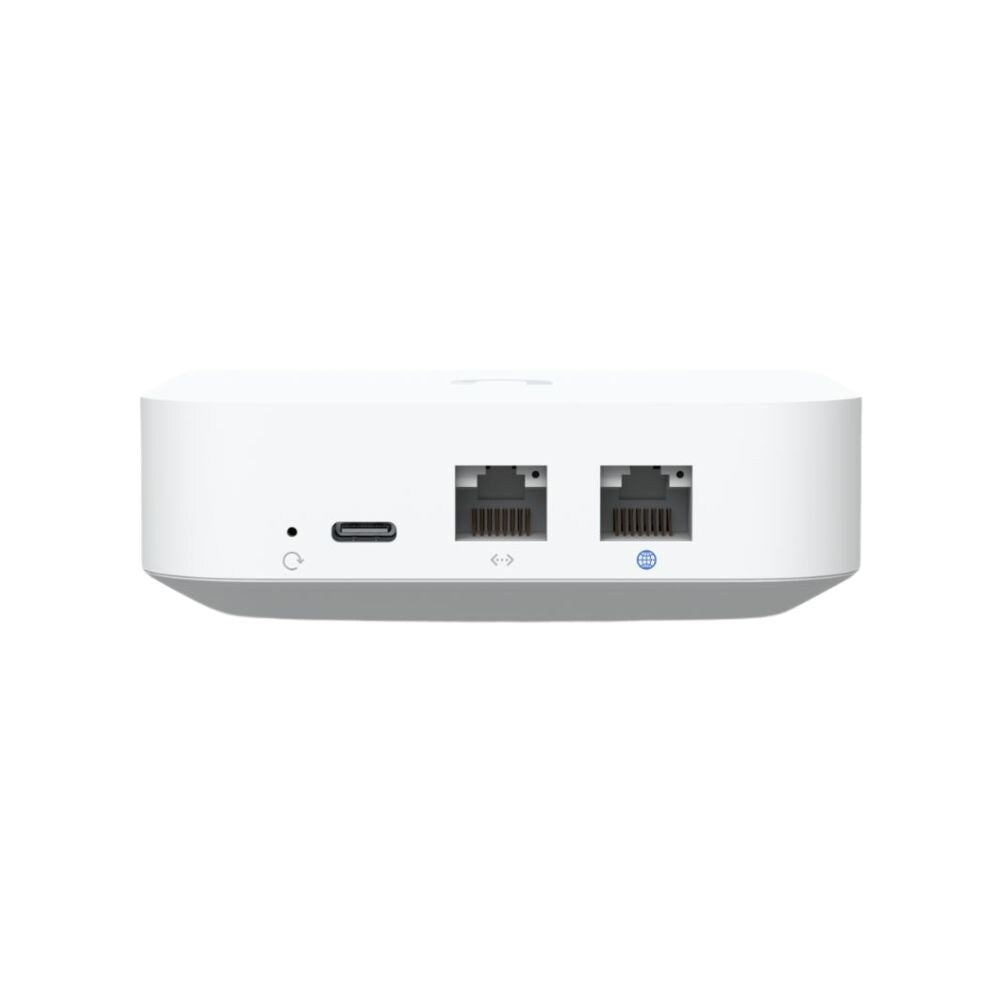

- 1 x GbE RJ45 WAN port
- 1 x GbE RJ45 LAN port to extend network
- 0.96" LCM status display
- Manages up to four additional UniFi Network devices when operated as a gateway
- Managed with UniFi Network
Specifications:
| Management Interface | Ethernet Bluetooth |
| LCM Display | 0.96" Touchscreen |
| Network | |
| LAN Ports | 1 x 1Gbps RJ45 |
| WAN Ports | 1 x GbE RJ45 Port |
| Wi-Fi | |
| Wi-Fi | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Antenna Gain | 2.4 GHz: 4 dBi 5 GHz: 5.15 dBi |
| PHY Rate | 2.4 GHz: 573.5 Mbps 5 GHz : 2.4 Gbps |
| Radio Streams | 2.4 GHz : 2 x 2 (DL/UL MU-MIMO) 5 GHz: 2 x 2 (DL/UL MU-MIMO) |
| SSID Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| Concurrent Clients | 50 + |
| Gateway Features | |
| IDS/IPS Throughput | 1 Gbps |
| Performance | Internet quality and outage reporting |
| Next Generation Security | Application aware firewall rules Content, country, domain and ad filtering VLAN/subnet based traffic segmentation Full stateful firewall |
| Advanced Networking | License free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site to site VPN One click Teleport and Identity VPN Policy based WAN and VPN routing DHCP relay Customisable DHCP server IGMP proxy IPv6 ISP support |
| Power Method | USB type C (5V DC/3A) |
| Max Power Consumption | 10 W |
| Operating Temperature | -10°C / 14°F to 45°C / 113°F Relative Humidity: 5% to 95% non condensing |
| Dimensions | Height: 30mm / 21.6" Width: 98mm / 13.5" Depth: 98mm / 2.4" |
| Weight | 0.3 kg / 10.7 oz |

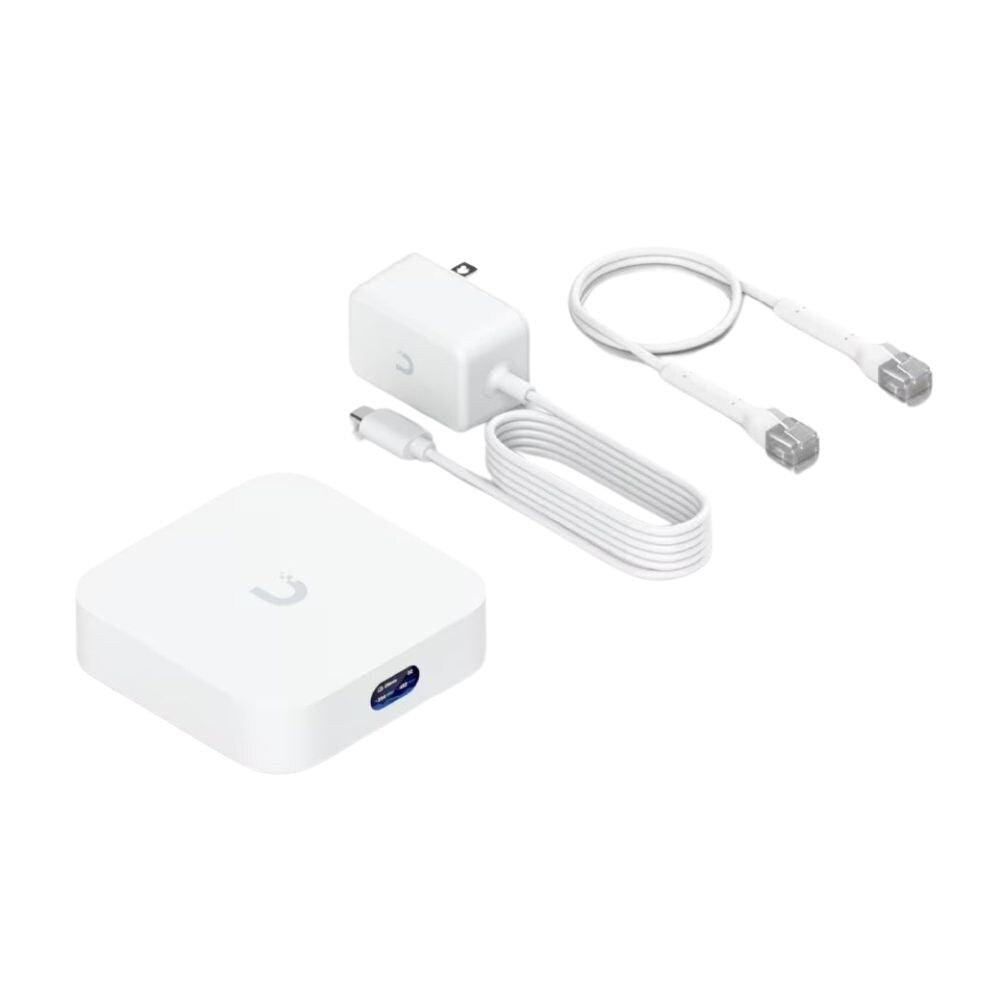

| Included | 1 x Power adaptor 1 x EU to UK plug converter |
User guides
Download User Guides:
Unifi Brochure
Installation Guide
DoC
