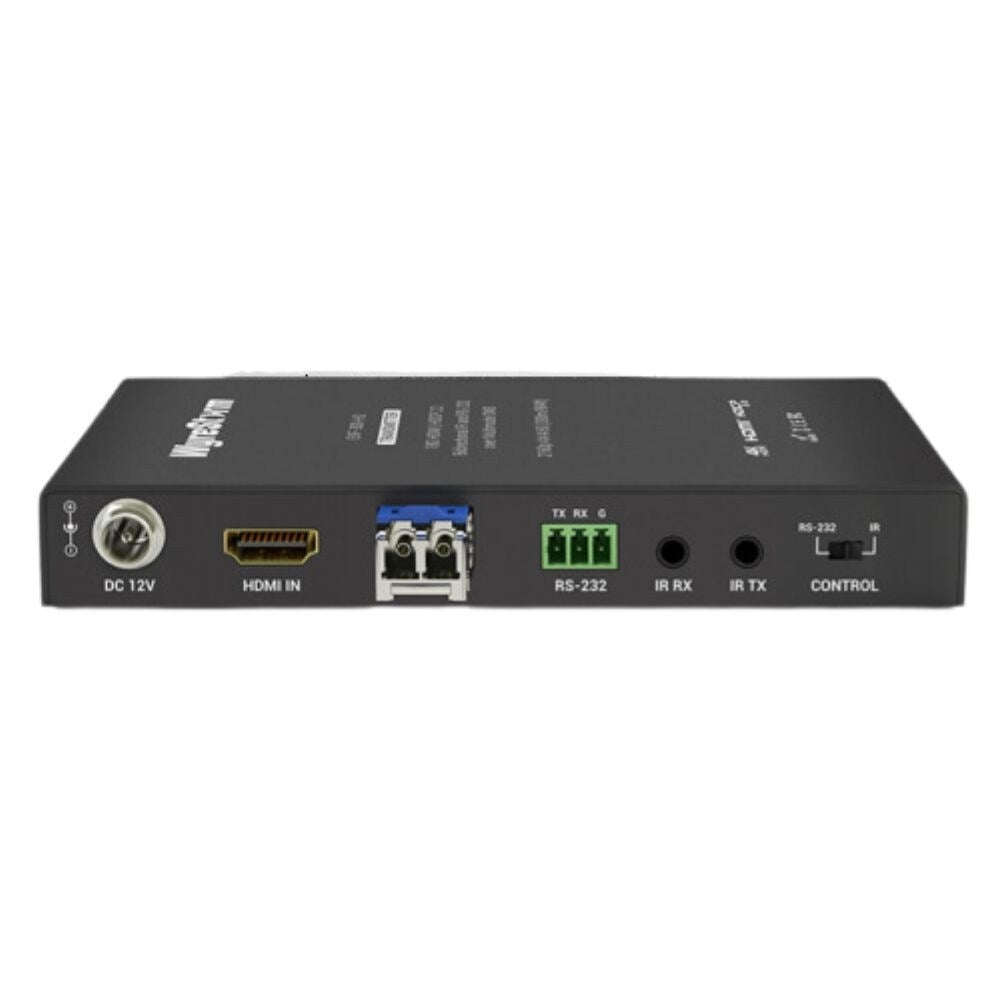

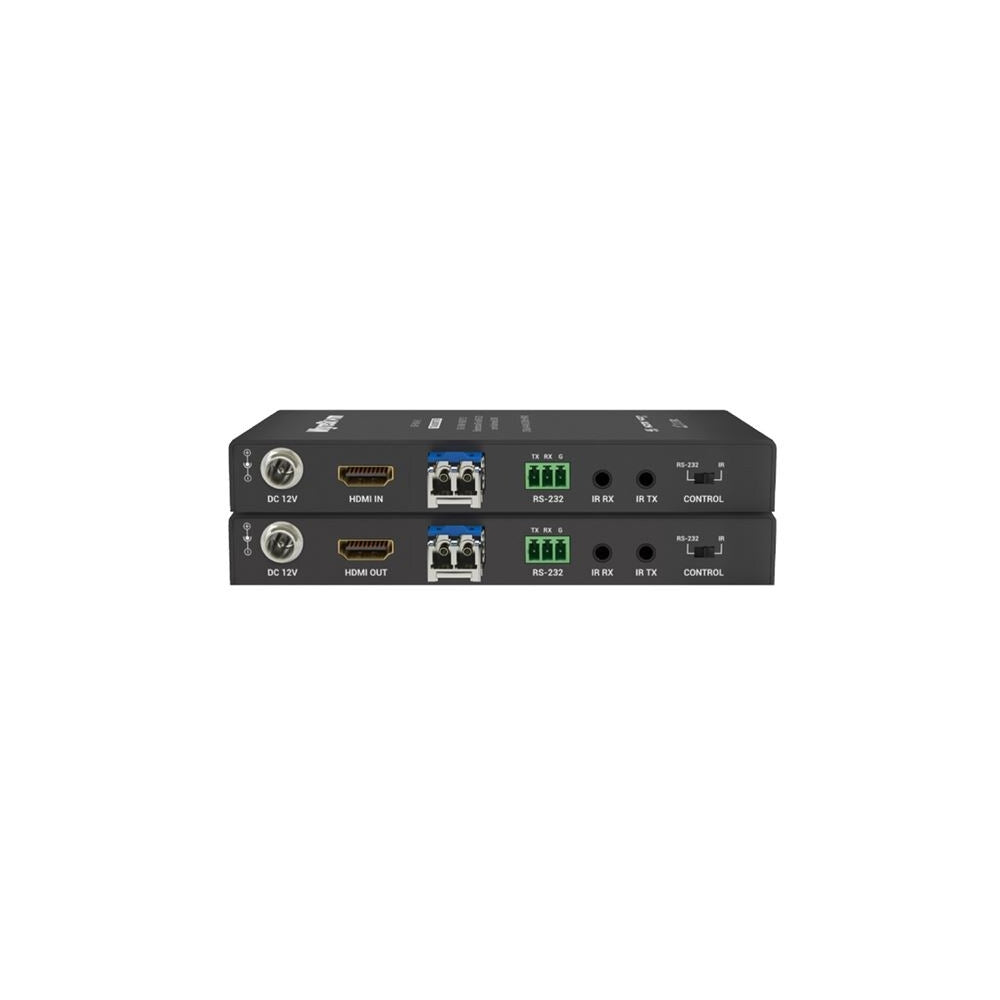

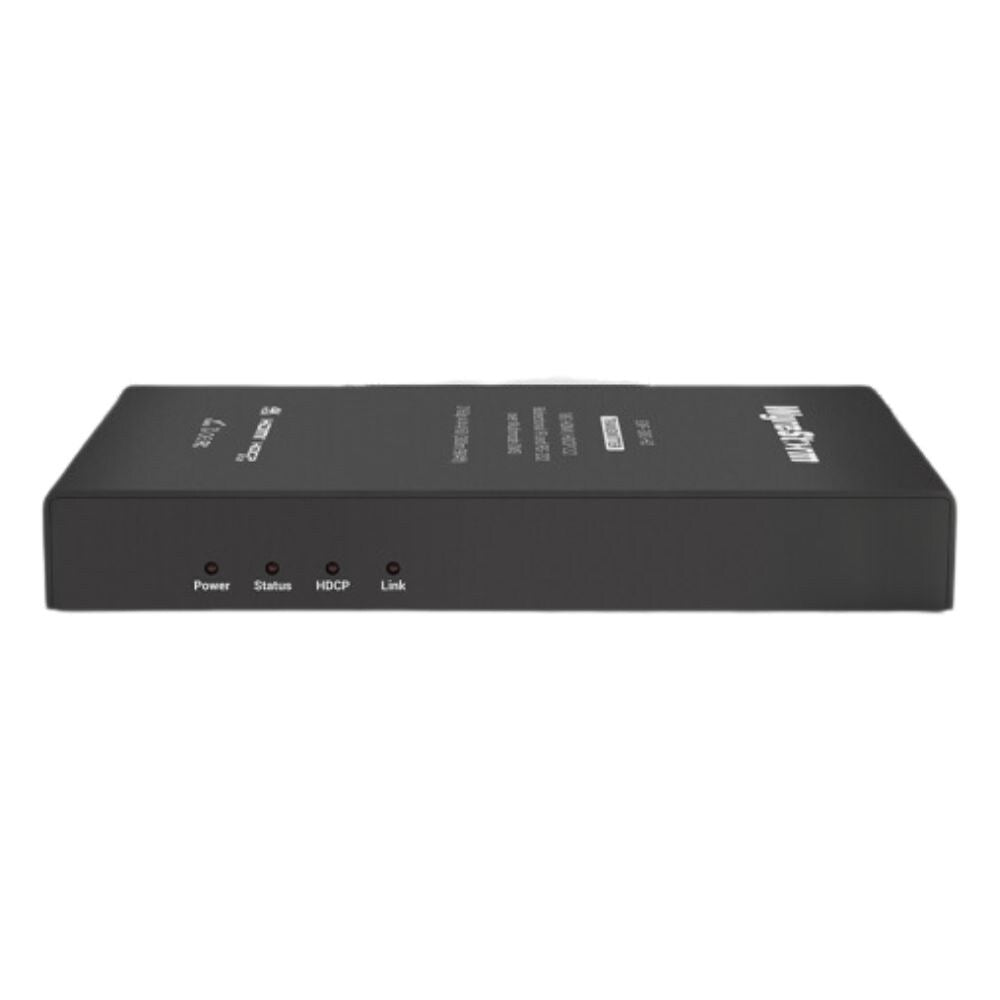

WyreStorm's first fibre optical extender, ensures perfect transmission of 18Gbps HDMI signals to 300m / 984ft. The EXF-300-H2 is compatible with 2160p 4:4:4/60 or high frame rate HDR content with HDCP 2.2 encryption, sending it via a 10G OM3 multi mode cable without any effect from EM or RF interference along the way.
WyreStorm's first fibre optical extender, ensures perfect transmission of 18Gbps HDMI signals to 300m / 984ft. The EXF-300-H2 is compatible with 2160p 4:4:4/60 or high frame rate HDR content with HDCP 2.2 encryption, sending it via a 10G OM3 multi mode cable without any effect from EM or RF interference along the way.
It is therefore ideal for long distance transmission in environments with high levels of EM or RF interference.
Copper cables cause attenuation and weakens a signal with every metre that it has to travel. Pixel perfect transmission of HDMI content over optical fibre up to 300m / 984ft is now possible. This extender passes IR or RS-232 control signals bi-directionally.
This fibre extender send transmissions through a 10G OM3 multi mode cable without any effect from EM or RF interference along the way, therefore electronically "noisy" environments such as industrial or retail premises can experience the benefits of a solid and stable signal over nearly 1000ft.
Specifications:
Inputs | Transmitter: 1x HDMI: 19-pin type A Receiver: 1x SFP+ |
Outputs | Transmitter: 1x SFP+ Receiver: 1x HDMI: 19-pin type A |
Output Video Encoding | TMDS over fibre |
Encoding Data Rate | 10Gbps |
End to End Latency | 10 (Microseconds) |
Audio Formats | 2ch Analogue/PCM Multichannel: LPCM and Up to Dolby TrueHD and DTS-HD Master Audio |
Video Resolutions (Max) | 1920x1080p @60Hz 12bit 1920x1080p @60Hz 16bit 3840x2160p @24Hz 10bit 4:2:0 HDR 3840x2160p @30Hz 8bit 4:4:4 3840x2160p @60Hz 10bit 4:2:0 HDR 4096x2160p @60Hz 8bit 4:2:0 4096x2160p @60Hz 8bit 4:4:4 |
Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020 and BT.2100 |
Maximum Pixel Clock | 600MHz |
HDMI | HDMI, HDCP 2.2, EDID and DVI/D supported with adapter (not included |
Fibre Multimode | HDMI, HDCP 2.2 and EDID |
Control | IR and RS232 |
Power | 12V DC .5A |
Maximum Power Consumption | 4W |
Dimensions | Height: 20mm / 0.79" Weight: 150mm / 5.91" Depth: 74.4mm / 2.93" |
Weight | 0.3kg / 0.66lb |
Safety and Emissions | CE, FCC, RoHS |
