Description

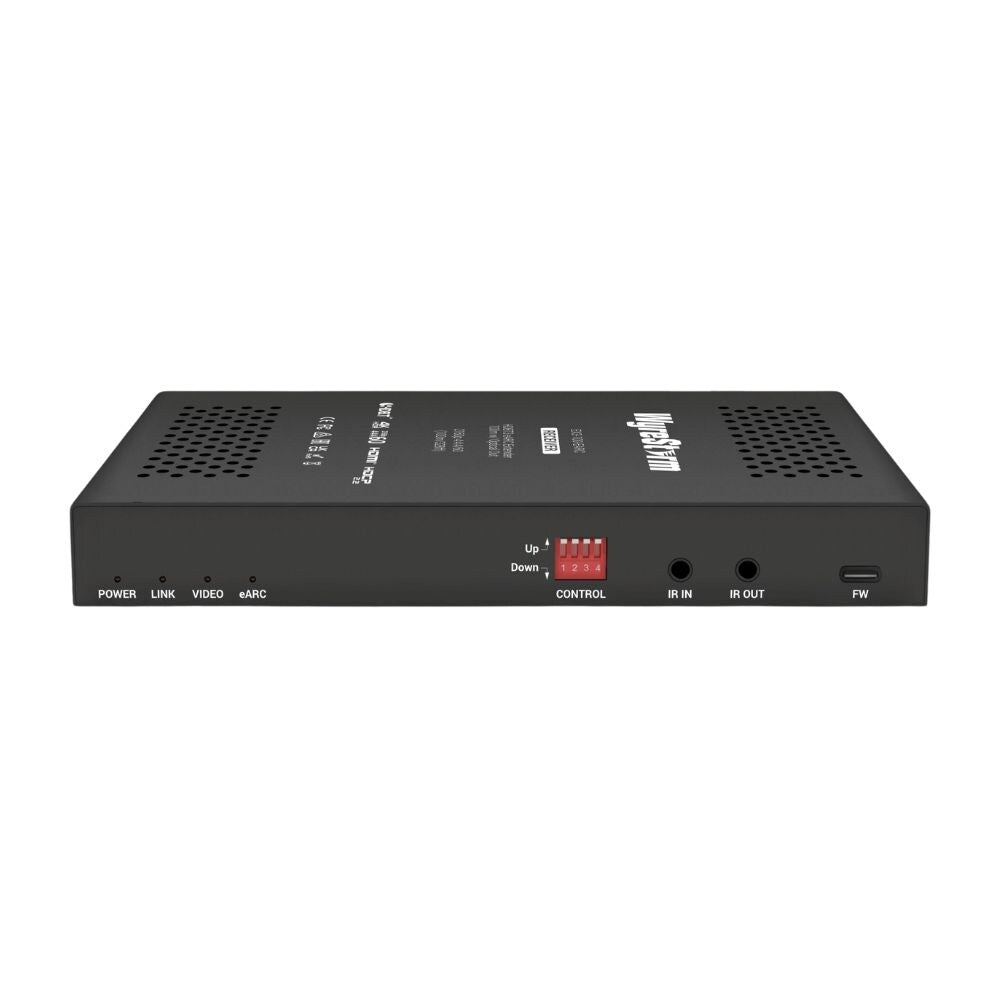

Extend 18Gbps AV signals up to 100m over CAT6a with the EX3-100-EARC extender from WyreStorm. This extender uses HDBaseT 3.0 technology to send 4K HDR and Dolby Vision content at 60Hz. Compatible with eARC, you can transmit audio signals such as Dolby TrueHD or Atmos and DTS-HD MA 7.1 signals from a smart TV back to an eARC enabled AVR or soundbar.
Extend 18Gbps AV signals up to 100m over CAT6a with the EX3-100-EARC extender from WyreStorm. This extender uses HDBaseT 3.0 technology to send 4K HDR and Dolby Vision content at 60Hz.
Compatible with eARC, you can transmit audio signals such as Dolby TrueHD or Atmos and DTS-HD MA 7.1 signals from a smart TV back to an eARC enabled AVR or soundbar.
Equipped with eARC capability, send high bitrate audio formats such as Dolby Atmos or DTS:X from an eARC display back to an AVR or soundbar through native HDMI.
The EX3-100-EARC also offers backwards compatibility with standard ARC as well.
This extender offers flexible control passthrough options including IR, RS-232 and LAN allow you control a display and get devices connected over long distances.
Specifications:

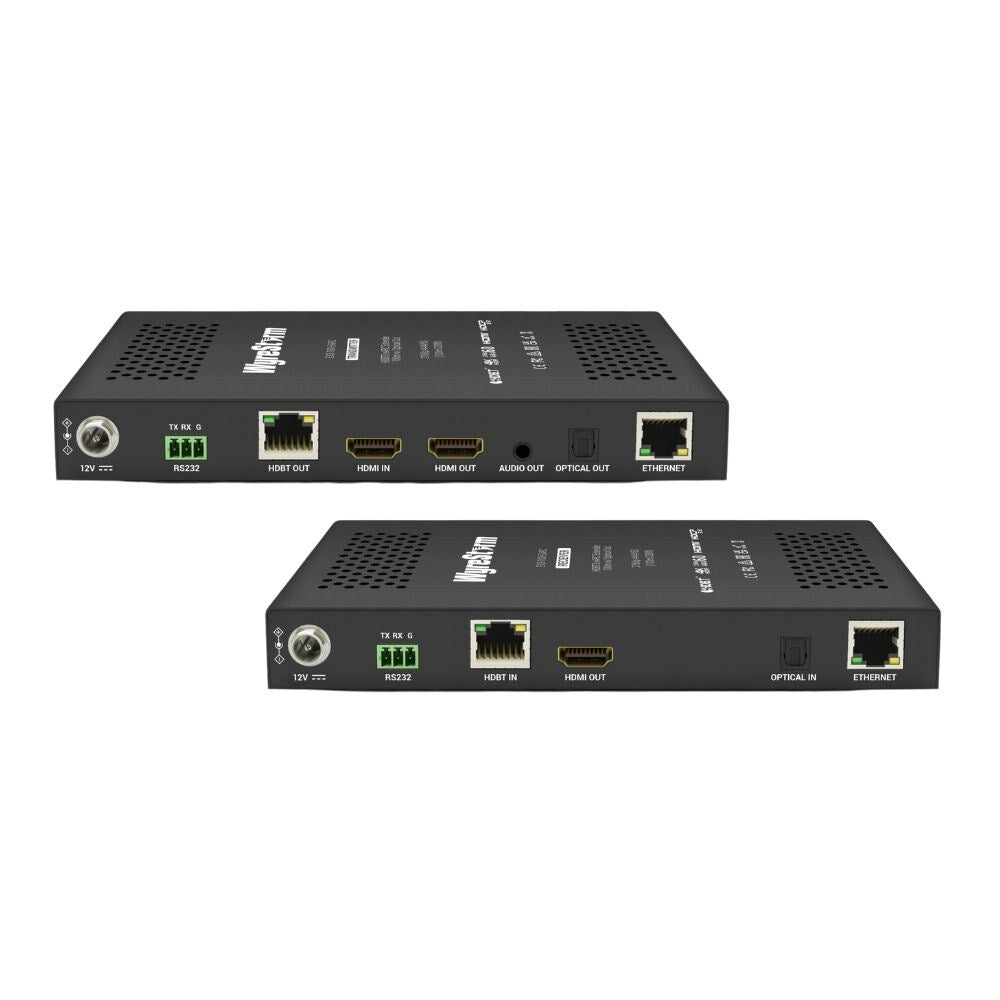

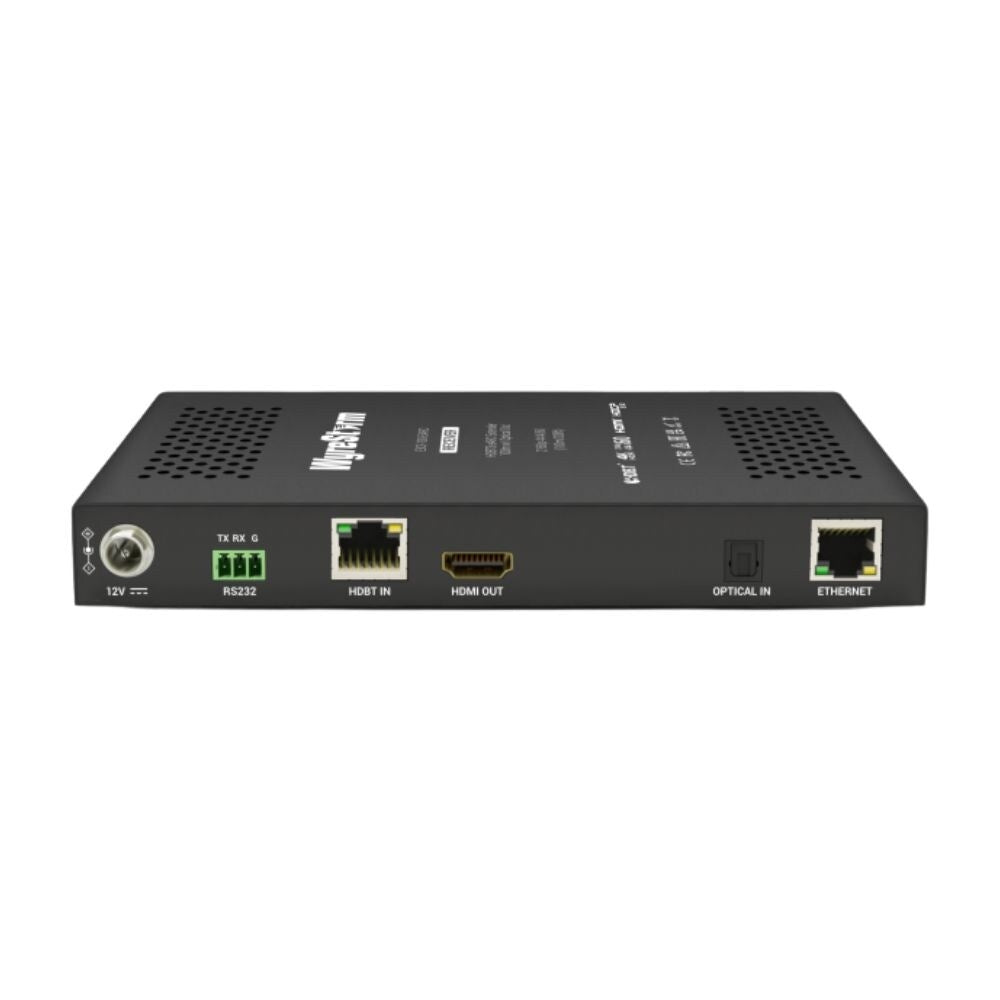

| Inputs | TX: 1 x HDMI 19 pin Type A female RX: 1 x HDBT 8 pin RJ45 , 1x optical in |

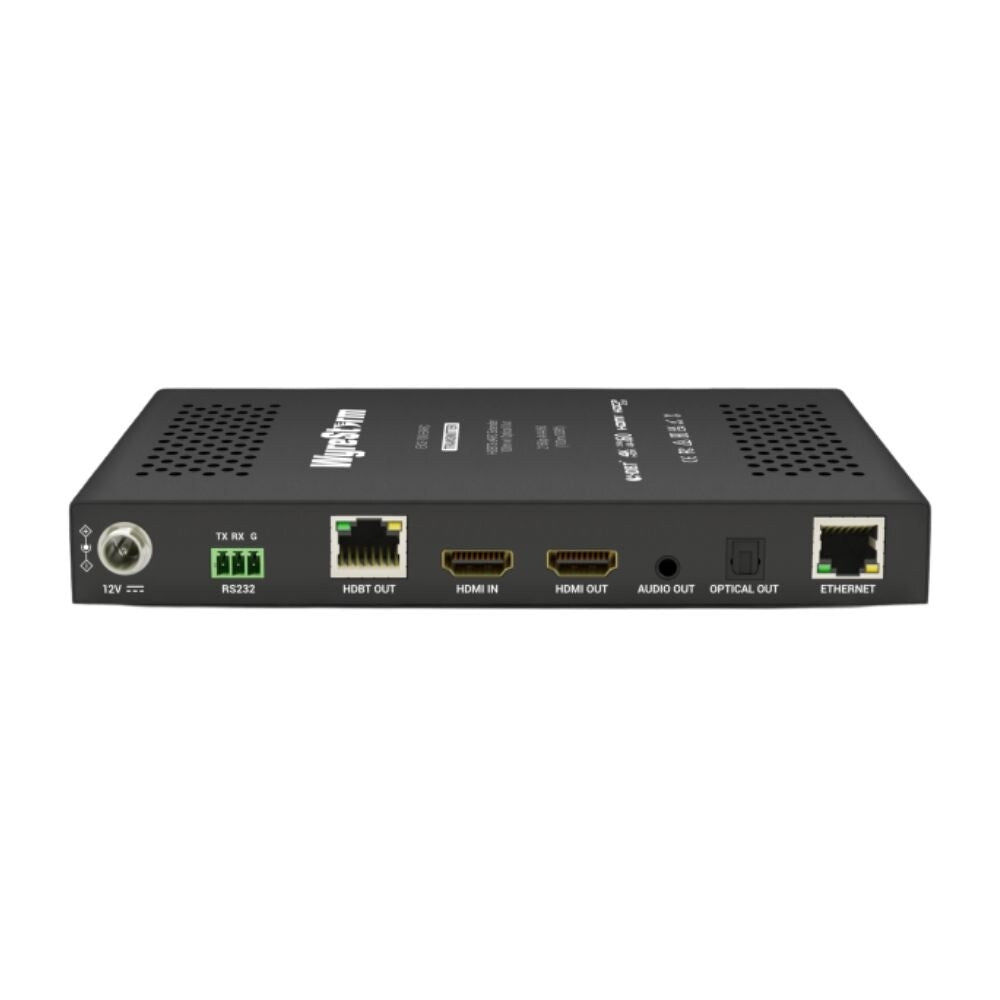

| Outputs | TX: 1 x HDBT 8 pin RJ45, 1x HDMI: 19 pin Type A female, 1 x optical out RX: 1x HDMI 19 pin Type A female |
| Output Video Encoding | HDBaseT |
| Encoding Data Rate | 18 Gbps |
| End to End Latency | 10 micro seconds |
| Audio Format | HDMI: HDMI 2.0 formats including multi channel PCM, Dolby True-HD and DTS-HD master audio ARC Mode: 5.1 channel compressed audio, (such as Dolby Digital, DTS 5.1, and Dolby Digital Plus and 2.0 channel uncompressed PCM audio eARC Mode: Up to 8 channel L-PCM of 24 bit, 192kHz audio. Supports encoded audio formats, such as Dolby Atmos and DTS-X Optical Audio Return mode 5.1 channel compressed audio, such as Dolby Digital, DTS 5.1, and Dolby Digital Plusand 2.0 channel uncompressed PCM audio Optical De-embed Mode: 2.0 channel uncompressed PCM audio Audio Out: PCM 2.0 |
| Video Resolutions Max by Cable Type | CAT5e or CAT6 (UTP): 40m 4K@60Hz 4:4:4 24bpp CAT6A (F/FTP or U/FTP) 100m4K@60Hz 4:4:4 24bpp Note: When the extender is set to low bandwidth mode. Set the pin3 of the DIP switch on the transmitter to "Down" position CAT5e or CAT6 (UTP) 70m 4K@60Hz 4:4:4 24bpp CAT6A (F/FTP or U/FTP) 100m 4K@60Hz 4:4:4 24bpp |
| Supported Standards | DCI, RGB, HDR10, low latency Dolby Vision, HLG, BT.2020 and BT.2100 |
| Maximum Pixel Clock | 600MHz |
| HDMI | HDMI, HDCP 2.3, EDID, CEC passthrough |
| HDBaseT | HDMI, HDCP 2.3, EDID, RS-232 passthrough, IR passthrough, 2 way, PoH, CEC passthrough |
| Control | IR: 1x IR RX 3.5mm / 1/8" TRS stereo 1 x IR TX: 3.5mm / 1/8" TS mono for transmitter and receiver RS232: 1x RS-232 3 pin Phoenix for transmitter and receiver Ethernet: Ethernet passthrough of up to 1Gb |
| Power | 12V DC 2A |
| Maximum BTU | 82 BTU/Hr |
| Dimensions | Height: 25mm / 0.98" Width: 180mm / 7.08" Depth: 300mm / 11.81" |
| Weight | 0.59kg / 1.3lb |
| Included | 1 x DC 20V 3A power supply 1 x 1.8m USB 3.0 Type A to Type B cable (5Gbits) 4 x mounting ears with screws |
| Certifications | CE , FCC, RoHS, RCM, EAC and UKCA |
Features:
- Extend 18Gbps content up to 100m using CAT6a cabling or higher
- Compatible with eARC displays for transmitting high bitrate audio formats including Dolby Atmos and DTS:X
- Backwards compatible with standard ARC
- Supports full CEC passthrough via TV remote to control connected AV equipment such as AVR volume or menu navigation
- Control signal passthrough via bidirectional IR, 2 way RS-232 and Gigabit LAN
- Backward compatibility with ARC. Seamlessly integrate with existing ARC systems for hassle free connectivity
- Bidirectional IR and RS232 transmission ensures reliable control and communication between your devices
- Ethernet passthrough supports full 1Gbps speed
- Supports the latest UHD resolutions including HDR10, HLG and Dolby Vision formats
- Supports bidirection PoH for ultimate flexibility in your installations
User guides
Download User Guides:
Data Sheet
WyreStorm Product Guide
NetworkHD Brochure
Quick Start Guide
Basic Wiring Diagram
