Description

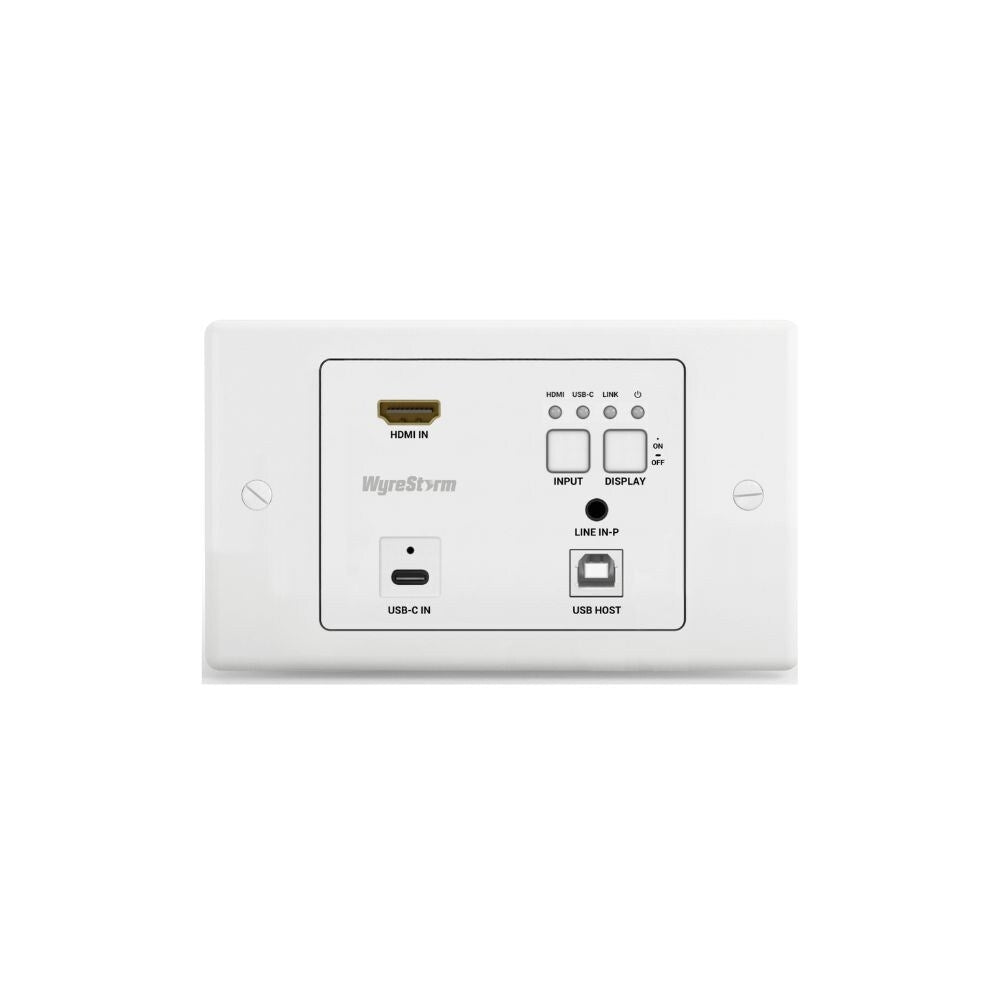

The SW-120-TX3-UK switching transmitter from WyreStorm delivers two inputs and powerful HDBaseT 3.0 transmission, ideal for higher education classroom or hall and corporate environments. Automatic or manual switching of HDMI or USB-C and CEC power triggering via HDBaseT means a simple user experience when it matters most.
The SW-120-TX3-UK switching transmitter from WyreStorm delivers two inputs and powerful HDBaseT 3.0 transmission, ideal for higher education classroom or hall and corporate environments. Automatic or manual switching of HDMI or USB-C and CEC power triggering via HDBaseT means a simple user experience when it matters most.
Further functionality allows USB devices to be routed back to the source via USB host, or natively via USB-C and charging for the connected USB-C device.
Uncompressed signal transmission comes with HDBaseT 3.0 technology. This transmitter sports the very latest in high speed transmissions with the increased bandwidth from 10Gbps to an outstanding 18Gbps over a dedicated CAT cable up to an astonishing 100m.
The SW-120-TX3-UK is not solely an HDBaseT switcher, it's also very much a versatile powerhouse. Beyond seamless switching, it sends power trigger commands and delivers high speed charging of up to 60W for devices like laptops and tablets. With remarkable flexibility, it can seamlessly power the receiver or draw power from it. Whilst, offering both source audio de-embed from HDMI and a separate independent audio pass through lane to send separate audio down to the RX simultaneously.
This transmitter also featuring a unique API where it intelligently recognises whether a RS-232 command is to be passed down to the receiver or whether it is to control it from a controller such as the SYN-KEY10.
Please Note: The with compatible PSU and 20V DC 6A are not included
Specifications:
| Audio and Video | |
| Inputs | 1x HDMI: 19 pin Type A female 1x USB-C, USB Alt Mode/Host 1x RS-232: 3 pin Phoenix. Shared, API Control 1x Line In 3.5mm TRS Stereo 1x Type B host |

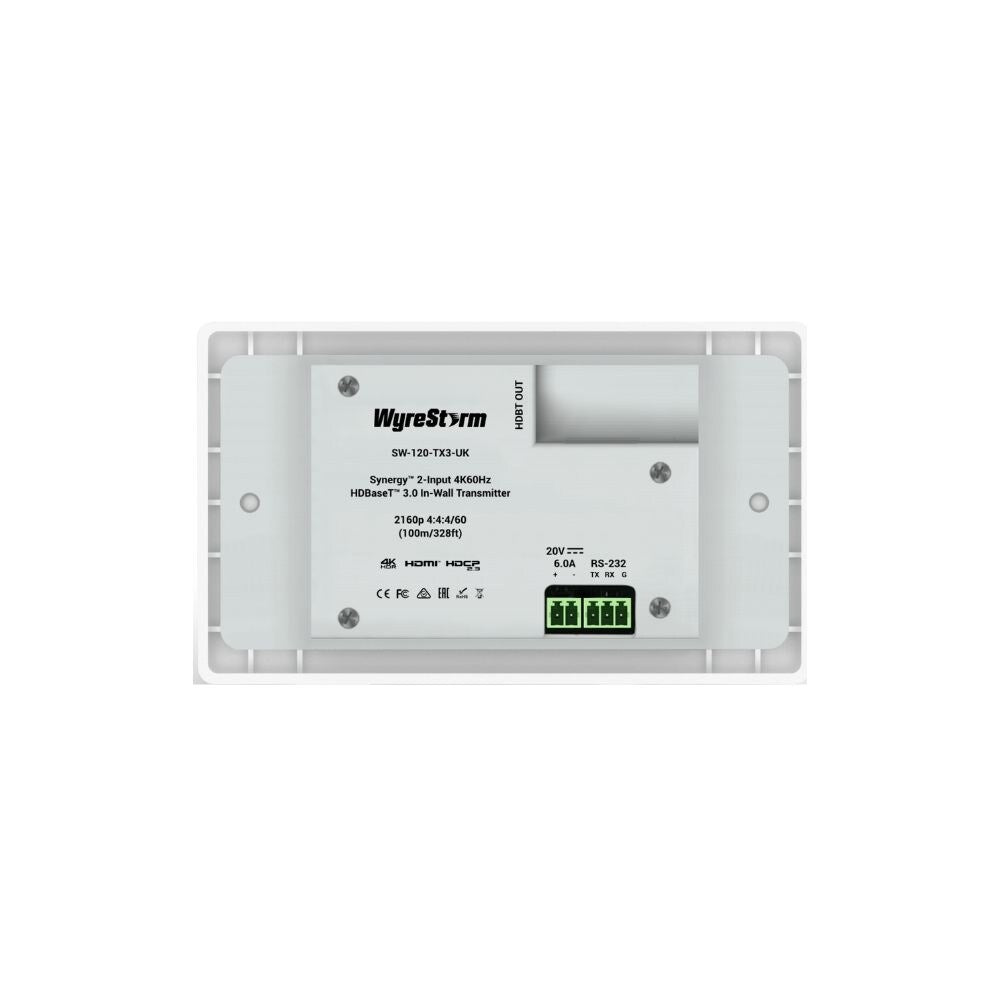

| Outputs | 1 x HDBT: 8 pin RJ45 1x RS-232: 3 pin Phoenix .Shared, passthrough |
| Max Pixel Clock | 600MHz |
| Video Resolution Max | 1920x1080p @60Hz 12bit 3840x2160 @60Hz 4:4:4 8bit |
| Audio Formats | 1x Audio In: 3.5mm TRS Stereo 2 channel audio over HDBaseT, 1 way to RX |
| Communication and Control | |
| HDMI | HDMI, HDCP 2.3, EDID, CEC Pass through |
| HDBaseT | HDMI, USB , HDCP 2.3, EDID, 2 way PoH, Bidirectional RS-232 and CEC |
| USB | 1x Type B Host. Maximum data throughput of 300Mbps |
| RS-232 | 1x RS-232 3 pin Phoenix |
| Power | Power Supply: 20V DC 6A. Sold separately Max Consumption: 6.61W |
| Operating Temperature | 0°C / 32°F to 45°C /113°F) Relative Humidity: 10% to 90%, non condensing |
| Dimensions | Height: 105.6mm / 4.16" Width: 36.3mm / 1.43" Length: 89mm / 3.50" |
| Weight | 0.36kg / 79lb |
| Included | 1x 1.8m USB2.0 Type B to Type A cable 1x 2m USB-C to USB-C cable with locking connector 5Gbps 1x 3 pin terminal block 1x 2 pin terminal block 1x Wall plate 4x Mounting screws NB 20v 6a PSU sold separately |
Features:
- HDBaseT 3.0 Switching Transmitter supporting uncompressed content up to 4K@60Hz 4:4:4 8bit, HDCP 2.3 encryption technology ensuring compatibility with the latest 4K UHD content and sources and HD Multichannel audio up to DTS:X and Dolby Atmos via HDMI
- Compatible with DVI-I and DP++ v1.3 signals from compatible devices
- USB 2.0 passthrough offering 300Mbps transfer and HID extension
- Features USB-C charging of up to 60W, with compatible PSU which is not included
- Supports independent analog audio lane passthrough transmitter to receiver
- Bidirectional RS-232 and CEC pass-through communication
- Shared RS-232 port, API control or passthrough to RX
- Backwards compatible with HDBaseT 1.0 transmission and receiving devices with the lowest denominator taking priority
- Bidirectional PoH
Please Note: The with compatible PSU and 20V DC 6A are not included
