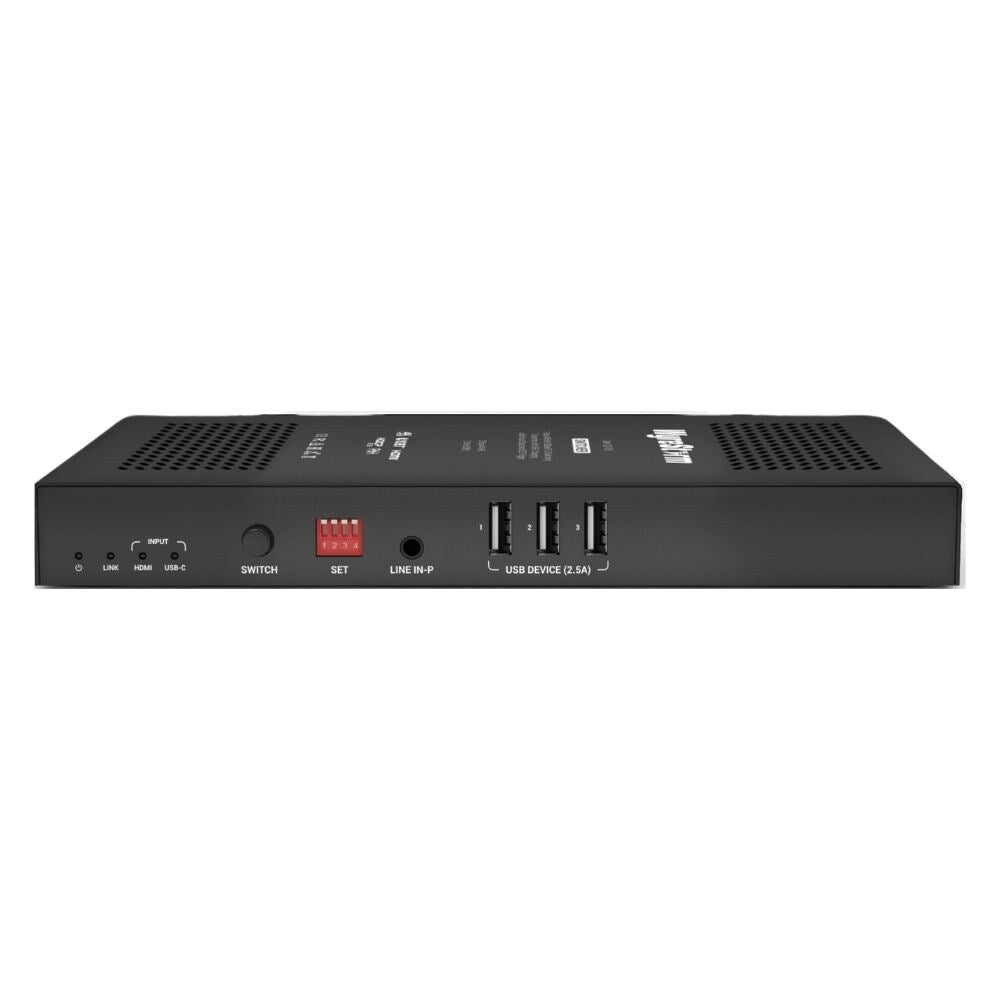

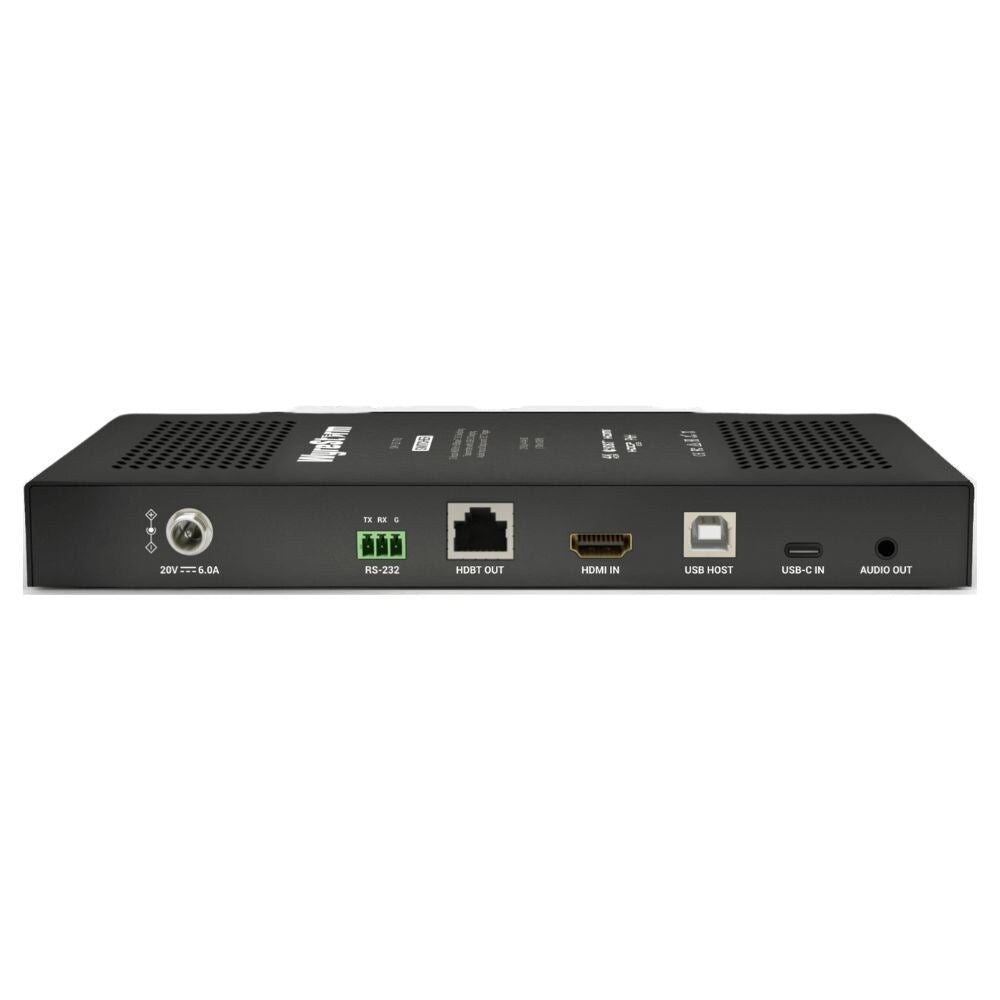

WyreStorm Synergy 2 Input Switching Transmitter With HDBaseT 3.0 and USB C Charging

Two inputs and powerful HDBaseT 3.0 transmission result in the powerful SW-120-TX3 switching transmitter from WyreStorm. Perfect for higher education classroom or lecture hall and corporate environments. Automatic or manual switching of HDMI or USB-C and CEC power triggering via HDBaseT means a simple user experience when it matters most.

Two inputs and powerful HDBaseT 3.0 transmission result in the powerful SW-120-TX3 switching transmitter from WyreStorm. Perfect for higher education classroom or lecture hall and corporate environments. Automatic or manual switching of HDMI or USB-C and CEC power triggering via HDBaseT means a simple user experience when it matters most.

Further functionality allows USB devices to be routed back to the source via USB host, or natively via USB-C, alongside 3 additional USB device ports locally available for a total of 6 devices that can simultaneously used in conjunction with each input.

Rounding out it's long feature list, the SW-120-TX3 boasts 60W of charging over the connected USB-C device.

Uncompressed signal transmission with HDBaseT 3.0 technology delivers the very latest in high speed transmissions with the increased bandwidth from 10Gbps to an outstanding 18Gbps over a dedicated category cable up to an astonishing 100m.

This transmitter is not just an HDBaseT switcher, it is a versatile powerhouse. Beyond seamless switching, it sends power trigger commands and delivers high speed charging of up to 60W for devices like laptops and tablets. With remarkable flexibility, it can seamlessly power the receiver or draw power from it.

The SW-120-TX3 offers both source audio de-embed from HDMI and a separate independent audio pass through lane to send separate audio down to the RX simultaneously. Whilst, featuring a unique API, this transmitter intelligently recognises whether a RS-232 command is to be passed down to the receiver or whether it is to control it from a controller, such as the SYN-KEY10.

Please Note: 20v 6a PSU sold separately

Specifications:

Features:

• HDBaseT 3.0 switching transmitter supporting uncompressed content up to 4K@60Hz 4:4:4 8bit, HDCP 2.3 encryption technology ensuring compatibility with the latest 4K UHD content and sources and HD Multichannel audio up to DTS:X and Dolby Atmos via HDMI
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• USB 2.0 pass through offering 300Mbps transfer and HID extension
• Features USB-C charging of up to 60W, with compatible PSU, not included
• Supports independent analog audio lane, pass through transmitter to receiver
• Bidirectional RS-232 and CEC pass through communication
• Shared RS-232 port, API control or passthrough to RX
• Backwards compatible with HDBaseT 1.0 transmission and receiving devices, with the lowest denominator taking priority
• Bidirectional PoH

Please Note: 20v 6a PSU sold separately
