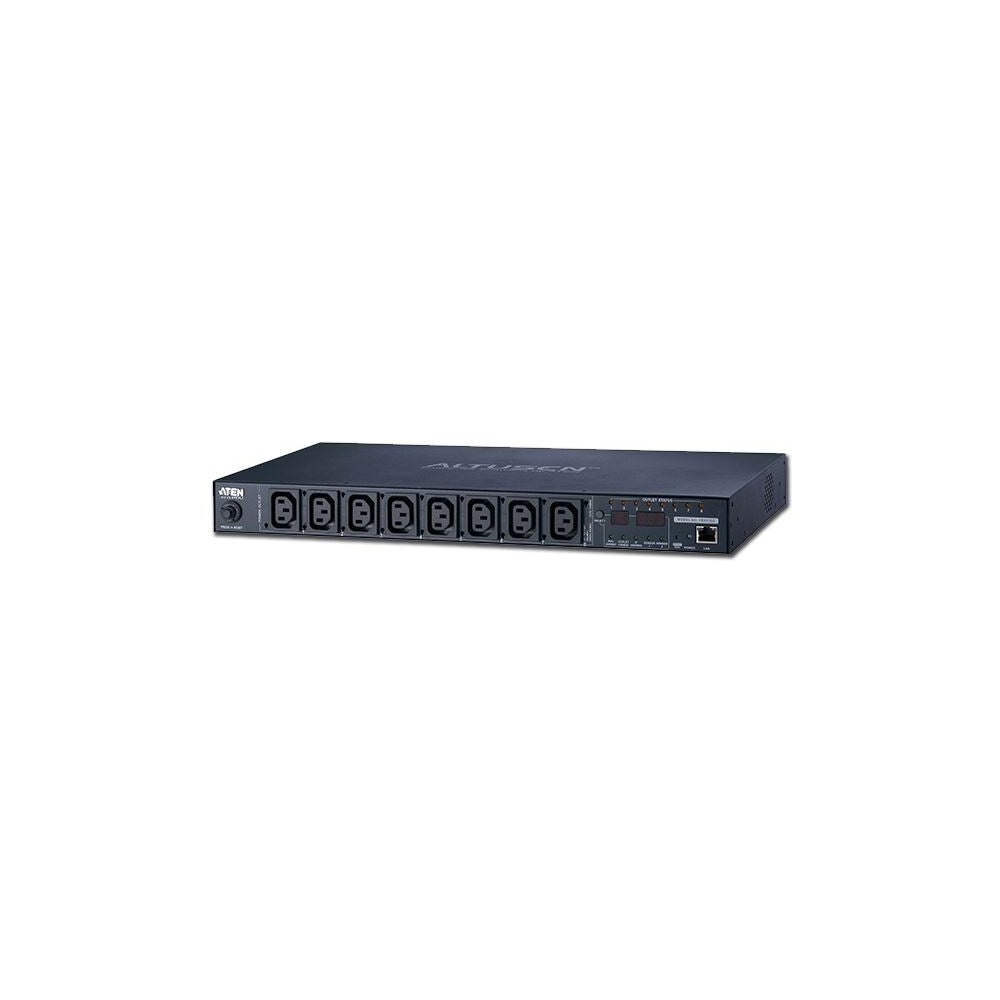

Aten 8 Way 10A Intelligent Eco Power Distribution Unit, 1U PE6108G

Description:

Aten has developed a new generation of green energy power distribution units to effectively increase the efficiency of data centre power usage. The PE6108G is an intelligent eco PDU that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralised and intelligent power management of a data centre IT's equipment in the most efficient and cost effective way possible.

The PE6108G is switched and metered, allowing the user to remotely monitor load level with a built in meter and avoid any potential overloads. With its advanced security features and ease of operation, this PDU is the most convenient, most reliable and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

It provides secure, centralised, intelligent and power management (power on, off, cycle) of a data centre IT's equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.) as well as the ability to monitor the centre's health environment via sensors*.

Aten's PE6108G offers remote power control combined with real time power measurement allowing the user to control and monitor the power status of devices attached to the PDUs from practically any location, at the PDU device level via a TCP/IP connection.

It supports any 3rd party v3 SNMP Manager Software and the eco Sensors (Energy Management Software). The eco sensors provide an easy method for managing multiple devices, offering an intuitive and user friendly Graphical User Interface that allows configuration of the device and monitor power status of the equipment connected to it. The Sensor enabled eco PDU also offers comprehensive power analysis reports which can separate by departments and locations providing precise measurements of current, voltage, power and watt-hour in a real time display.

With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

A sensor enabled installation is required to generate a more complete energy efficient data and chart. Increasing the density of the sensor installed is helpful to generate more accurate data.

Features:

Power Distribution

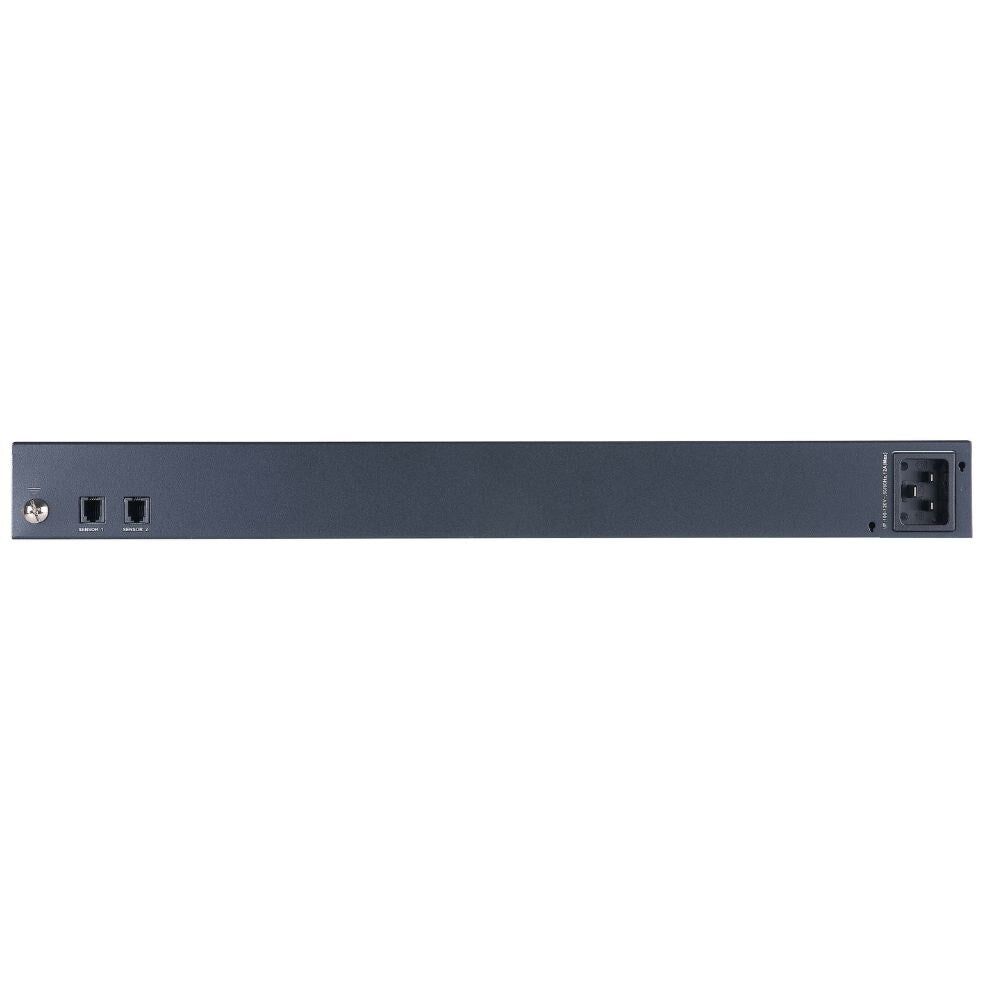

• Space saving 1U rack mount design with rear mounting
• IEC or NEMA outlet models
• 3 digit 7 segment front panel LED shows current / IP address
• Remote users can monitor outlet status via web pages on their browsers
• Safe shutdown support
• Separate power for the unit's own power and its power outlets
• The user interface is still accessible even when an overload condition trips the devices' circuit breaker

Remote Access

• Remote power control via TCP/IP and a built in 10/100 Ethernet port
• Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
• eco PDU
• Power Management eco sensors software
• Supports SNMP Manager V3

Operation

• Remote power outlet control (On, Off, power cycle) by individual outlets
• The power on sequence and delay period for each port can be set to allow equipment to be turned on in the proper order
• Easy setup and operation via a browser based user interface
• Multi browser support i.e., Firefox, Chrome, Safari
• RTC support to keep the timer running during times of no power
• Supports up to 8 user and 1 administrator accounts

Management

• Power status measurement at the PDU level
• LED indicators for current and IP address at the PDU device level
• Real time current, voltage and kWh displayed in a browsed based UI for monitoring at the PDU level
• Current and voltage threshold setting
• Naming support for outlets
• User outlet access assignment on an outlet by outlet basis
• Event logging and syslog support
• Upgradeable firmware
• Multilanguage support

Security

• Two level password security
• Strong security features include password protection and advanced encryption 128 bit SSL technologies.
• Remote authentication support: RADIUS

eco Sensors Energy Management Software

• Automatic discovery of all PE devices within the same intranet
• Remote real time power measurement and monitoring
• Remote real time power outlet management
• Remote real time environment sensor monitoring
• Plotting/monitoring of all PE devices
• Exceed threshold alert through SMTP and Syslog
• Power analysis report

Specifications:
