Description
Description:

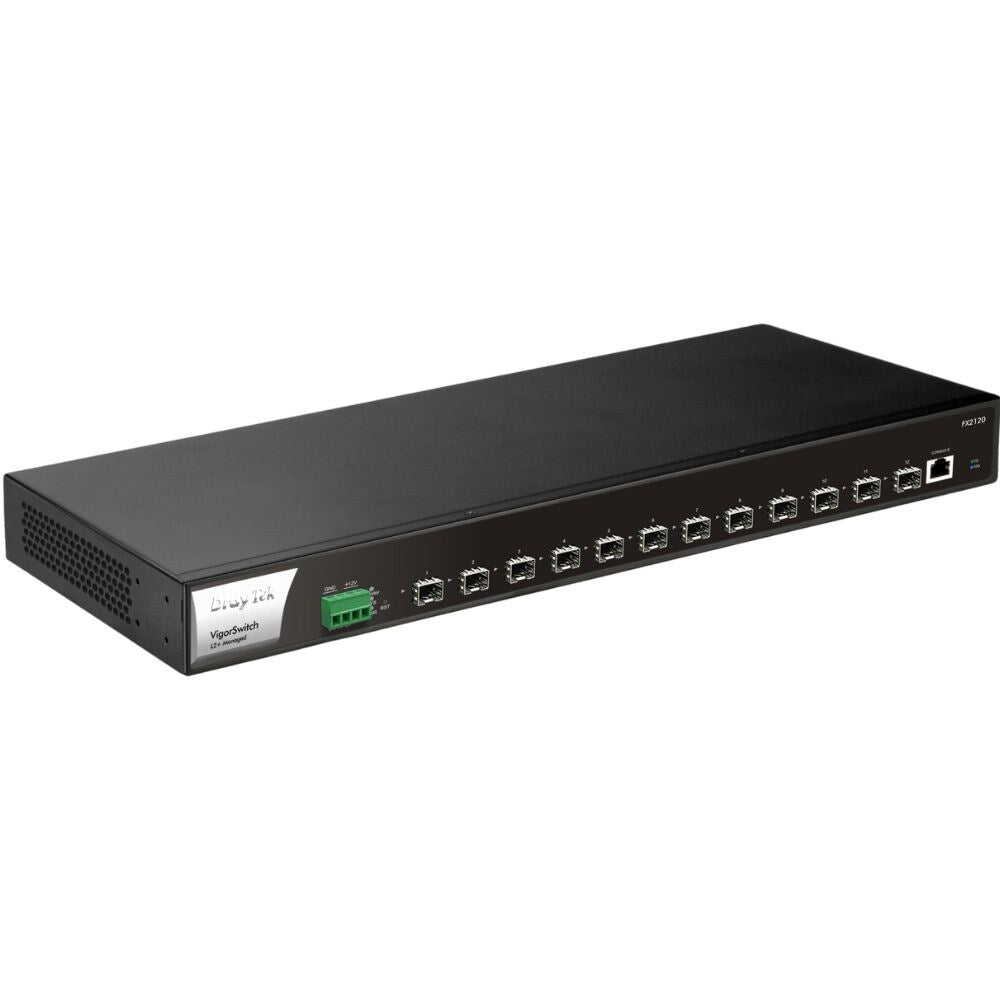

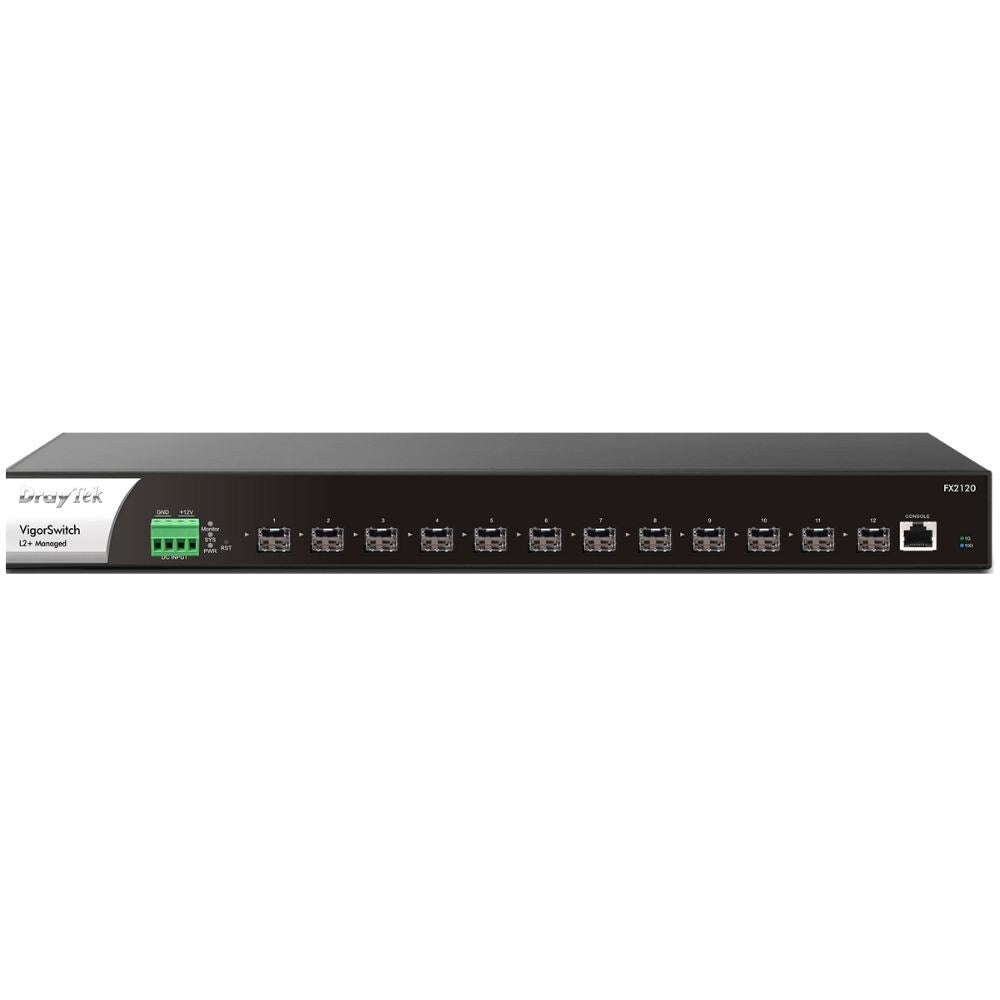

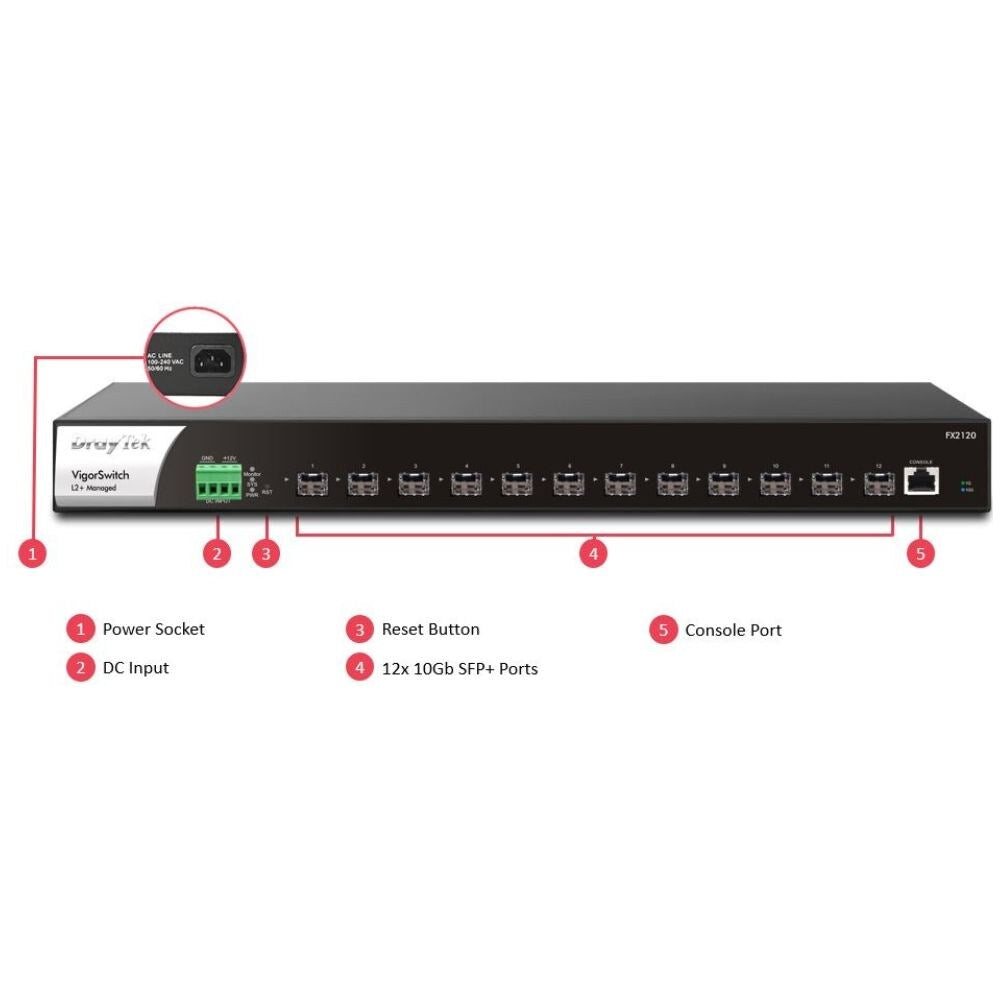

The DrayTek VigorSwitch FX2120 has 12 dedicated SFP+ ports, each operating at up to 10 Gigabits per second.
The faster 10 Gigabit uplink capability allows you to make high bandwidth links to Network Attached Storage, servers and other switches, to help reduce the risk of bottlenecks occurring within your network.
The SFP+ ports provide compatibility with your choice of SFP or SFP+ modules, not included and therefore the most appropriate medium for your application.
Designed for centralised management, the VigorSwitch FX2120 can be provisioned and monitored through both the VigorACS management platform and/or a DrayTek Vigor router's Central Switch Management.
Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.
Features:
- 12x SFP+ 10GbE Ports
- 802.1q VLANs with dynamic MAC-based, Voice and Surveillance VLAN
- VLAN routing and static route with DHCP server or relay
- QoS for Application traffic prioritisation
- 802.1x RADIUS / TACACS+ Port Authentication with Accounting
- Voice VLAN (OUI Mode)
- Access Control List (ACL)
- Port Mirroring and Link Aggregation
- IGMP Snooping and Querying
- IPv4 and IPv6 support with IP Conflict Prevention
- Centrally managed or standalone operation
- Console port
Specifications:
| SFP+ 10GbE | 12 x SFP+ |
| Throughput | 240 Gbps |
| Forwarding Rate in MPPS (64 Byte Packets) | 178.56 Mpps at 64 bytes |
| Fan | 1 including hardware monitor Quieter at low load operation |
| Switch Management | VigorACS Cloud Management Central Switch Management for Vigor Routers |
| Switch Management Interface | Console port RJ45 / RS232 |
| Power Supply | 100 to 240V RS232 DC Input |
| Temperature | Operating: 0°C / 32°F to 50°C / 122°F Storage: -20°C / -04°F to 70°C / 158°F |
| Rack Size | 1U |
| Dimensions | Height: 44mm / 1.73" Width: 440mm / 17.32" Depth: 197mm / 7.75" |
| Weight | 2.67 kg / 5.89lb |
| Included | UK power lead 1U rack mount fittings |
