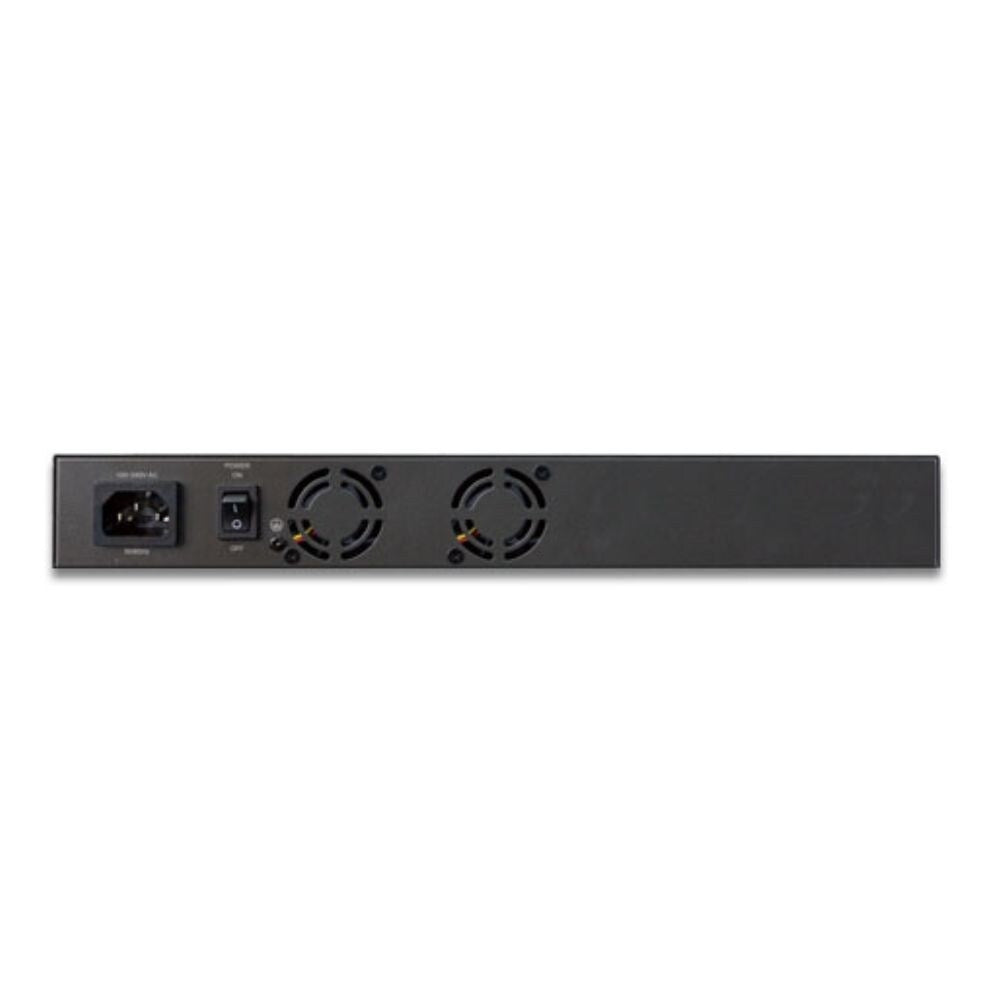

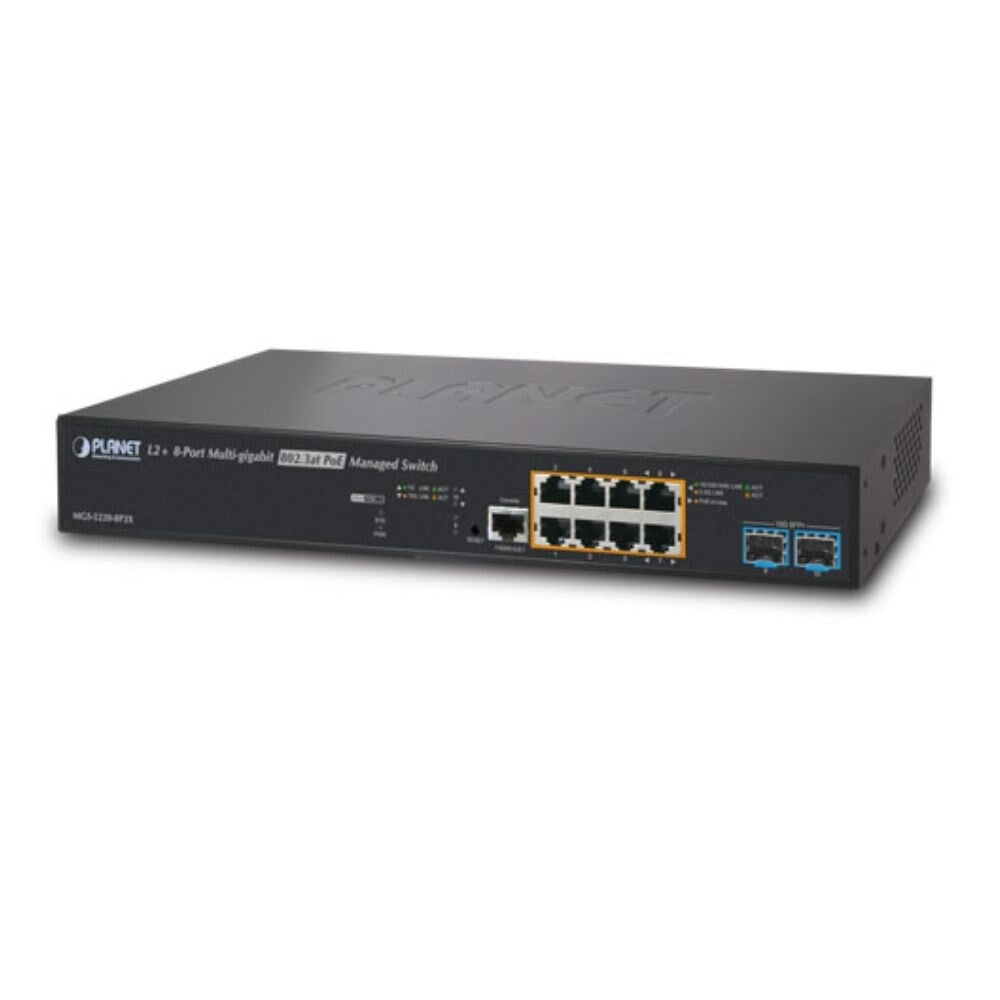

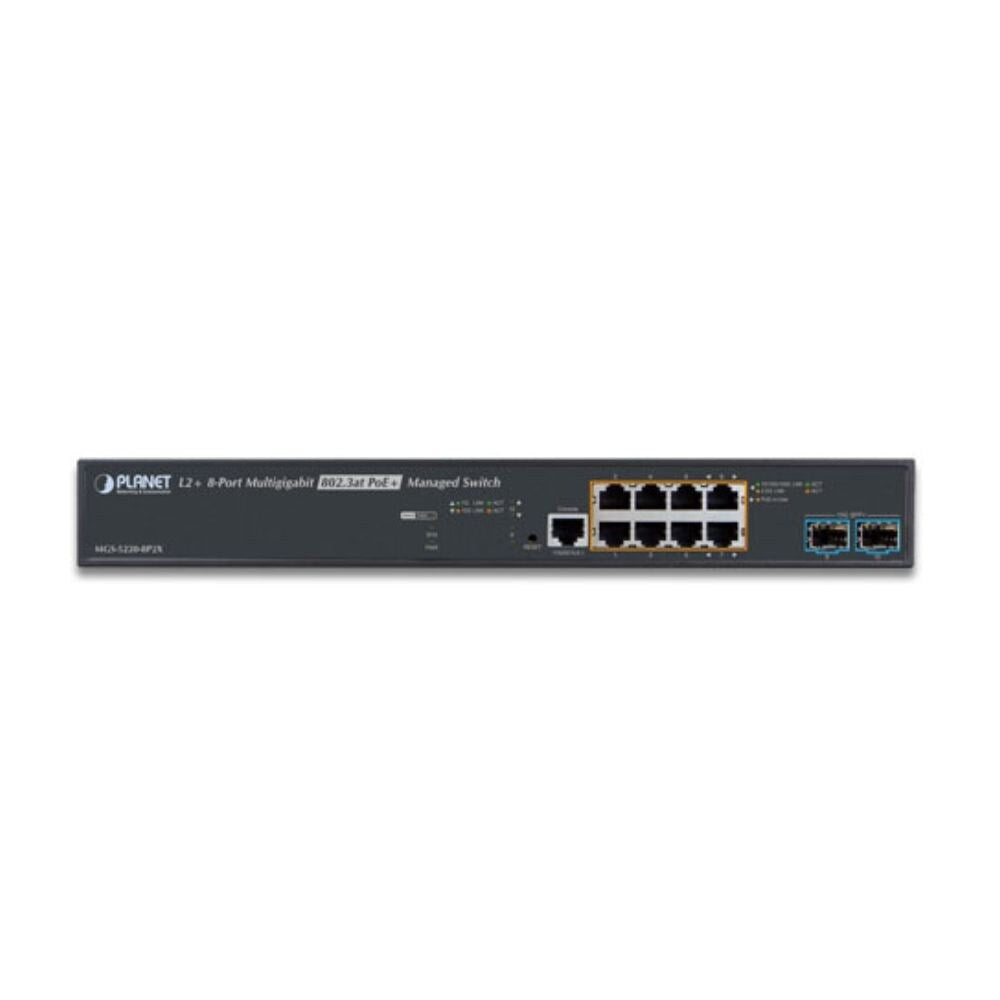

Planet Technology L2+ L4 8 Port 2.5G, 1G, 100T, 802.3at PoE +, 2 Port 10G SFP+ Managed Multi Gigabit Switch

Planet Technology L2+ L4 8 Port 2.5G, 1G, 100T, 802.3at PoE +, 2 Port 10G SFP+ Managed Multi Gigabit Switch 1

Planet Technology L2+ L4 8 Port 2.5G, 1G, 100T, 802.3at PoE +, 2 Port 10G SFP+ Managed Multi Gigabit Switch 2

Planet Technology L2+ L4 8 Port 2.5G, 1G, 100T, 802.3at PoE +, 2 Port 10G SFP+ Managed Multi Gigabit Switch

£842.64 £936.26

Discount: £93.62 (10%)

Out of stock

Add to favourites Delete favourites

Shipping Policy

Shipping Policy for AV Pros

Effective Date: March 19, 2025

At AV Pros, we are committed to providing you with a seamless shopping experience, including fast and efficient shipping. This Shipping Policy outlines the details regarding our shipping options, delivery times, and related information.

1. Shipping Options

We are pleased to offer the following shipping options for all orders placed through our website:

1.1. ⁠Free Tracked Shipping:
We provide free 2-3 day tracked shipping on all in-stock items shipped across the UK. Once your order has been processed and shipped, you will receive a tracking number via email so you can monitor your shipment's progress.

1.2. Express Next Day Shipping:
For faster delivery, we offer an express next day shipping option for a fee of £35 per order. Orders must be placed before 12 PM to qualify for next day delivery. If your order is placed after this time, it will be dispatched the following business day for delivery the next day.

2. Processing Times

•⁠ ⁠Orders are typically processed within 1-2 business days after payment confirmation.
•⁠ ⁠Please note that processing times may vary during peak periods or holidays, and we appreciate your understanding.

3. Delivery Times

•⁠ ⁠Standard Free Shipping: Delivery within 2-3 business days.
•⁠ ⁠Express Shipping: Next business day delivery for orders placed by 12 PM. Orders placed on weekends or holidays will be processed the next business day.

4. Shipping Restrictions

•⁠ ⁠All shipping services are available only within the mainland UK.
•⁠ ⁠Unfortunately, we currently do not offer international shipping or delivery to remote locations or islands.

5. Shipping Costs

•⁠ ⁠Standard Free Tracked Shipping: £0 on all in-stock items across the UK.
•⁠ ⁠Express Next Day Shipping: £35 per order, applicable only when chosen at checkout.

6. Tracking Your Order

Once your order has shipped, you will receive an email with shipping details, including a tracking number. You can use this tracking number to monitor your order's journey until it reaches your door.

7. Lost or Damaged Shipments

In the event that your order is marked as delivered but not received, or if it has arrived damaged, please contact our customer service team within 48 hours of delivery at info@avpros.co.uk or call us at 020 3355 5067. We will work with you to resolve the issue promptly.

8. Contact Us

If you have any questions or concerns regarding our shipping policy or your order, please do not hesitate to reach out to our customer service team at info@avpros.co.uk or call us at 020 3355 5067.

We appreciate your business and strive to provide you with the best shipping experience possible. Thank you for choosing AV Pros!

Estimated Delivery: Oct 27 - Oct 31

Standard Delivery: 2-3 Days.
Express Delivery: Next day when purchased before 12pm.

Pay Now or Later — Your Choice.

Description
User guides

Description:

The MGS-5220-8P2X is Planet Technology's first Layer 2+ Managed multi gigabit Switch providing 2.5Gbps data rate and PoE over UTP cables. It is designed for the demand of high bandwidth required network equipment, such as 802.11ac Wave 2 wireless acess points.

This managed switch offers a perfect hardware configuration with 8 100, 1000 and 2500BASE-T ports featuring 30W 802.3at PoE+ and 2 extra 1/10 Gigabit BASE-X SFP+ fibre slots.

The MGS-5220-8P2X breaks the bandwidth limitation of connecting wireless networks with wired networks and delivers hardware based Layer 3 static routing capability, Layer 2 and Layer 4 switching engine and Planet Technology's intelligent PoE functions.

It provides a highly secure and environment friendly network management tool and accelerates the deployment of wireless network infrastrucure.

Features:

Power over Ethernet up to 8 ports of IEEE 802.3af/802.3at devices powered
Supports PoE Power up to 30.8 watts for each PoE port
Prevents packet loss with back pressure, half-duplex and IEEE 802.3x pause frame flow control, full-duplex
High performance of Store and Forward architecture and runt/CRC filtering eliminates erroneous packets to optimise the network bandwidth
Storm Control support Broadcast, Multicast or unknown Unicast
SupportsIEEE 802.1Q tagged VLAN
Supports Spanning Tree Protocol of STP, IEEE 802.1D Spanning Tree Protocol, RSTP, IEEE 802.1w Rapid Spanning Tree Protocol, MSTP, IEEE 802.1s Multiple Spanning Tree Protocol and spanning tree by VLAN
Layer 3 IP routing features supports maximum 128 static routes and route summarisation
Quality of Service offers Ingress Shaper and Egress Rate Limit per port bandwidth control, 8 priority queues on all switch ports
Multicast supports IGMP Snooping v1, v2 and v3
Supports MLD Snooping v1 and v2 and Querier mode support, IGMP Snooping port filtering
Security with IEEE 802.1 x port based or MAC based network access authentication
Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues

Specifications:

Ports	Copper: 8 x 100, 1000 and 2500 BASE-T RJ45 Auto MDI or MDI-X PoE Injector: 8 ports with 802.3at/af PoE injector function with port 1 to port 8 SFP or Mini GBIC Slots: 2 x 1/10G BASE-X SFP interfaces with port 9 to port 10
Console	1 x RJ45 serial port (115200 , 8, N, 1)
Switch	Switch Architecture: Store and Forward Switch Fabric: 80Gbps
Throughput	59.52Mpps @ 64 bytes
Flow Control	IEEE 802.3 x pause frame for full duplex Back pressure for half duplex
PoE	Standard: IEEE 802.3at PoE Plus, PSE Power Supply Type: End span Power Output: Per port 54V DC, max 30.8W Power Budget: 240W max @ 25°C 200W max @ 50°C
PoE Ability	PD @ 7 W: 8 units PD @ 15.4W: 8 units PD @ 30.8Ws: 8 units
LED	System: Fan alert (green), SYS (green), PWR (green) 100/1000/2500 BASE-T RJ45 Interfaces Port 1 to Port ): 100/1000Mbps LNK/ACT (green) 2500 Mbps (orange) PoE in use (orange) 1/10G Mbps SFP Interfaces Port 9 to Port 10 : 1G LNK/ACT (green) 10G Mbps (orange)
Power	Requirement: 100 to 240V AC 50/60Hz Consumption Full Loading: 320 W / 1091.9 BTU max
ESD Protection	6KV DC
Rack Size	1RU height
Dimensions	Height: 43.5mm / 1.71" Width: 330mm / 12.99" Depth: 200mm / 7.87"
Weight	2kg / 4.41lb

Download User Guides:

Data Sheet

Users Manual

Quick Start Guide
